Vdc System Trouble Code Charts For Warning Light Codes

TROUBLE CODE 73 ABNORMAL LATERAL G SENSOR

DIAGNOSIS:
- Faulty lateral G sensor

TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

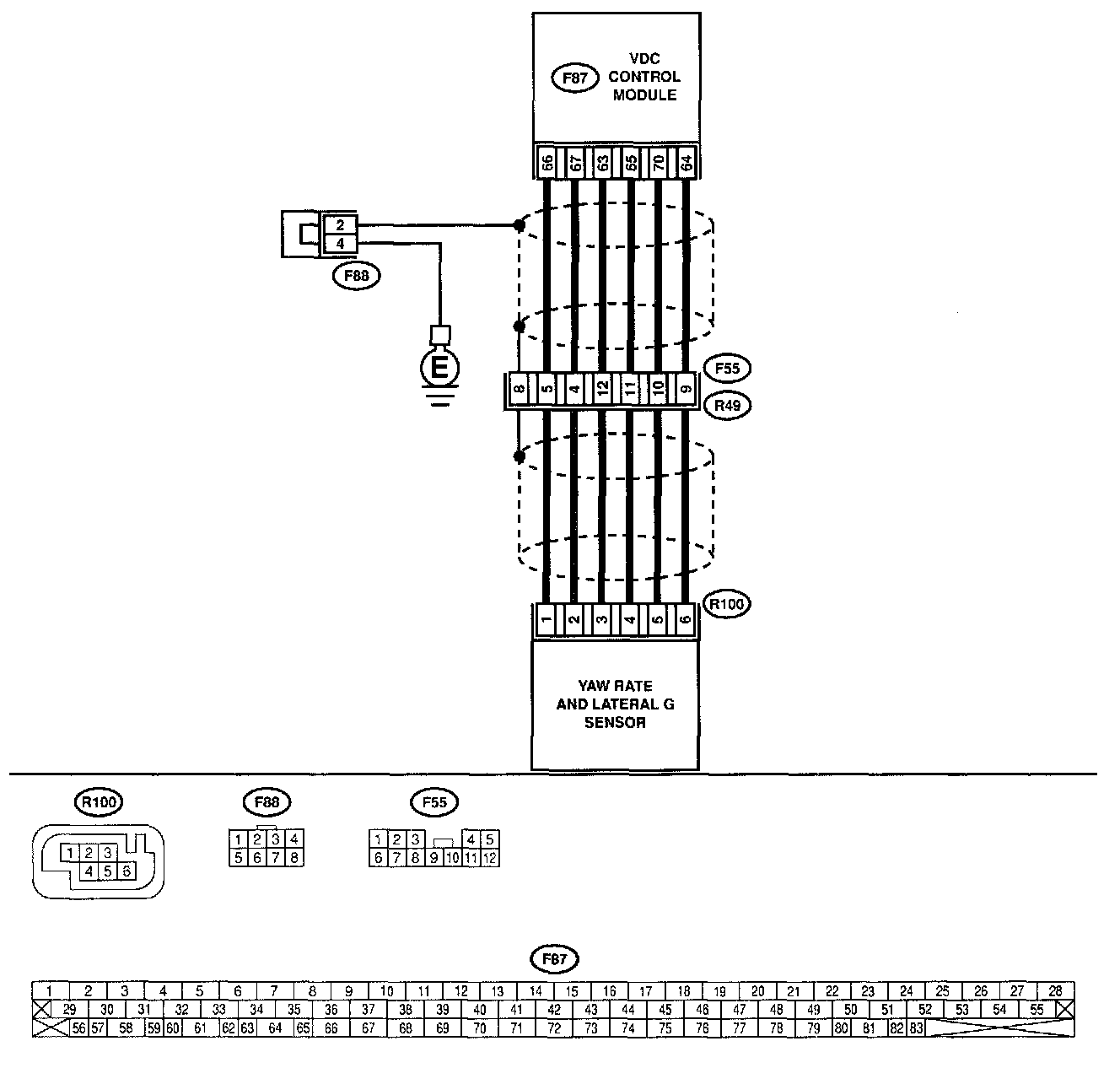

WIRING DIAGRAM:

PROCEDURE:

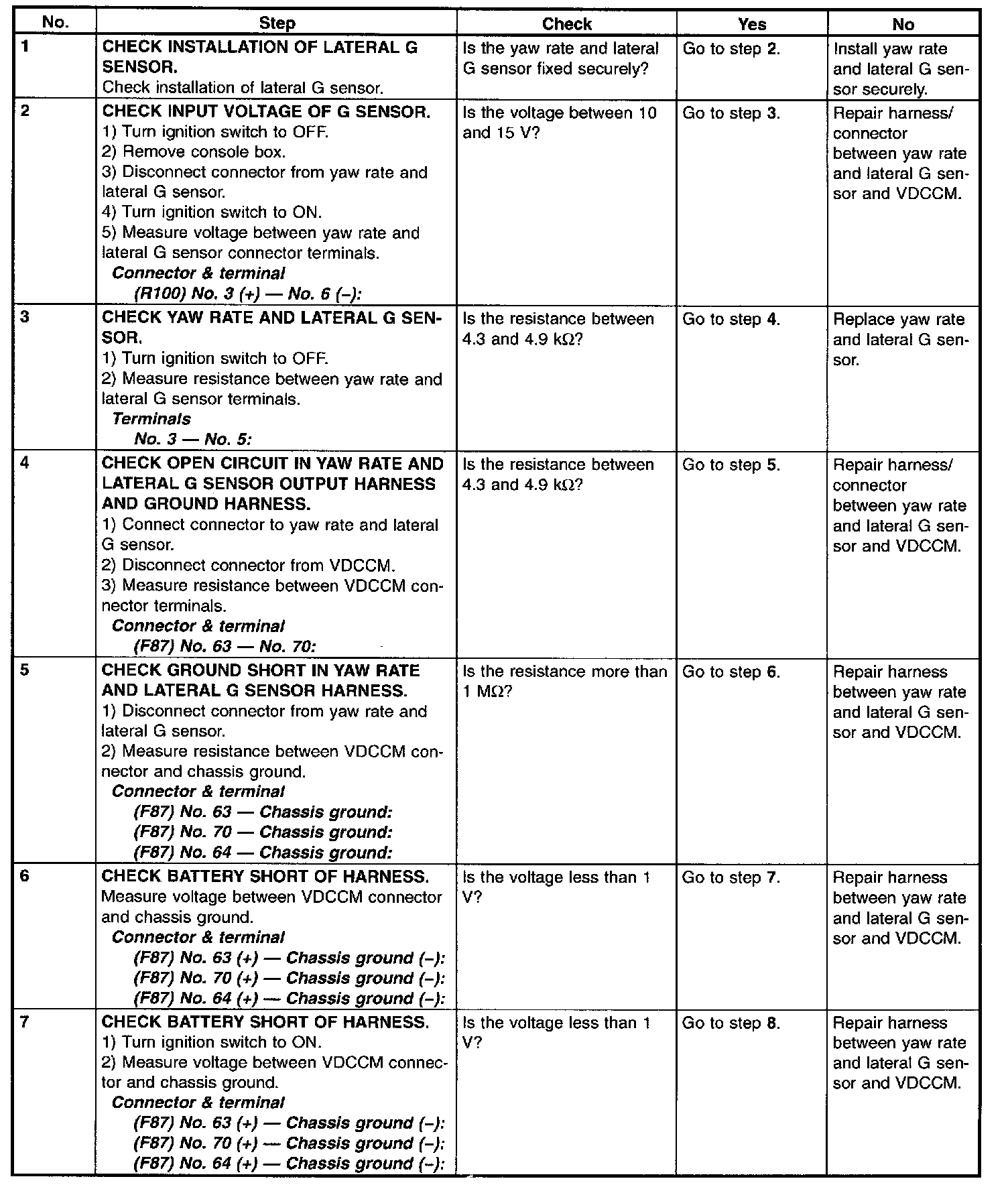

No. 1 - 7

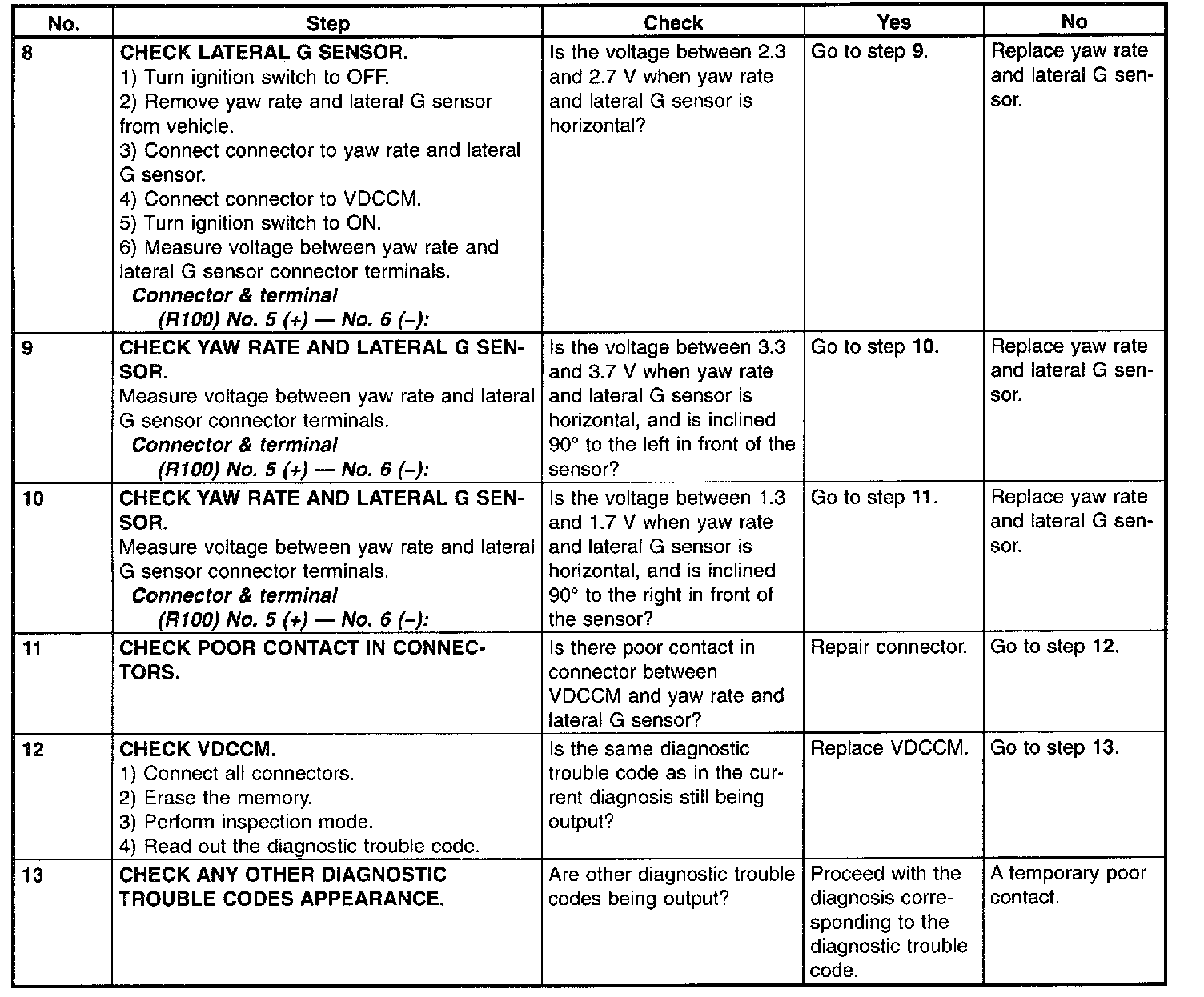

No. 8 - 13
