Transmission Control Systems
DTC 73 LOW CLUTCH TIMING SOLENOIDDIAGNOSIS: Output signal circuit of low clutch timing solenoid is open or shorted.
TROUBLE SYMPTOM: Excessive shift shock.

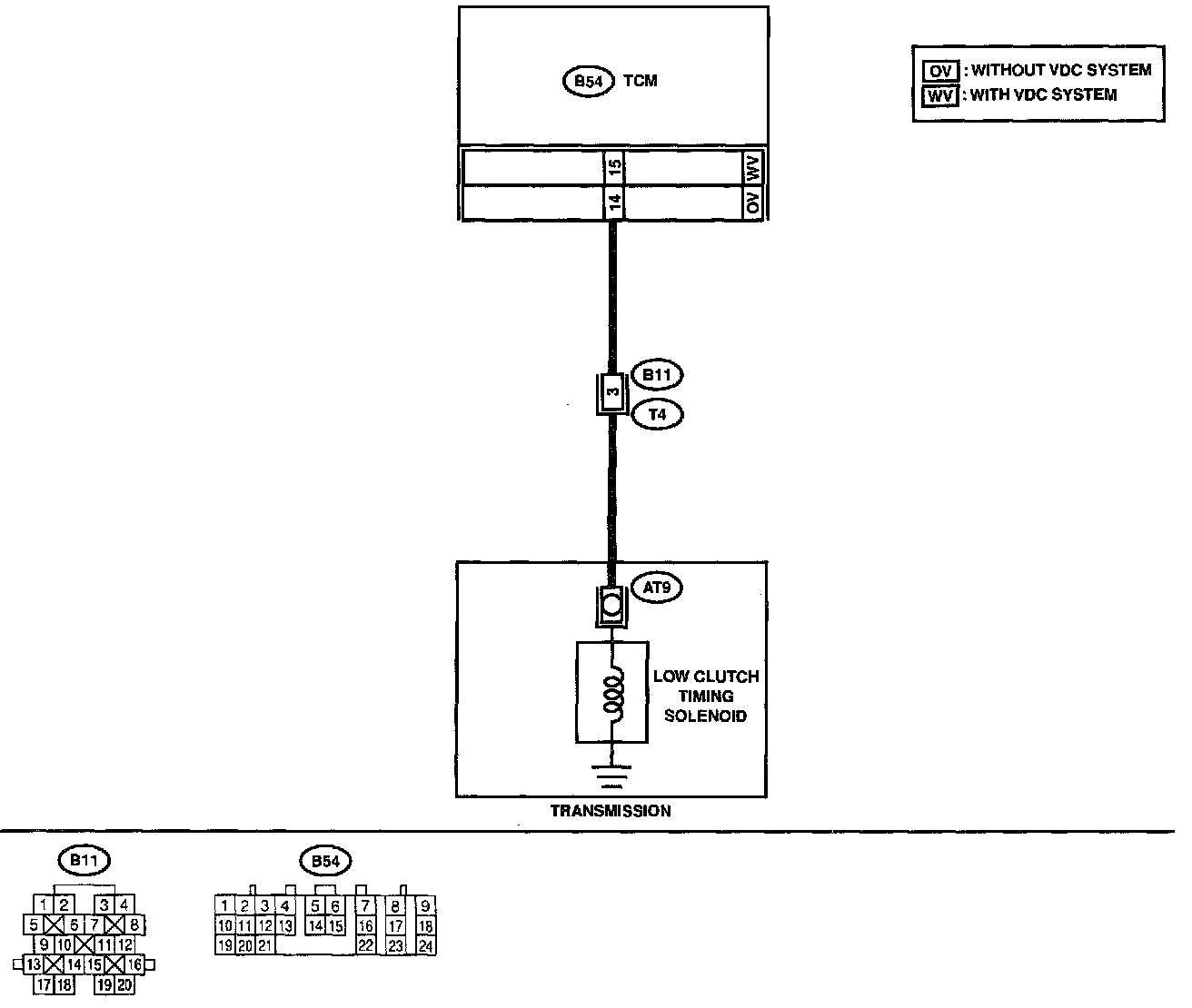

WIRING DIAGRAM:

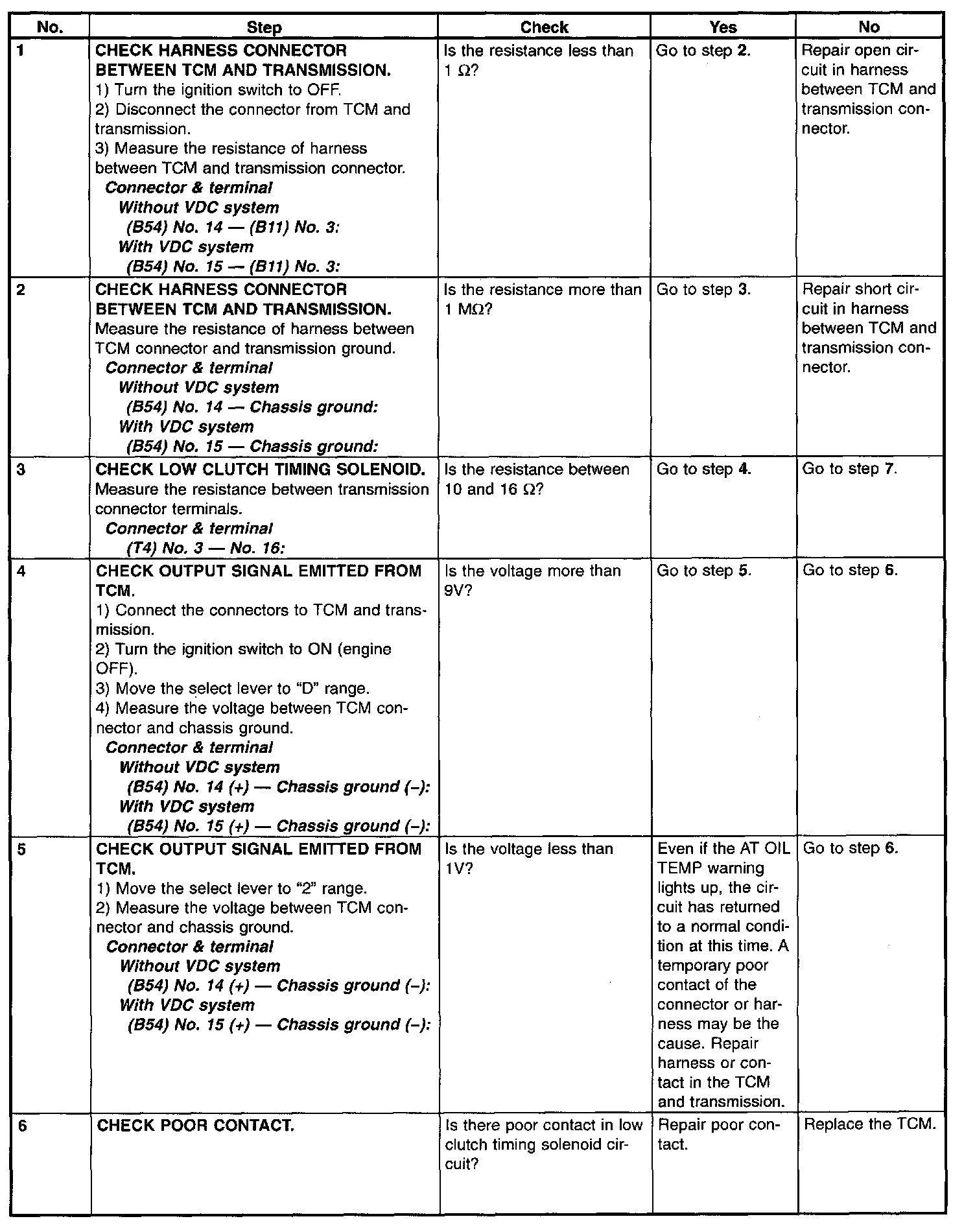

Test Steps 1 through 6
Test Steps 7 through 9
DIAGNOSIS: Output signal circuit of low clutch timing solenoid is open or shorted.
TROUBLE SYMPTOM: Excessive shift shock.
WIRING DIAGRAM:
Test Steps 1 through 6
Test Steps 7 through 9
