Transmission Control Systems
DTC 72 SHIFT SOLENOIDDIAGNOSIS: Output signal circuit of shift solenoid 2 is open or shorted.
TROUBLE SYMPTOM: Does not shift.

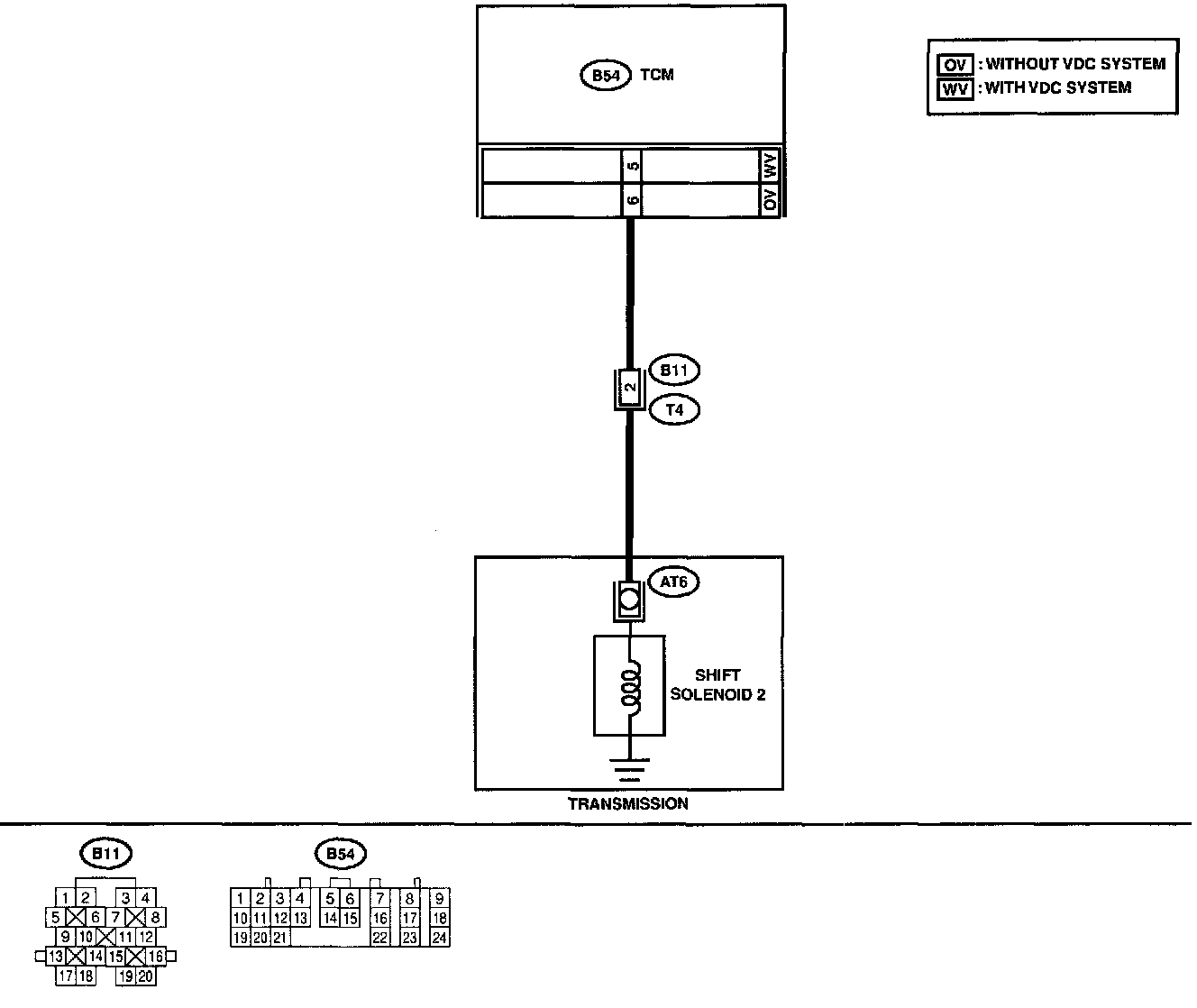

WIRING DIAGRAM:

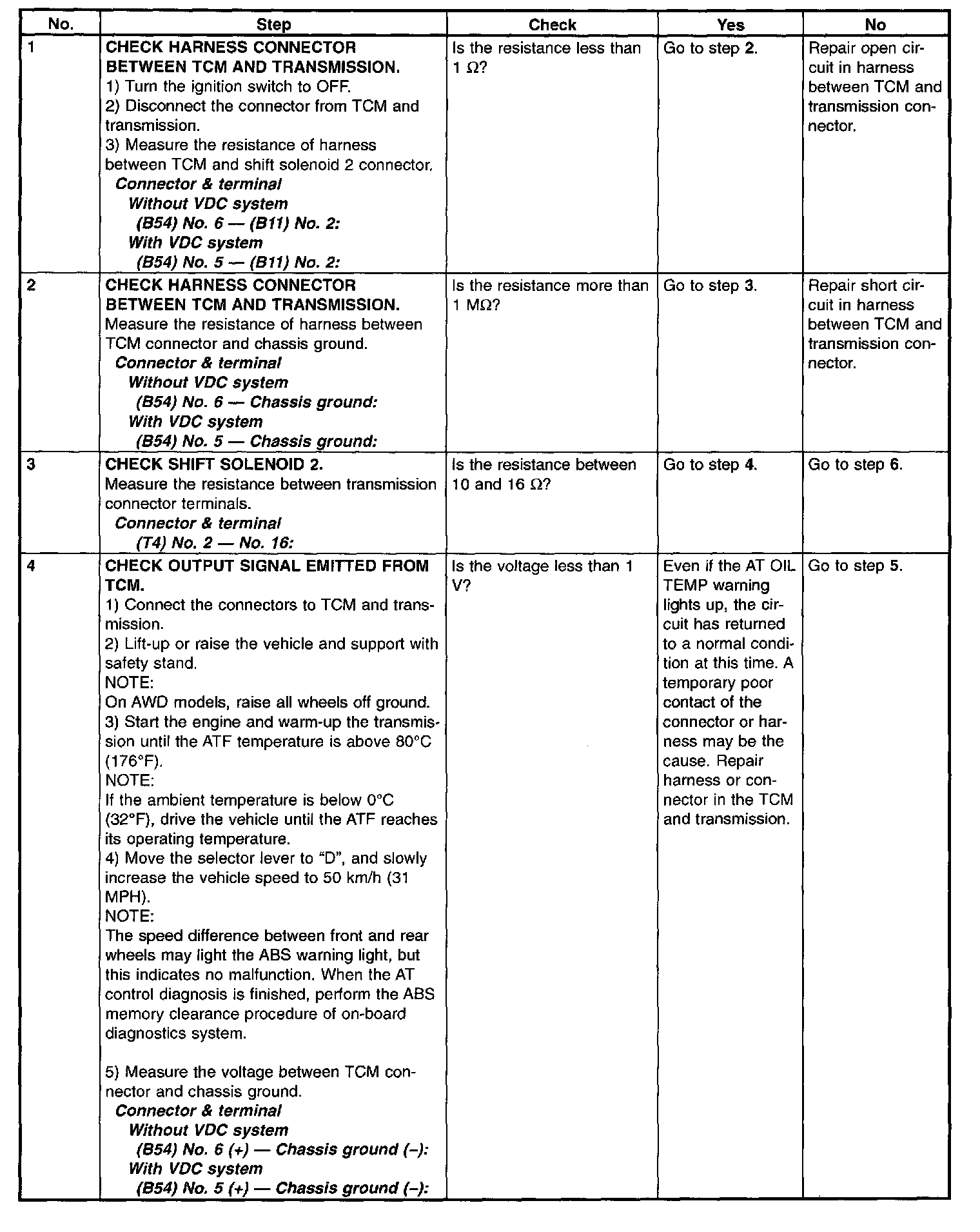

Test Steps 1 through 4

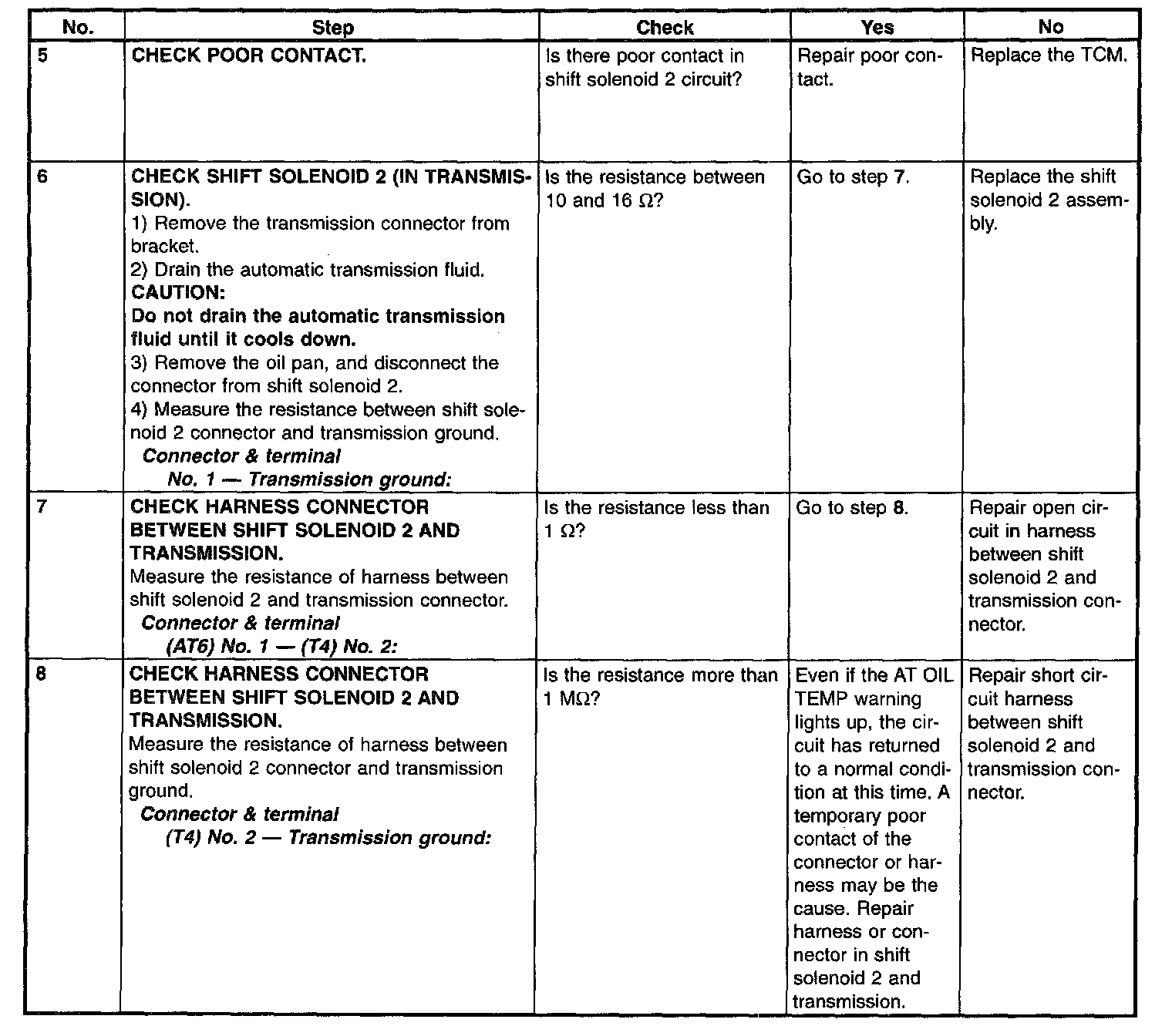

Test Steps 5 through 8
DIAGNOSIS: Output signal circuit of shift solenoid 2 is open or shorted.
TROUBLE SYMPTOM: Does not shift.
WIRING DIAGRAM:
Test Steps 1 through 4
Test Steps 5 through 8
