Vdc System Trouble Code Charts For Warning Light Codes
TROUBLE CODE 71 ABNORMAL STEERING ANGLE SENSORDIAGNOSIS:
- Faulty steering angle sensor
TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

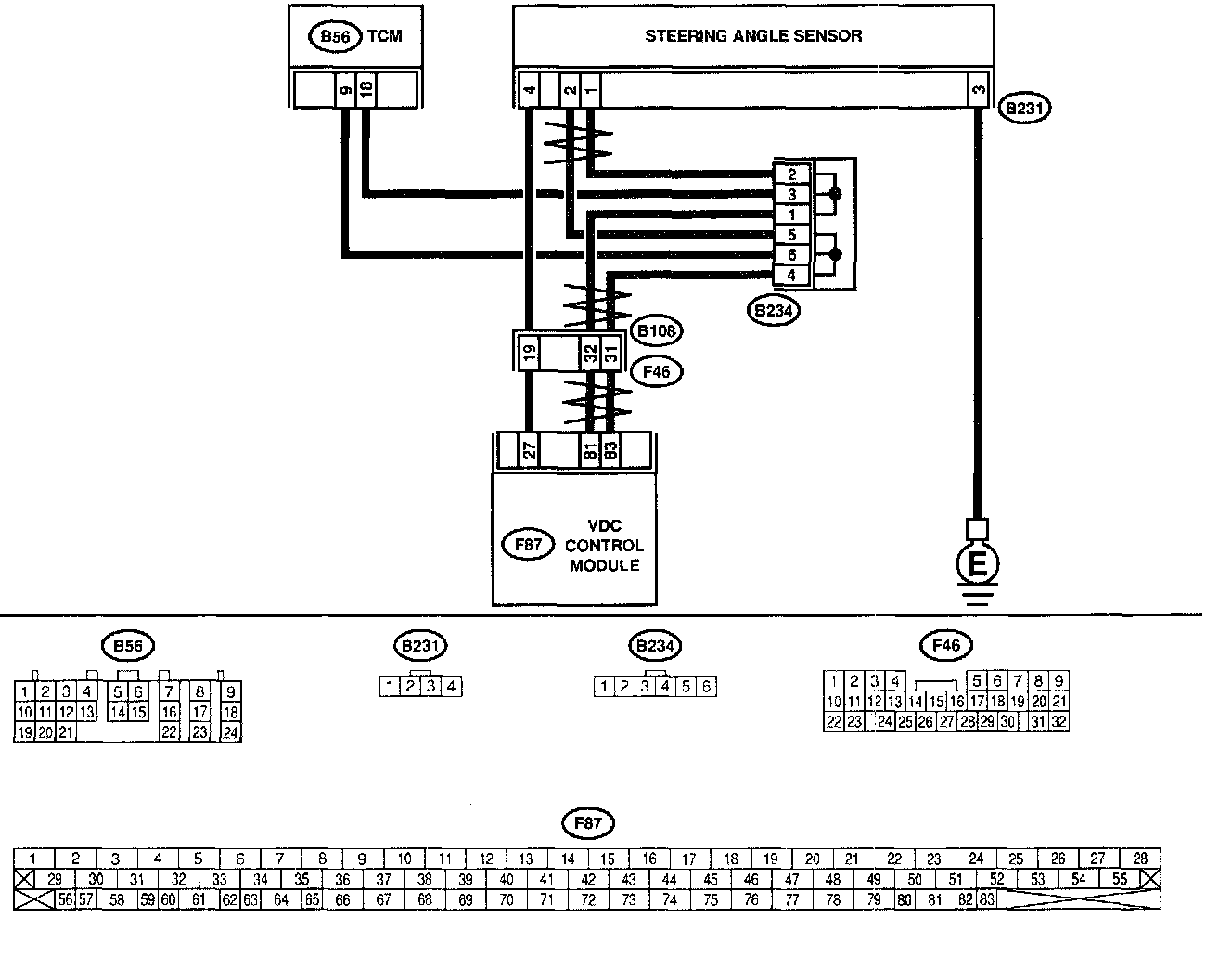

WIRING DIAGRAM:
PROCEDURE:

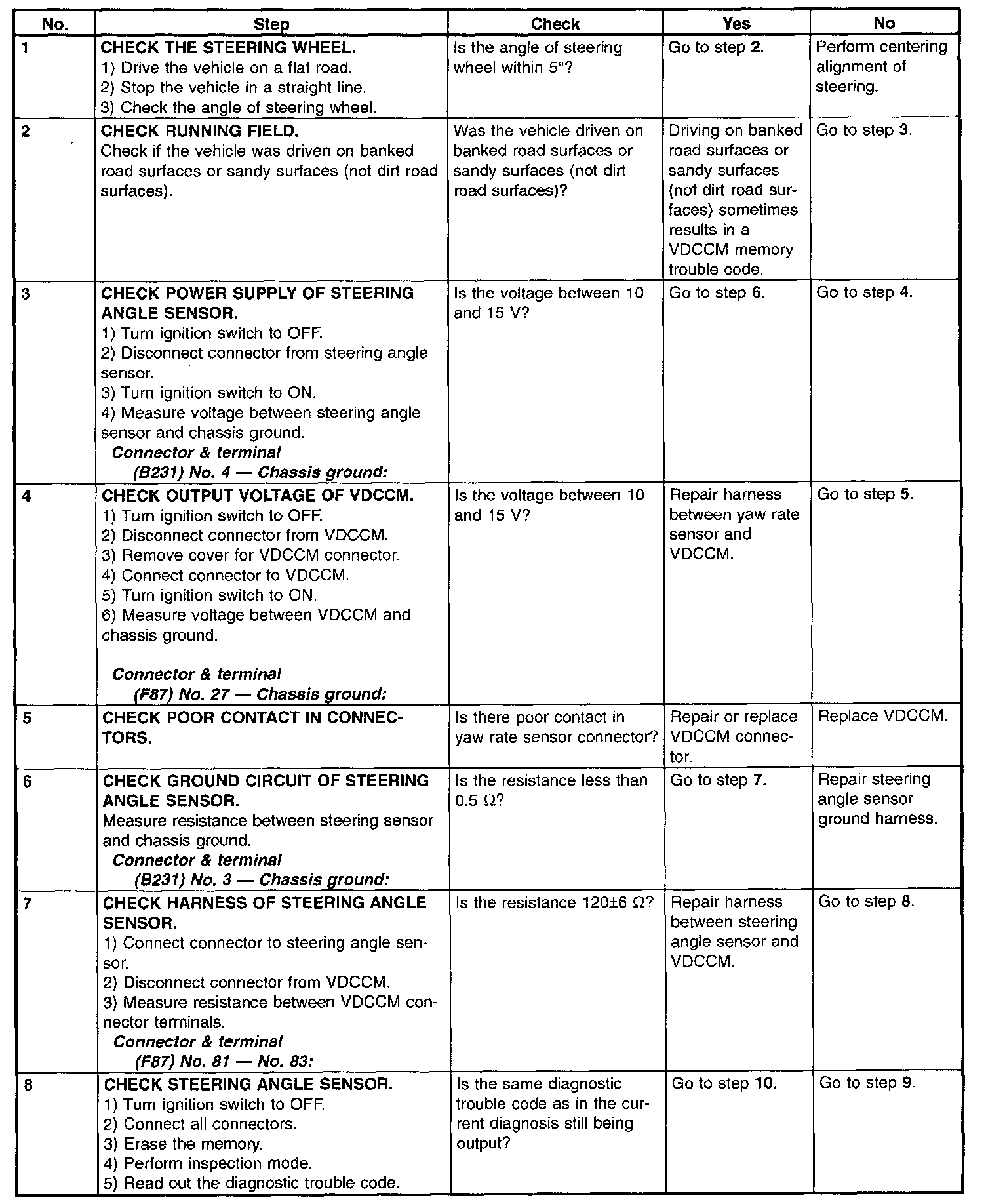

No. 1 - 8

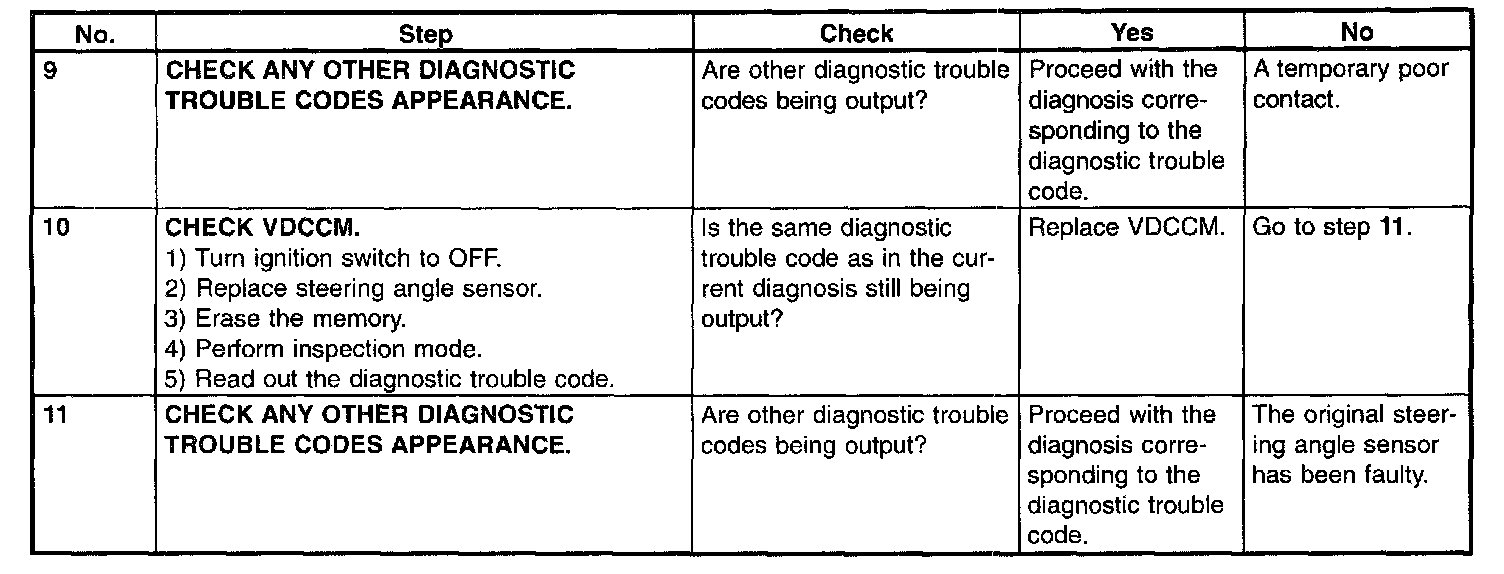

No. 9 - 11
