Vdc System Trouble Code Charts For Select Monitor Results

TROUBLE CODE 32 FR PRESSURE REDUCING VALVE MALFUNCTION (FRONT RIGHT OUTLET VALVE MALFUNCTION)

TROUBLE CODE 34 FL PRESSURE REDUCING VALVE MALFUNCTION (FRONT LEFT OUTLET VALVE MALFUNCTION)

TROUBLE CODE 36 RR PRESSURE REDUCING VALVE MALFUNCTION (REAR RIGHT OUTLET VALVE MALFUNCTION)

TROUBLE CODE 38 RL PRESSURE REDUCING VALVE MALFUNCTION (REAR LEFT OUTLET VALVE MALFUNCTION)

TROUBLE CODE 63 NORMAL CLOSING VALVE 2 MALFUNCTION (PRIMARY SUCTION VALVE MALFUNCTION)

TROUBLE CODE 64 NORMAL CLOSING VALVE 1 MALFUNCTION (SECONDARY SUCTION VALVE MALFUNCTION)

DIAGNOSIS:
- Faulty harness/connector
- Faulty solenoid valve in VDCH/U

TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.





WIRING DIAGRAM:

PROCEDURE:

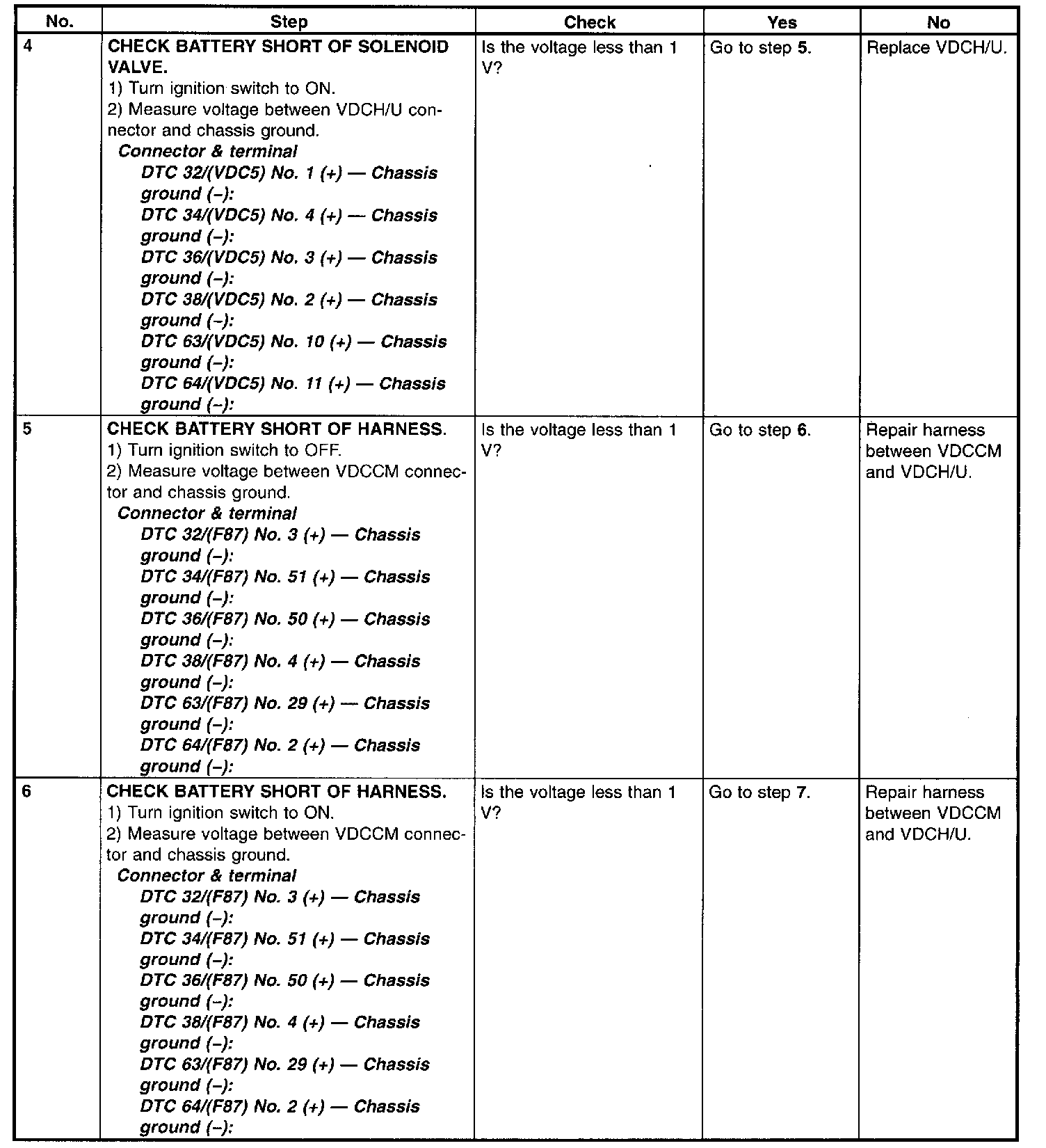

No. 1 - 3





No. 4 - 6





No. 7 - 11
