Short Circuit to Battery In G Sensor Circuit
TROUBLE CODE 56 -BATTERY SHORT IN G SENSOR CIRCUIT-DIAGNOSIS:
- Faulty G sensor output voltage.
TROUBLE SYMPTOM:
- ABS does not operate.

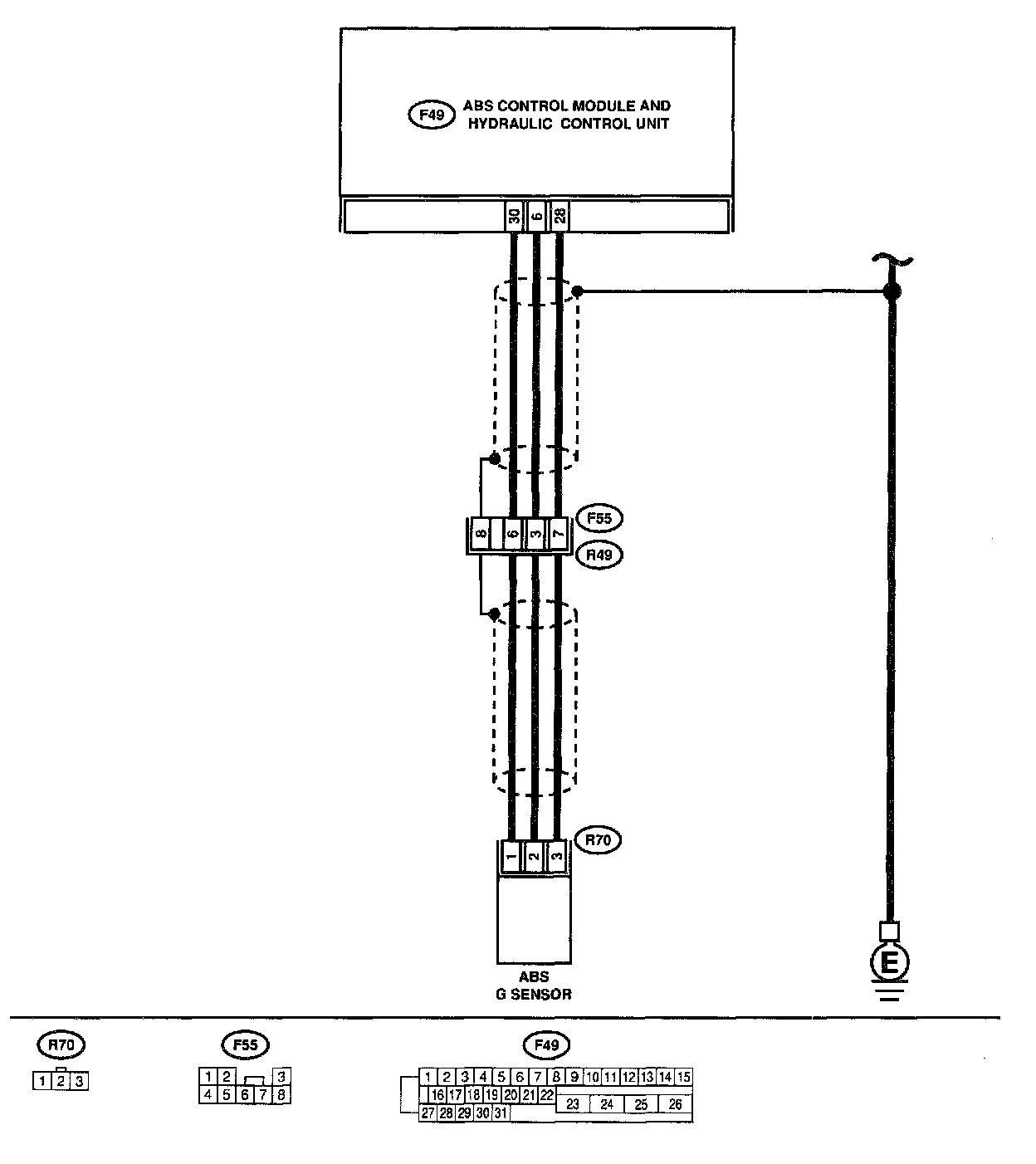

WIRING DIAGRAM:
PROCEDURE:

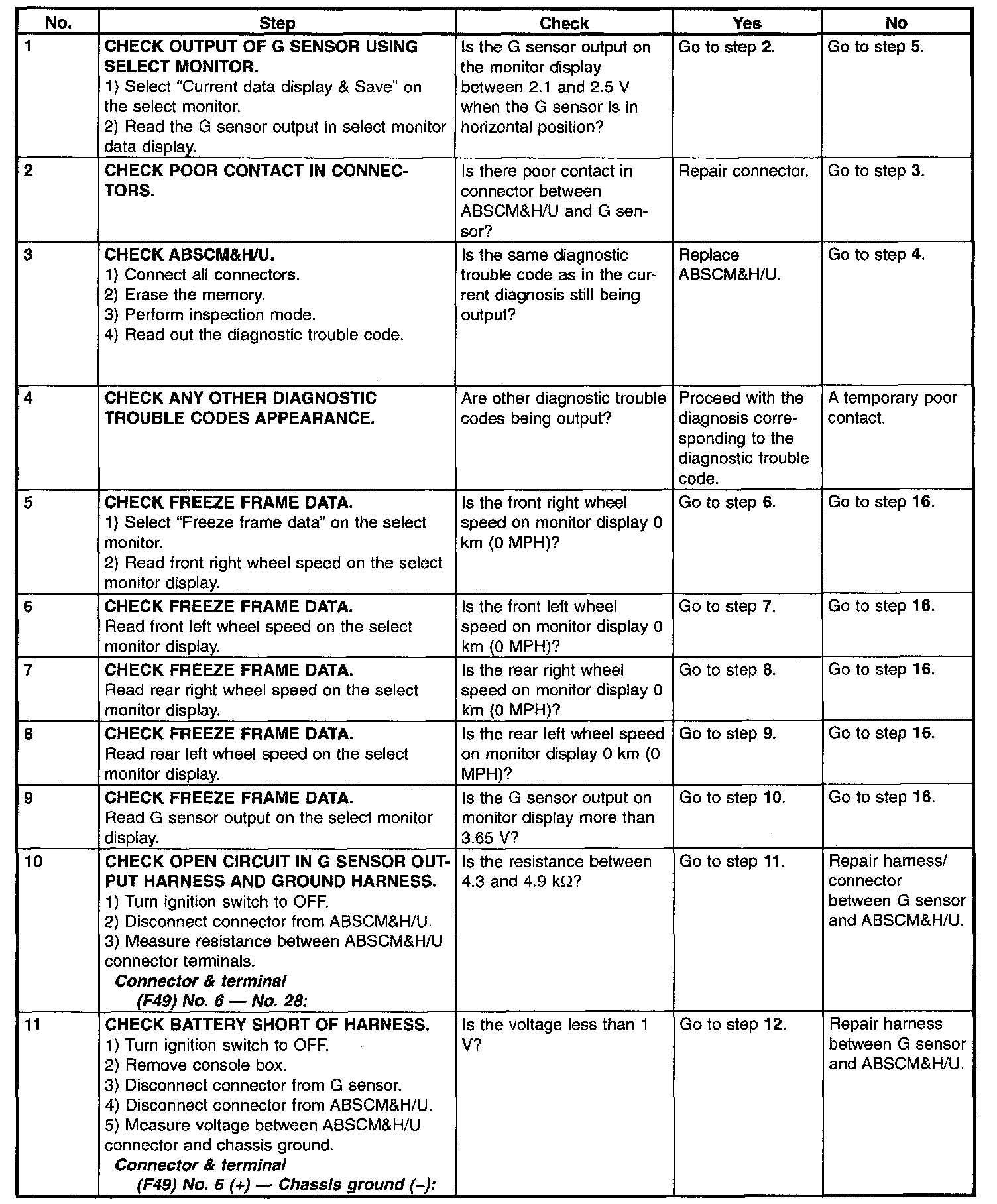

No. 1 - 11
No. 12 - 20
No. 21 - 23
DIAGNOSIS:
- Faulty G sensor output voltage.
TROUBLE SYMPTOM:
- ABS does not operate.
WIRING DIAGRAM:
PROCEDURE:
No. 1 - 11
No. 12 - 20
No. 21 - 23
