Open or Short Circuit In G Sensor Circuit
TROUBLE CODE 56 -OPEN OR SHORT CIRCUIT IN G SENSOR CIRCUIT-DIAGNOSIS:
- Faulty G sensor output voltage.
TROUBLE SYMPTOM:
- ABS does not operate.

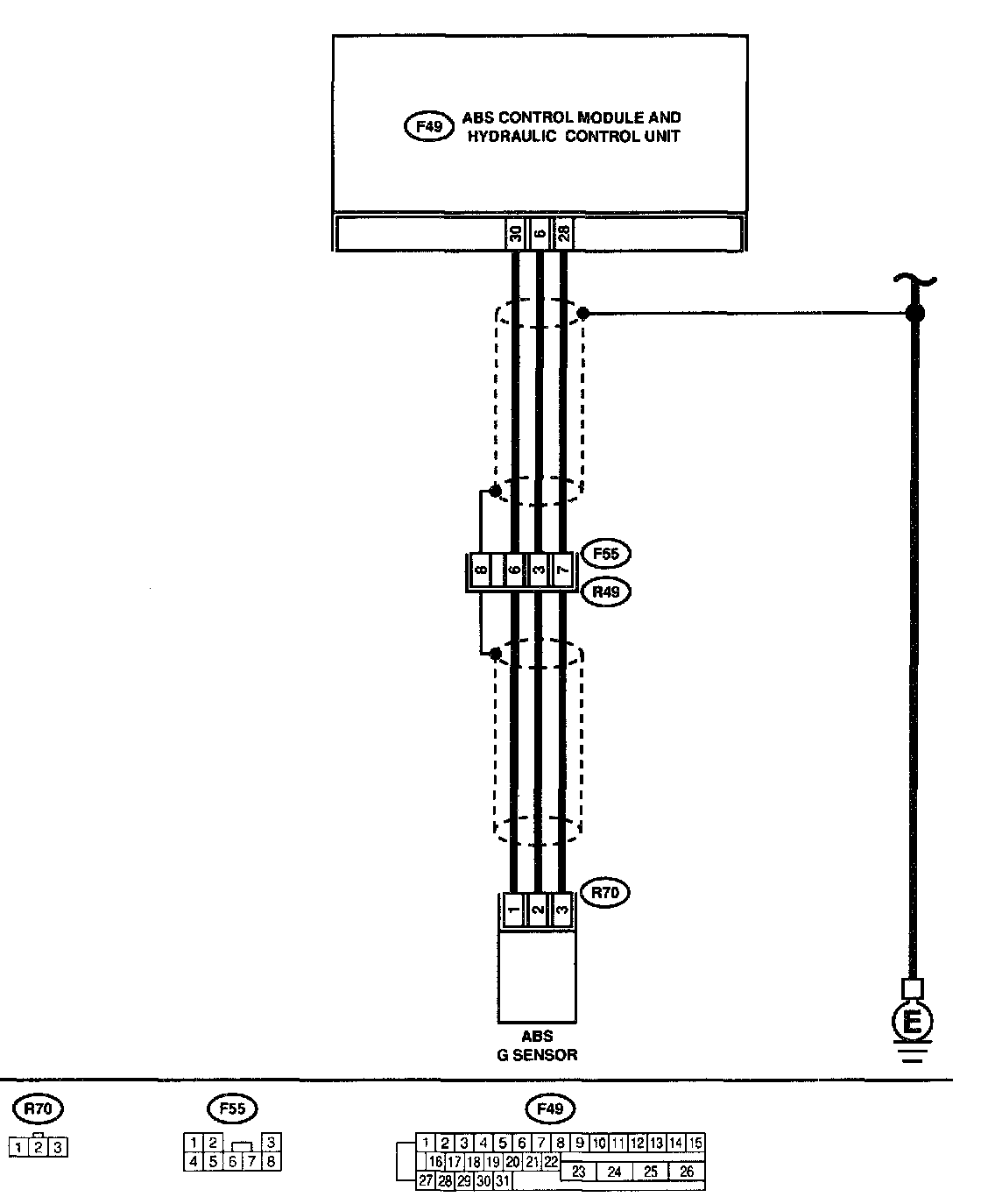

WIRING DIAGRAM:
PROCEDURE:

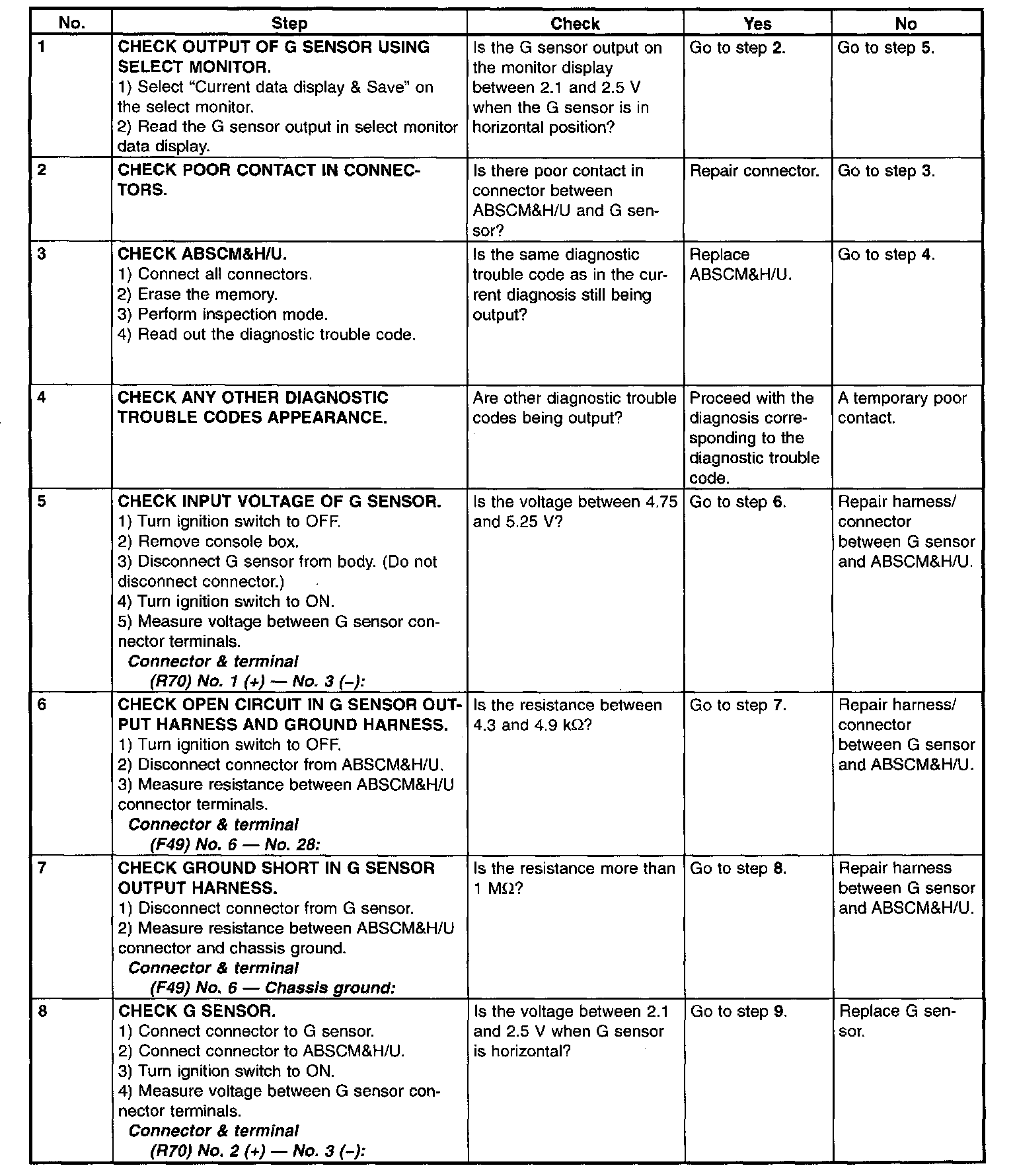

No. 1 - 8

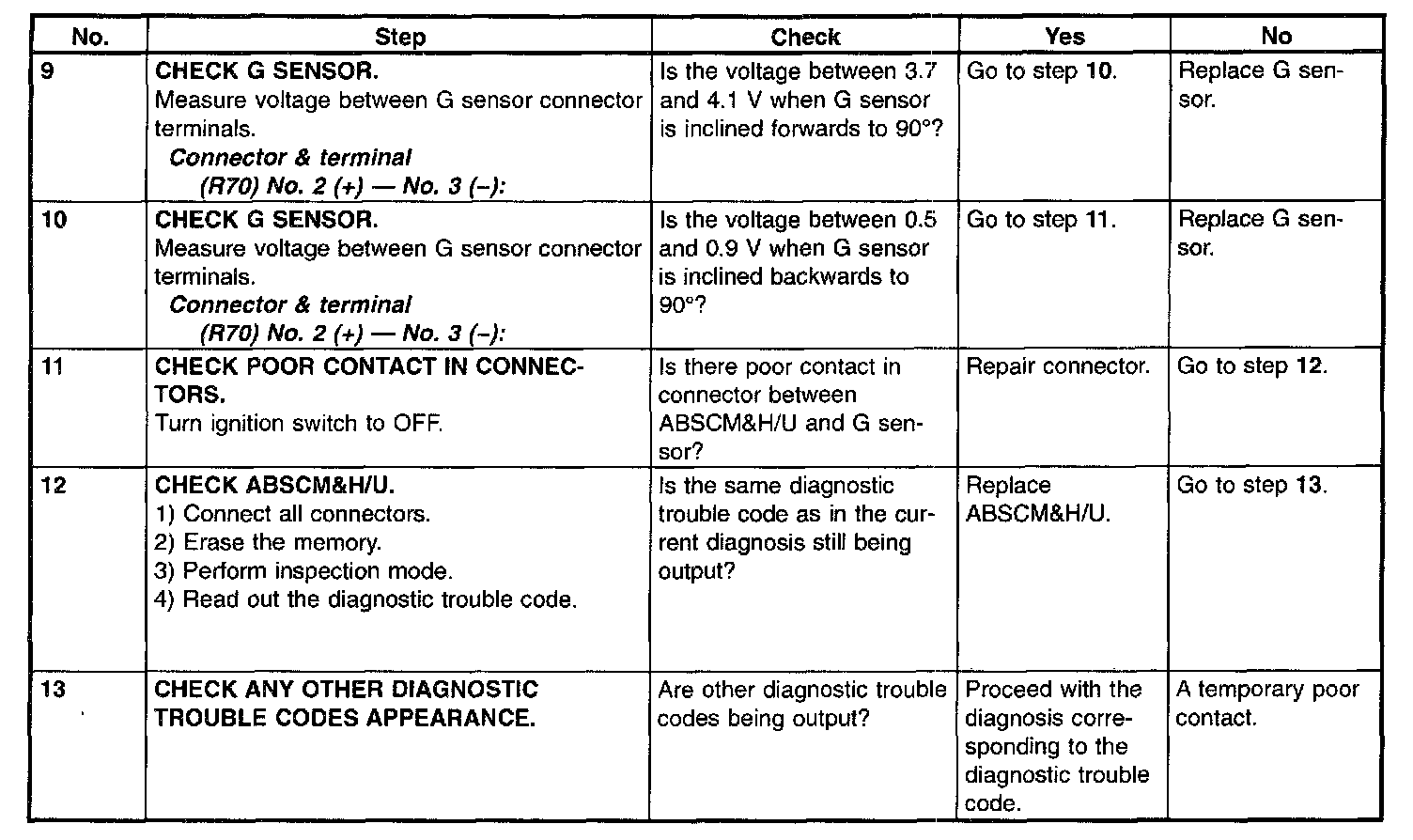

No. 9 - 13
DIAGNOSIS:
- Faulty G sensor output voltage.
TROUBLE SYMPTOM:
- ABS does not operate.
WIRING DIAGRAM:
PROCEDURE:
No. 1 - 8
No. 9 - 13
