Abnormal G Sensor High - Output
TROUBLE CODE 56-ABNORMAL G SENSOR HIGH -OUTPUT-DIAGNOSIS:
- Faulty G sensor output voltage
TROUBLE SYMPTOM:
- ABS does not operate.

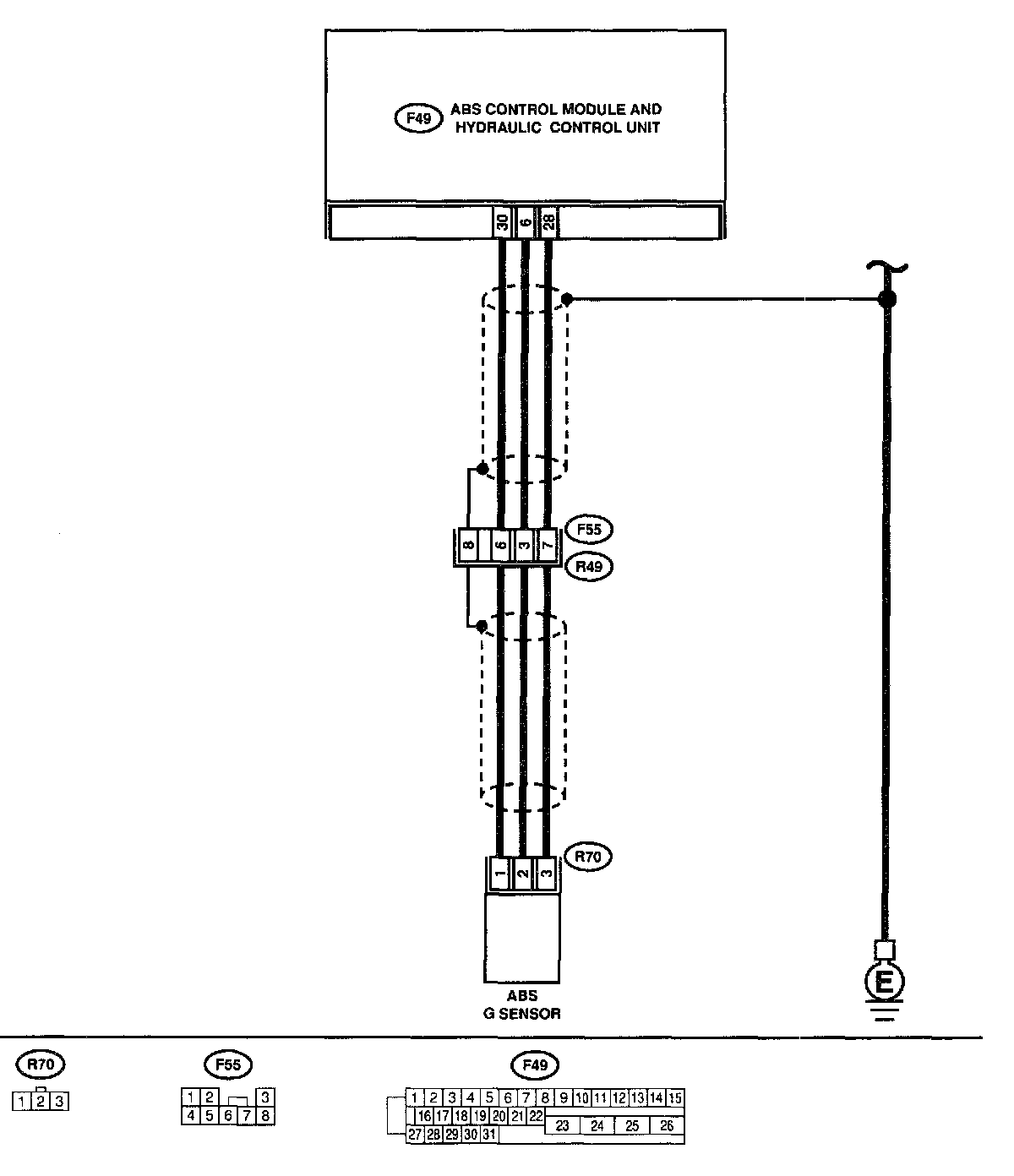

WIRING DIAGRAM:
PROCEDURE:

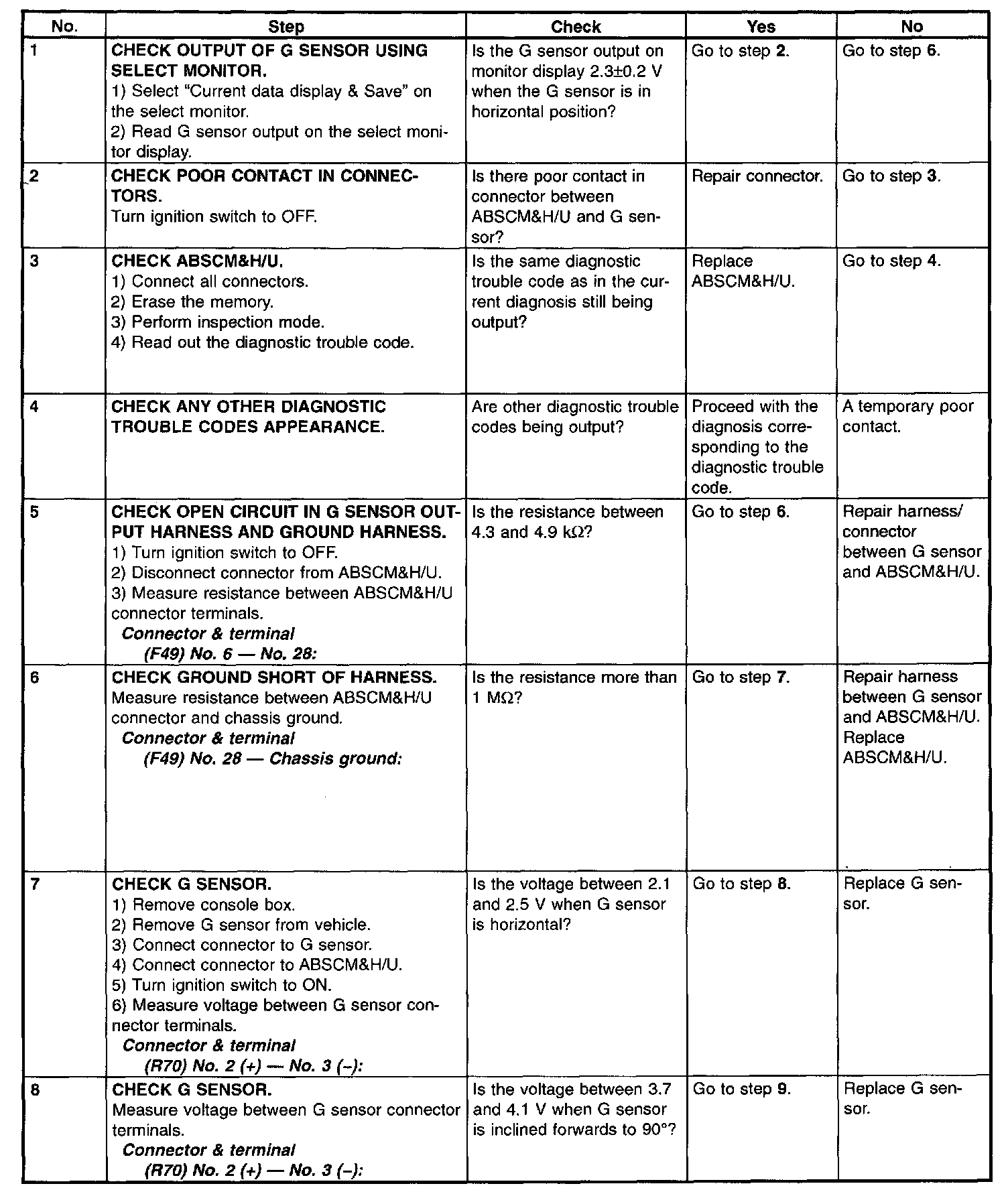

No. 1 - 8

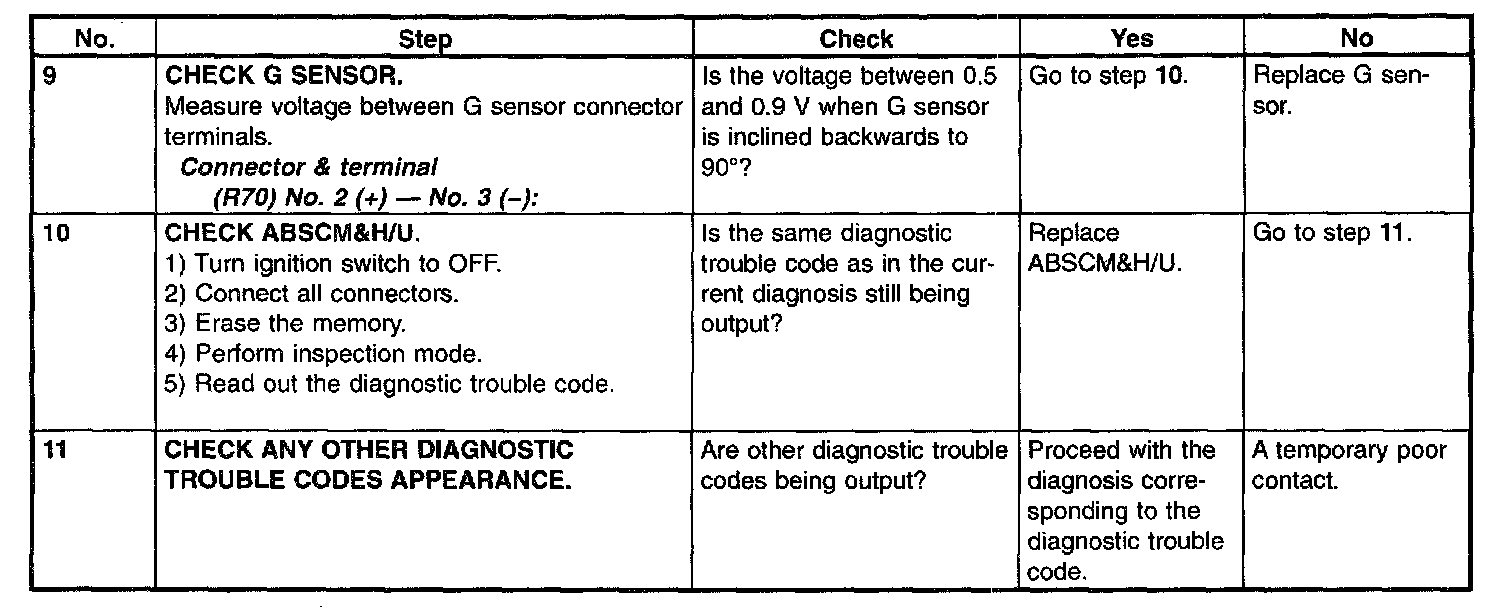

No. 9 - 11
DIAGNOSIS:
- Faulty G sensor output voltage
TROUBLE SYMPTOM:
- ABS does not operate.
WIRING DIAGRAM:
PROCEDURE:
No. 1 - 8
No. 9 - 11
