ABS Trouble Code Charts For Warning Light Codes

This information has been updated by TSB 18-69-01 dated 07/01/2001


TROUBLE CODE 56 -ABNORMAL G SENSOR OUTPUT VOLTAGE-
DIAGNOSIS:
- Faulty G sensor output voltage
TROUBLE SYMPTOM:
- ABS does not operate.

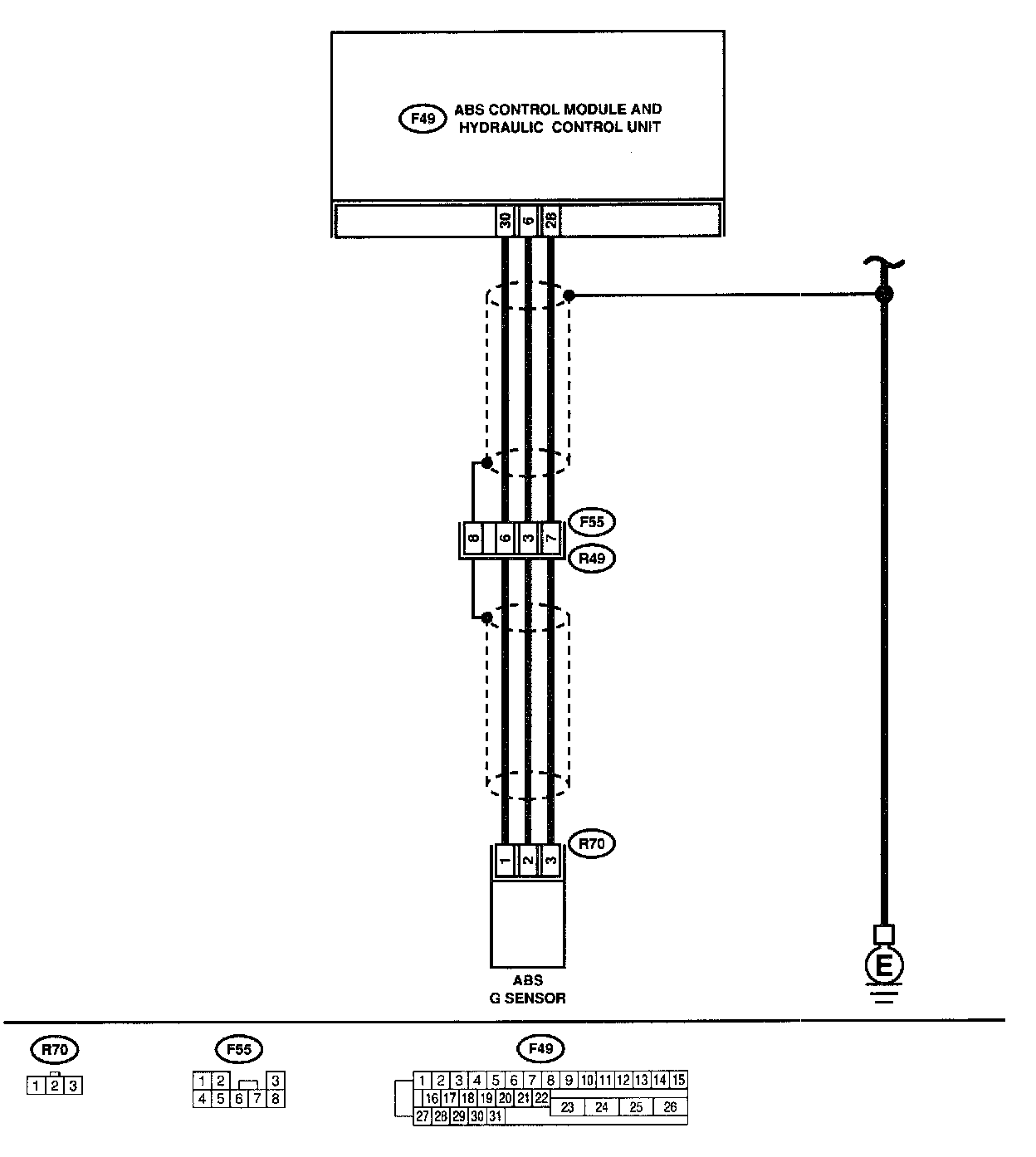

WIRING DIAGRAM

PROCEDURE:

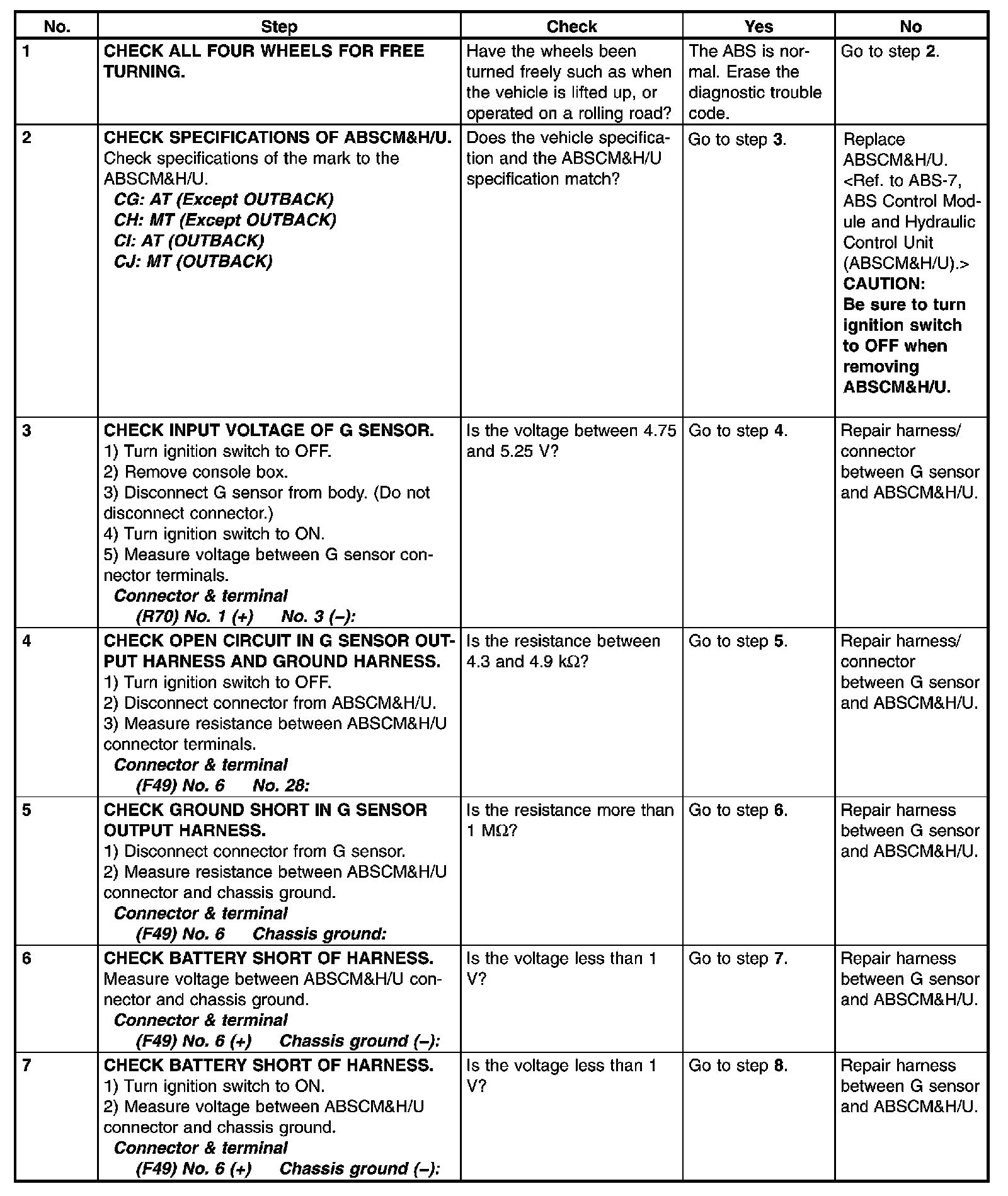

No. 1 - 7

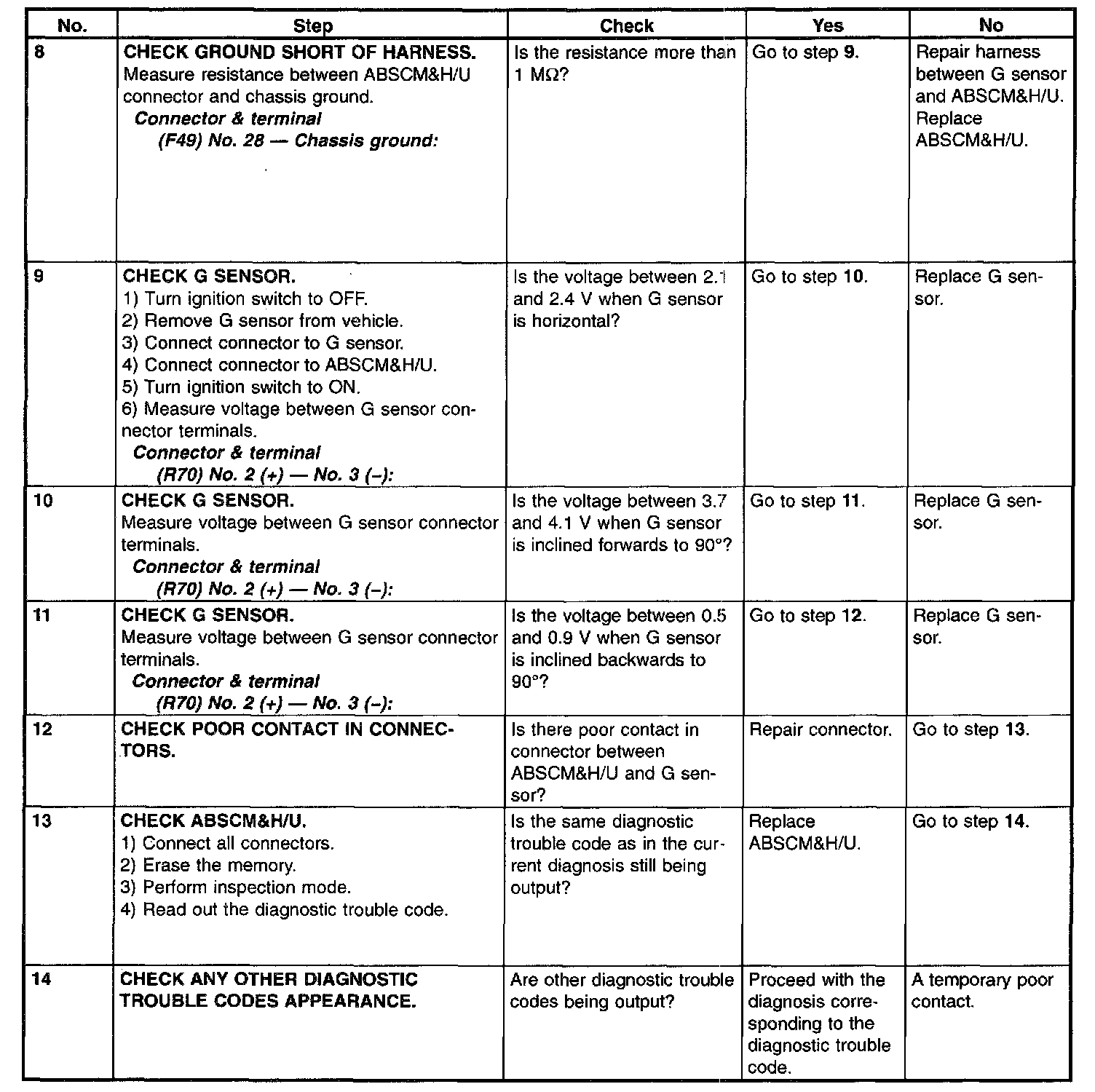

No. 8 - 14
