Vdc System

TROUBLE CODE 52 ABNORMAL MOTOR AND/OR MOTOR RELAY

DIAGNOSIS:
- Faulty motor
- Faulty motor relay
- Faulty harness connector

TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

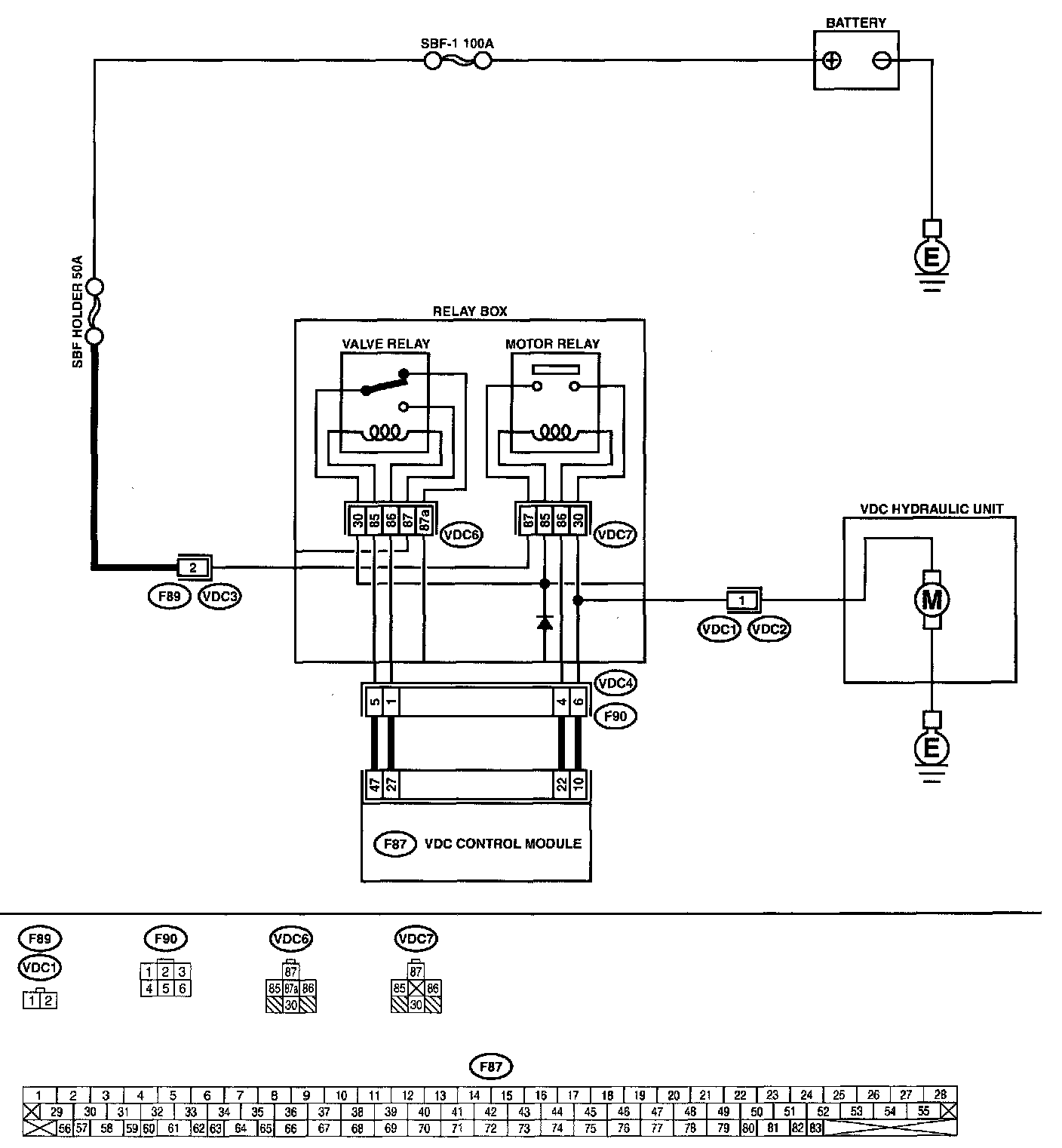

WIRING DIAGRAM:

PROCEDURE:

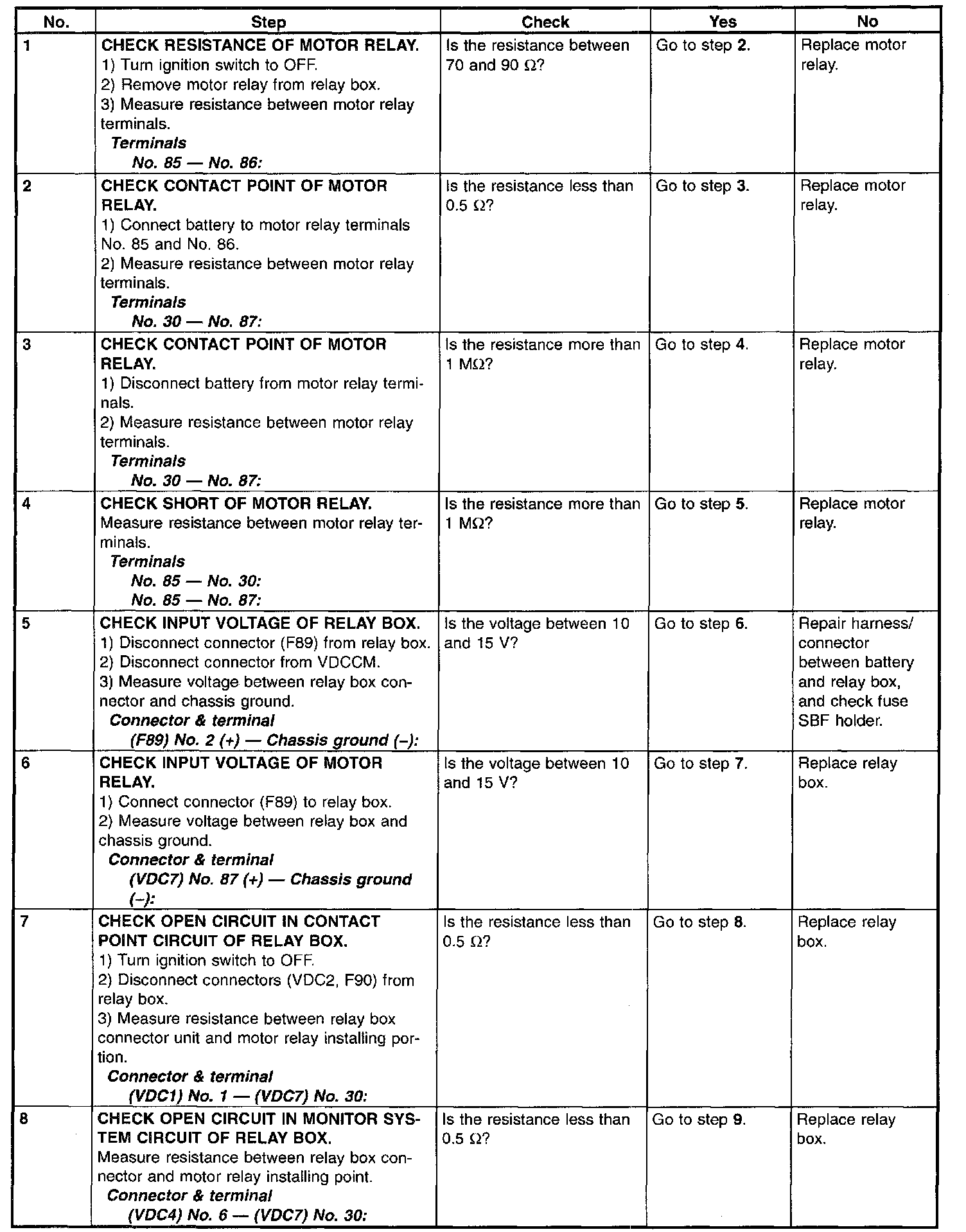

No. 1 - 8

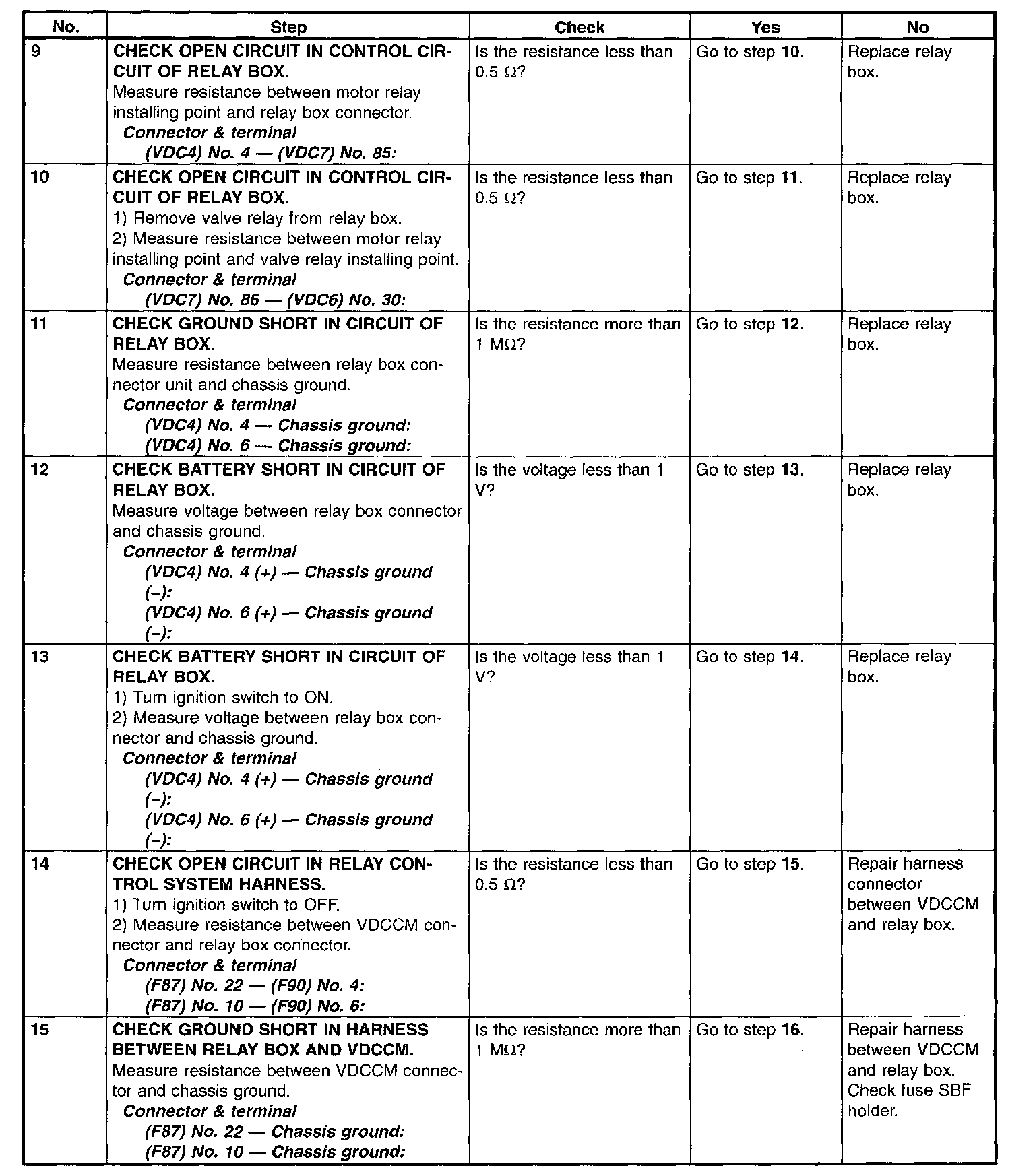

No. 9 - 15

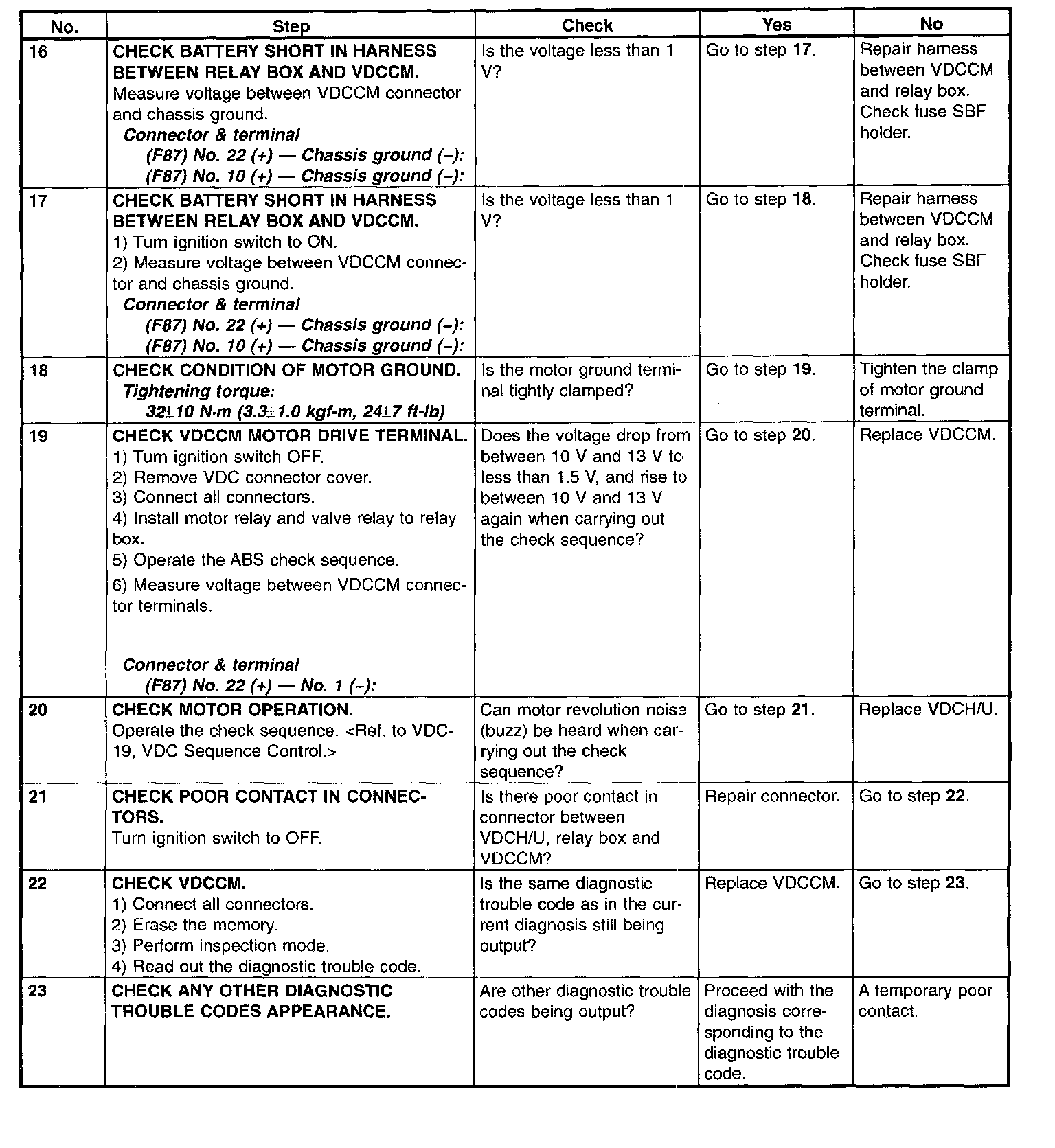

No. 16 - 23
