Motor/Motor Relay on Malfunction

TROUBLE CODE 52 MOTOR AND MOTOR RELAY ON FAILURE

DIAGNOSIS:
- Faulty motor relay
- Faulty harness connector

TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

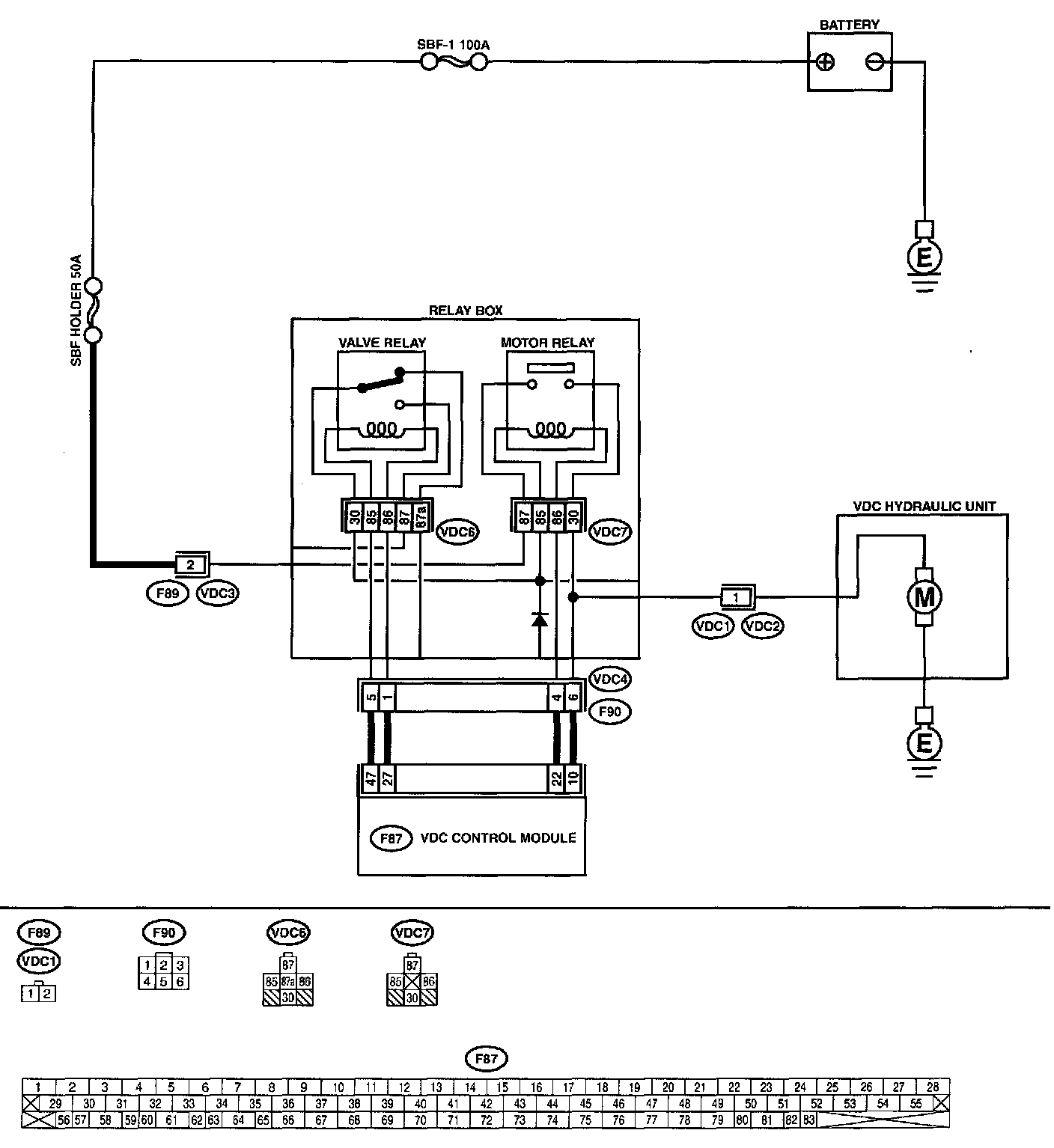

WIRING DIAGRAM:

PROCEDURE:

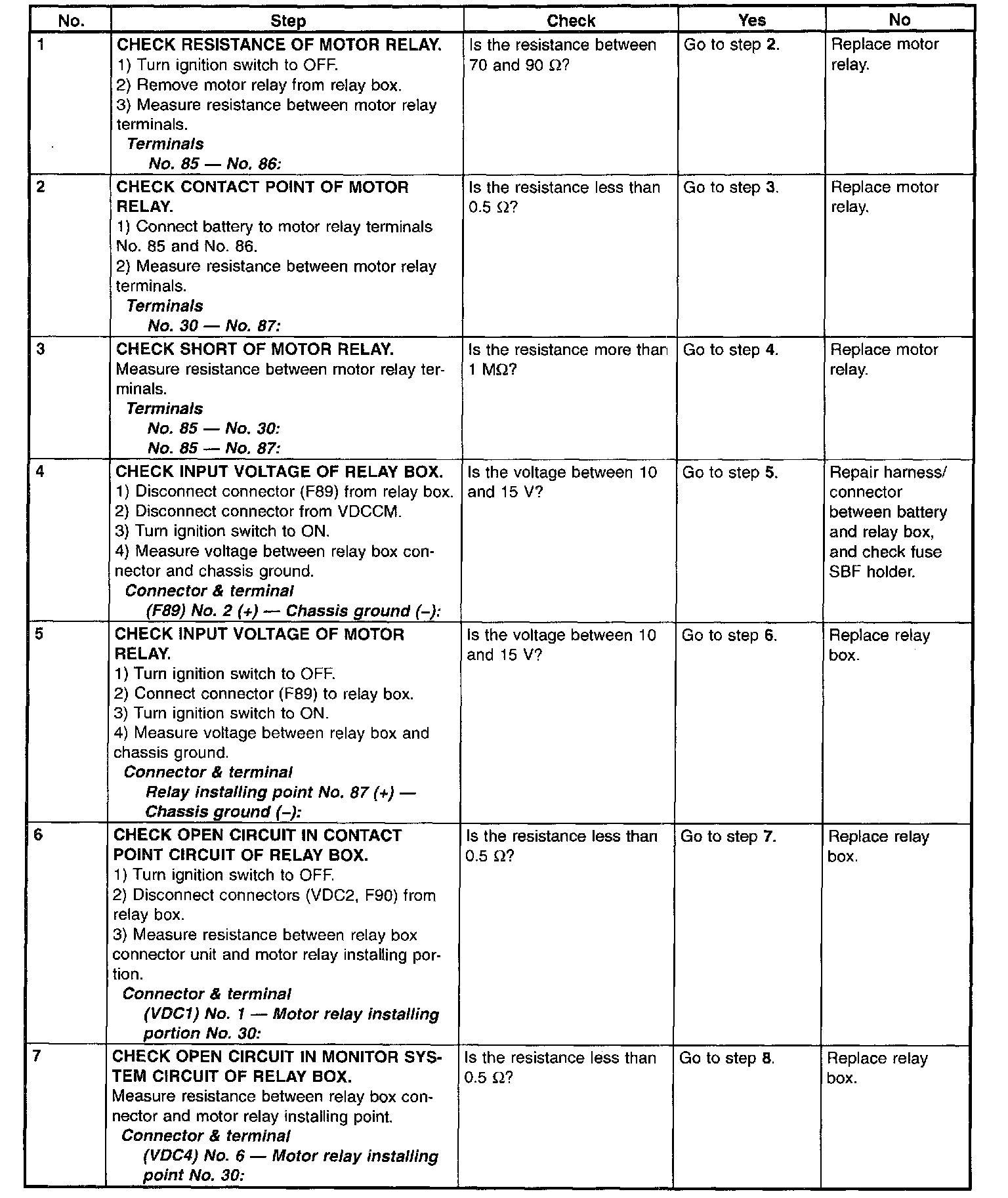

No. 1 - 7

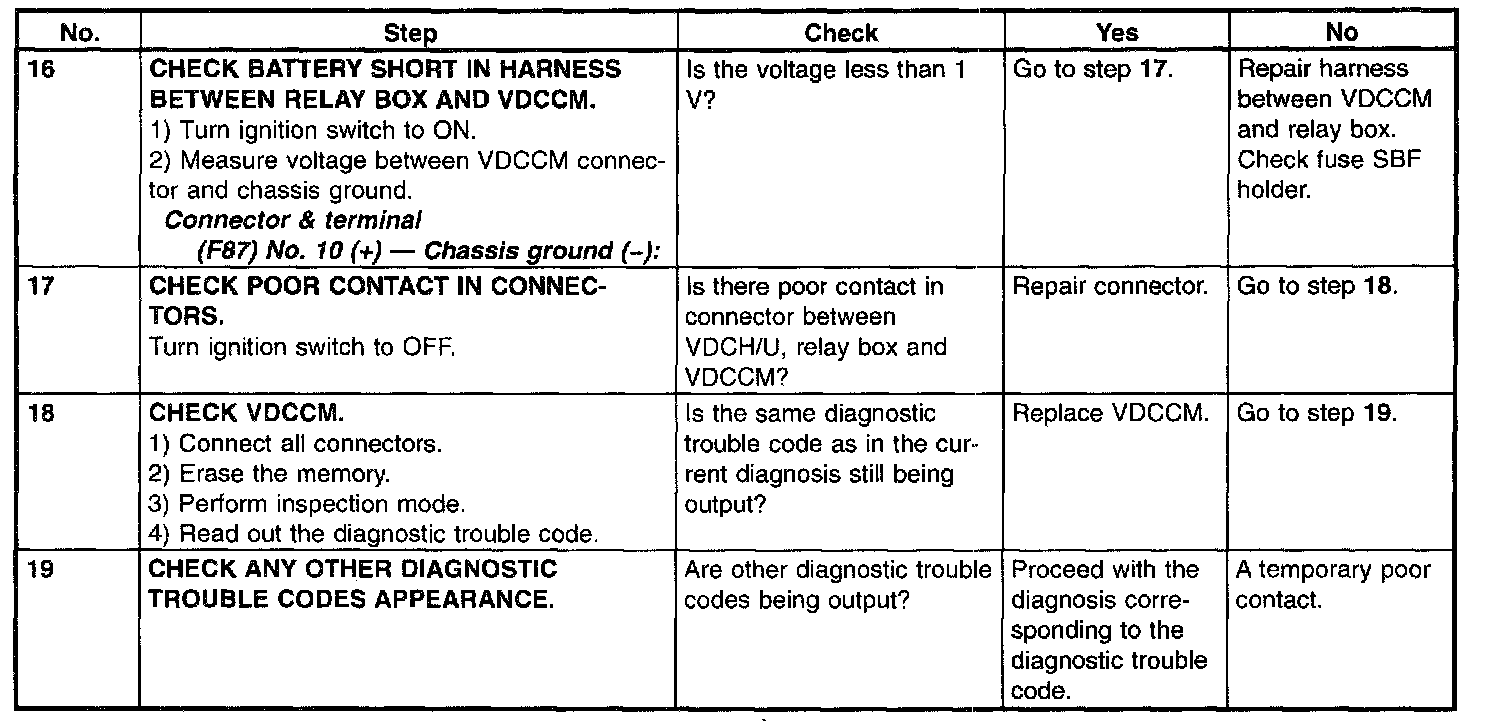

No. 8 - 15





No. 16 - 19
