Motor Relay on Failure

TROUBLE CODE 52 -MOTOR RELAY ON FAILURE-

DIAGNOSIS:
- Faulty motor
- Faulty motor relay
- Faulty harness connector
TROUBLE SYMPTOM:
- ABS does not operate

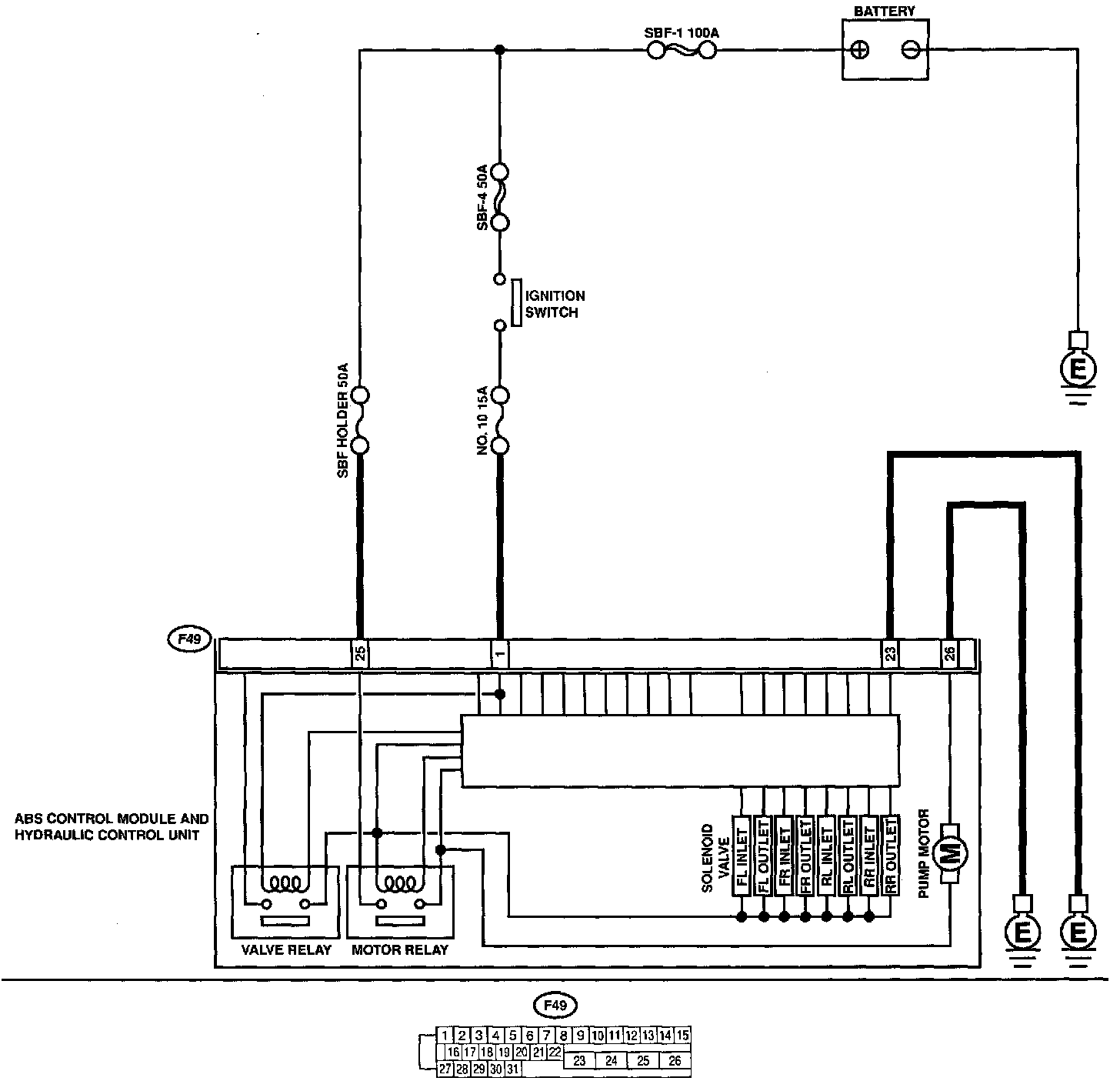

WIRING DIAGRAM:

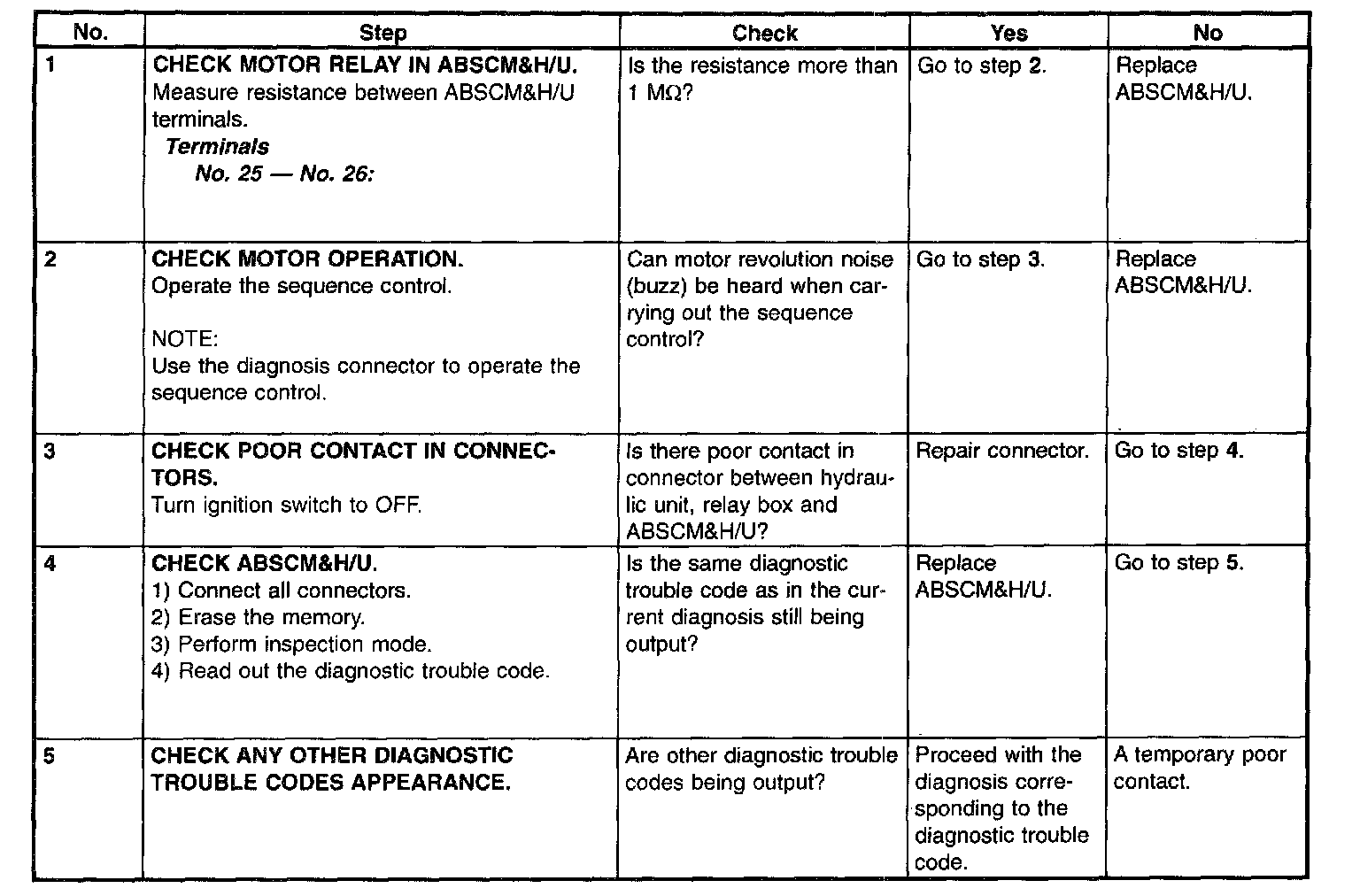

PROCEDURE:
