Vdc System Trouble Code Charts For Warning Light Codes

TROUBLE CODE 51 ABNORMAL VALVE RELAY

DIAGNOSIS:
- Faulty valve relay

NOTE: When DTC 74 ABNORMAL PRESSURE SENSOR procedure 4 is carried out, DTC 51 is memorized.

TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

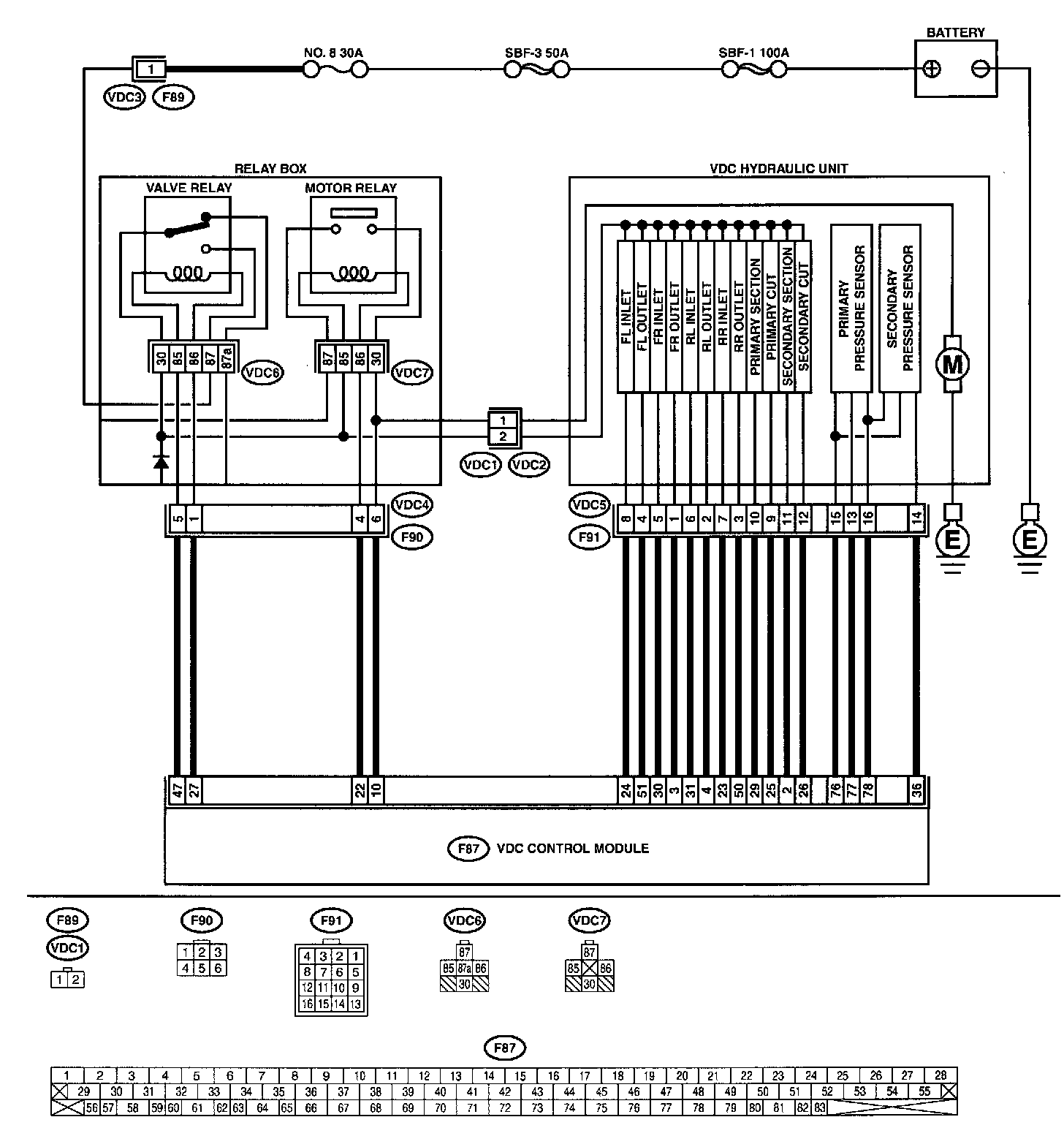

WIRING DIAGRAM:

PROCEDURE:

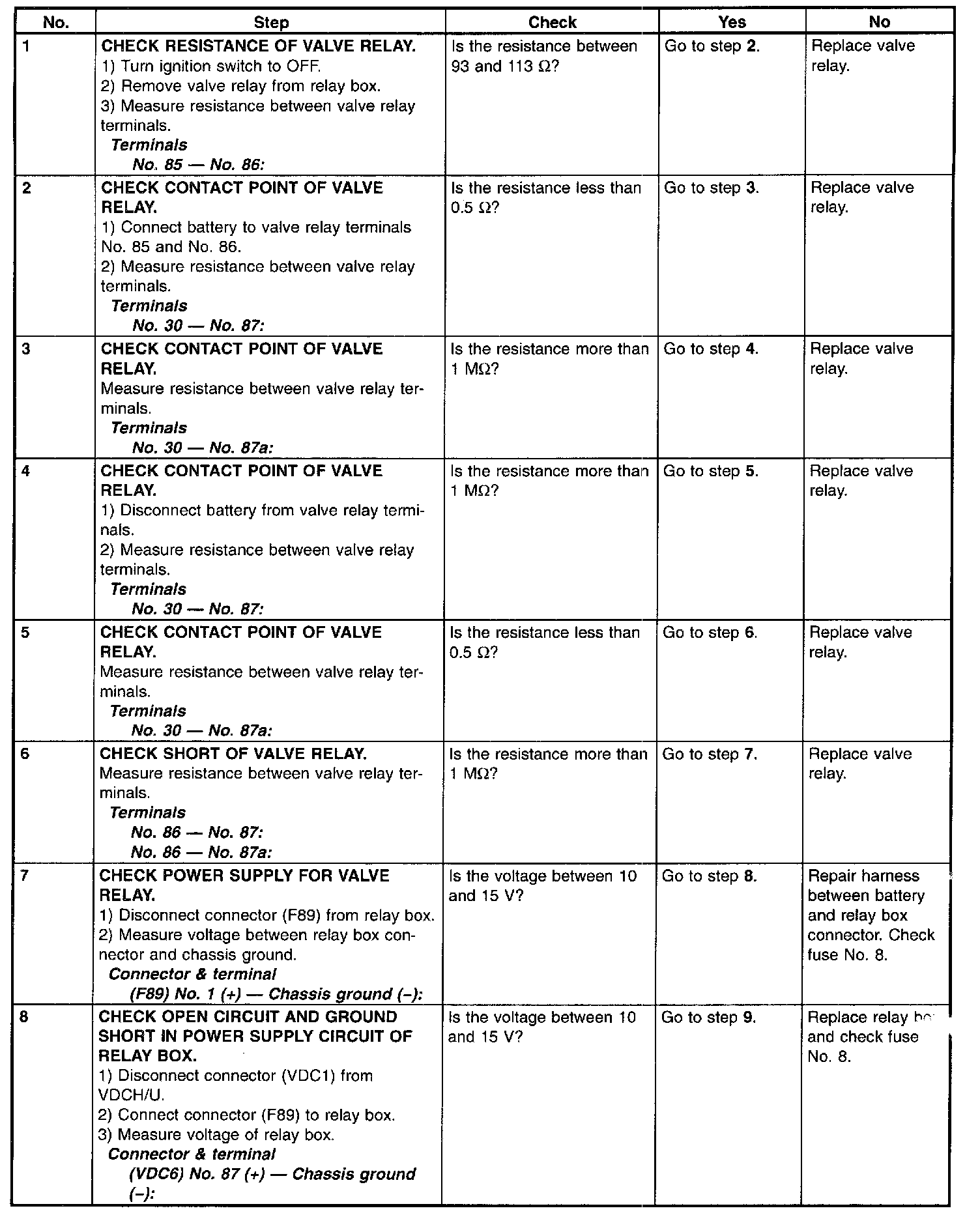

No. 1 - 8

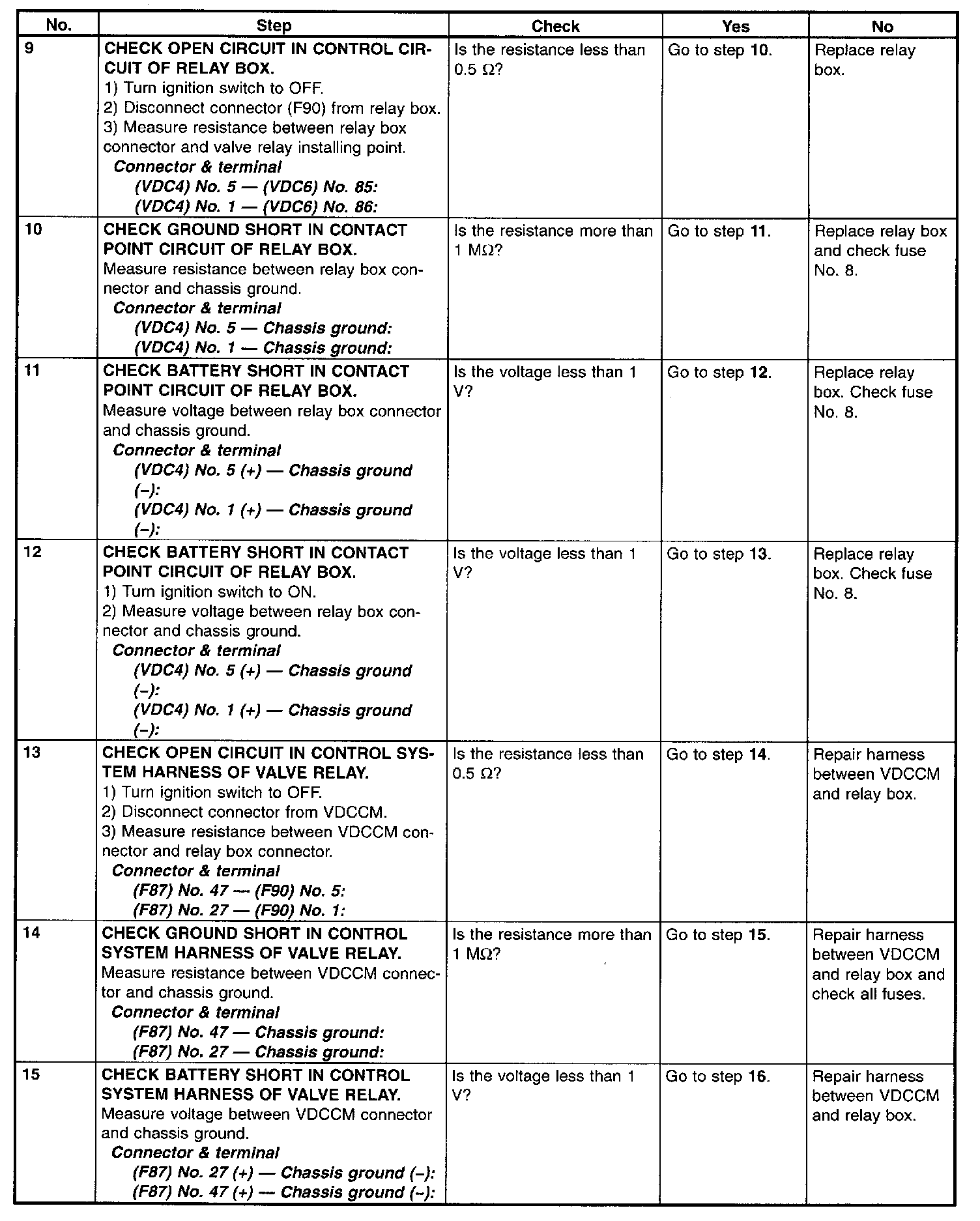

No. 9 - 15

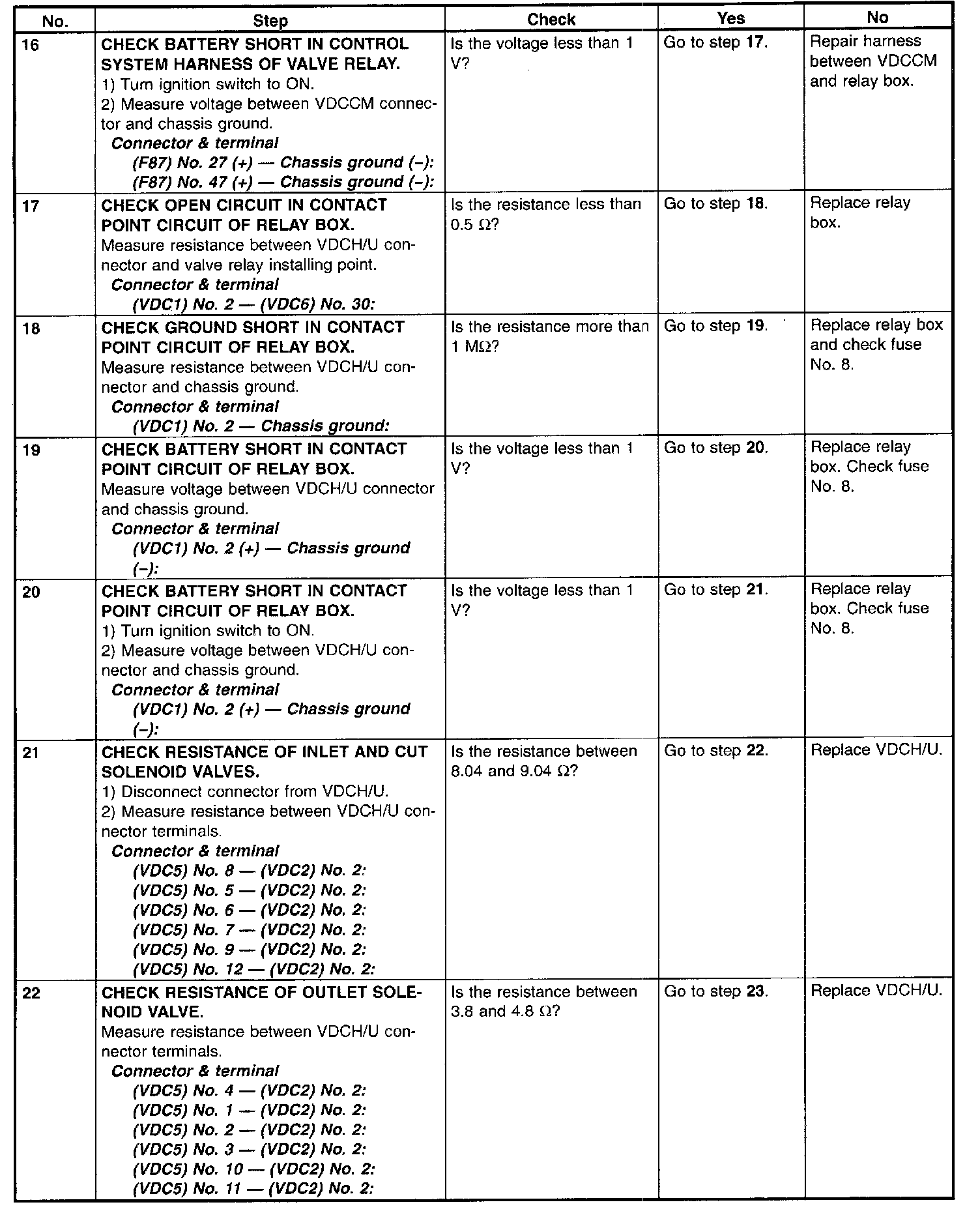

No. 16 - 22

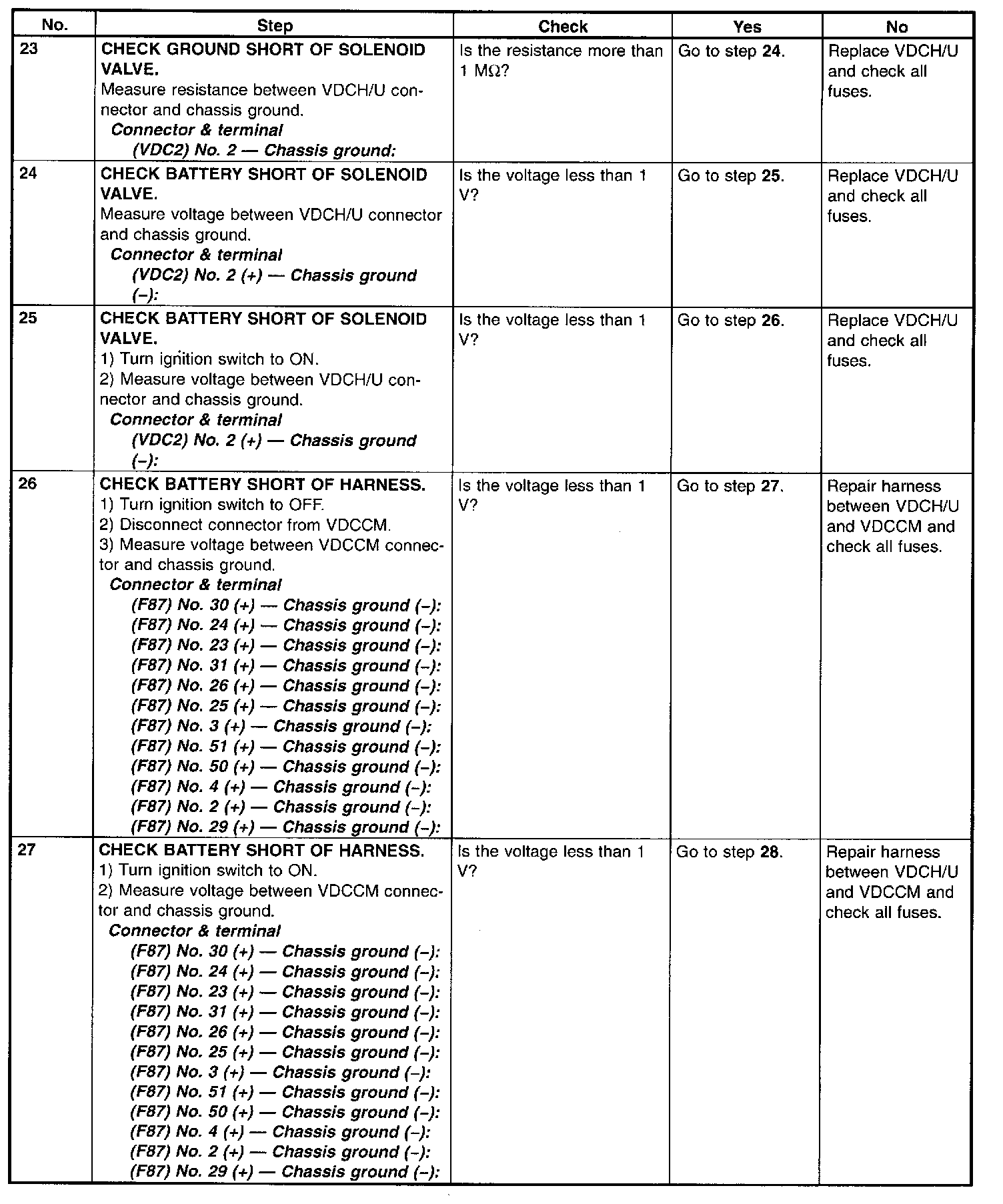

No. 23 - 27

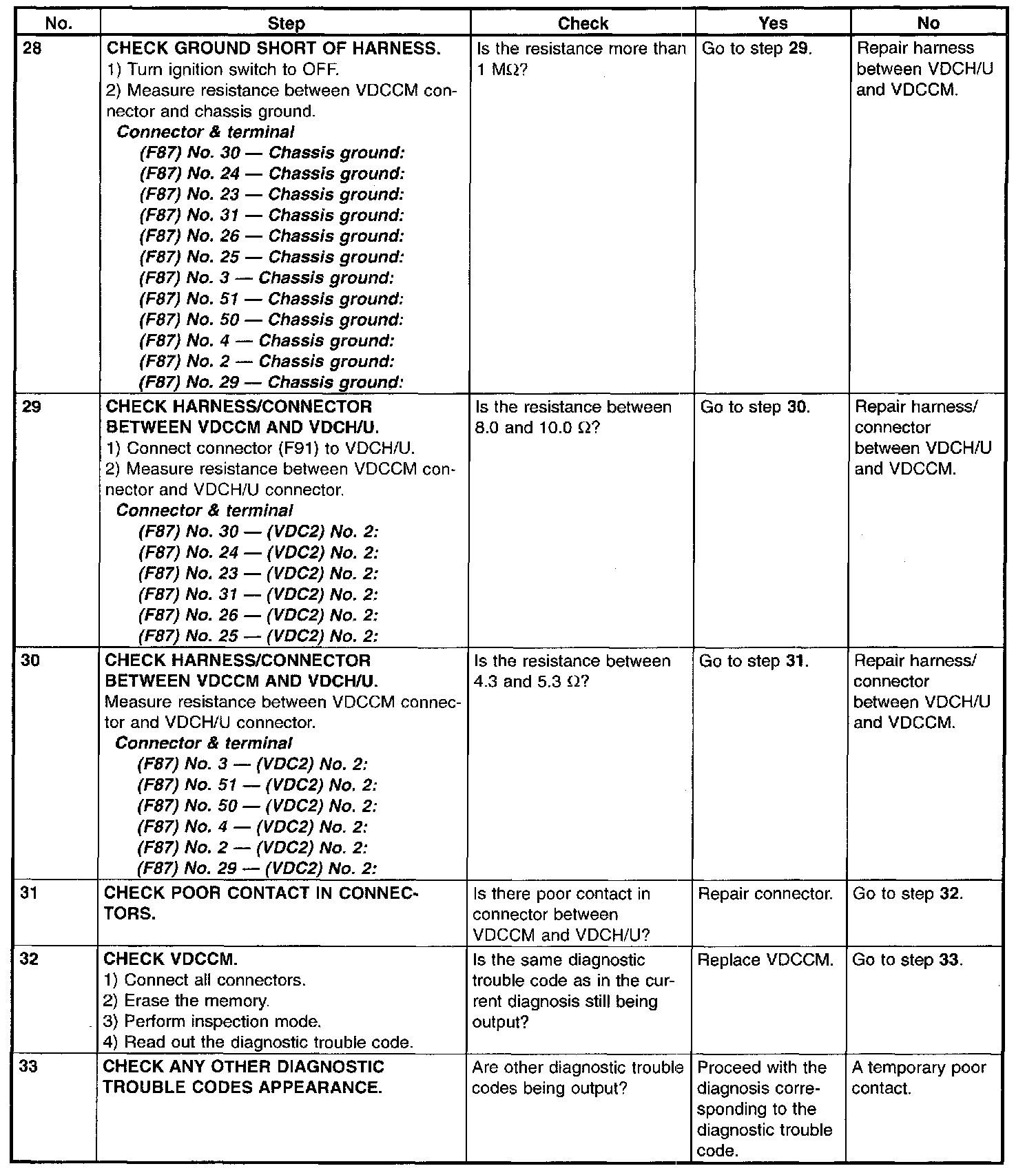

No. 28 - 33
