ABS Trouble Code Charts For Warning Light Codes

TROUBLE CODE 51 -ABNORMAL VALVE RELAY-

DIAGNOSIS:
- Faulty valve relay
TROUBLE SYMPTOM:
- ABS does not operate.





WIRING DIAGRAM:

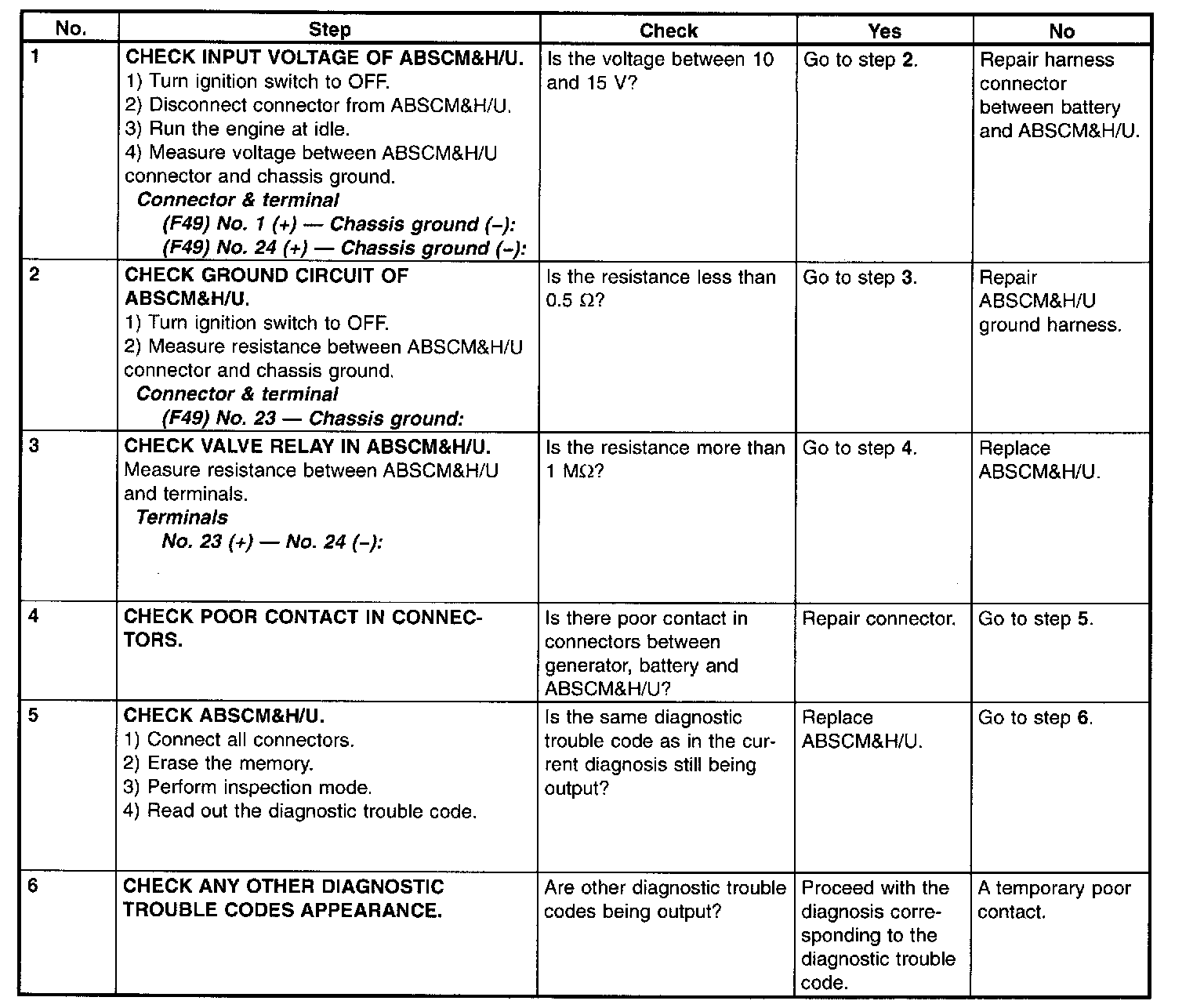

PROCEDURE:
