Vdc System Trouble Code Charts For Warning Light Codes

TROUBLE CODE 47 FAULTY CAN COMMUNICATION LINE

DIAGNOSIS:
- CAN communication line is broken or short circuited.

TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

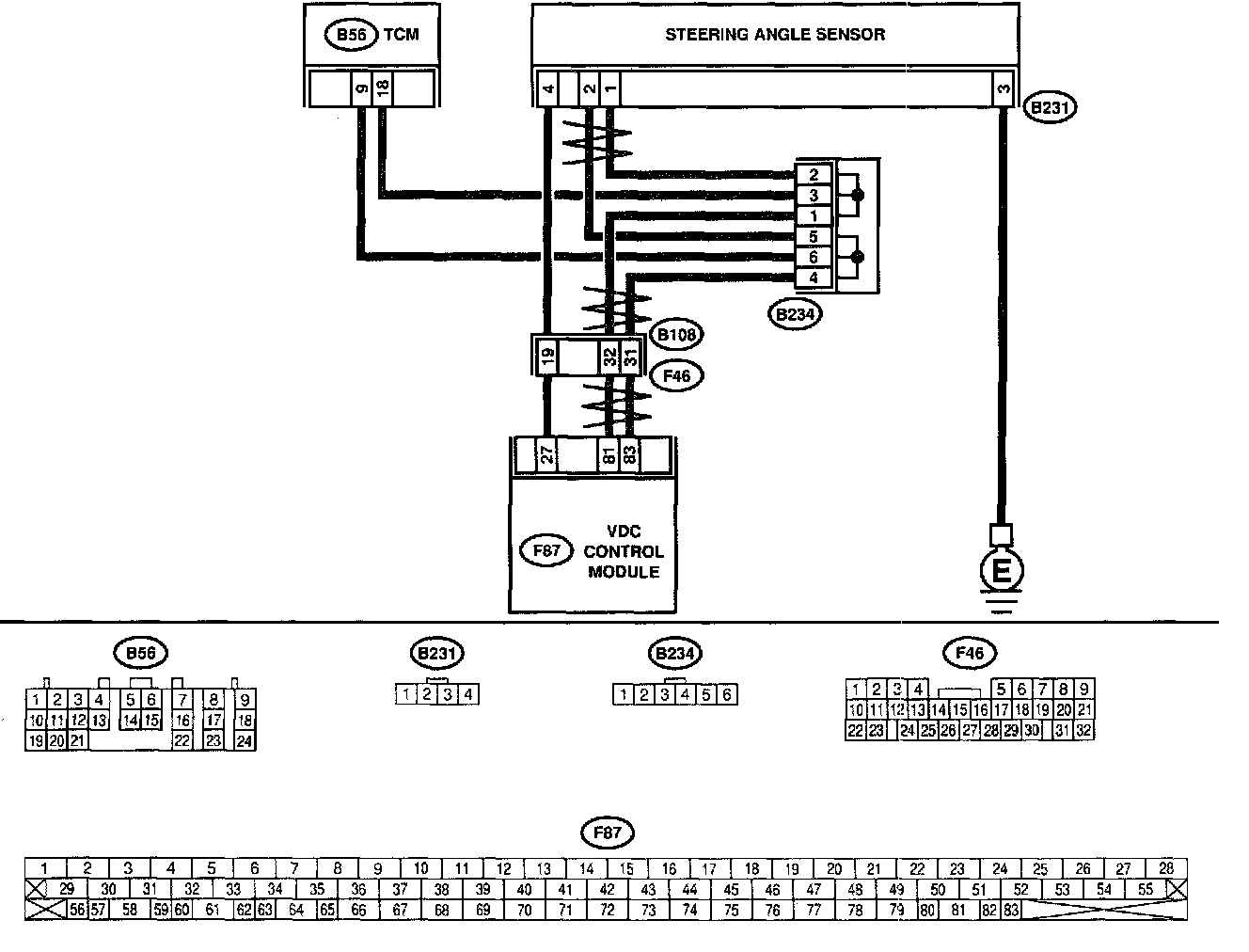

WIRING DIAGRAM:

PROCEDURE:

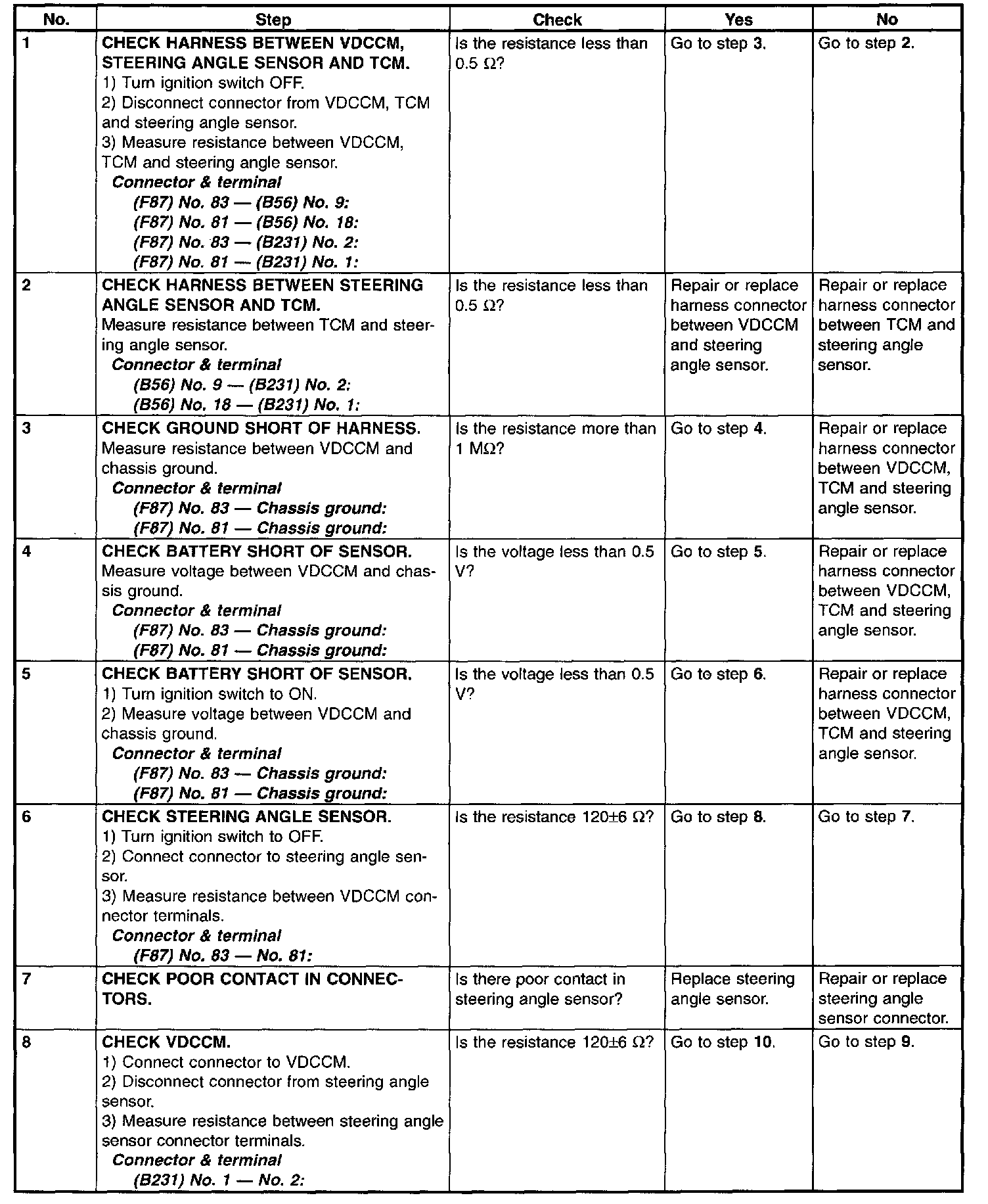

No. 1 - 8

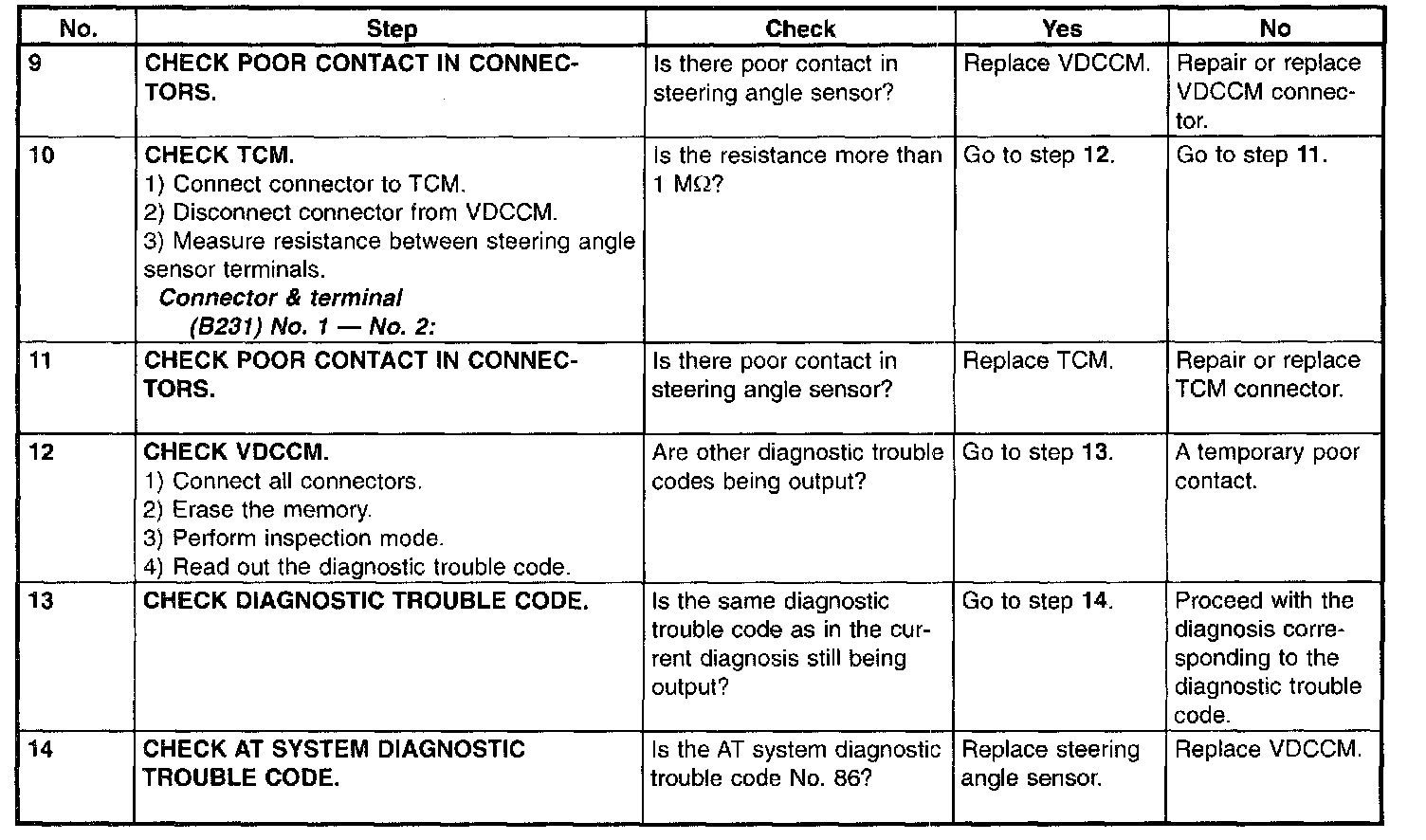

No. 9 - 14
