Vdc System Trouble Code Charts For Select Monitor Results

TROUBLE CODE 47 IMPROPER CAN COMMUNICATION

DIAGNOSIS:
- CAN communication line is broken or short circuited.

TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.





WIRING DIAGRAM:

PROCEDURE:





No. 1 - 8

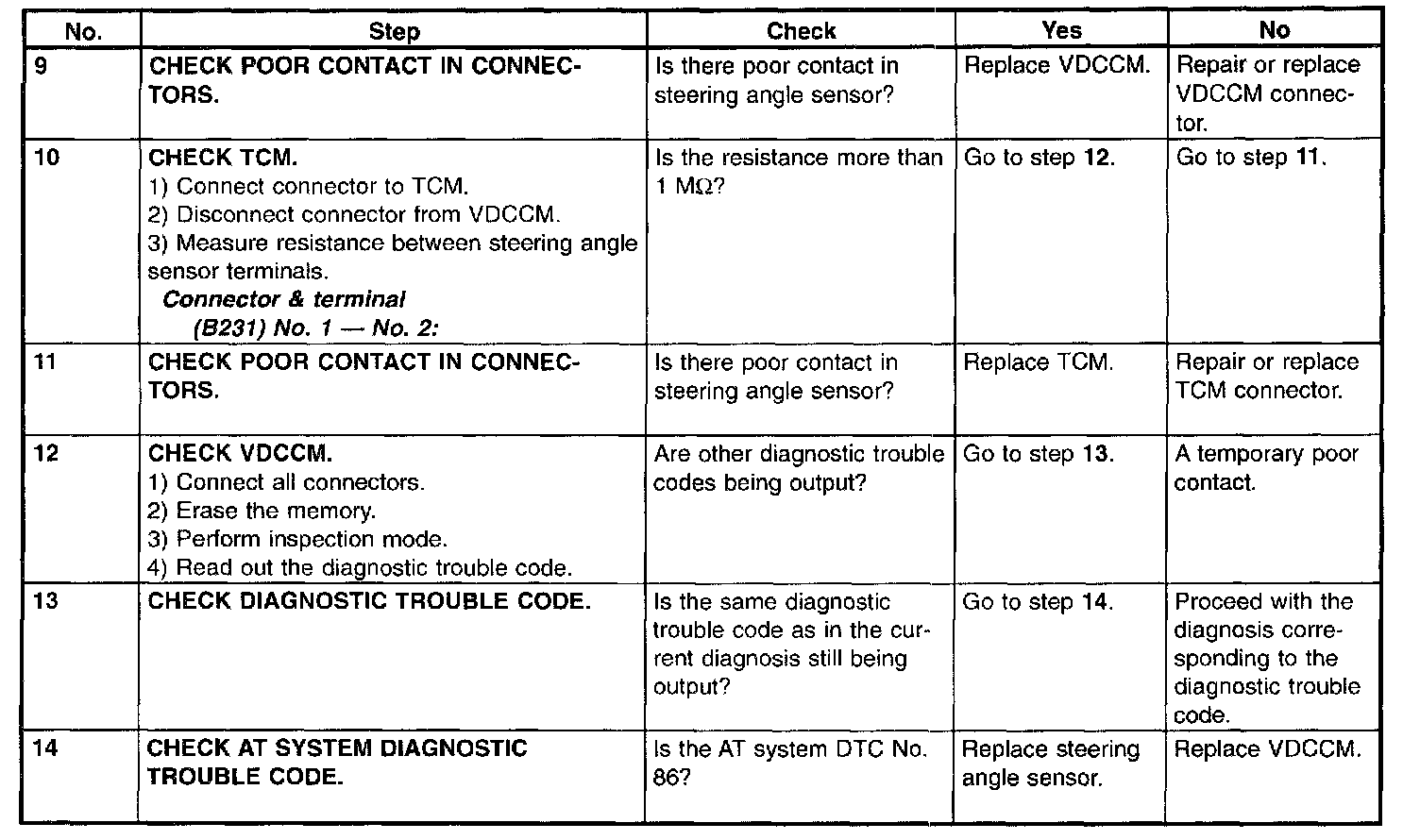

No. 9 - 14
