Transmission Control Systems

This information has been updated by TSB 18-69-01 dated 07/01/2001


DTC 45 INTAKE MANIFOLD PRESSURE SIGNAL
DIAGNOSIS: Input signal circuit of TCM from ECM is open or shorted.
TROUBLE SYMPTOM: Excessive shift shock.

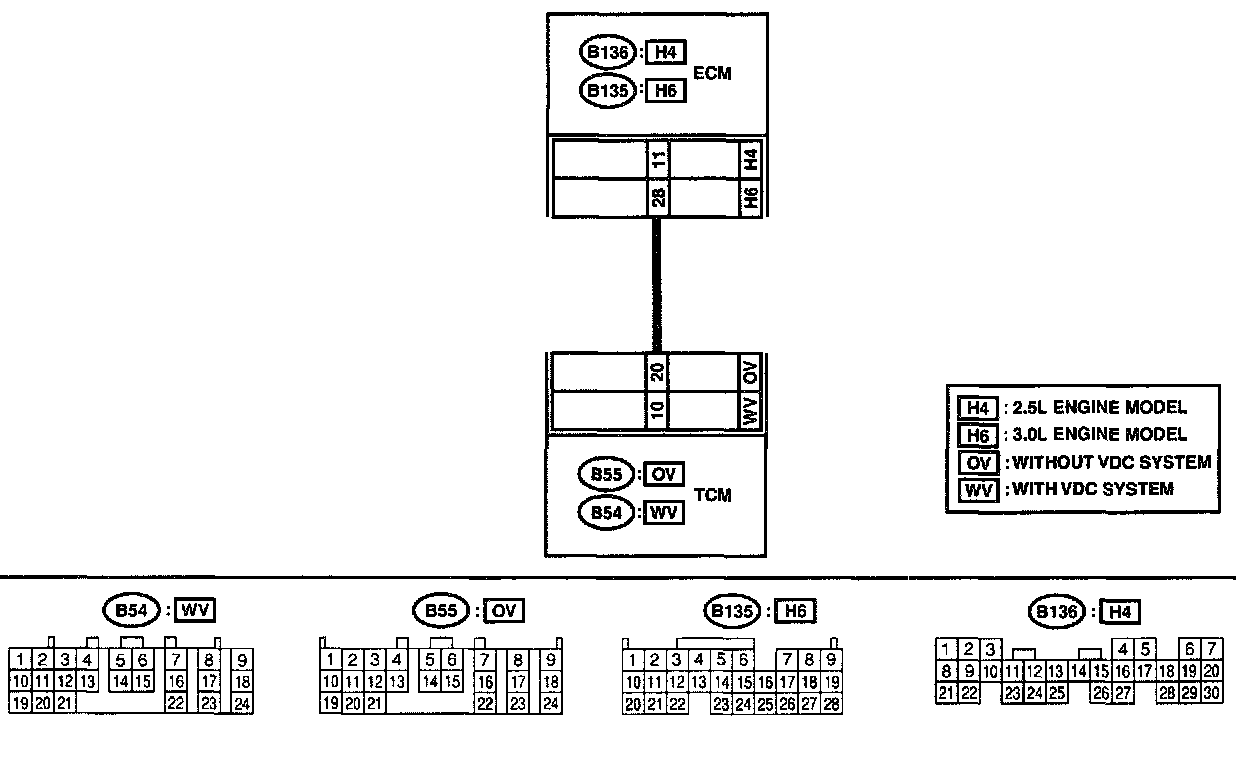

WIRING DIAGRAM:

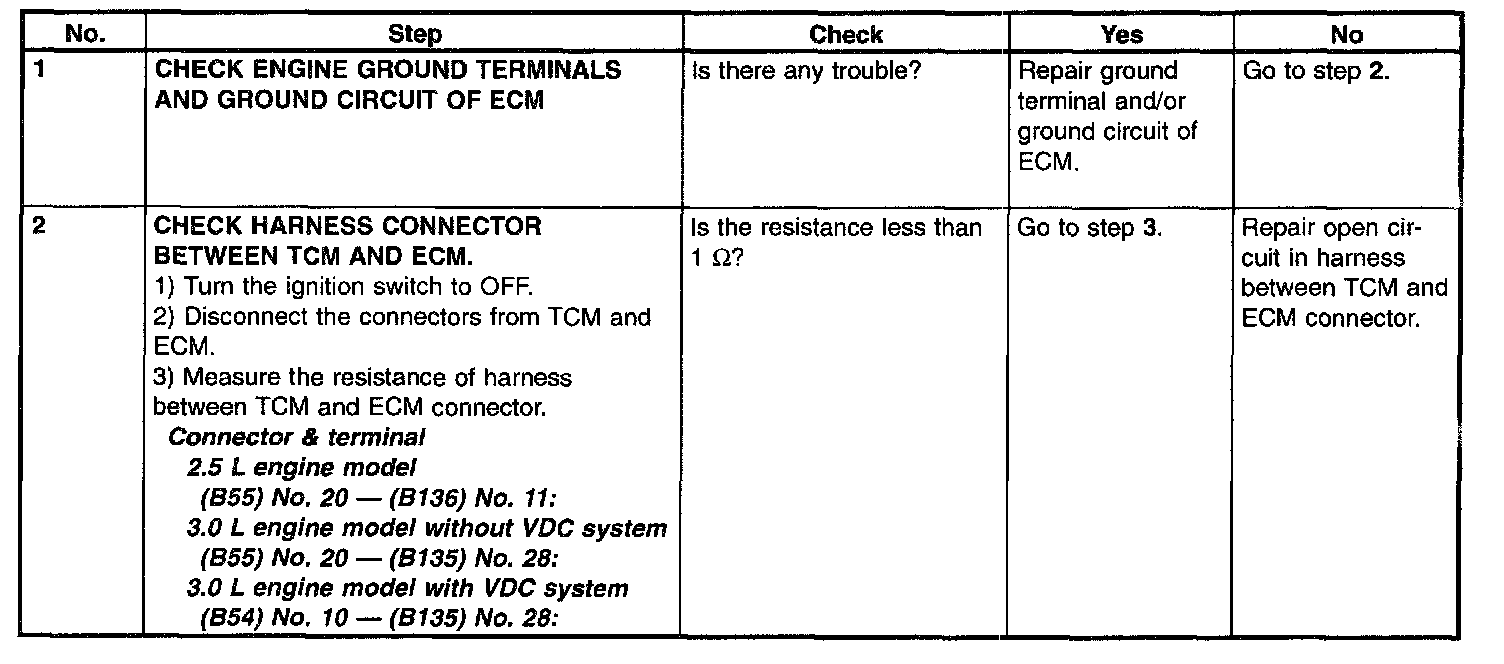

Test Steps 1 and 2

͵�:

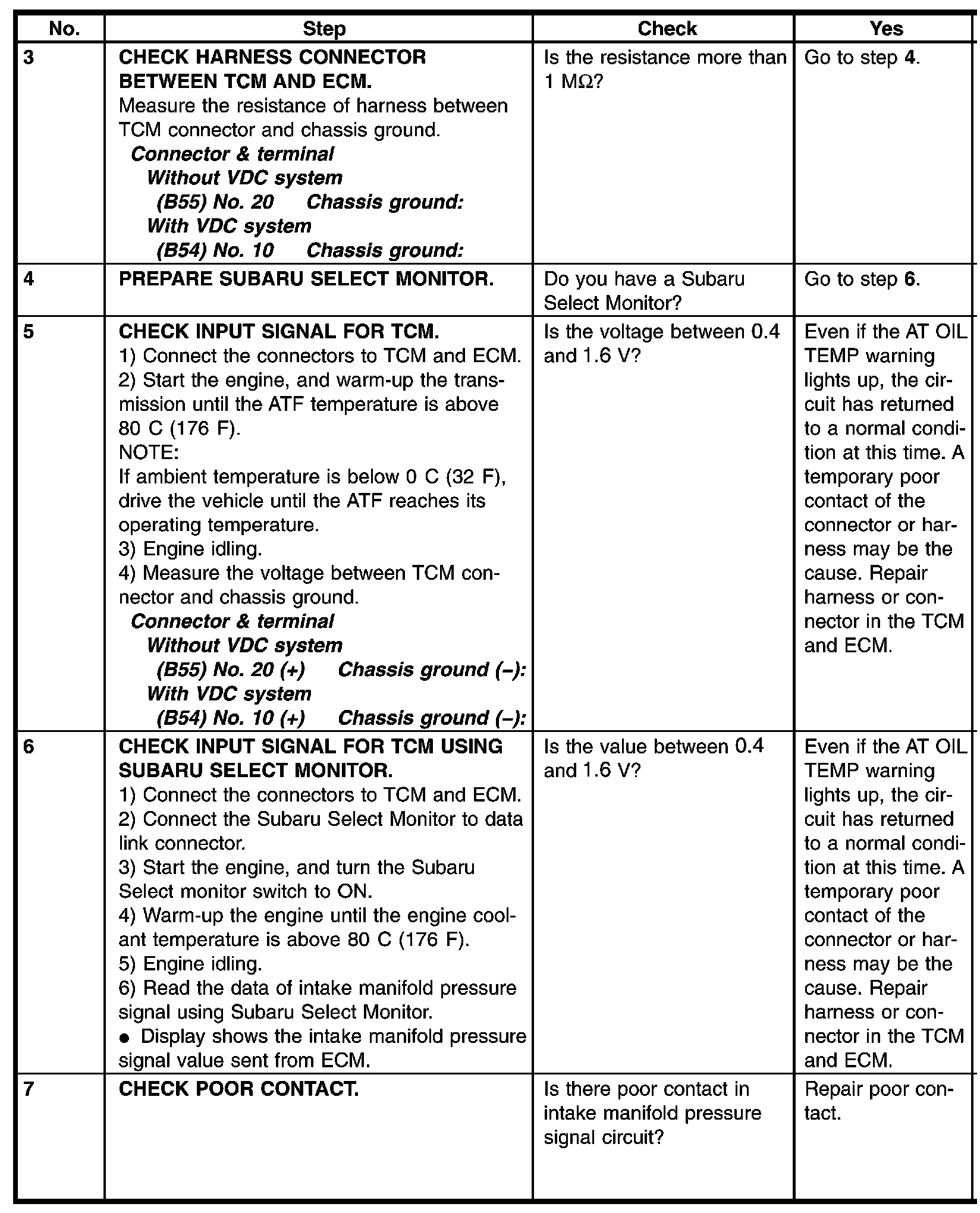

Test Steps 3 through 7
