Restraint Systems

45 - Side Airbag Harness (RH) Is Shorted to Power Supply

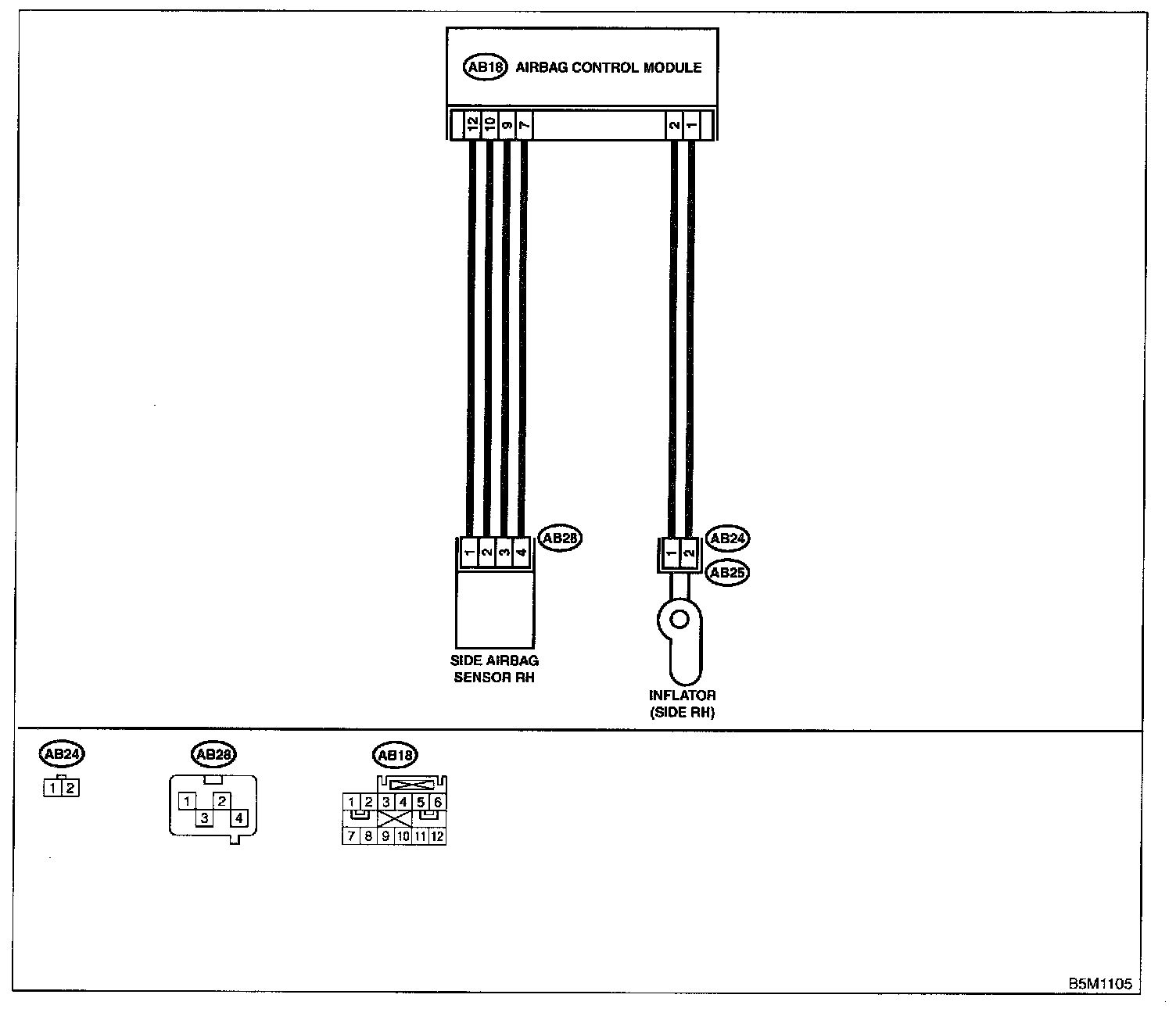

Wiring Diagram:

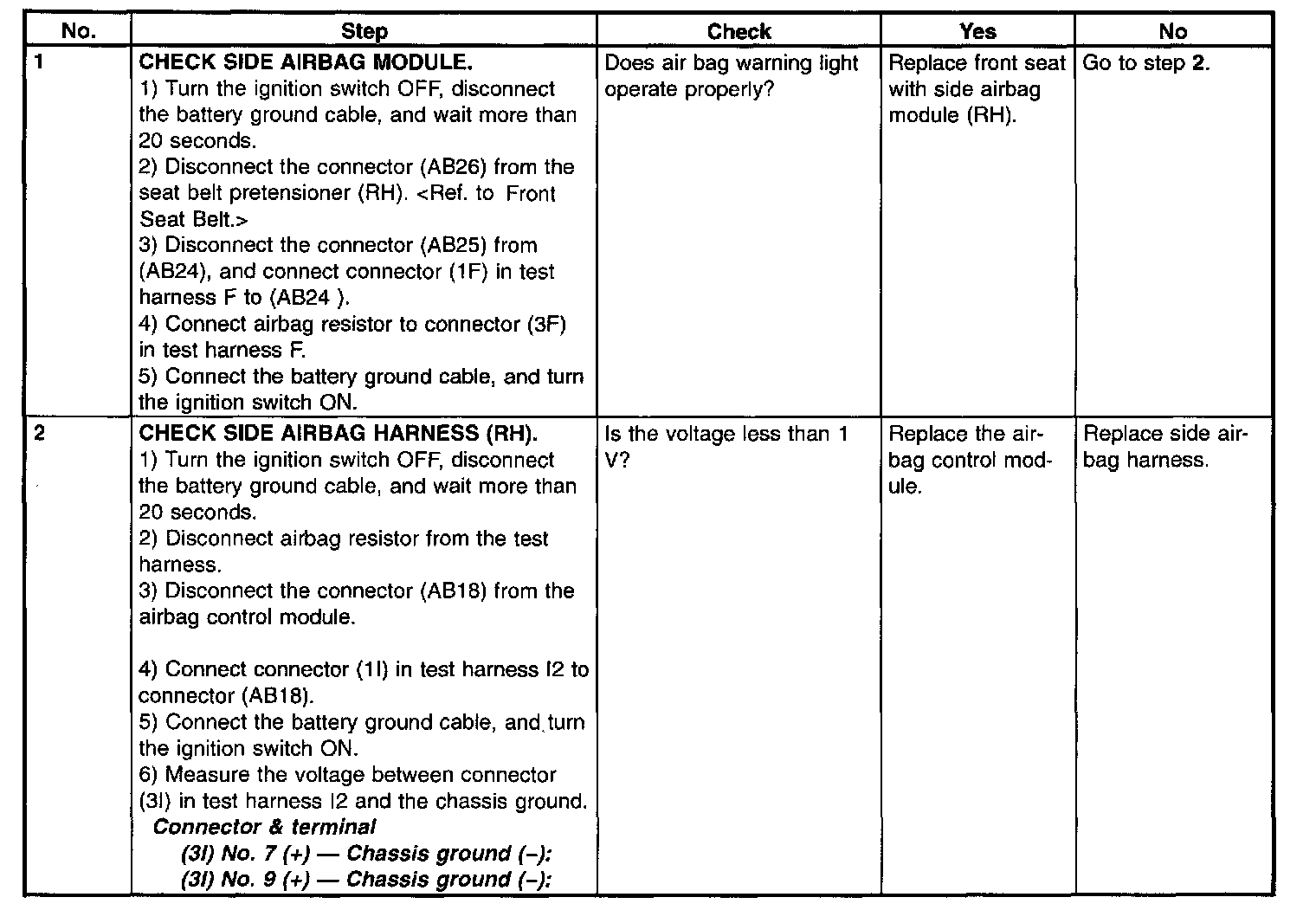

Step 1 - 2:

DIAGNOSIS:
Side airbag harness (RH) is shorted to power supply.
Airbag control module is faulty.

CAUTION: Before diagnosing the airbag system, be sure to turn the ignition switch OFF, disconnect the ground cable from the battery, and wait more than 20 seconds before starting to work.
Before replacing the airbag module, roll connector, control module, and sensor, reconnect each part and confirm that the warning light operates properly.
When inspecting the side airbag harness, disconnect the side airbag module connector for the safety reasons.
