Vdc System Trouble Code Charts For Warning Light Codes

TROUBLE CODE 43 FAULTY VDCCM - ECM COMMUNICATION LINE

DIAGNOSIS:
- AET communication line is broken or short circuited.
- AEB communication line is broken or short circuited.
- AEC communication line is broken or short circuited.

TROUBLE SYMPTOM:
- VDC does not operate.





WIRING DIAGRAM:

PROCEDURE:

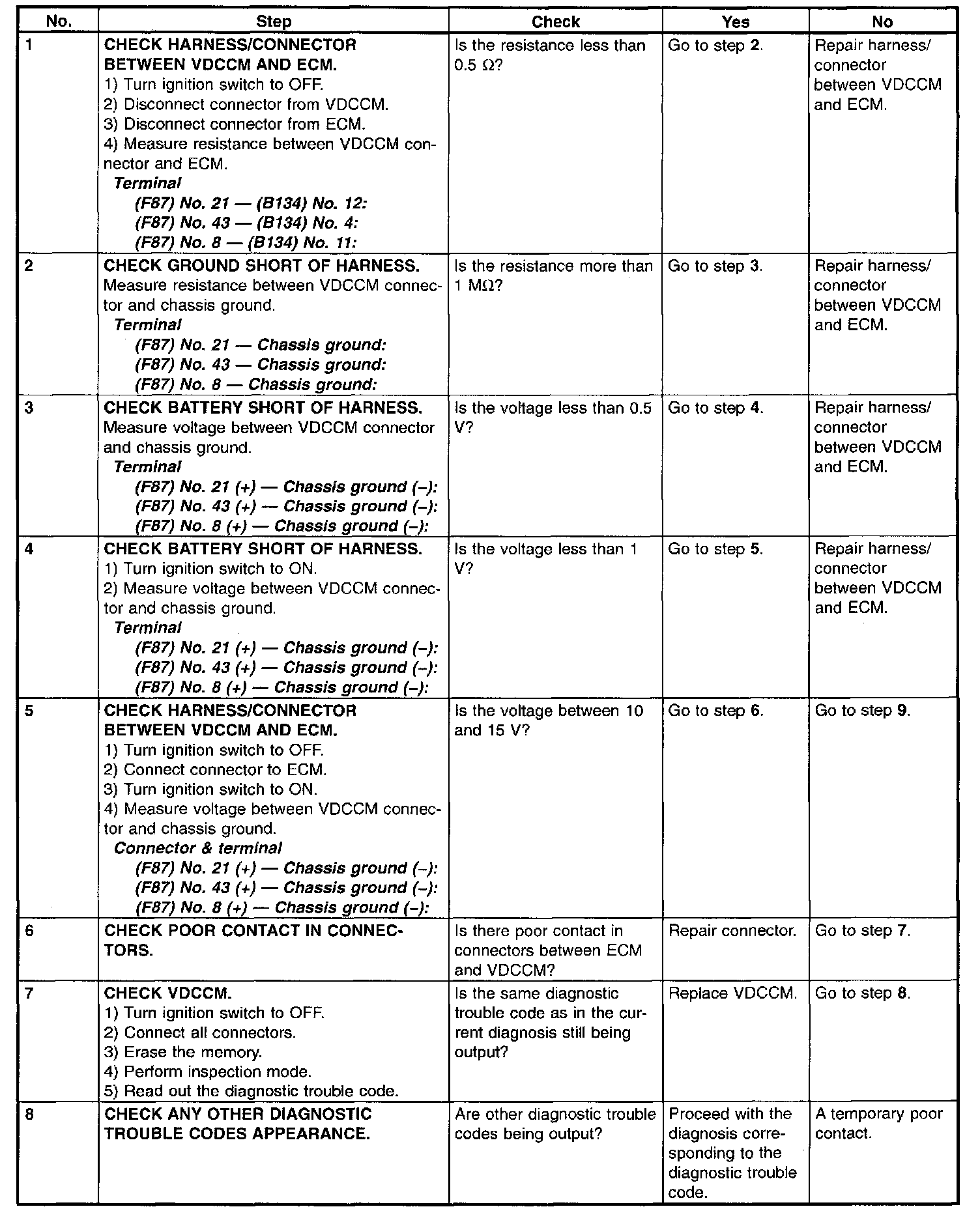

No. 1 - 8

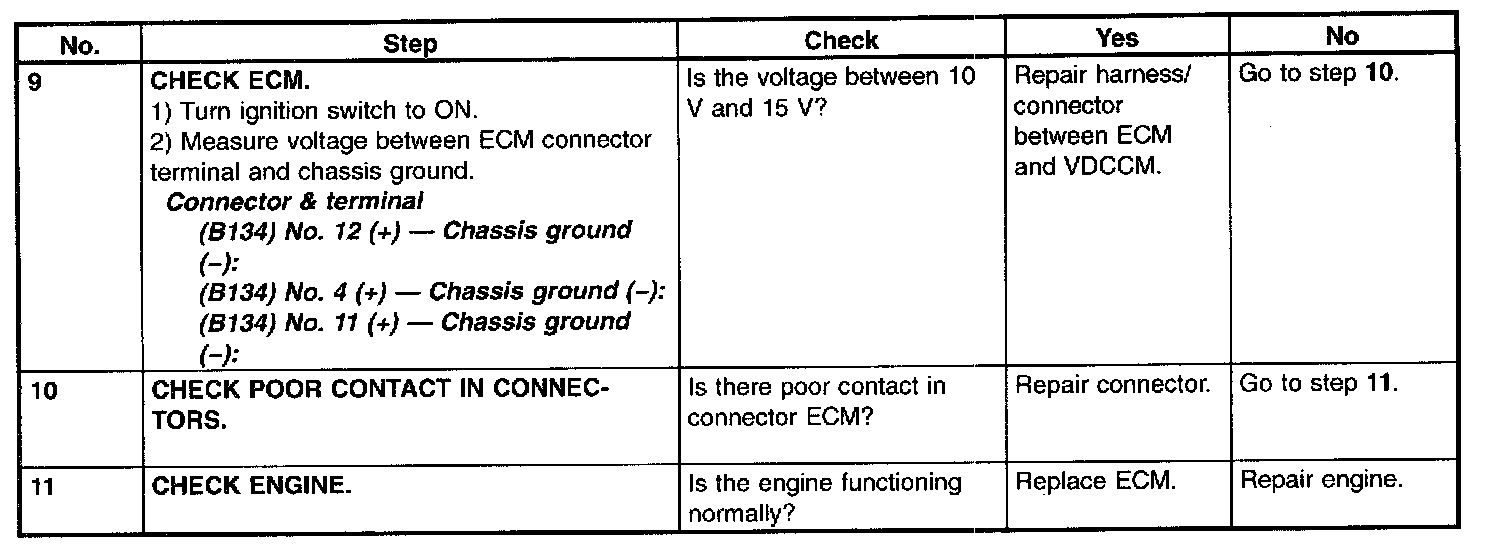

No. 9 - 11
