AEC Communication Line Malfunction
TROUBLE CODE 43 AEC COMMUNICATION LINE MALFUNCTIONDIAGNOSIS:
- AEC communication line is broken or short circuited.
TROUBLE SYMPTOM:
- VDC does not operate.

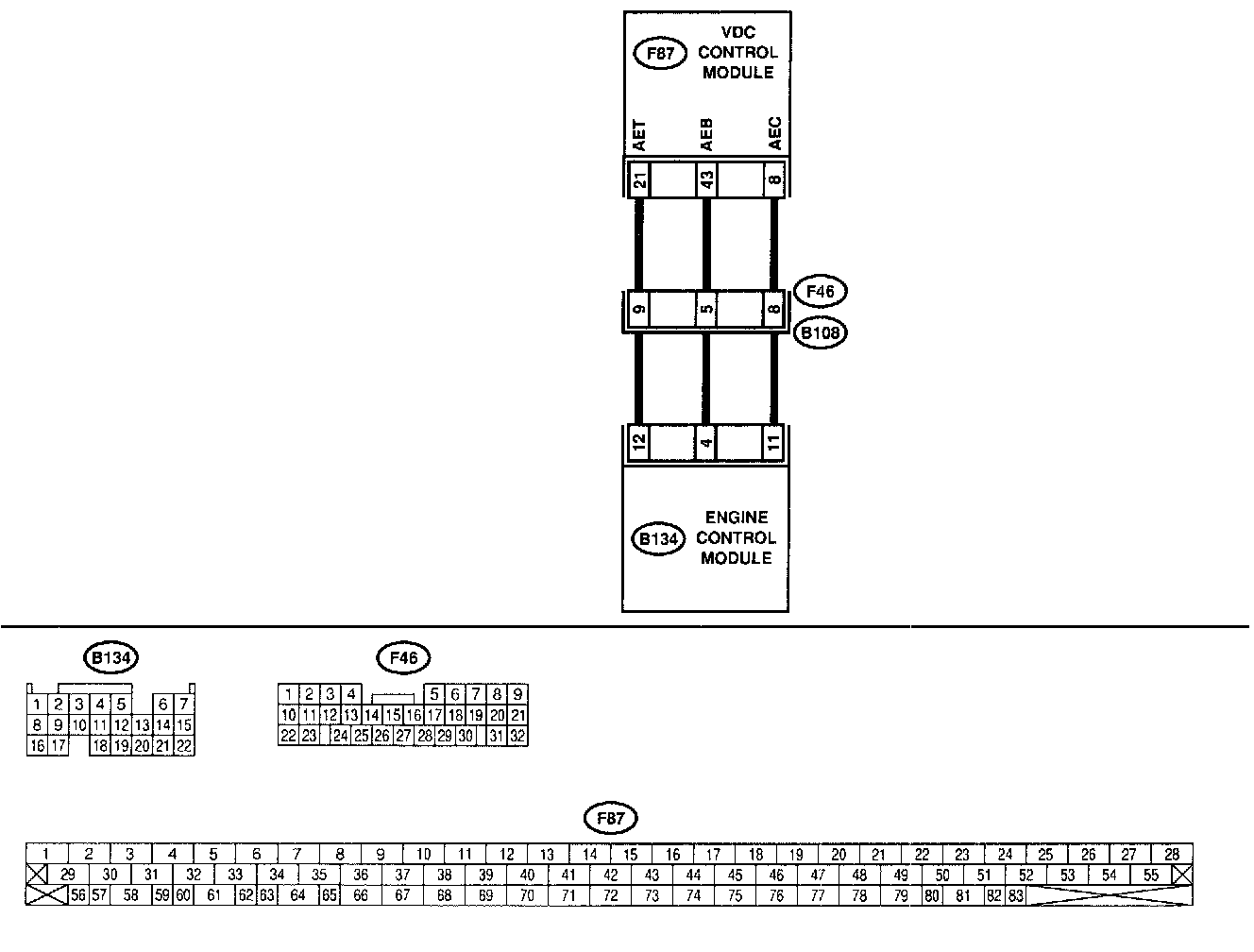

WIRING DIAGRAM:
PROCEDURE:

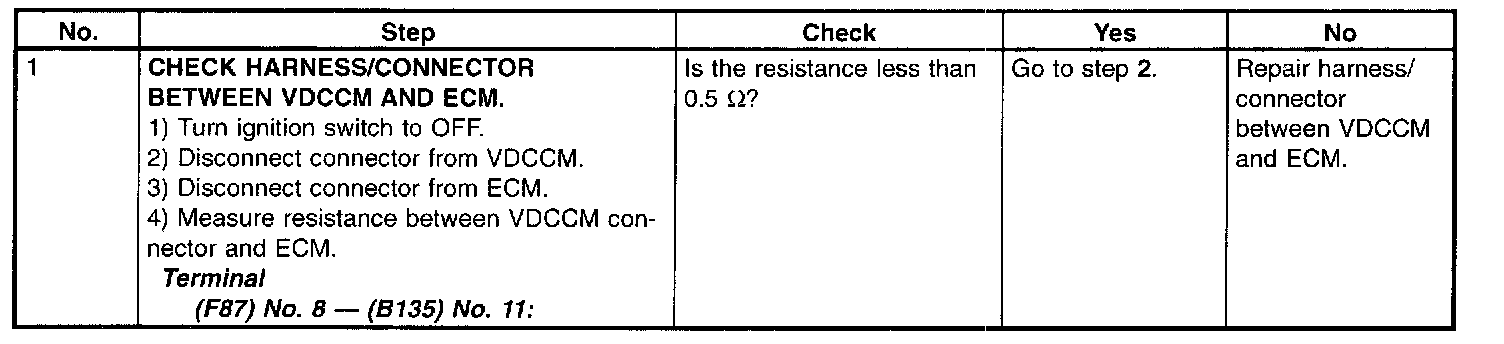

No. 1

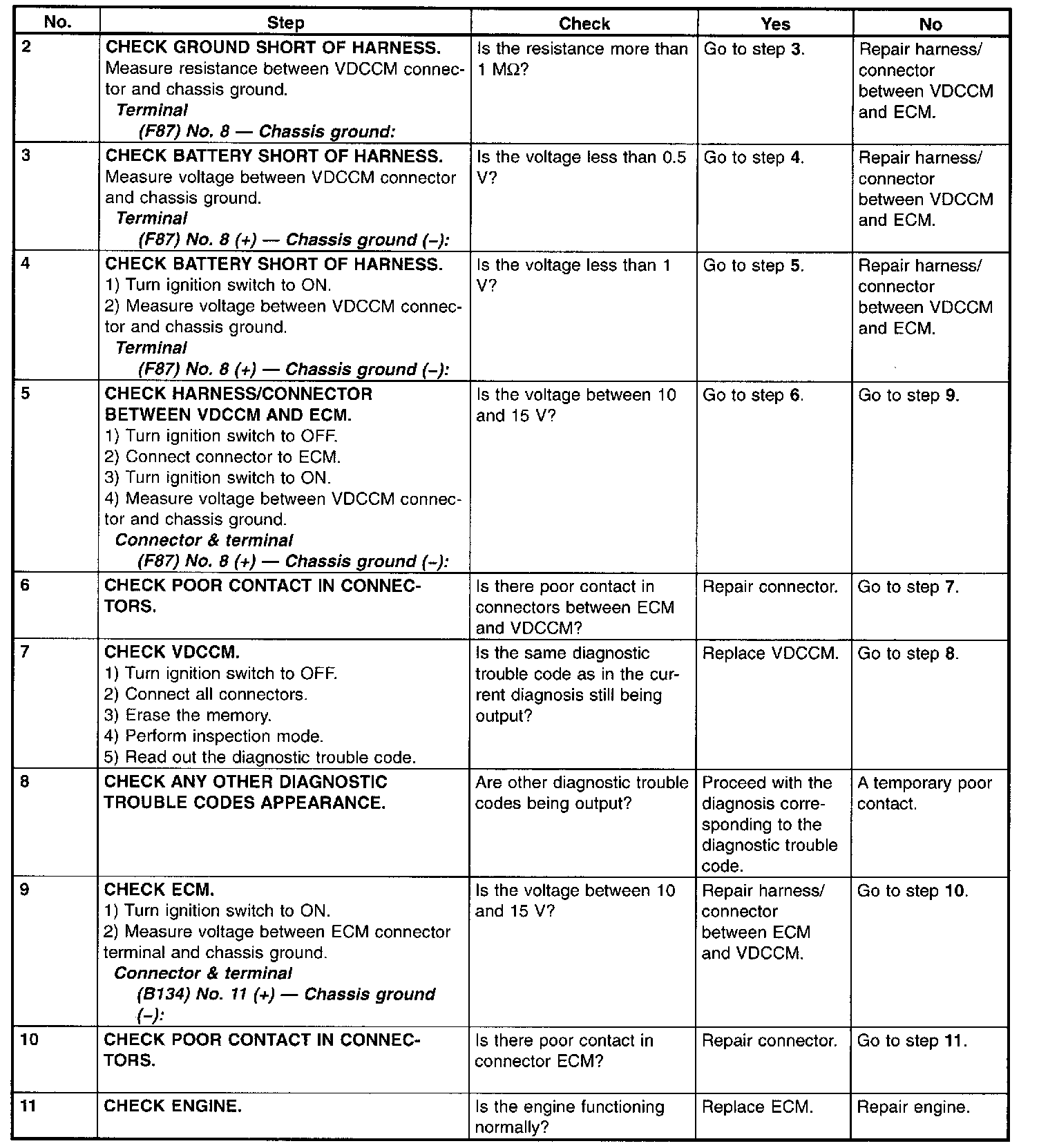

No. 2 - 11
DIAGNOSIS:
- AEC communication line is broken or short circuited.
TROUBLE SYMPTOM:
- VDC does not operate.
WIRING DIAGRAM:
PROCEDURE:
No. 1
No. 2 - 11
