Vdc System Trouble Code Charts For Warning Light Codes

TROUBLE CODE 41 ABNORMAL VDC CONTROL MODULE

DIAGNOSIS:
- Faulty VDCCM

TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

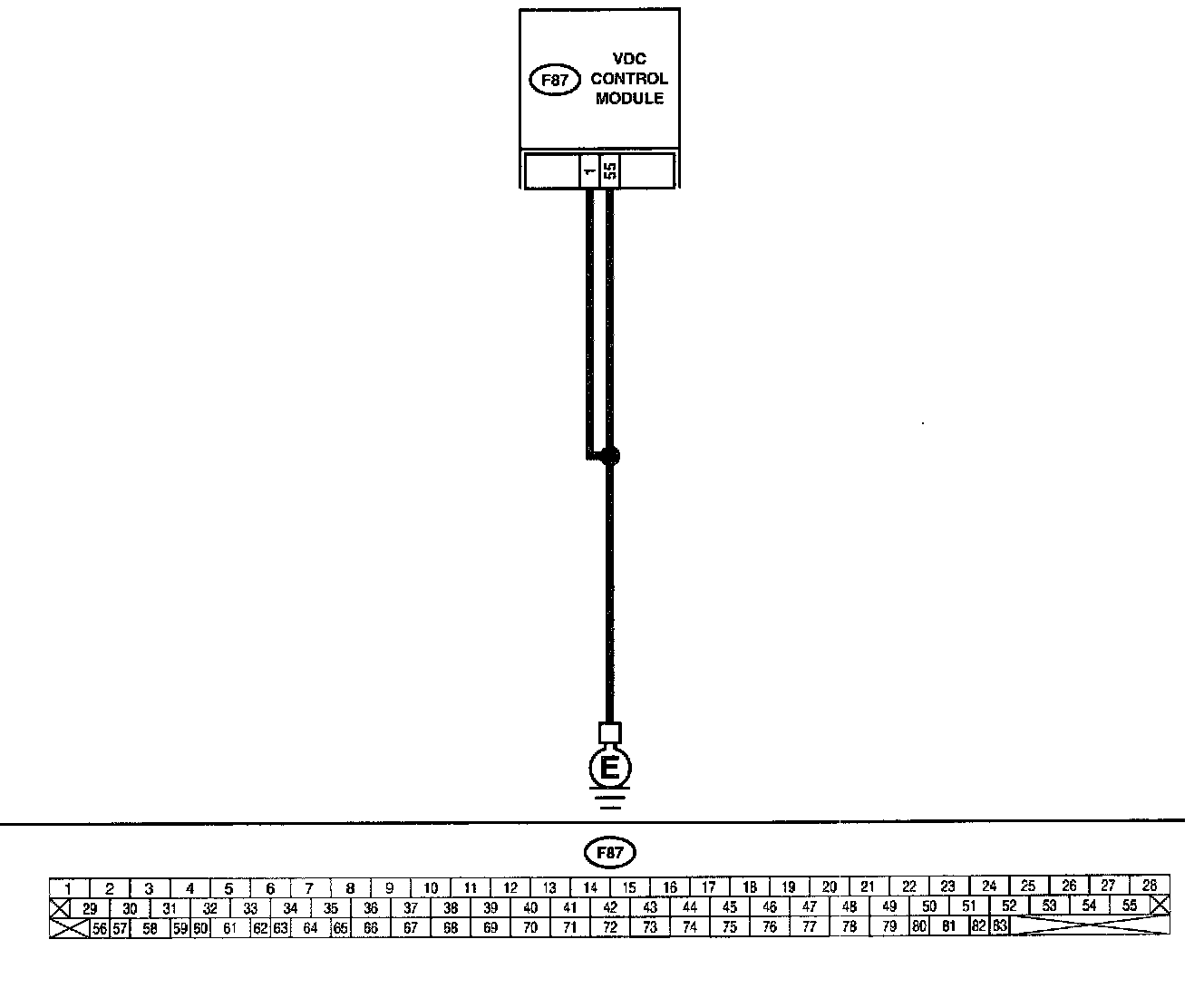

WIRING DIAGRAM:

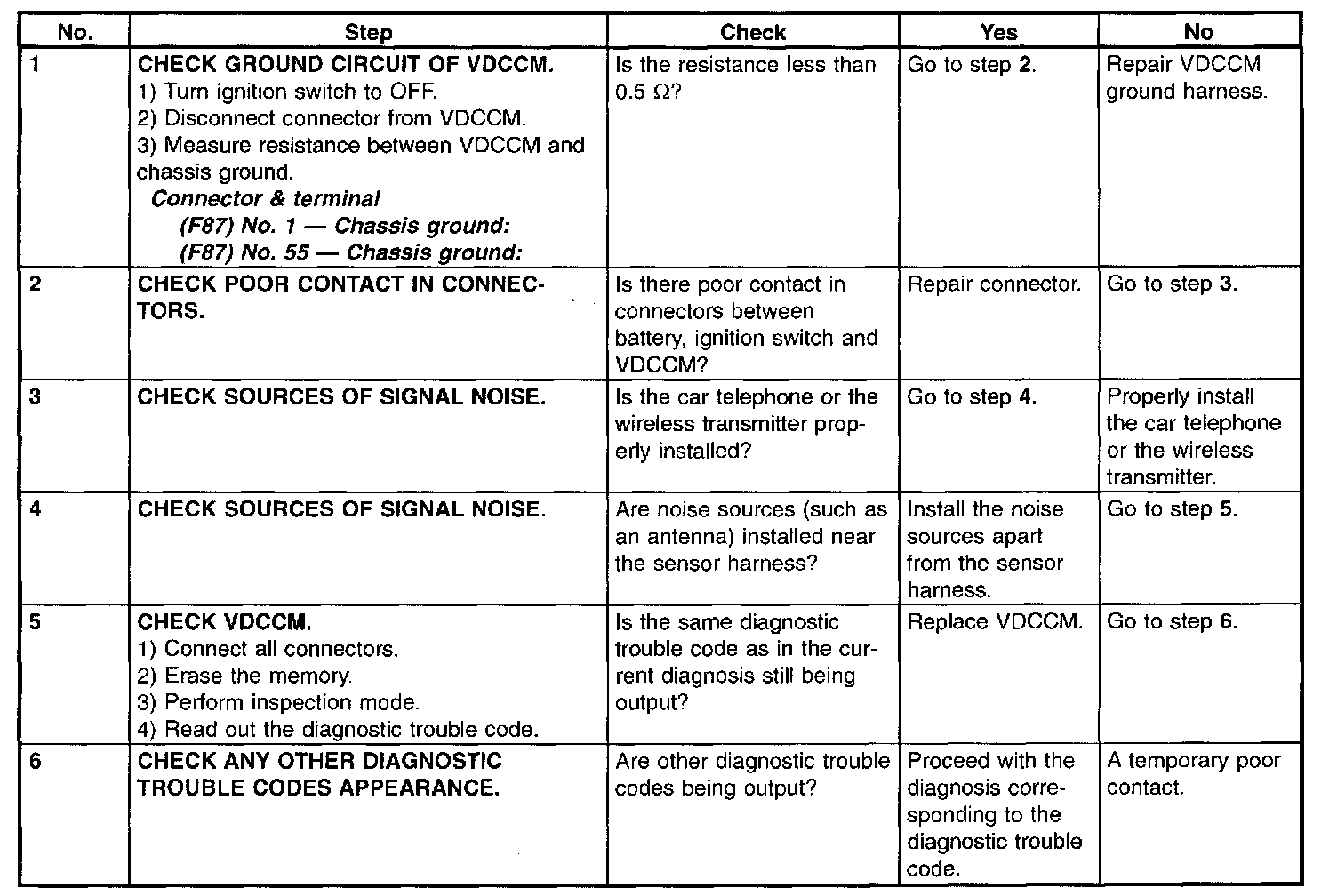

PROCEDURE
