Transmission Control Systems

DTC 38 TORQUE CONTROL SIGNAL
DIAGNOSIS:
- The signal circuit is open or shorted.
TROUBLE SYMPTOM: Excessive shift shock.





WIRING DIAGRAM:

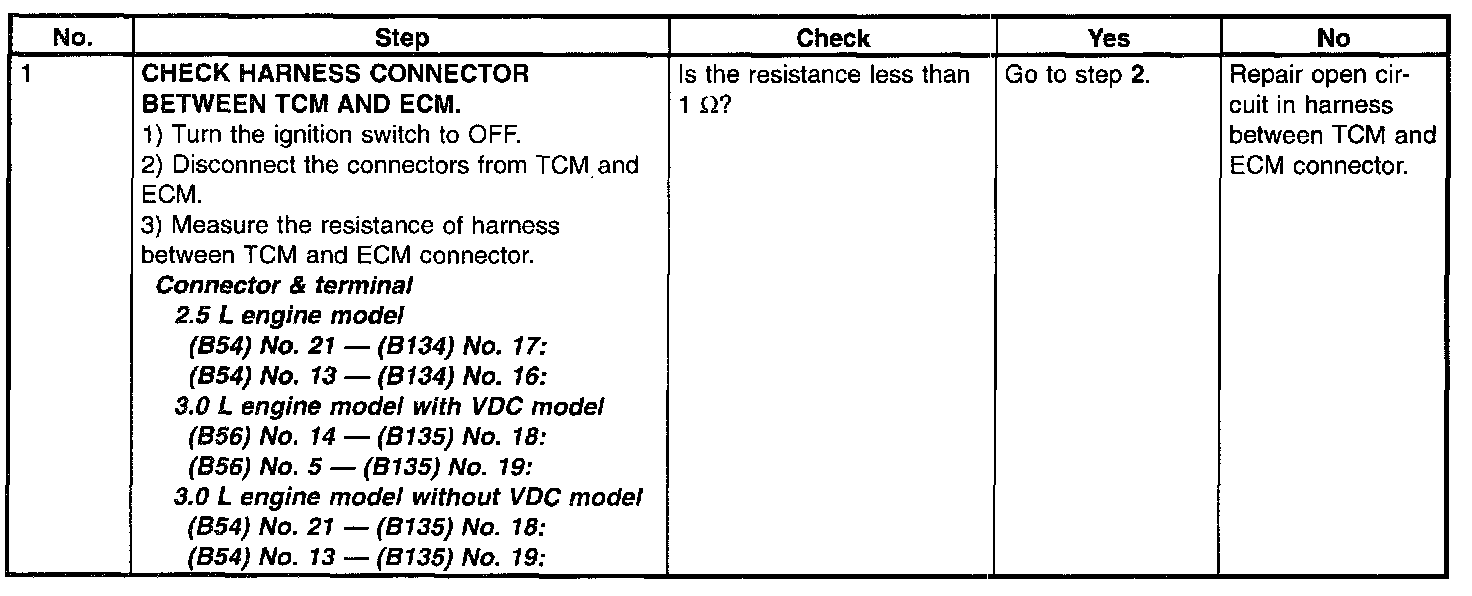

Test Step 1

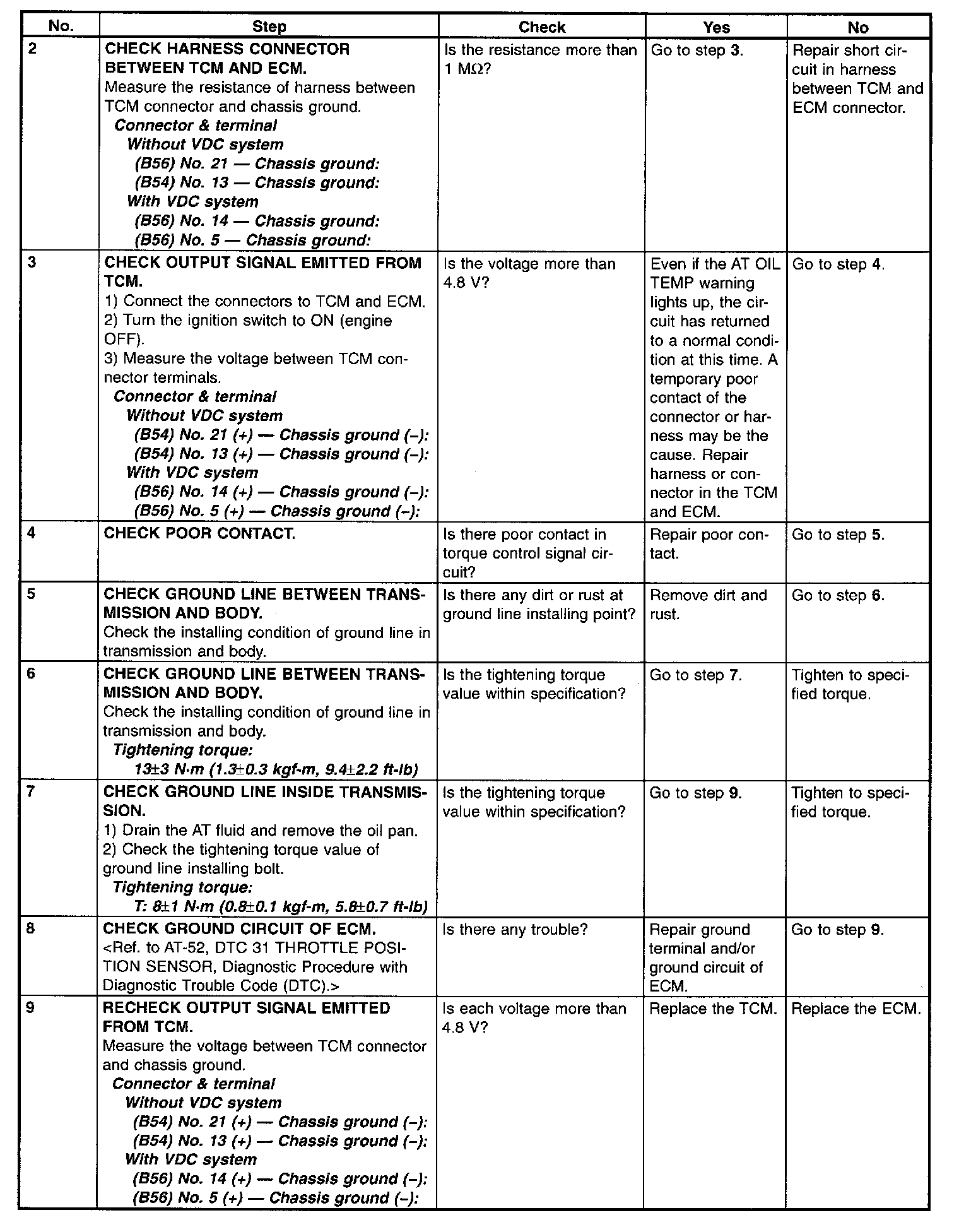

Test Steps 2 through 9
