Transmission Control Systems
DTC 36 TORQUE CONVERTER TURBINE SPEED SENSORDIAGNOSIS: Input signal circuit of TCM is open or shorted.
TROUBLE SYMPTOM: Excessive shift shock.
WIRING DIAGRAM:

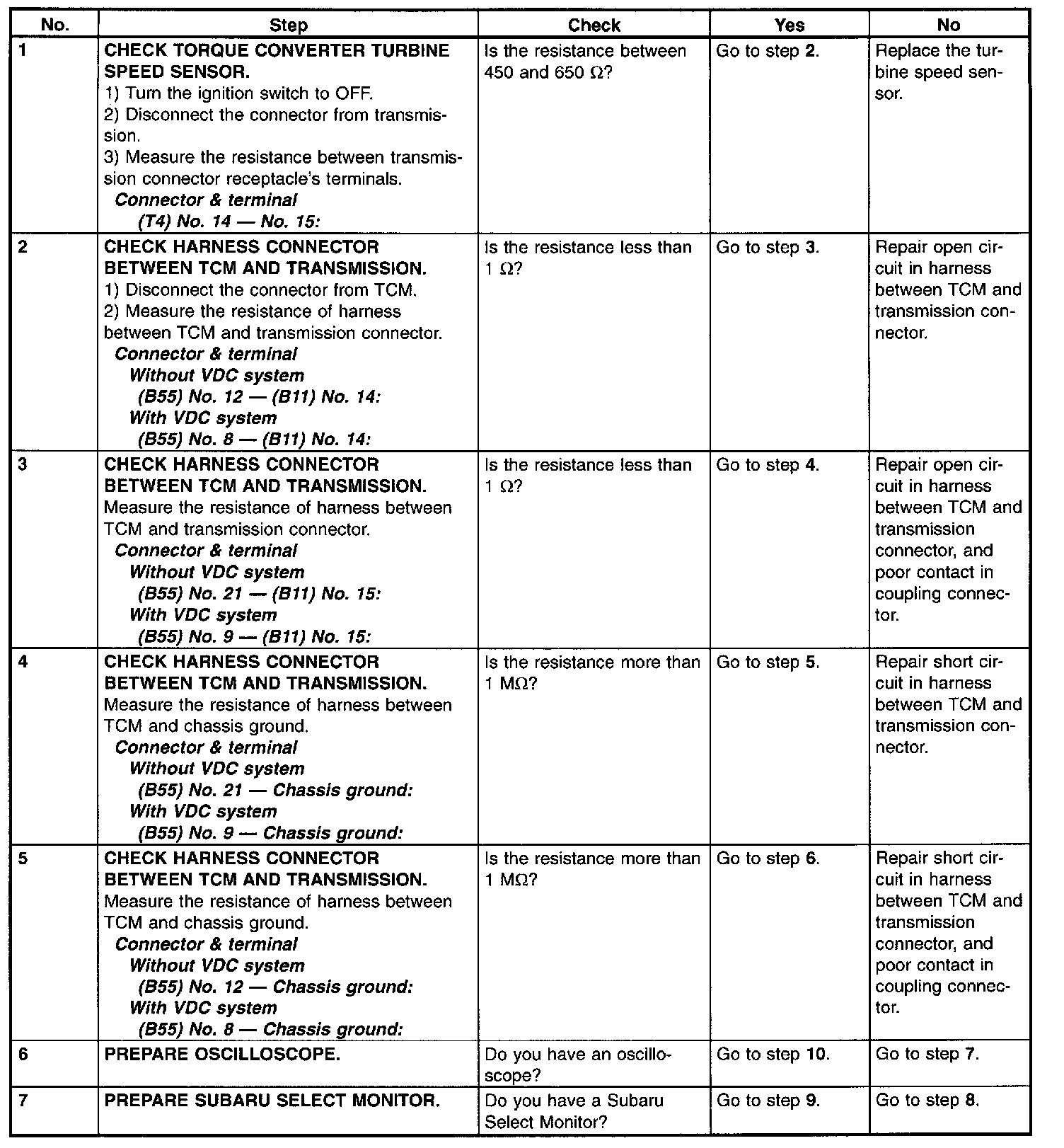

Test Steps 1 through 7

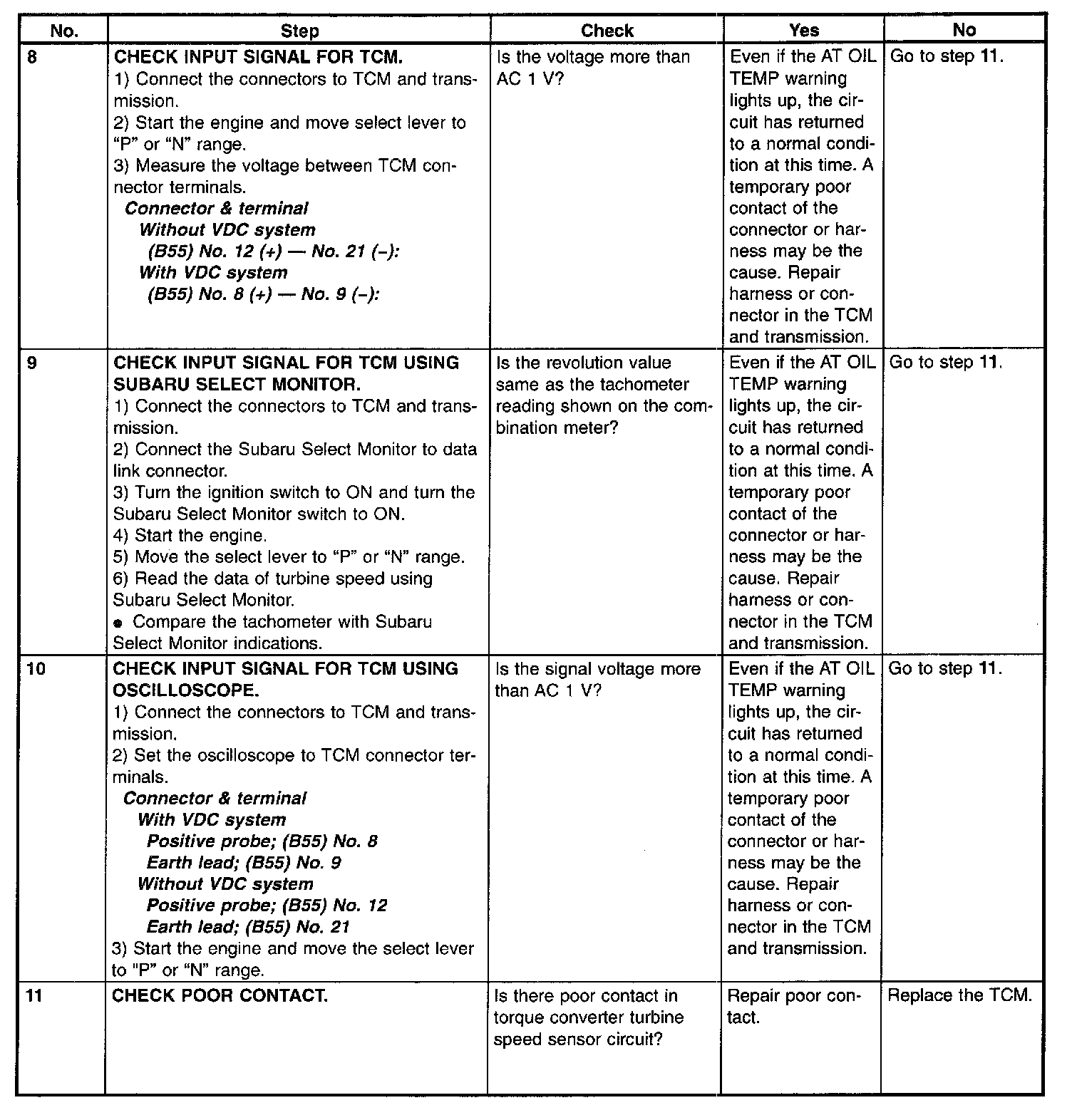

Test Steps 8 through 11
DIAGNOSIS: Input signal circuit of TCM is open or shorted.
TROUBLE SYMPTOM: Excessive shift shock.
WIRING DIAGRAM:
Test Steps 1 through 7
Test Steps 8 through 11
