Cruise Control System

DTC 35 AND 36 ACTUATOR MOTOR

DIAGNOSIS:
Open or poor contact of cruise control actuator motor.

TROUBLE SYMPTOM:
Cruise control cannot be set. (Cancelled immediately.)

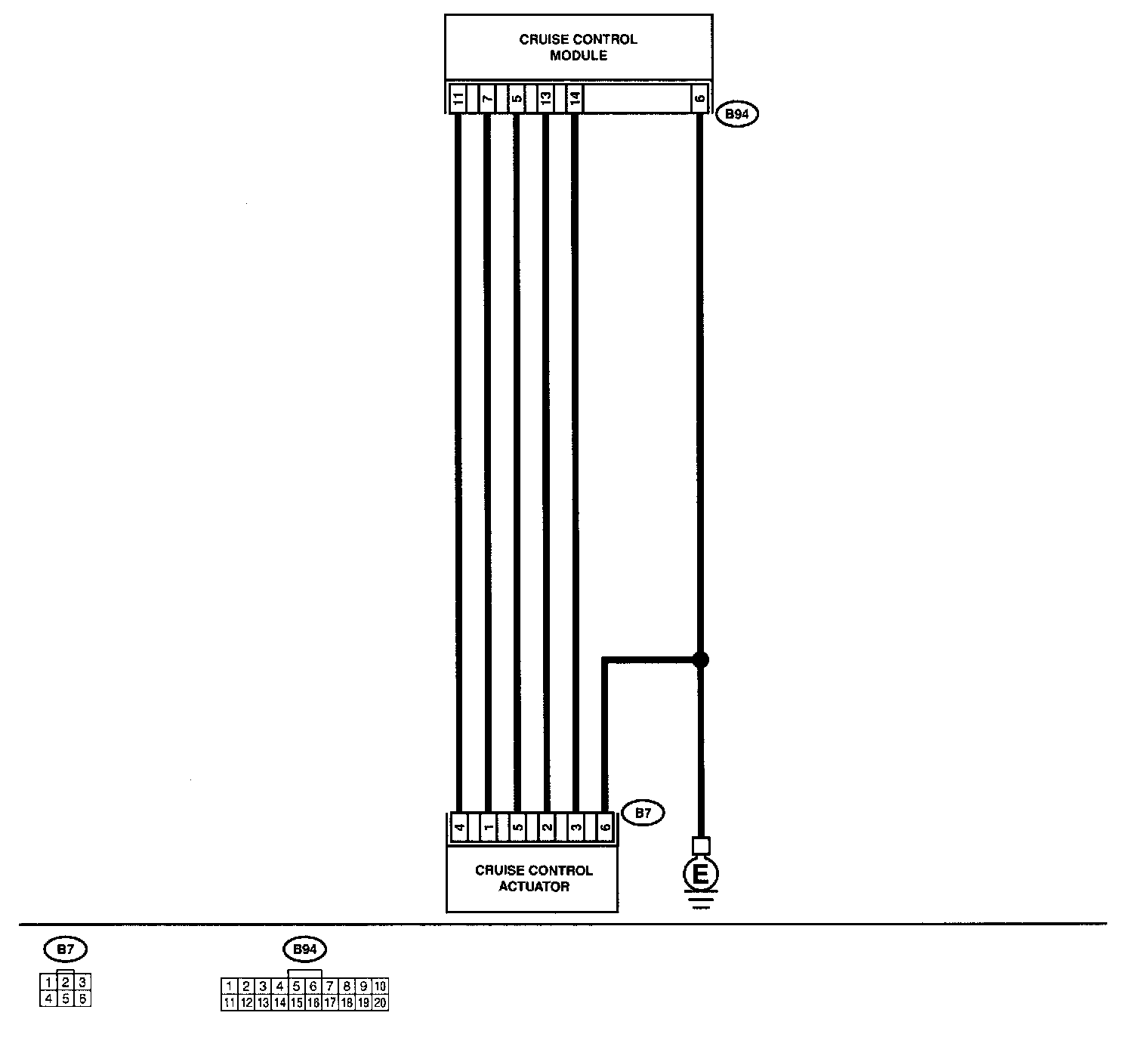

Wiring Diagram:

WIRING DIAGRAM:

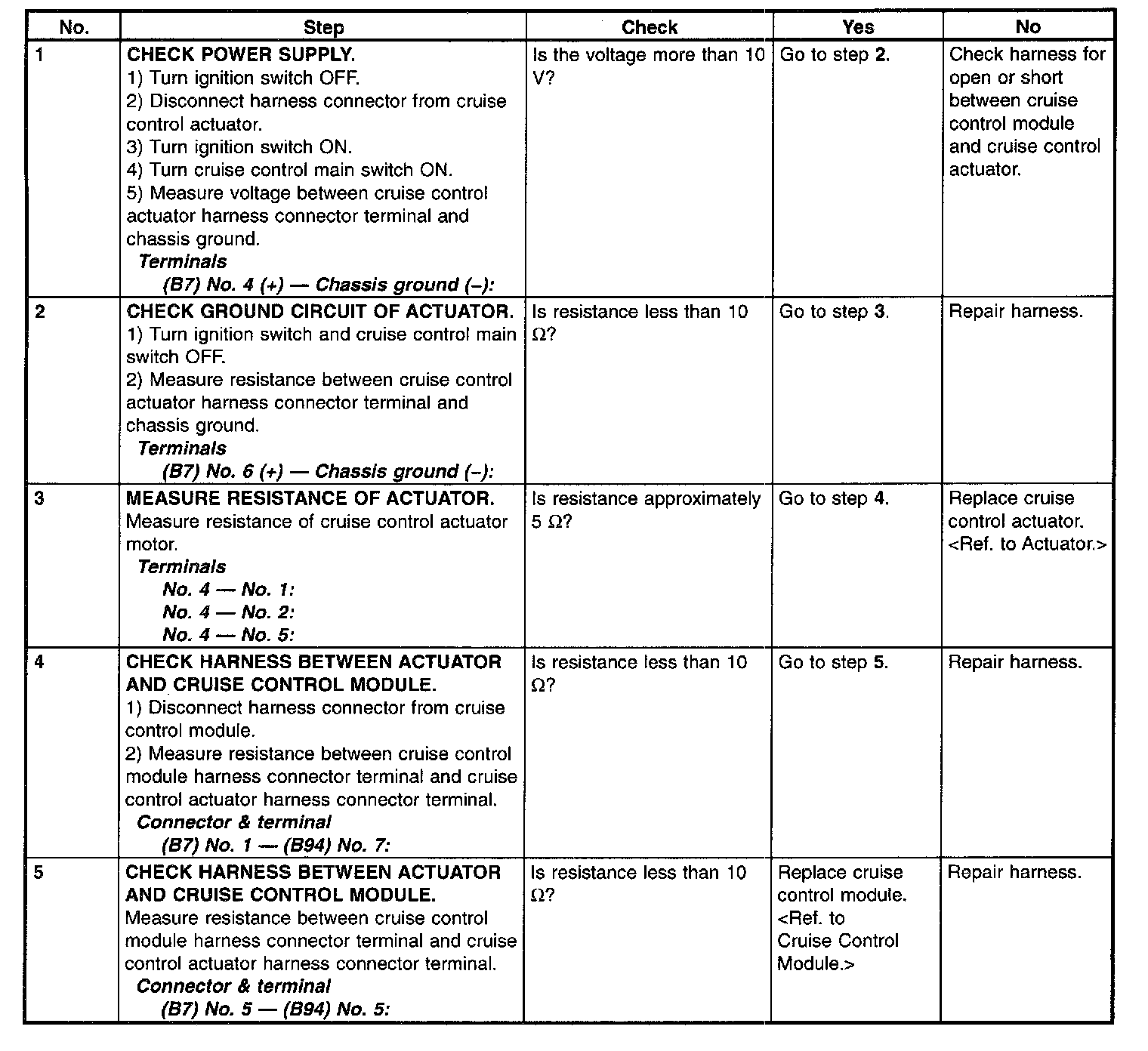

Step 1 - 5:

DIAGNOSTIC TROUBLE CODE PROCEDURE
