Vdc System Trouble Code Charts For Select Monitor Results

TROUBLE CODE 29 ANY ONE OF FOUR ABS SENSOR SIGNAL

DIAGNOSIS:
- Faulty ABS sensor signal (noise, irregular signal, etc.)
- Faulty tone wheel
- Wheels turning freely for a long time

TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

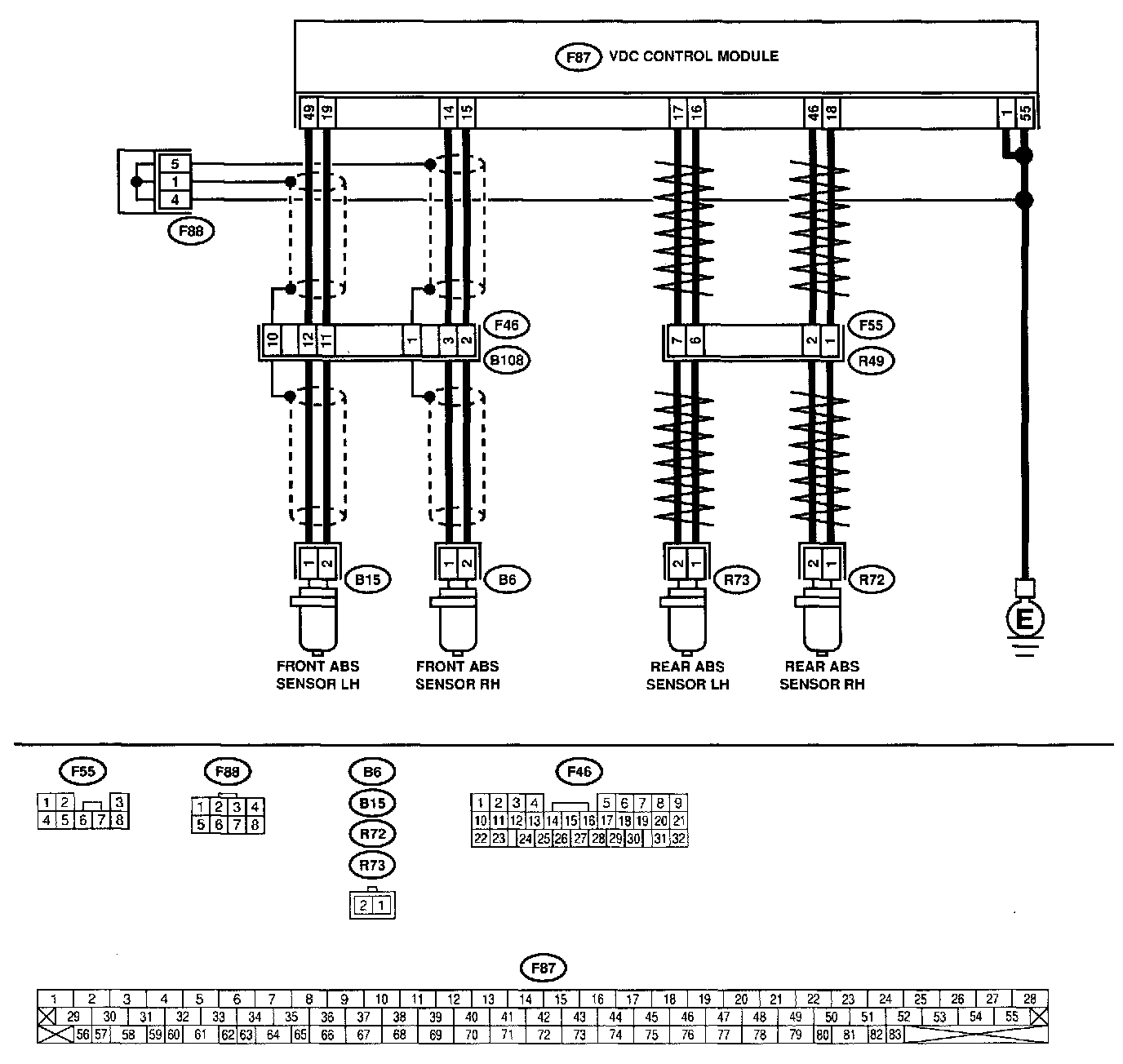

WIRING DIAGRAM:

PROCEDURE:

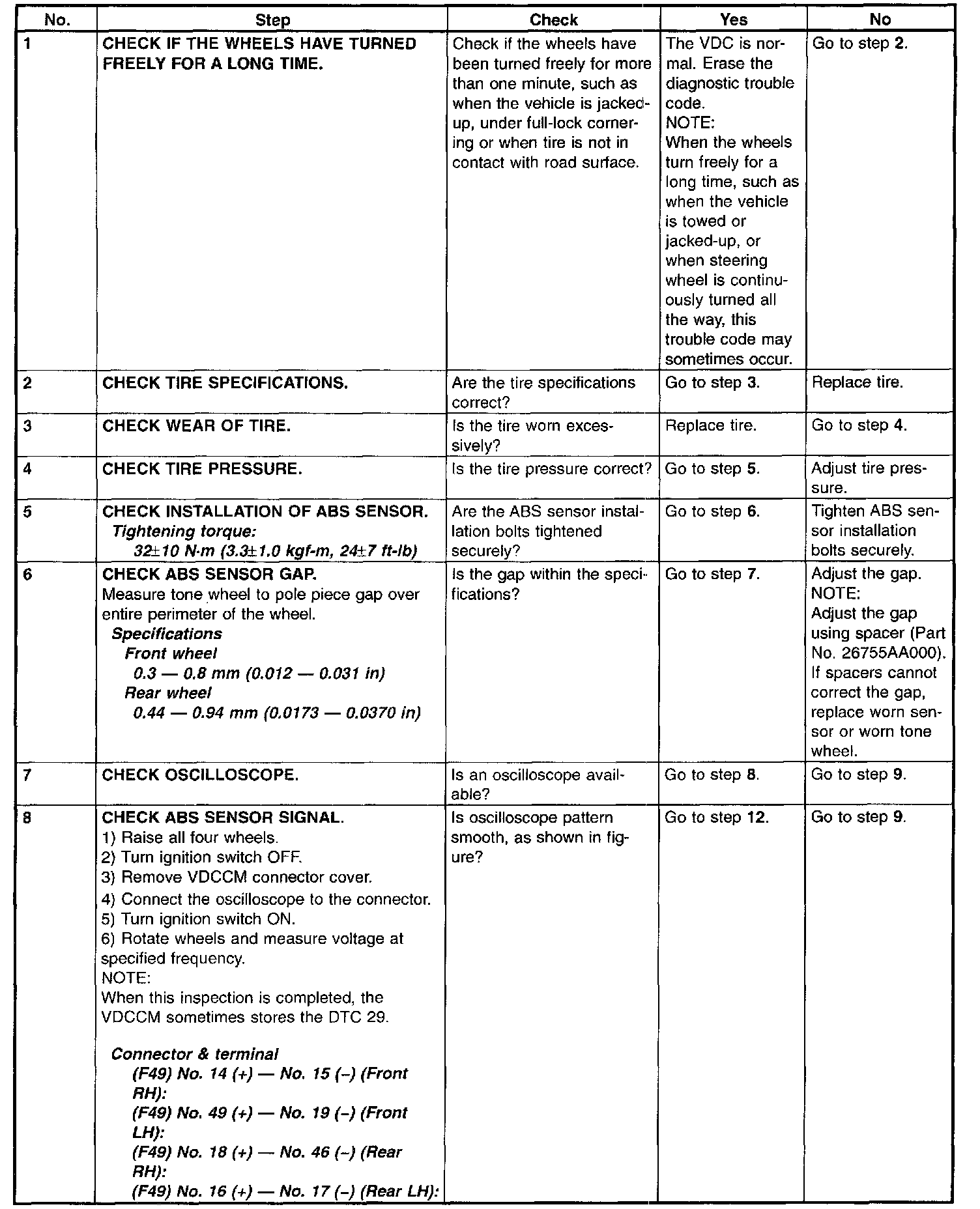

No. 1 - 8

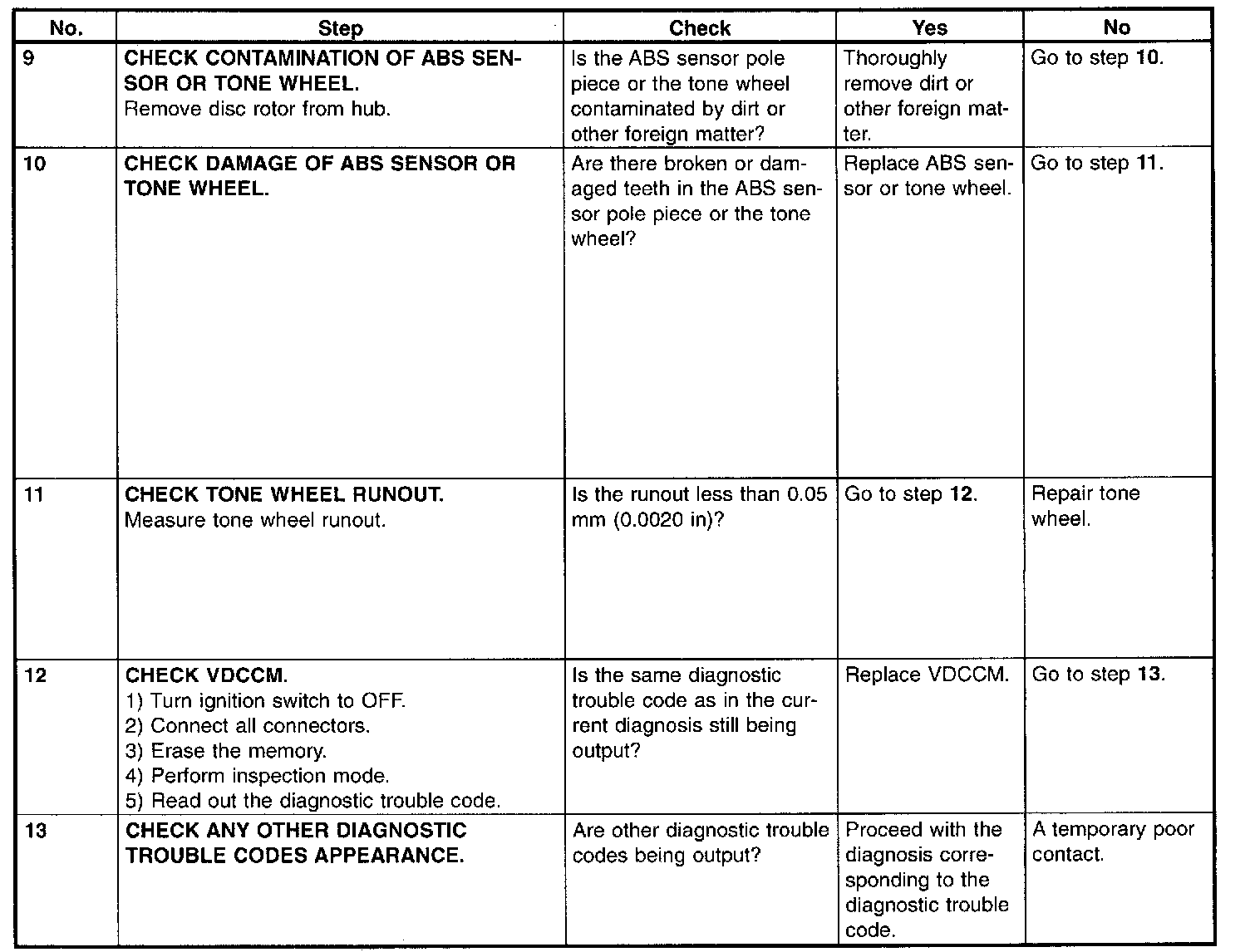

No. 9 - 13
