ABS Trouble Code Charts For Select Monitor Results

TROUBLE CODE 29 -ABNORMAL ABS SENSOR SIGNAL ON ANY ONE OF FOUR SENSOR-

DIAGNOSIS:
- Faulty ABS sensor signal (noise, irregular signal, etc.)
- Faulty tone wheel
- Wheels turning freely for a long time
TROUBLE SYMPTOM:
- ABS does not operate.

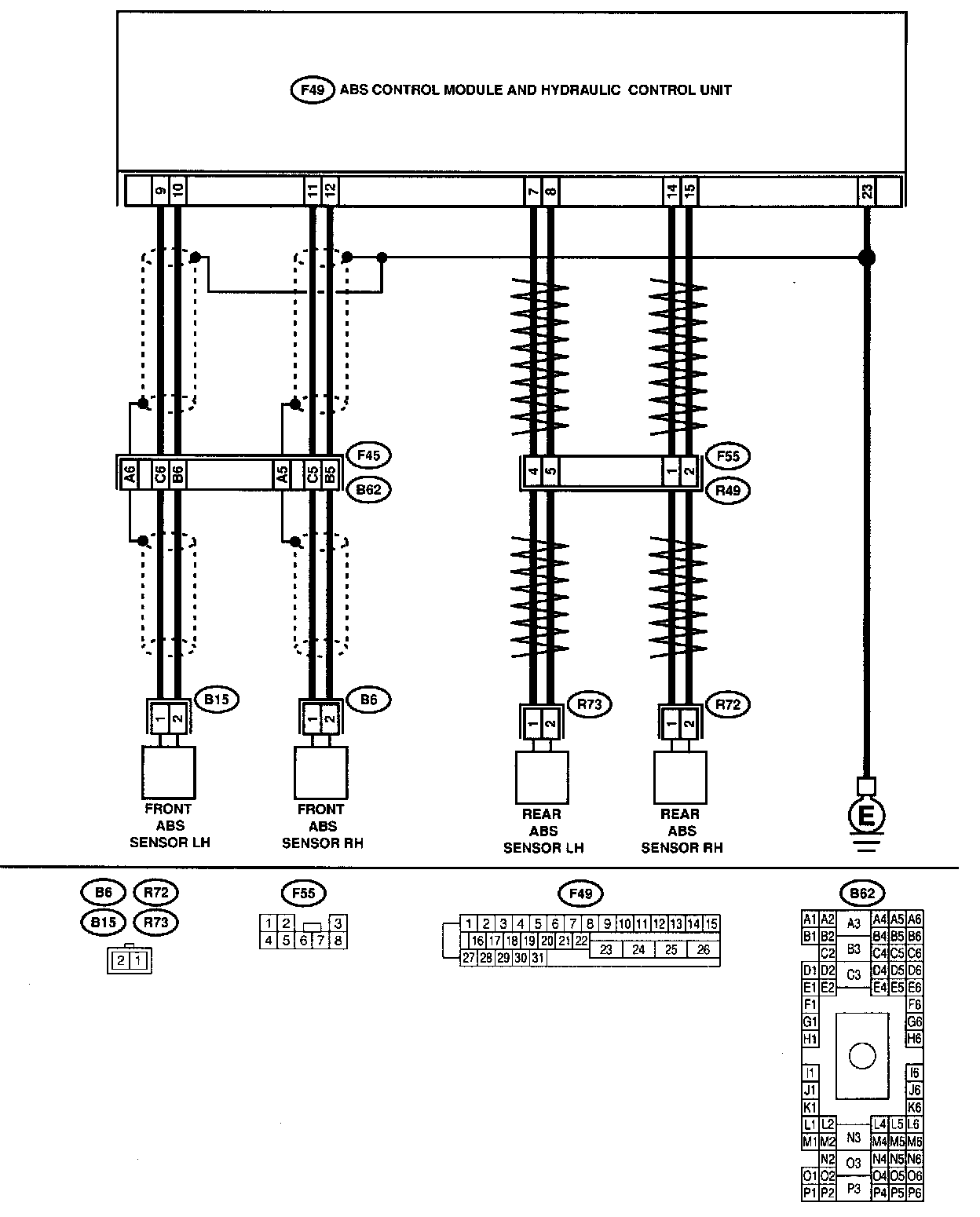

WIRING DIAGRAM:

PROCEDURE:

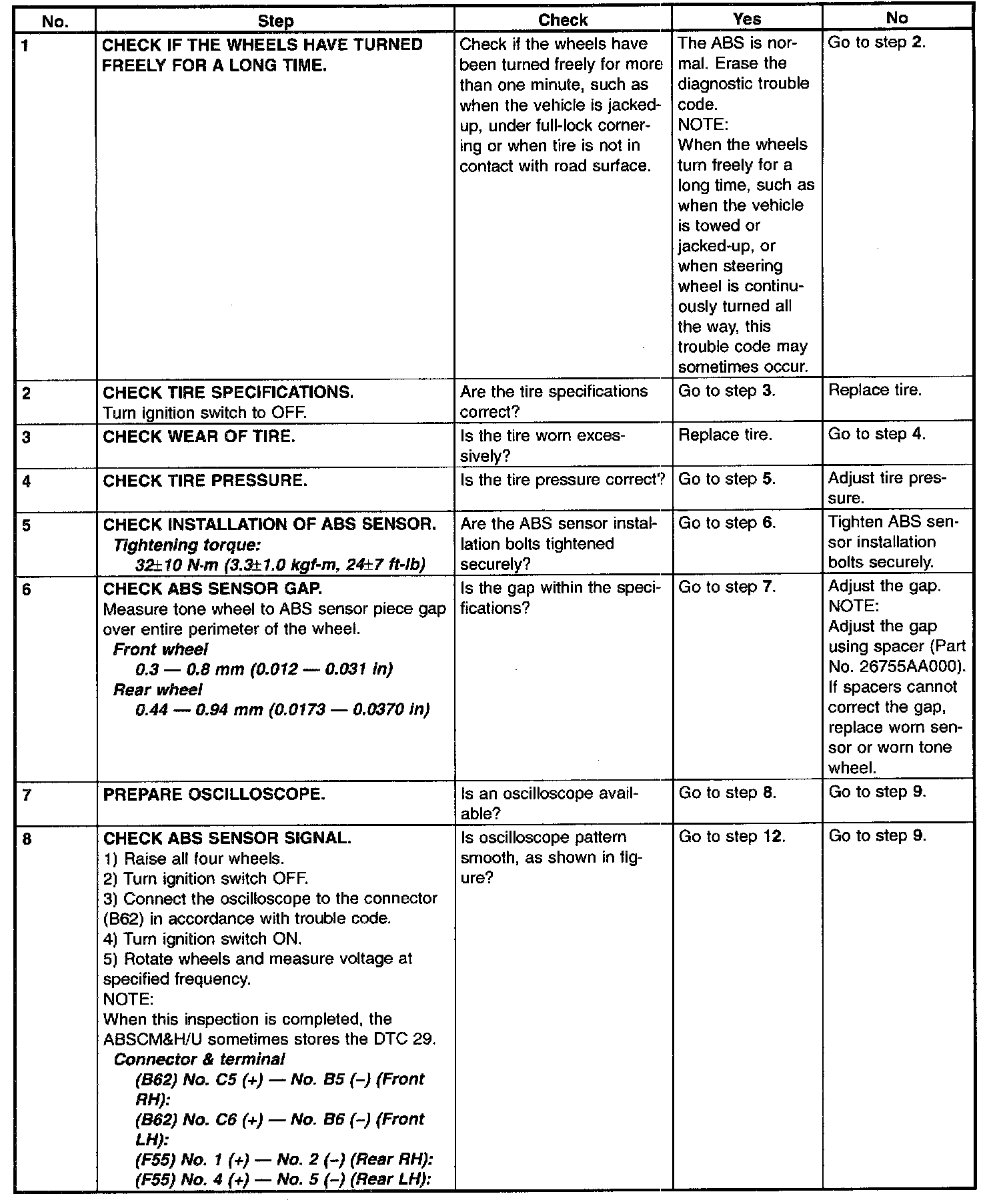

No. 1 - 8

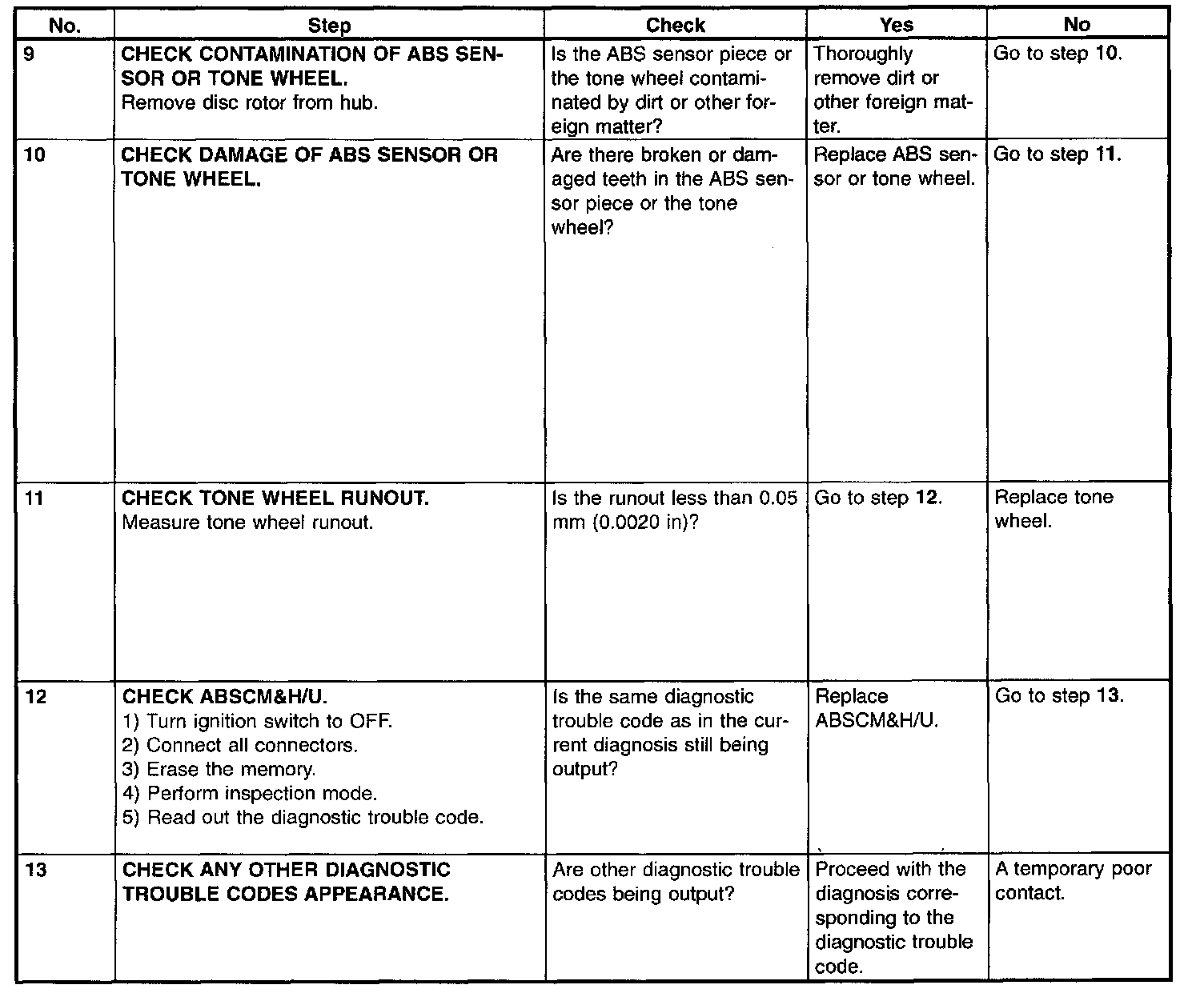

No. 9 - 13
