Vdc System Trouble Code Charts For Select Monitor Results

TROUBLE CODE 22 FRONT RIGHT ABS SENSOR SIGNAL

TROUBLE CODE 24 FRONT LEFT ABS SENSOR SIGNAL

TROUBLE CODE 26 REAR RIGHT ABS SENSOR SIGNAL

TROUBLE CODE 28 REAR LEFT ABS SENSOR SIGNAL

DIAGNOSIS:
- Faulty ABS sensor signal (noise, irregular signal)
- Faulty harness/connector

TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

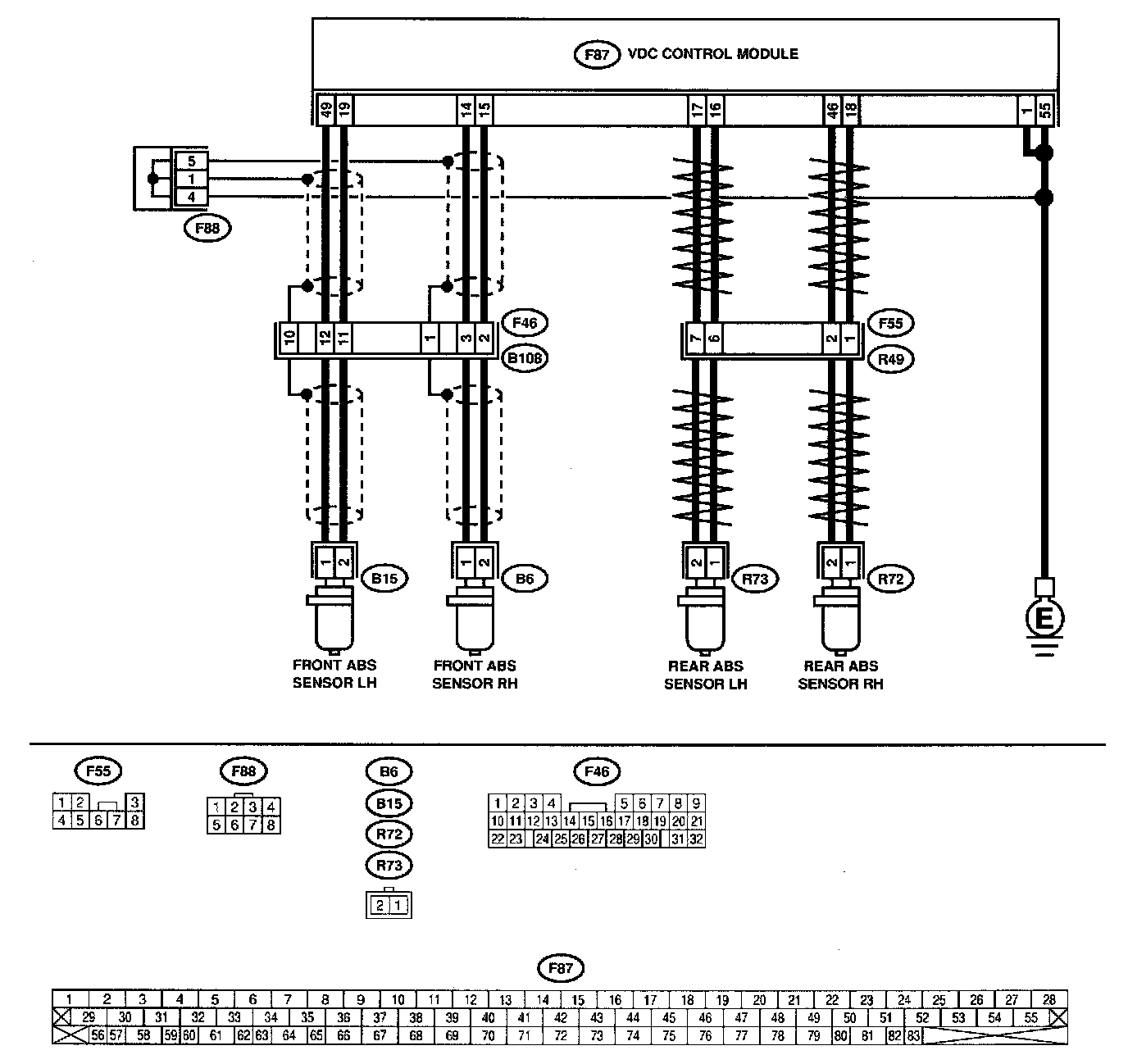

WIRING DIAGRAM:

PROCEDURE:

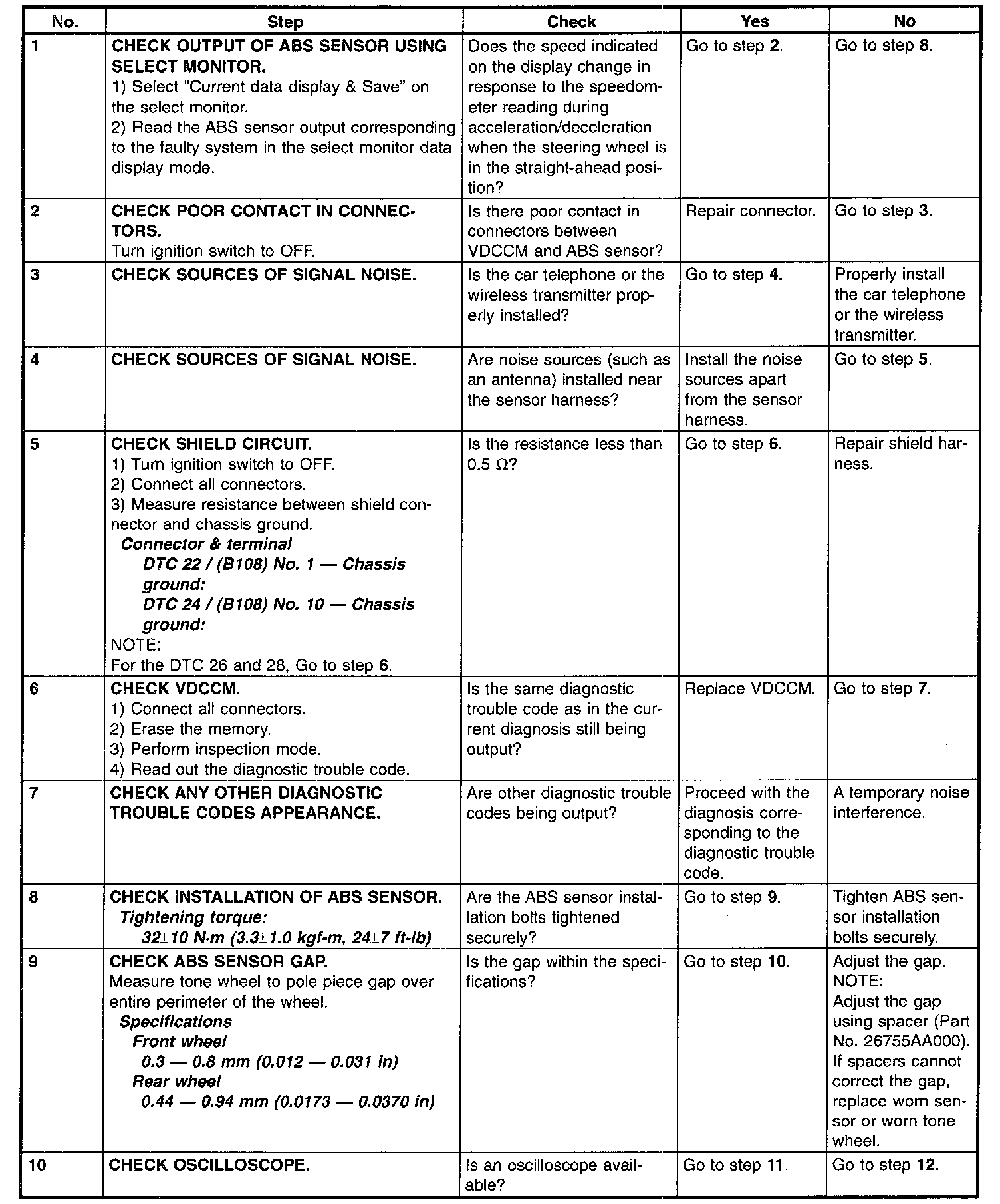

No. 1 - 10





No. 11 - 16

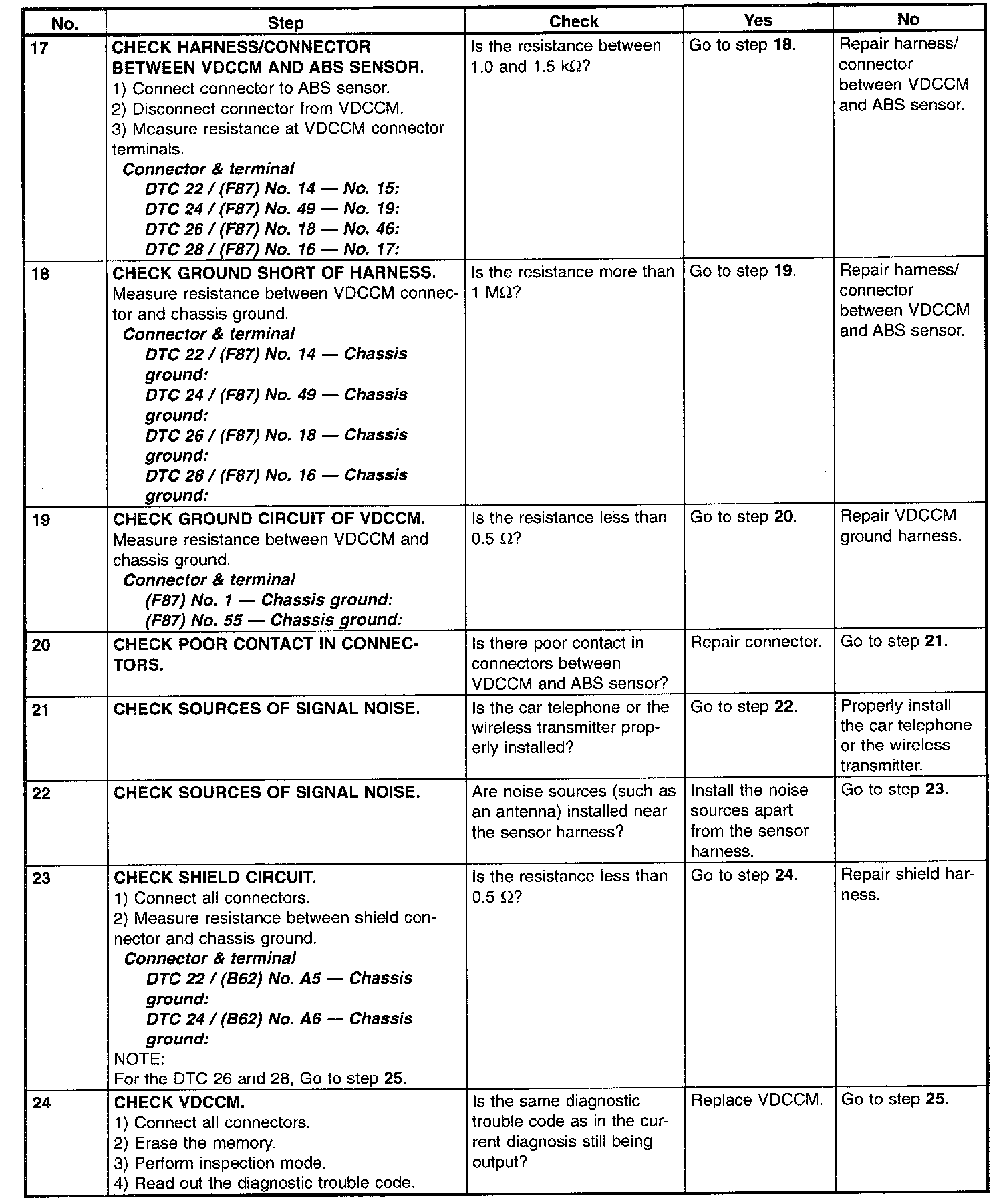

No. 17 - 24





No. 25
