Transmission Control Systems

B: DTC 27 ATF TEMPERATURE SENSOR
DIAGNOSIS: Input signal circuit of TCM to ATF temperature sensor is open or shorted.
TROUBLE SYMPTOM: Excessive shift shock.

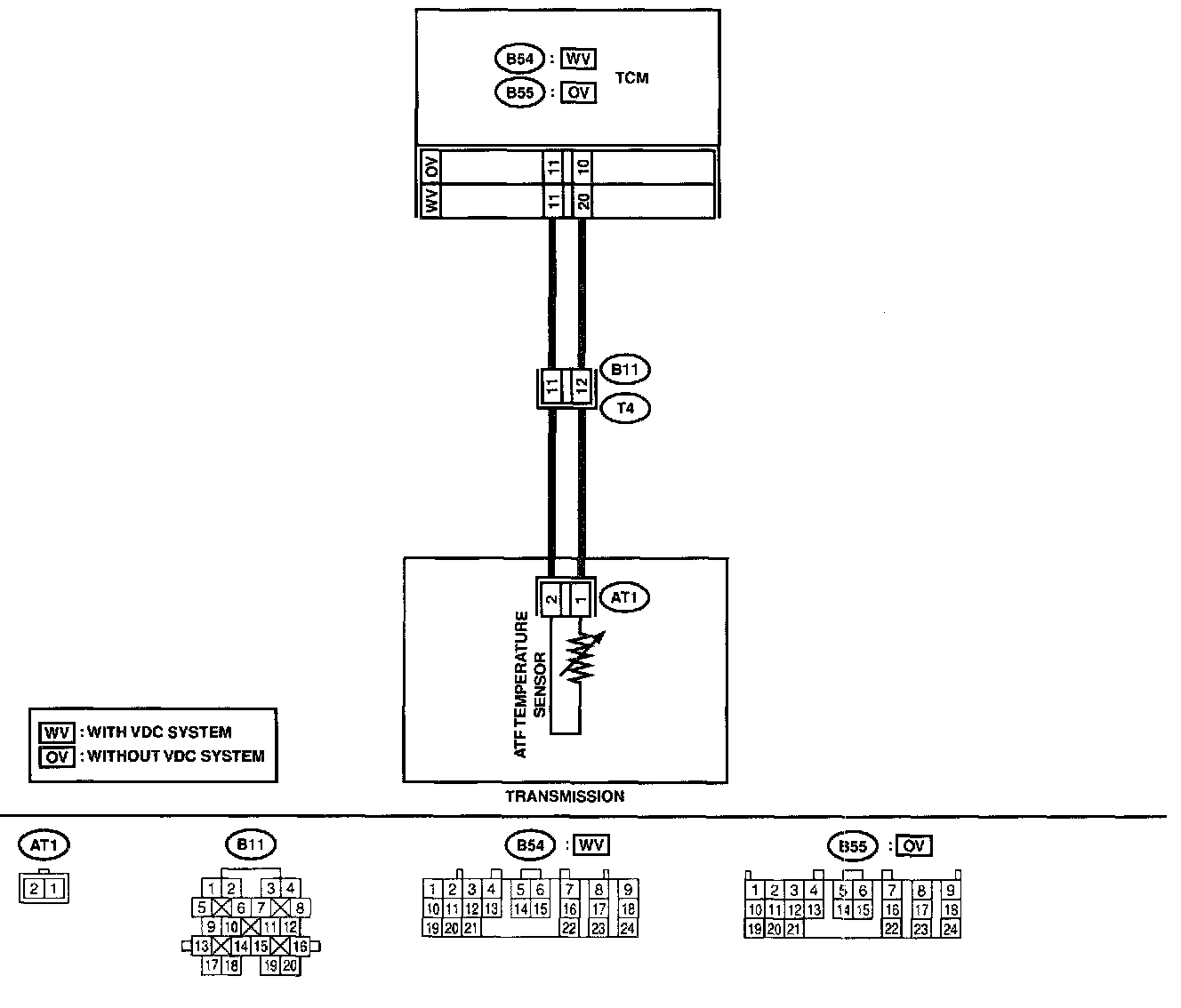

WIRING DIAGRAM:

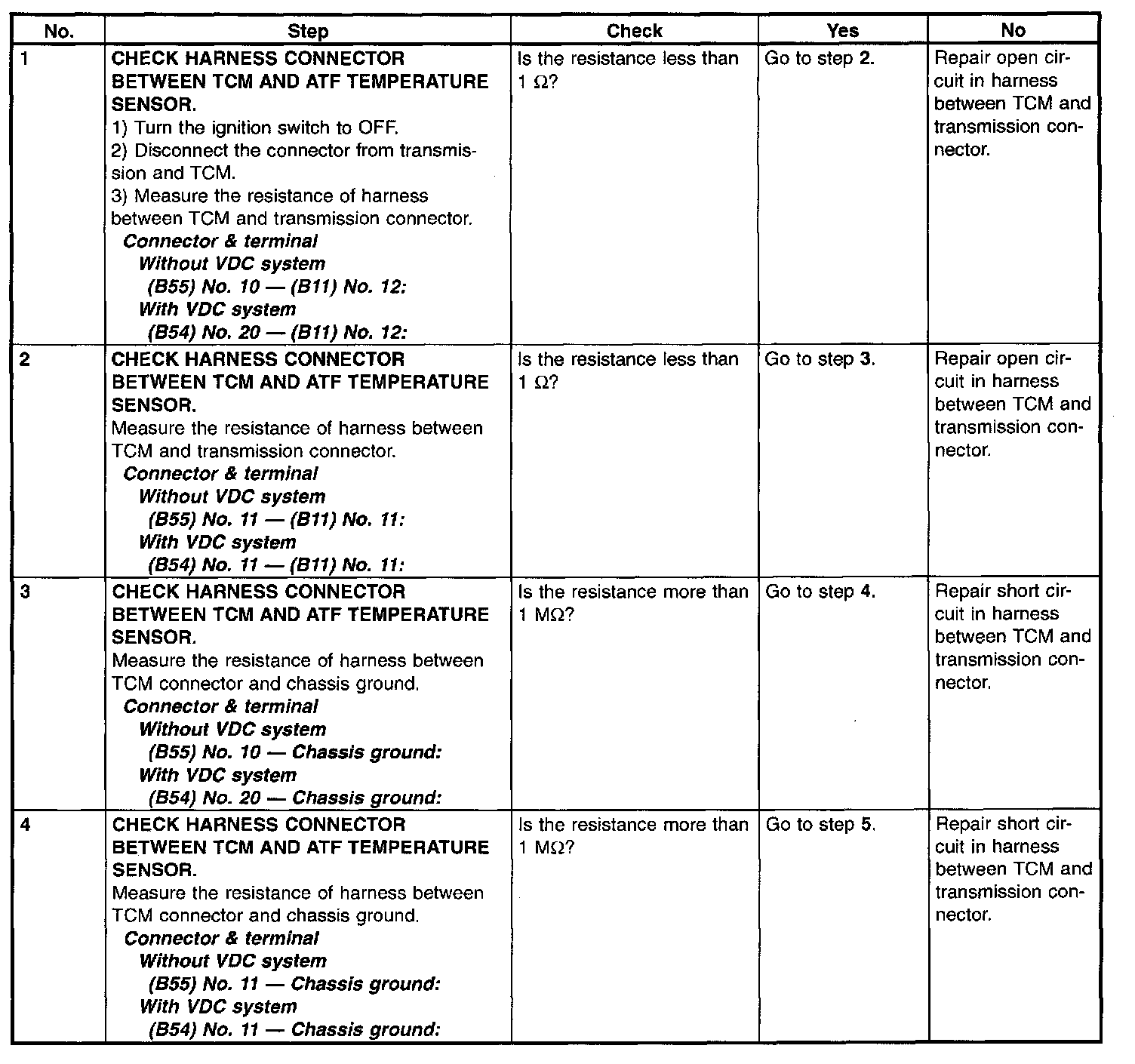

Test Steps 1 through 4

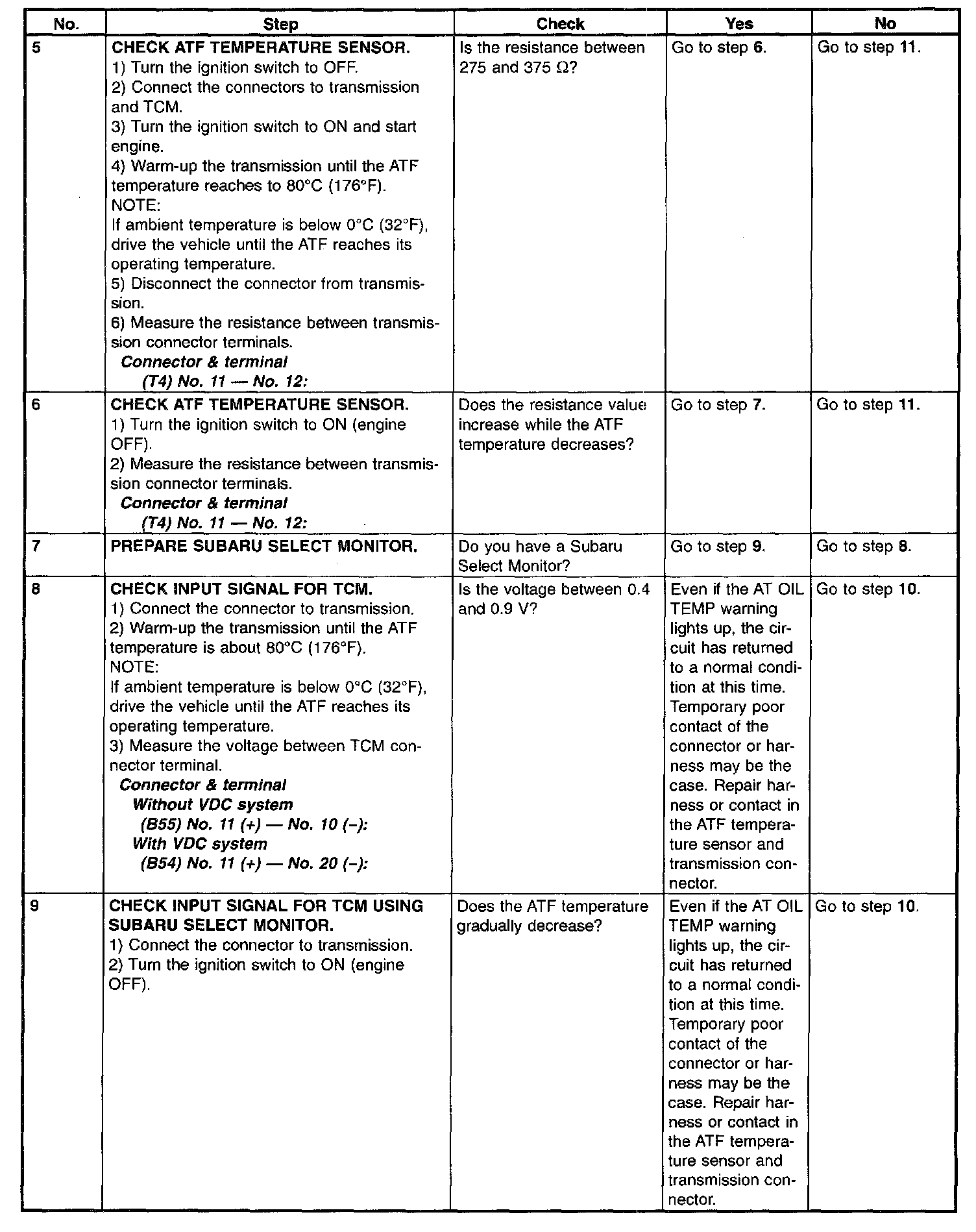

Test Steps 5 through 9





Test Steps 10 through 14
