Restraint Systems

25 - Airbag Control Module Is Faulty

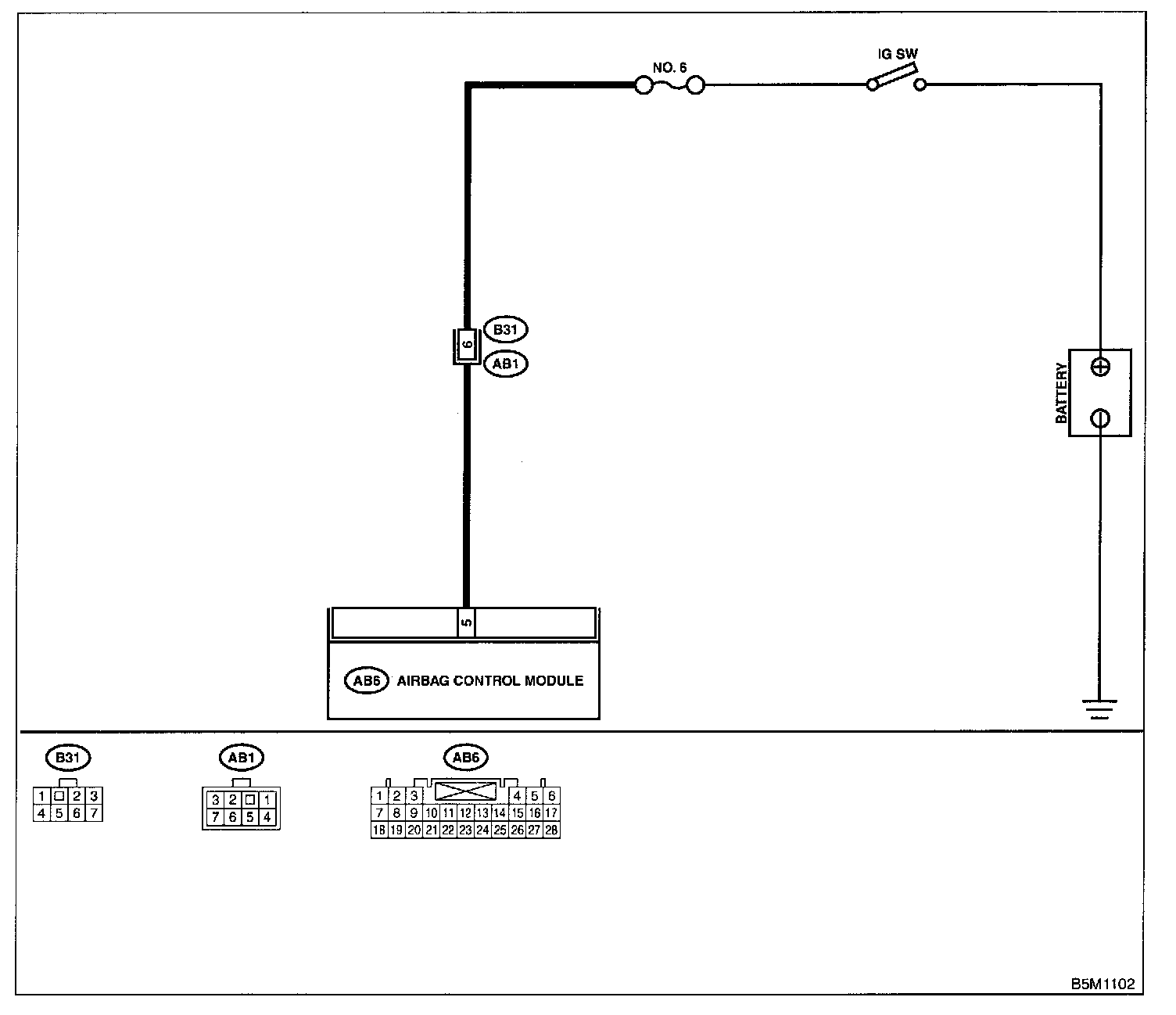

Wiring Diagram:

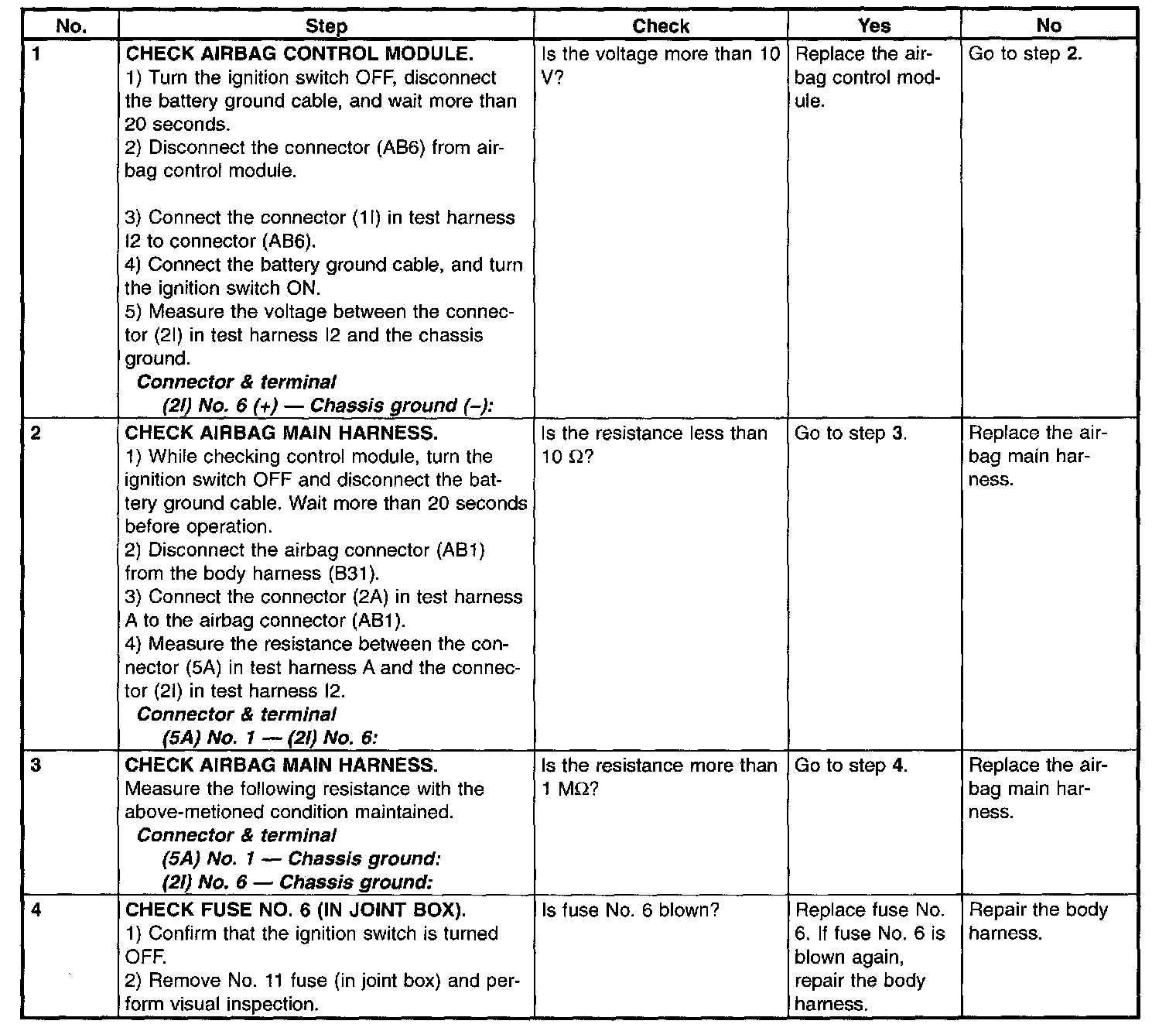

Step 1 - 4:

DIAGNOSIS:
Airbag control module is faulty.
Airbag main harness circuit is open.
Fuse No.6 (in joint box) is blown.
GBody harness circuit is open.

CAUTION: Before diagnosing the airbag system, be sure to turn the ignition switch OFF, disconnect the ground cable from the battery, and wait more than 20 seconds before starting to work.
GBefore replacing the airbag module, roll connector, control module, and sensor, reconnect each part and confirm that the warning light operates properly.
When inspecting the airbag main harness, disconnect the driver's airbag module and passenger's airbag module connectors for safety reasons.
