ABS Trouble Code Charts For Select Monitor Results

TROUBLE CODE 22 -FRONT RIGHT ABNORMAL ABS SENSOR SIGNAL-

TROUBLE CODE 24 -FRONT LEFT ABNORMAL ABS SENSOR SIGNAL-

TROUBLE CODE 26 -REAR RIGHT ABNORMAL ABS SENSOR SIGNAL-

TROUBLE CODE 28 -REAR LEFT ABNORMAL ABS SENSOR SIGNAL-

DIAGNOSIS:
- Faulty ABS sensor signal (noise, irregular signal, etc.)
- Faulty harness/connector
TROUBLE SYMPTOM:
- ABS does not operate.

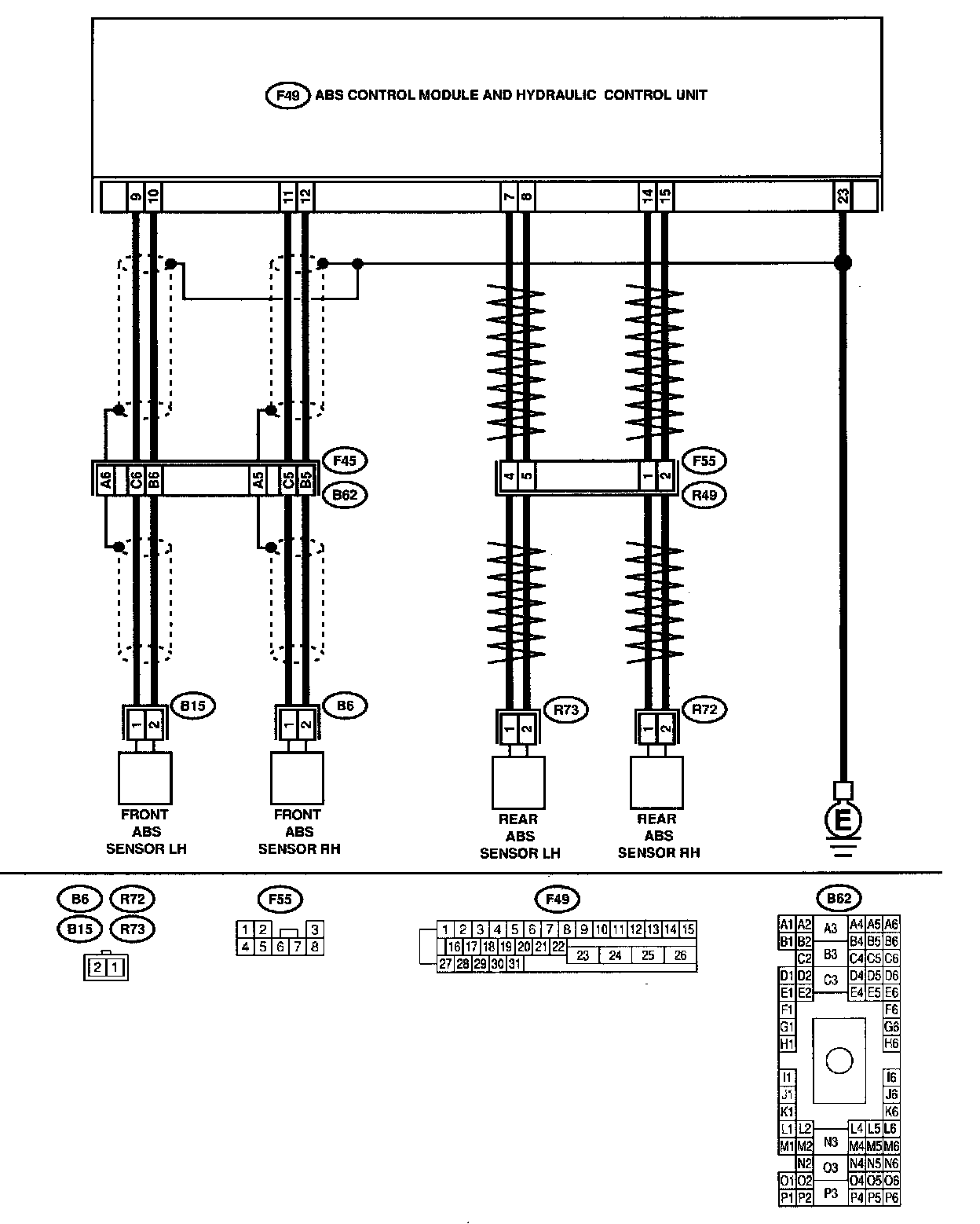

WIRING DIAGRAM:

PROCEDURE:

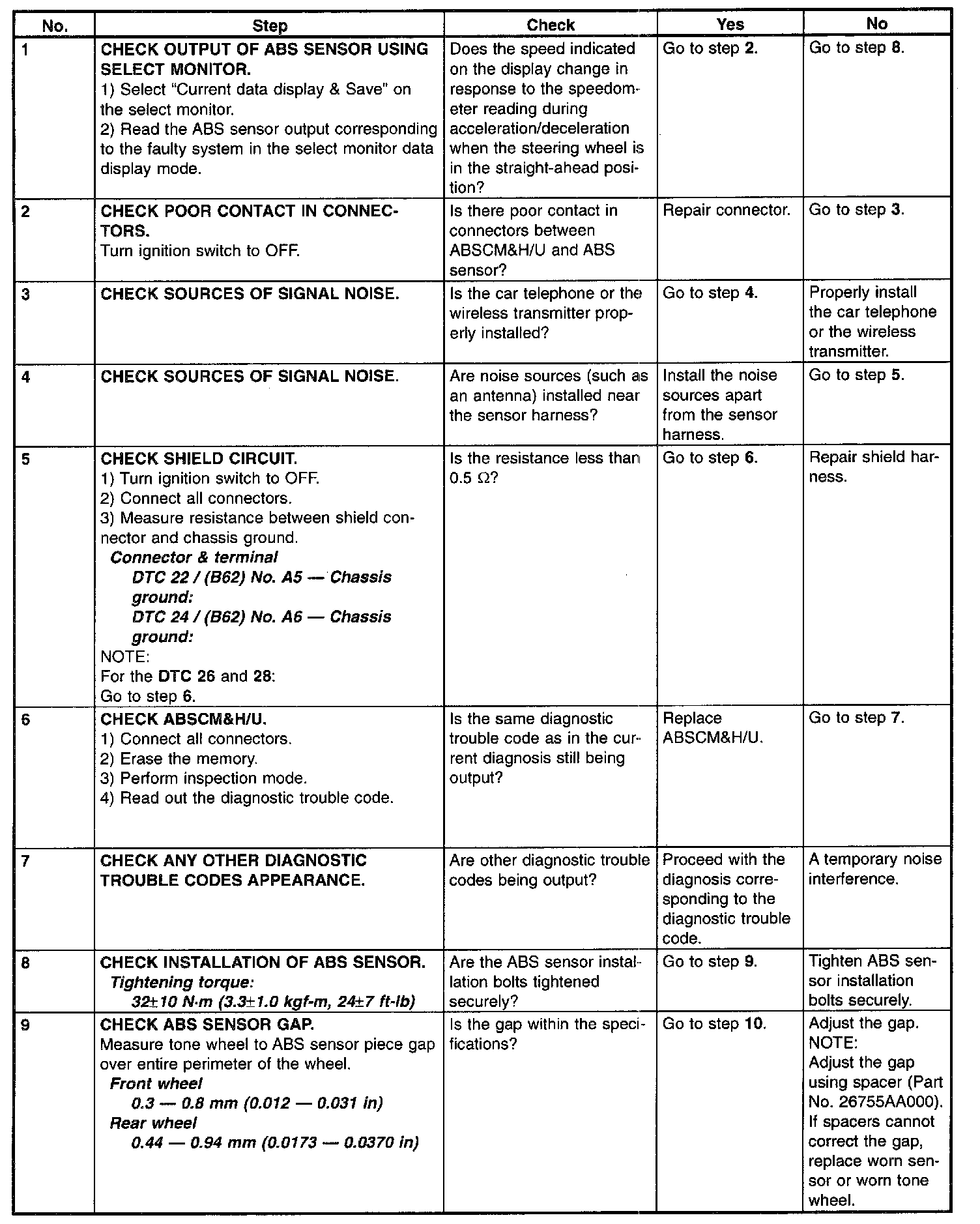

No. 1 - 9

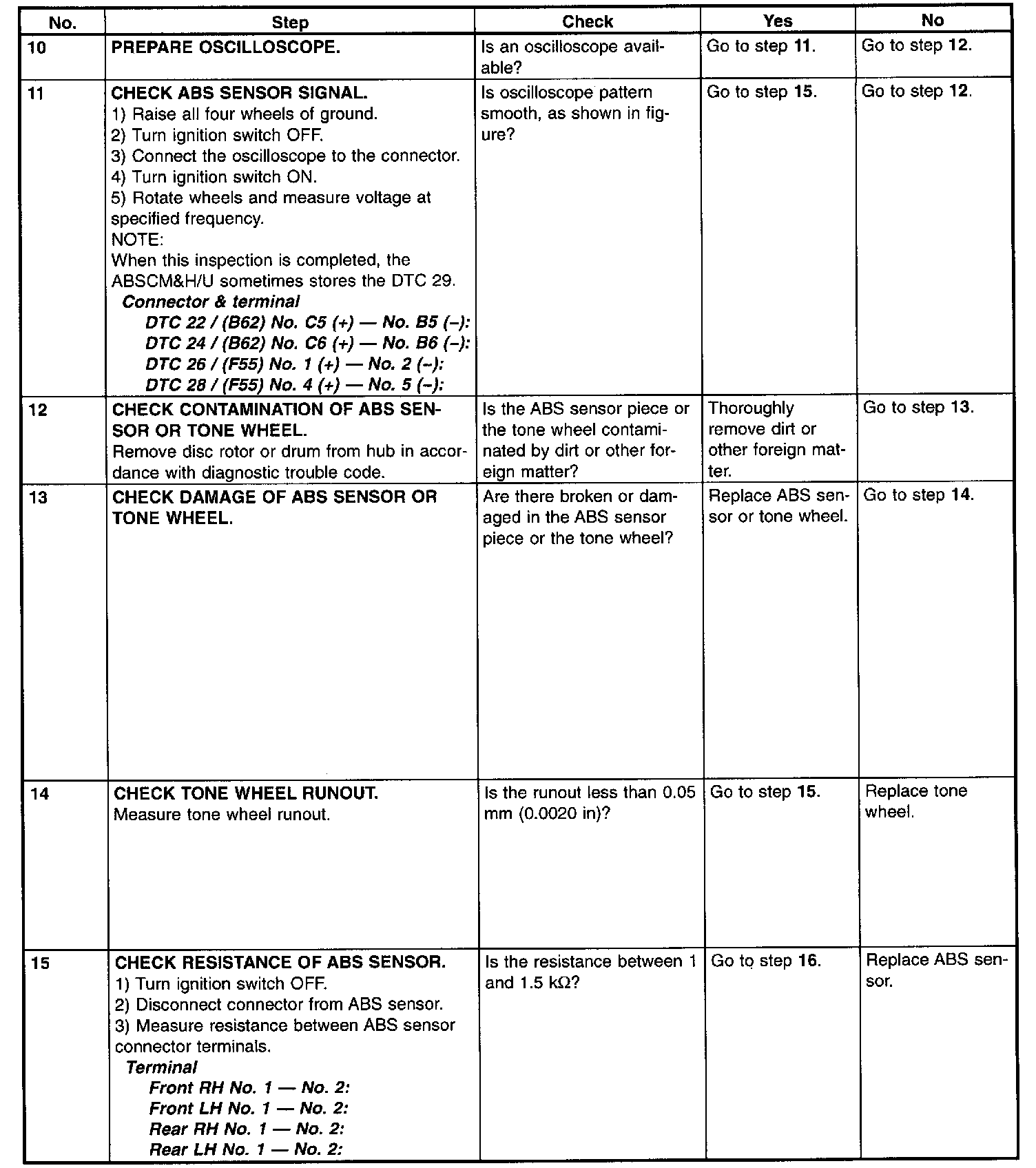

No. 10 - 15

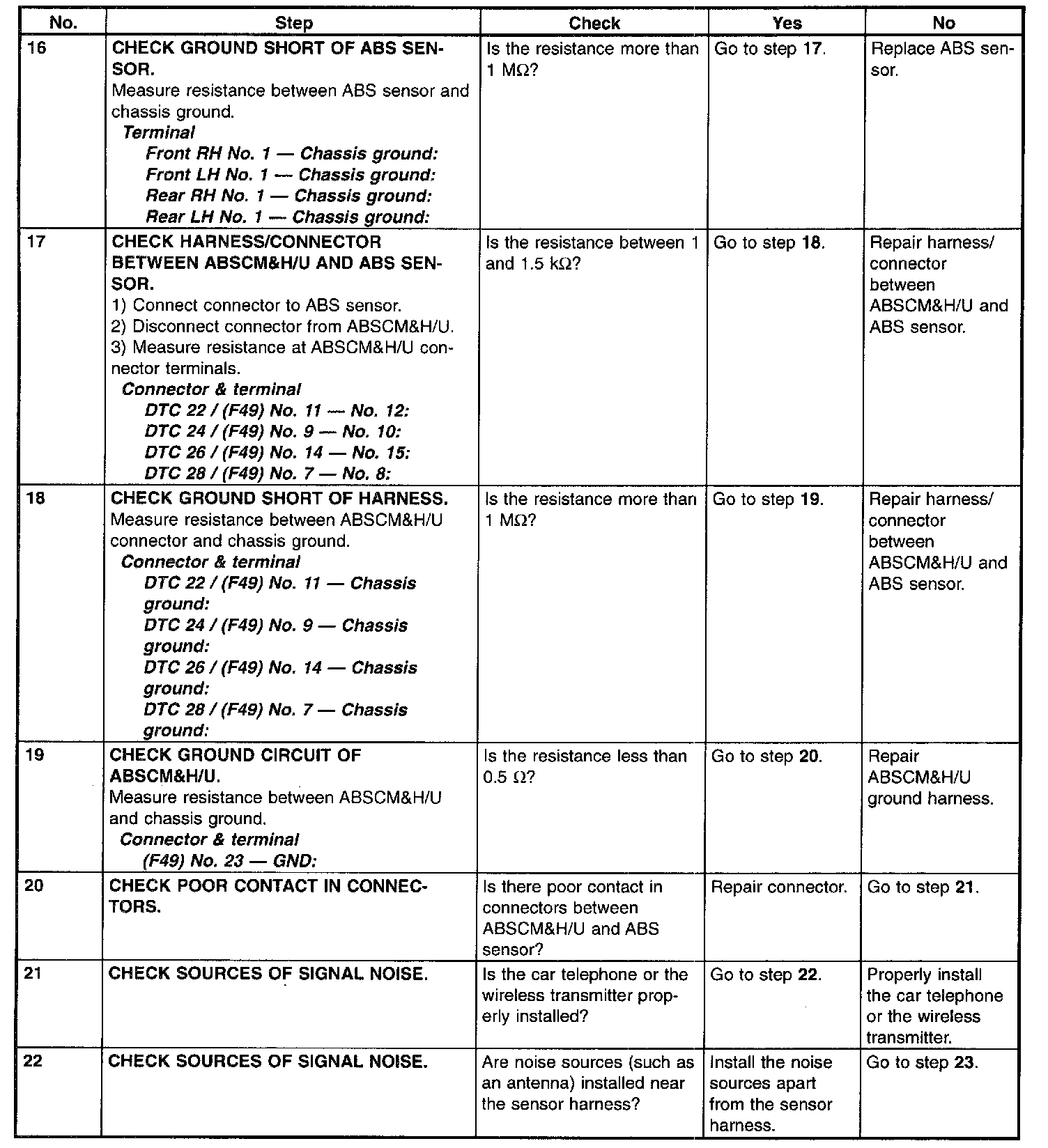

No. 16 - 22

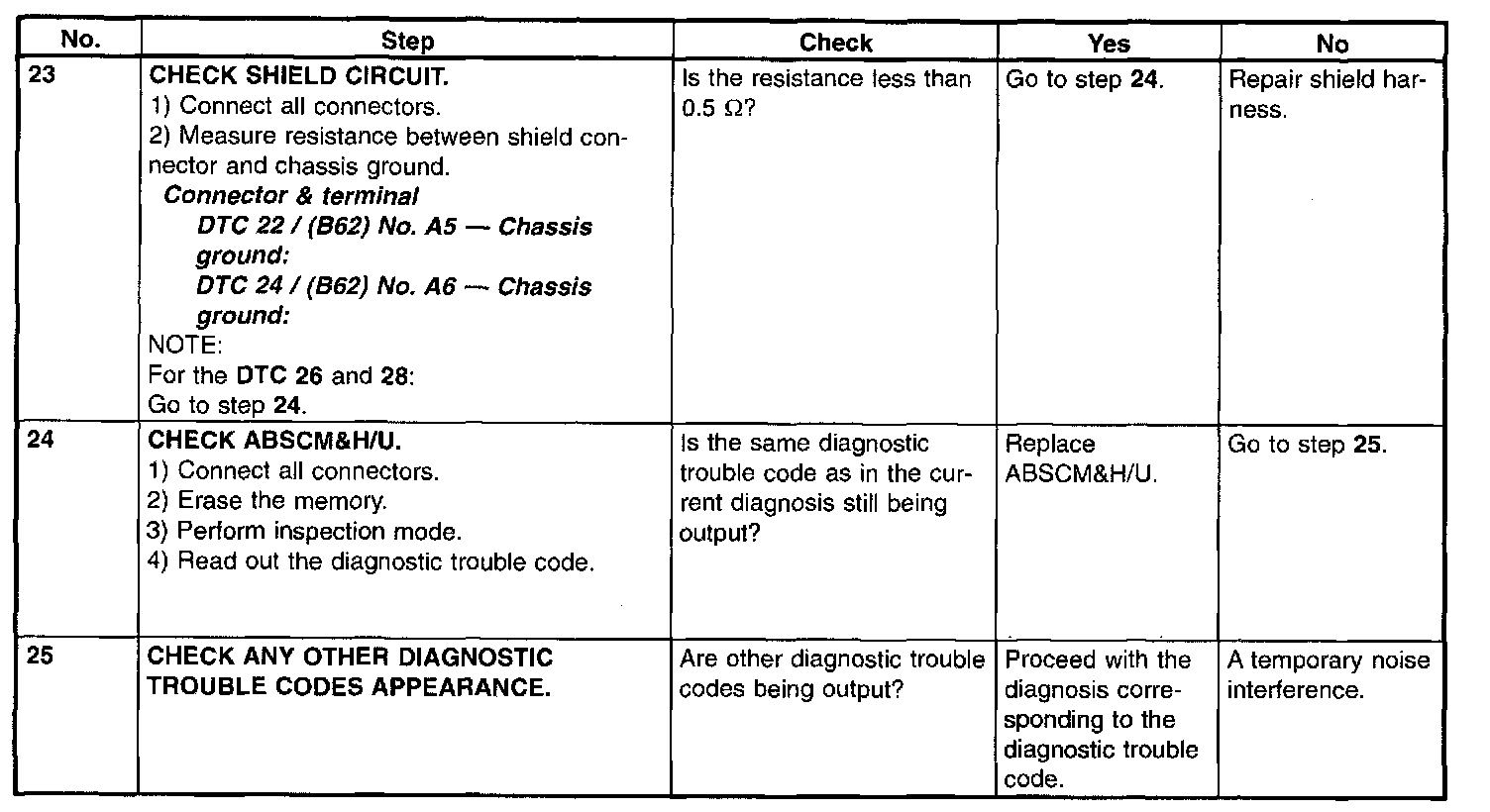

No. 23 - 25
