DTC 16

16 - Airbag Harness Circuit (Passenger) Shorted to Power Supply

Wiring Diagram:

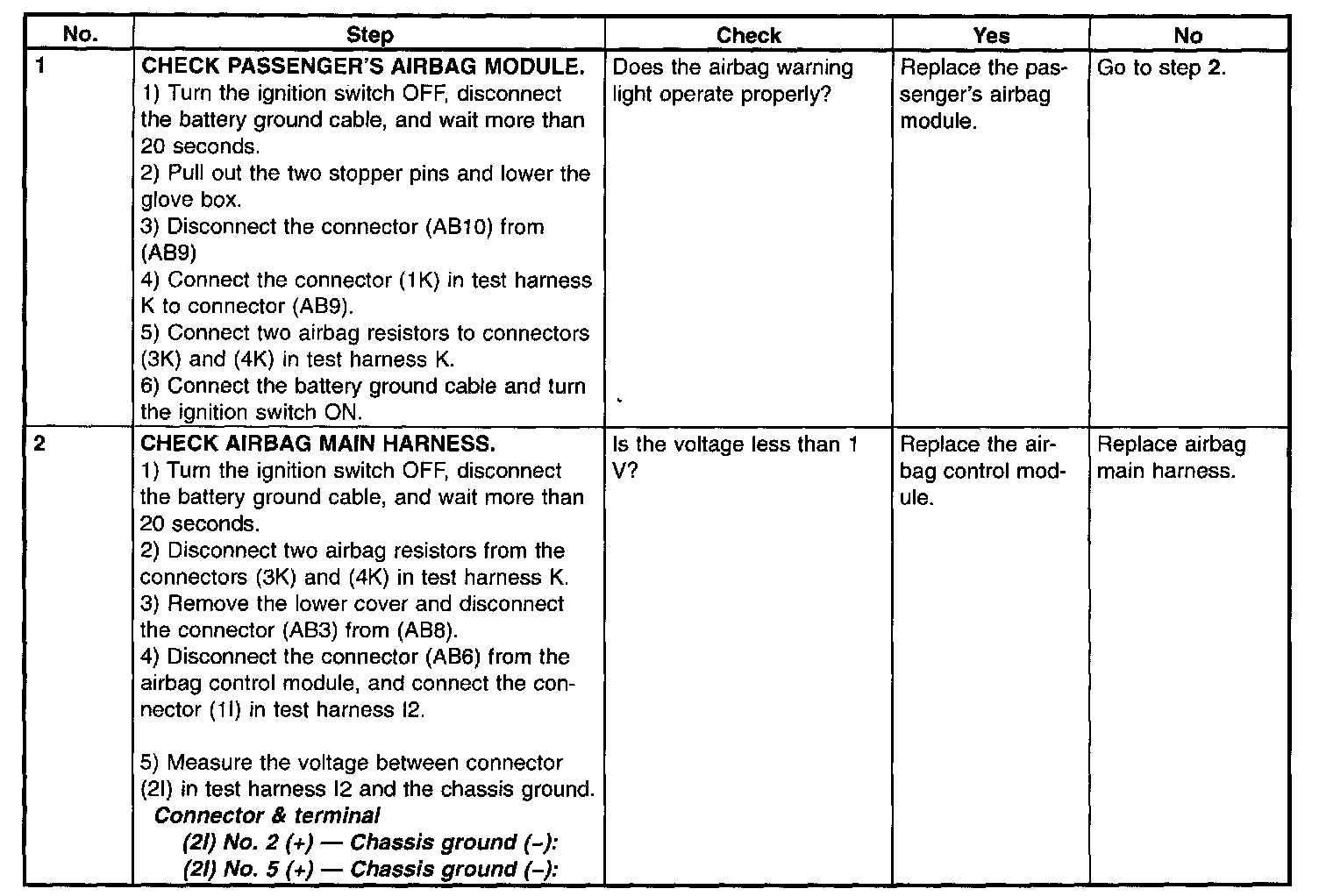

Step 1 - 2:

DIAGNOSIS:
Airbag main harness circuit (Passenger) is shorted to the power supply.
Airbag module harness (Passenger) is shorted to the power supply.
Passenger's airbag module is faulty.
Airbag control module is faulty.



CAUTION: Before diagnosing the airbag system, be sure to turn the ignition switch OFF, disconnect the ground cable from the battery, and wait more than 20 seconds before starting to work.
Before replacing the airbag module, roll connector, control module, and sensor, reconnect each part and confirm that the warning light operates properly.
When inspecting the airbag main harness, disconnect the airbag module connector of the driver and passenger seats for safety reasons.
