Transmission Control Systems

DTC 11 ENGINE SPEED SIGNAL
DIAGNOSIS: Engine speed input signal circuit is open or shorted.
TROUBLE SYMPTOM:
- No lock-up (after engine warm-up).
- "AT OIL TEMP" warning light remains on when the vehicle speed is "0".

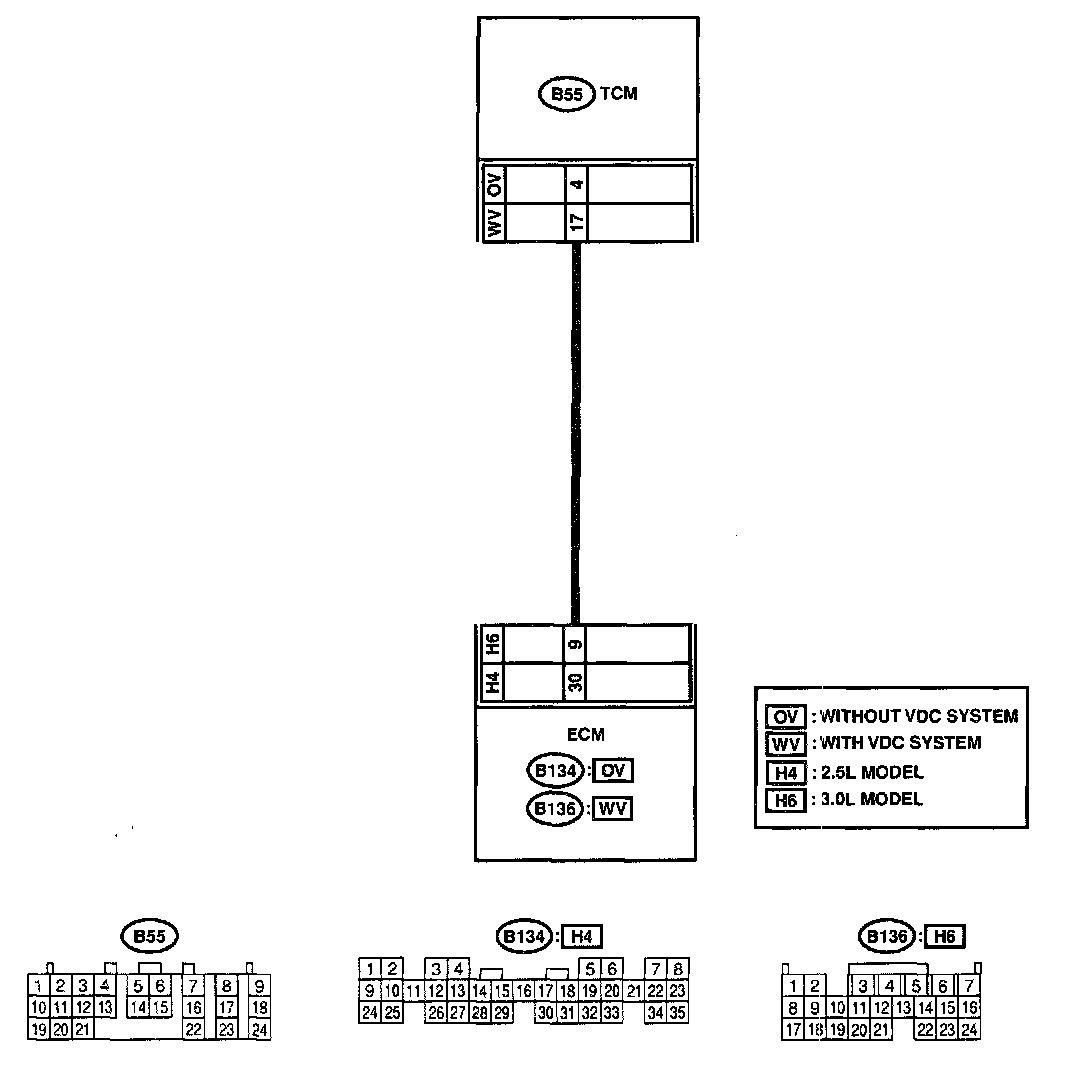

WIRING DIAGRAM:





Test Step 1 through 6

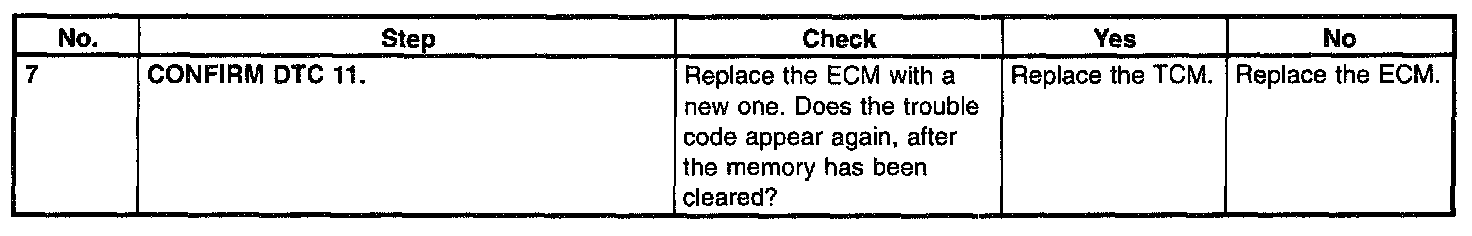

Test Step 7
