Home >> Subaru >> 2002 >> Outback L.L.Bean Edition AWD F6-3.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Manufacturer Code Descriptions >> ABS >> ABS (without VDC) >> With on-Board Diagnosis

With on-Board Diagnosis

WITHOUT SUBARU SELECT MONITOR

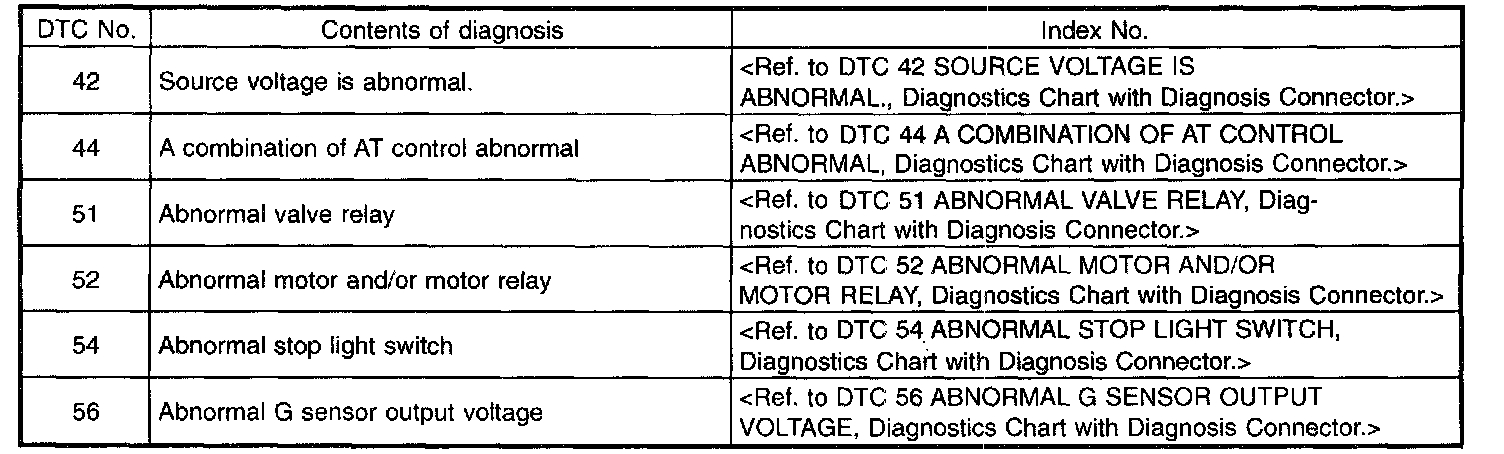

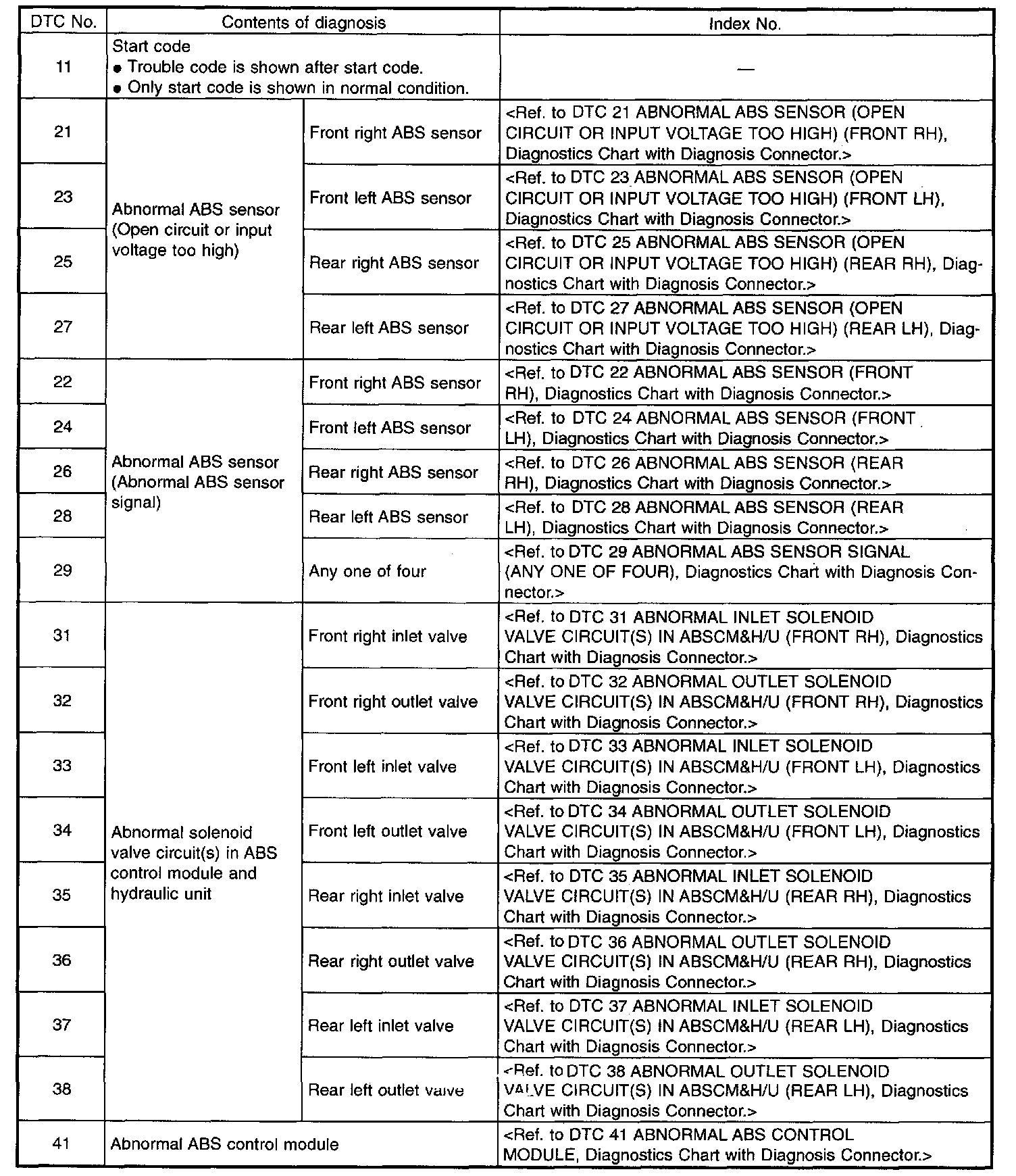

1 of 2





2 of 2

NOTE: High [symbol - upside down h] means high friction coefficient against road surface.
