Removal and Installation

REMOVAL

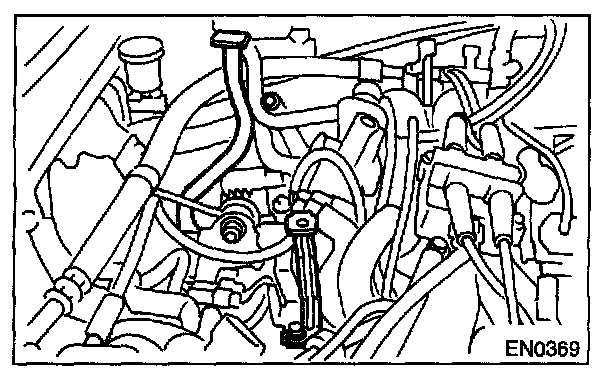

1. Disconnect battery ground cable.

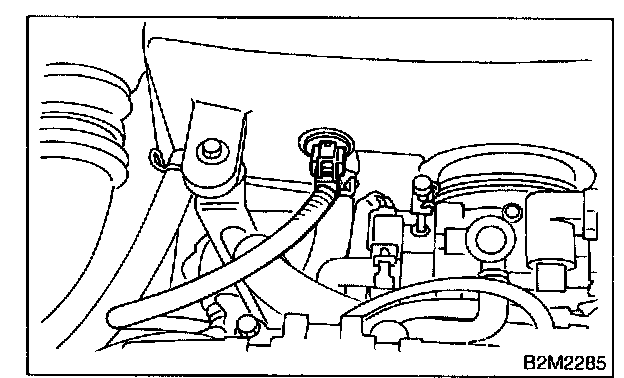

2. Disconnect connector from intake air temperature sensor. (MT vehicles)

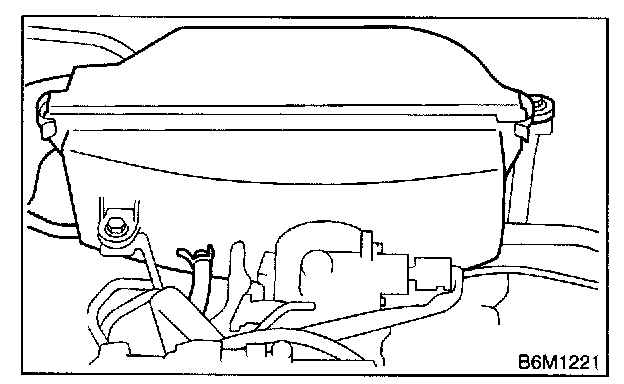

3. Remove air cleaner case.







4. Remove air cleaner case stay.

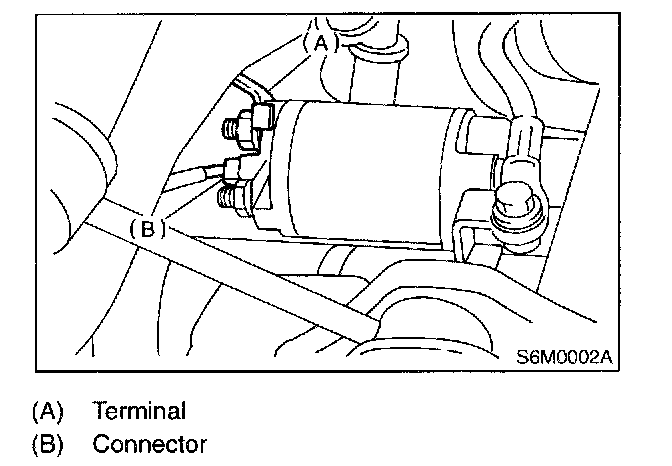

5. Disconnect connector and terminal from starter.




6. Remove starter from transmission.

INSTALLATION




Install in the reverse order of removal.
