Check MIL Remains Blinking at a Cycle of 3 Hz

CHECK ENGINE MALFUNCTION INDICATOR LAMP (MIL) REMAINS BLINKING AT A CYCLE OF 3 Hz

DIAGNOSIS
- Test mode connector circuit is shorted.

TROUBLE SYMPTOM
- MIL blinks at a cycle of 3 Hz when ignition switch is turned to ON.

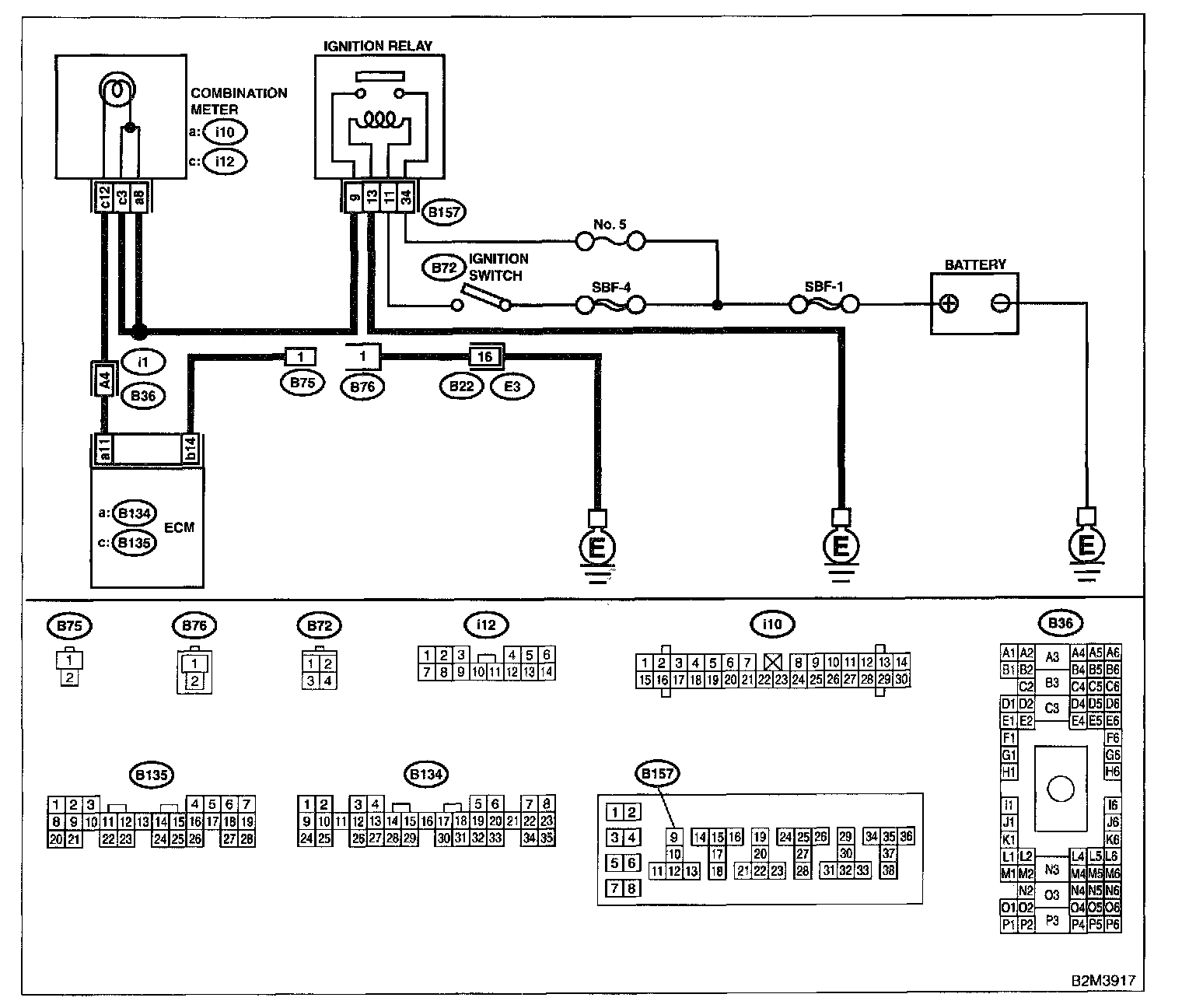

Wiring Diagram:

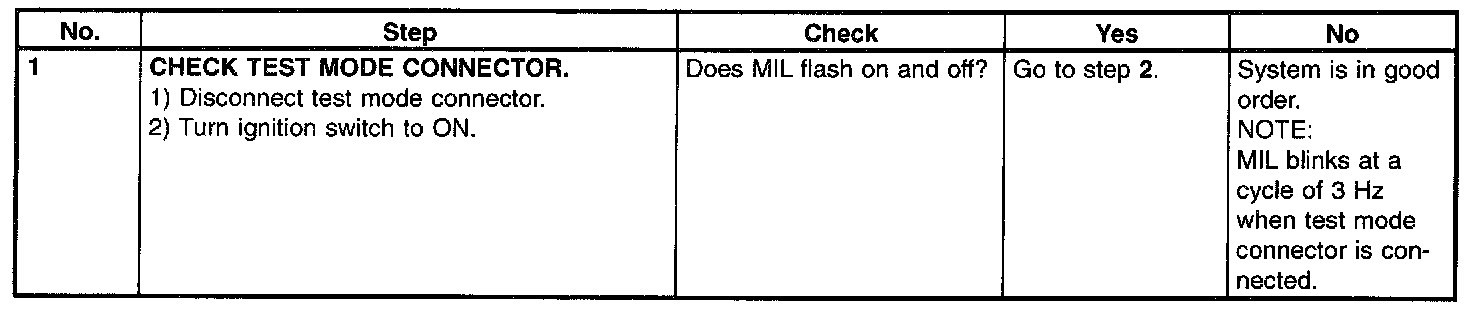

Step 1:

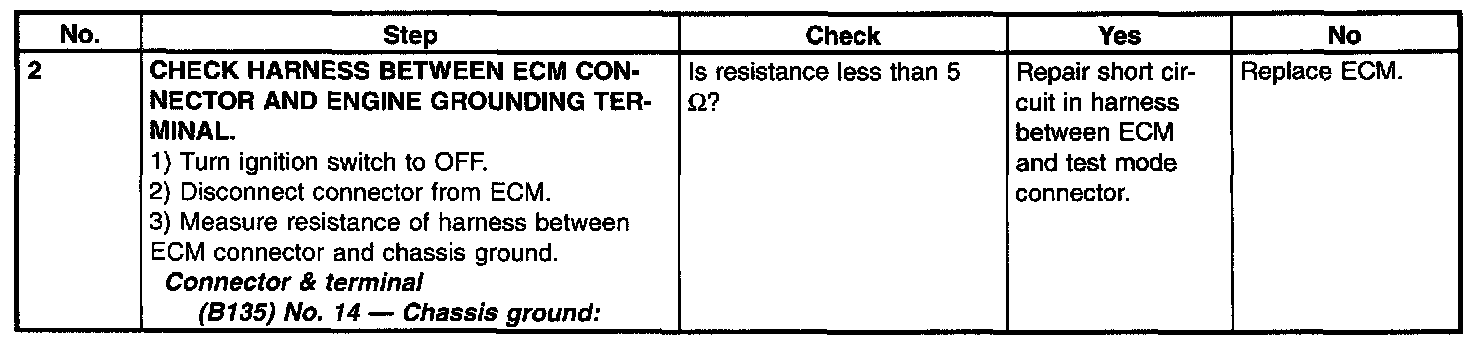

Step 2:

WIRING DIAGRAM
