Check MIL Does Not Come ON

CHECK ENGINE MALFUNCTION INDICATOR LAMP (MIL) DOES NOT COME ON

DIAGNOSIS
- The CHECK ENGINE malfunction indicator lamp (MIL) circuit is open or shorted.

TROUBLE SYMPTOM
- When ignition switch is turned ON (engine OFF), MIL does not come on.

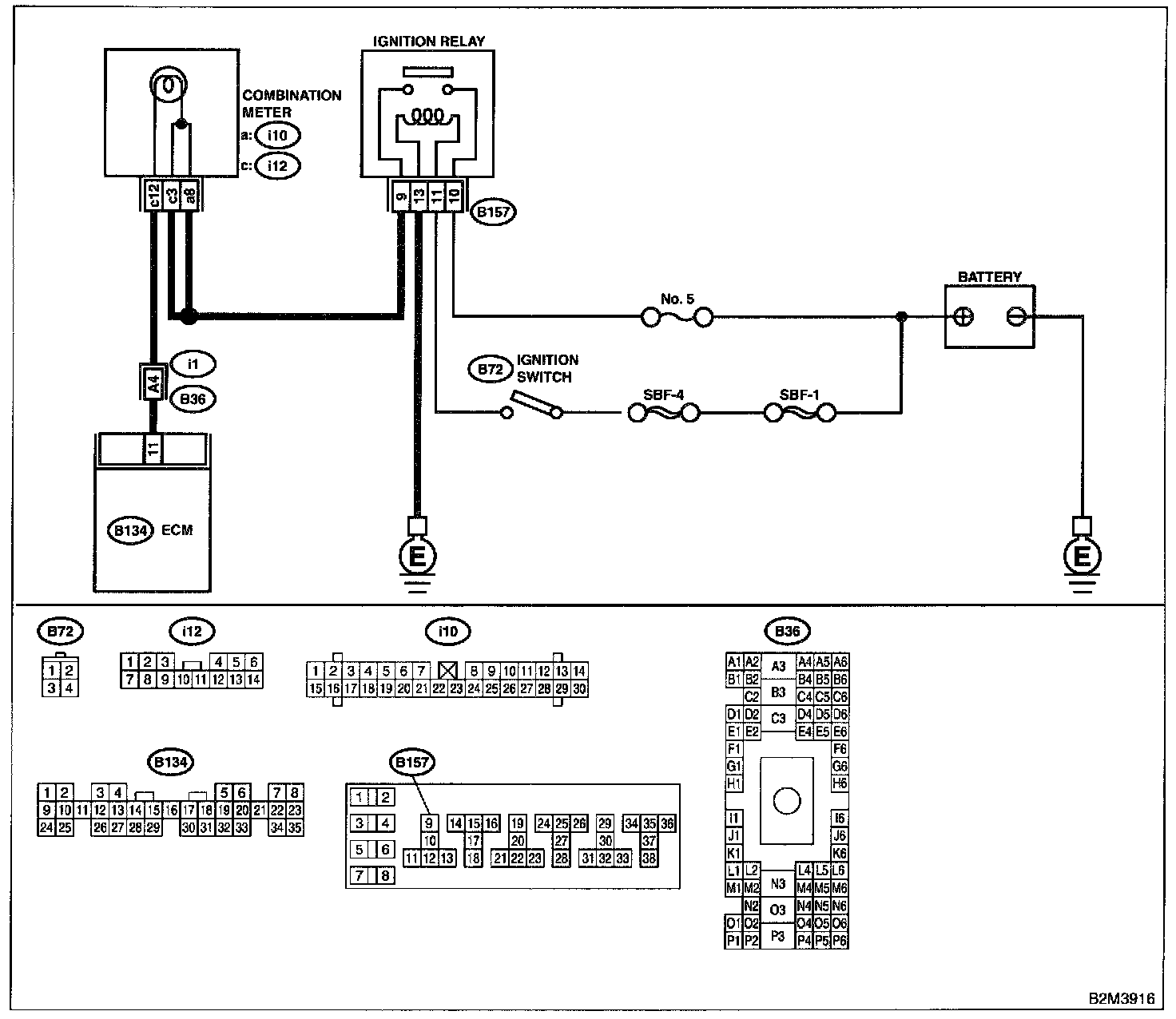

Wiring Diagram:

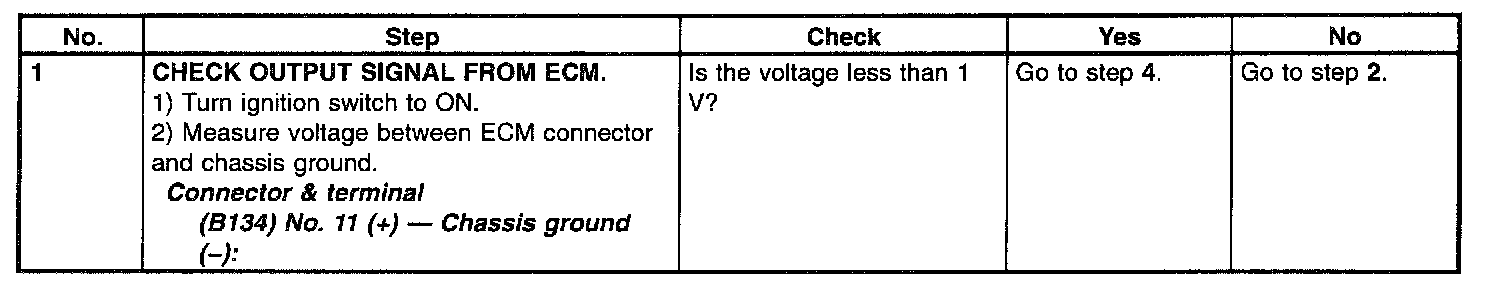

Step 1:

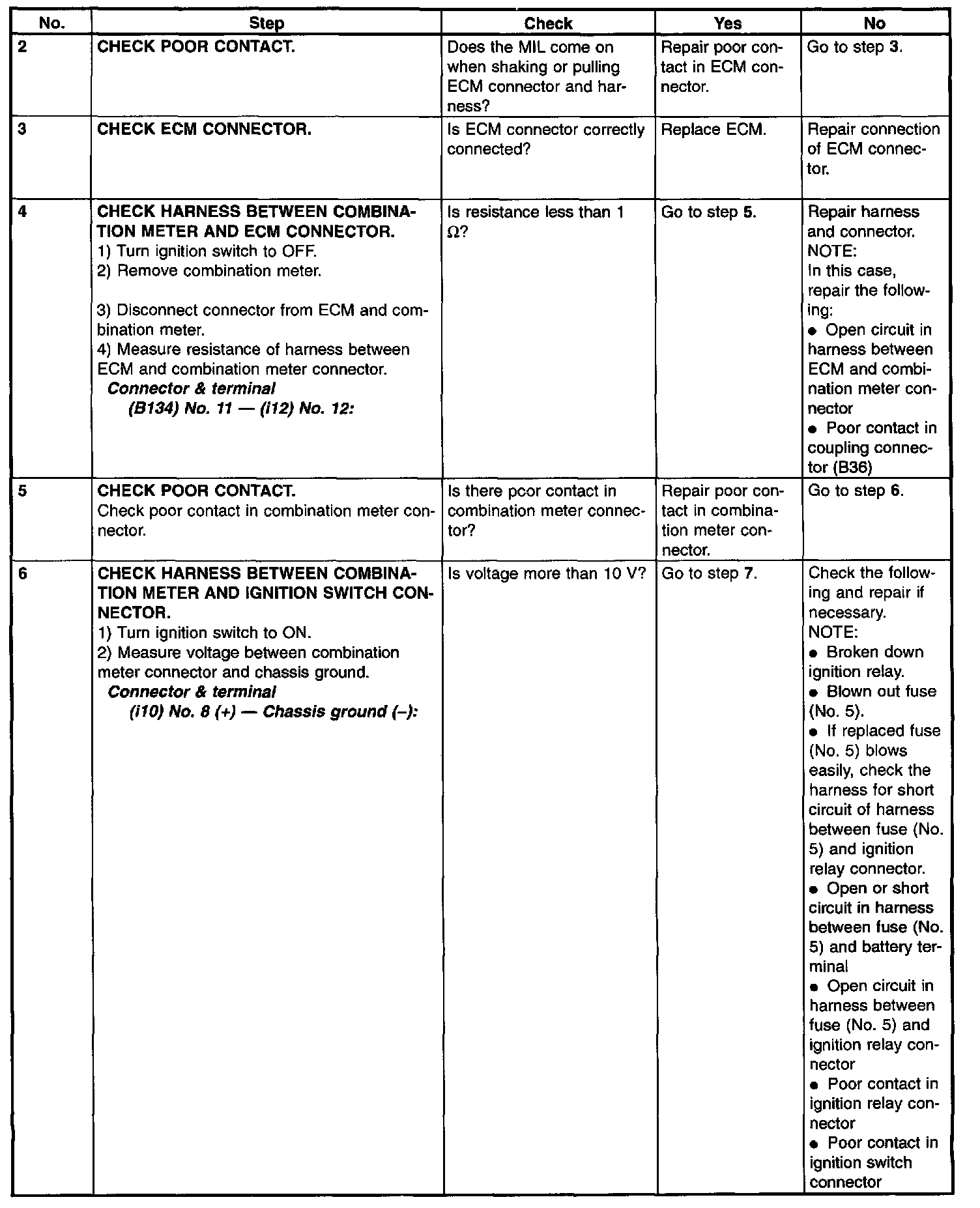

Step 2 - 6:

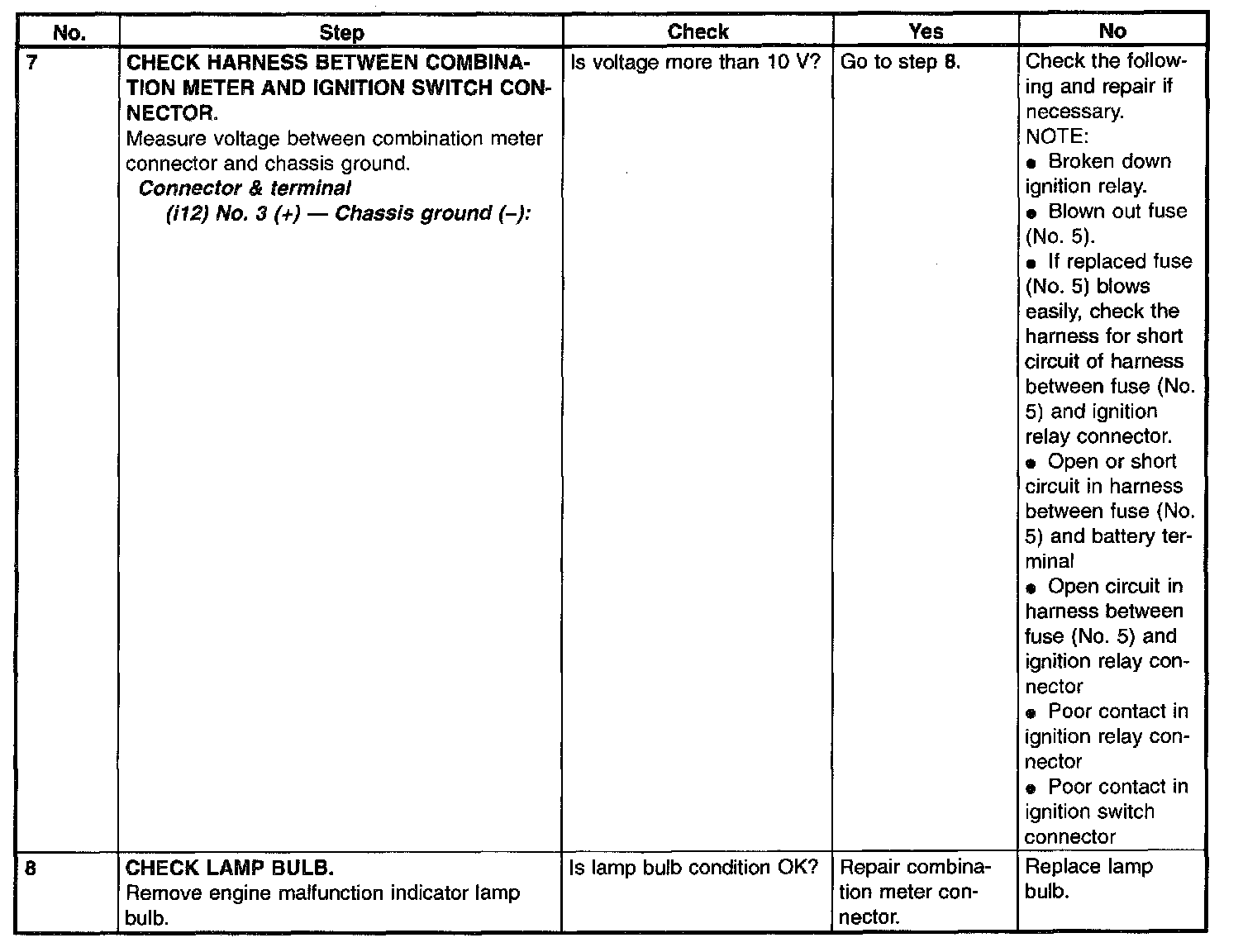

Step 7 - 8:

WIRING DIAGRAM
