Ignition Control System

IGNITION CONTROL SYSTEM

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE .

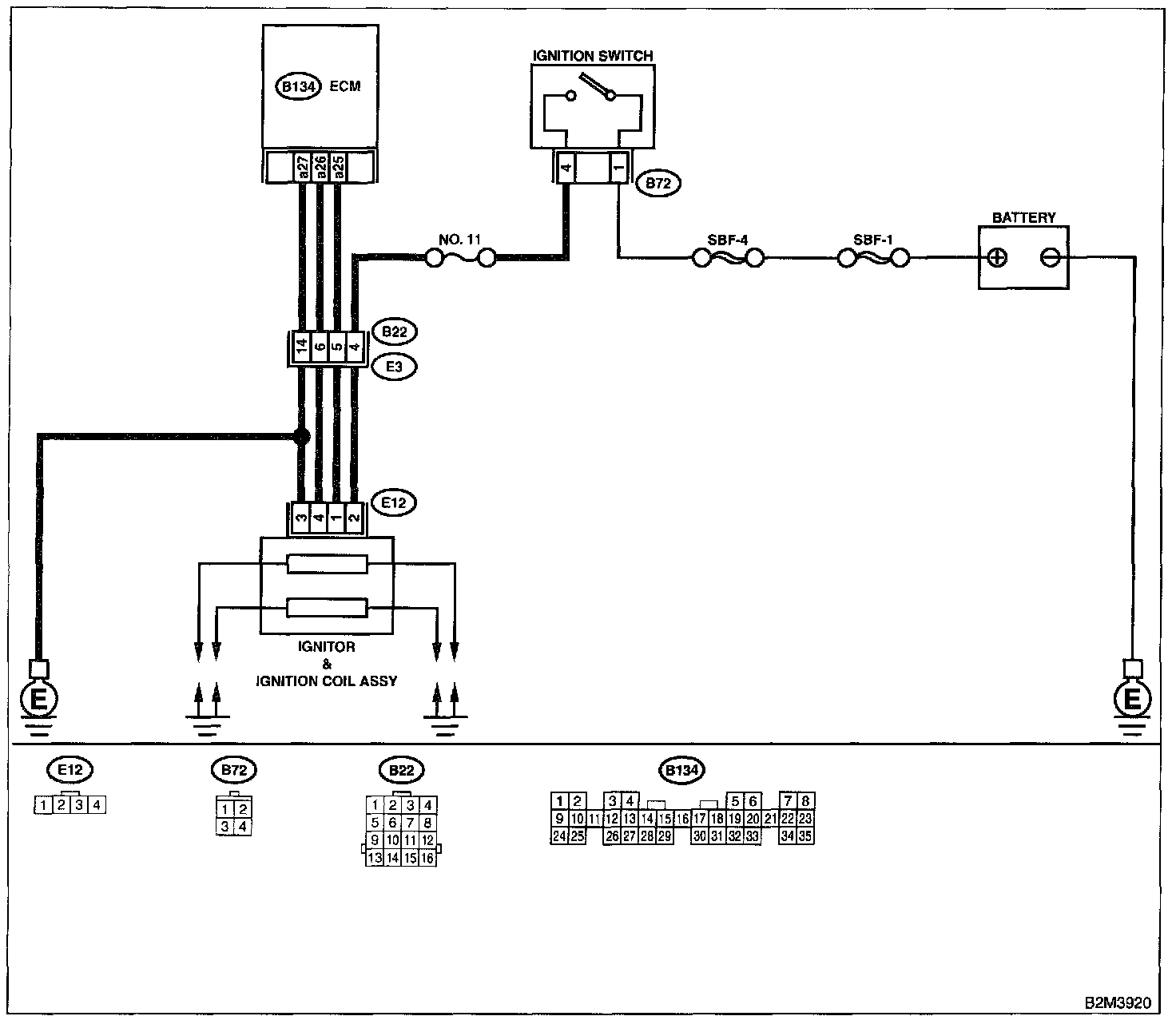

Wiring Diagram:

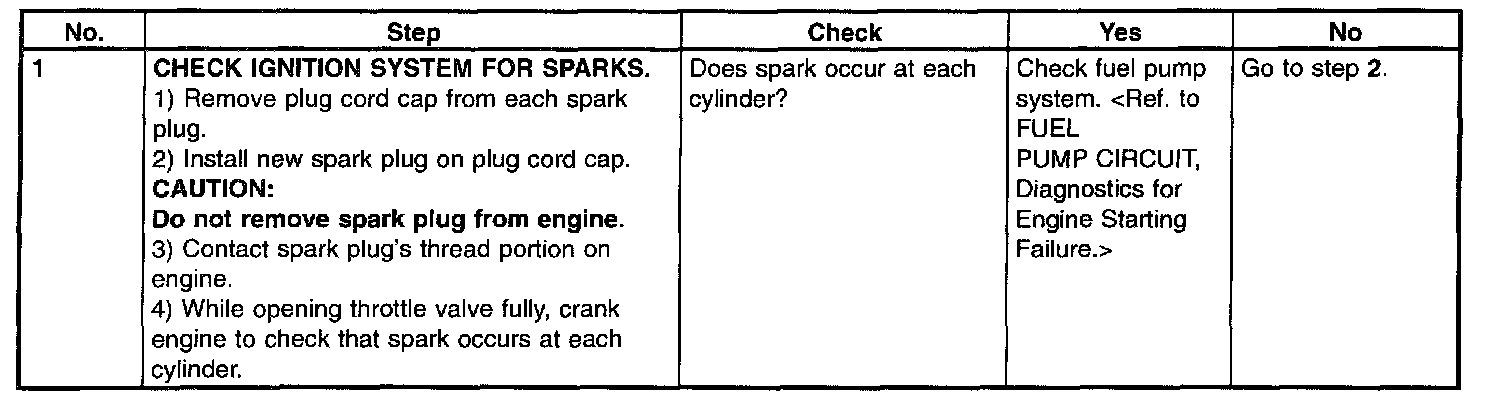

Step 1:

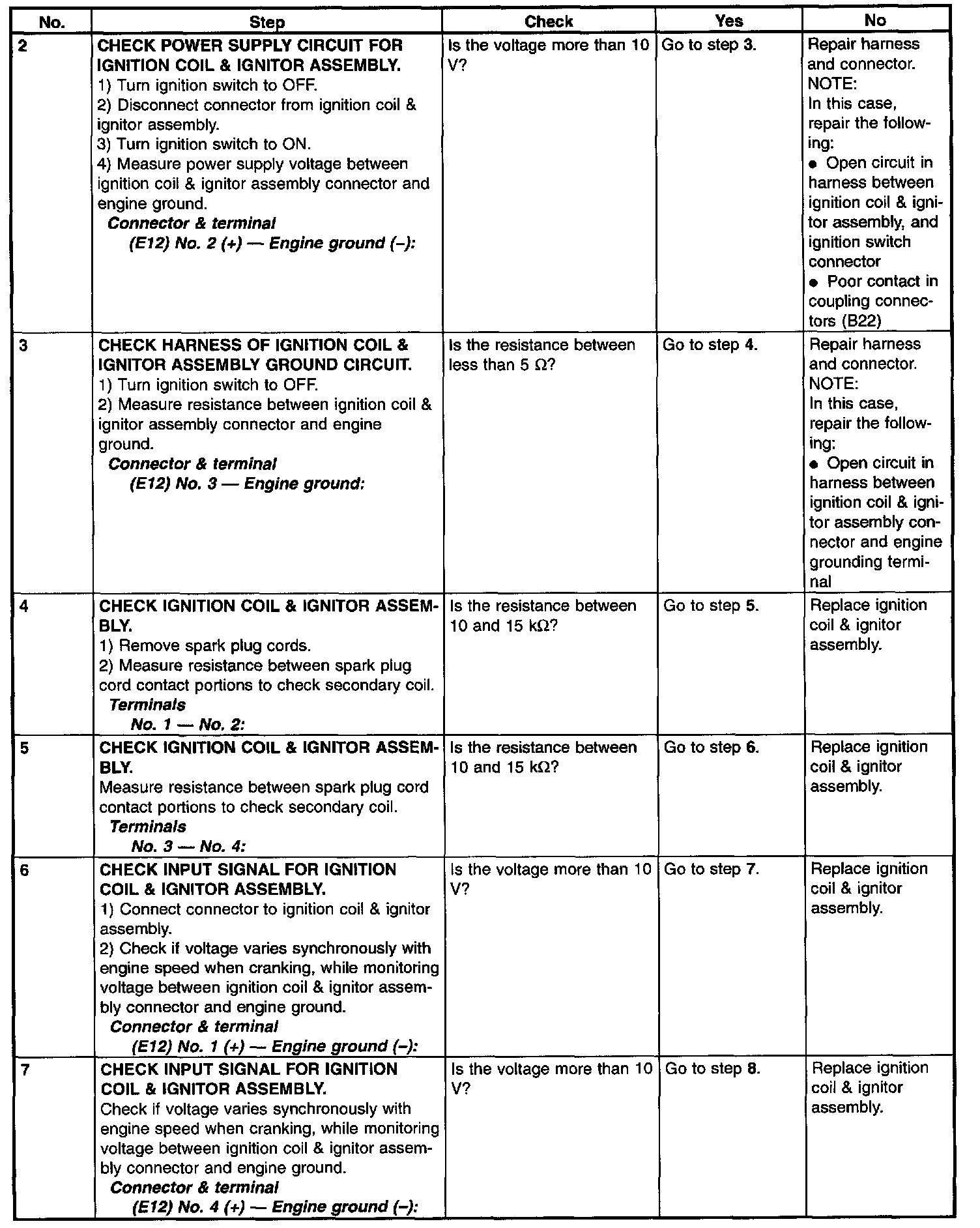

Step 2 - 7:

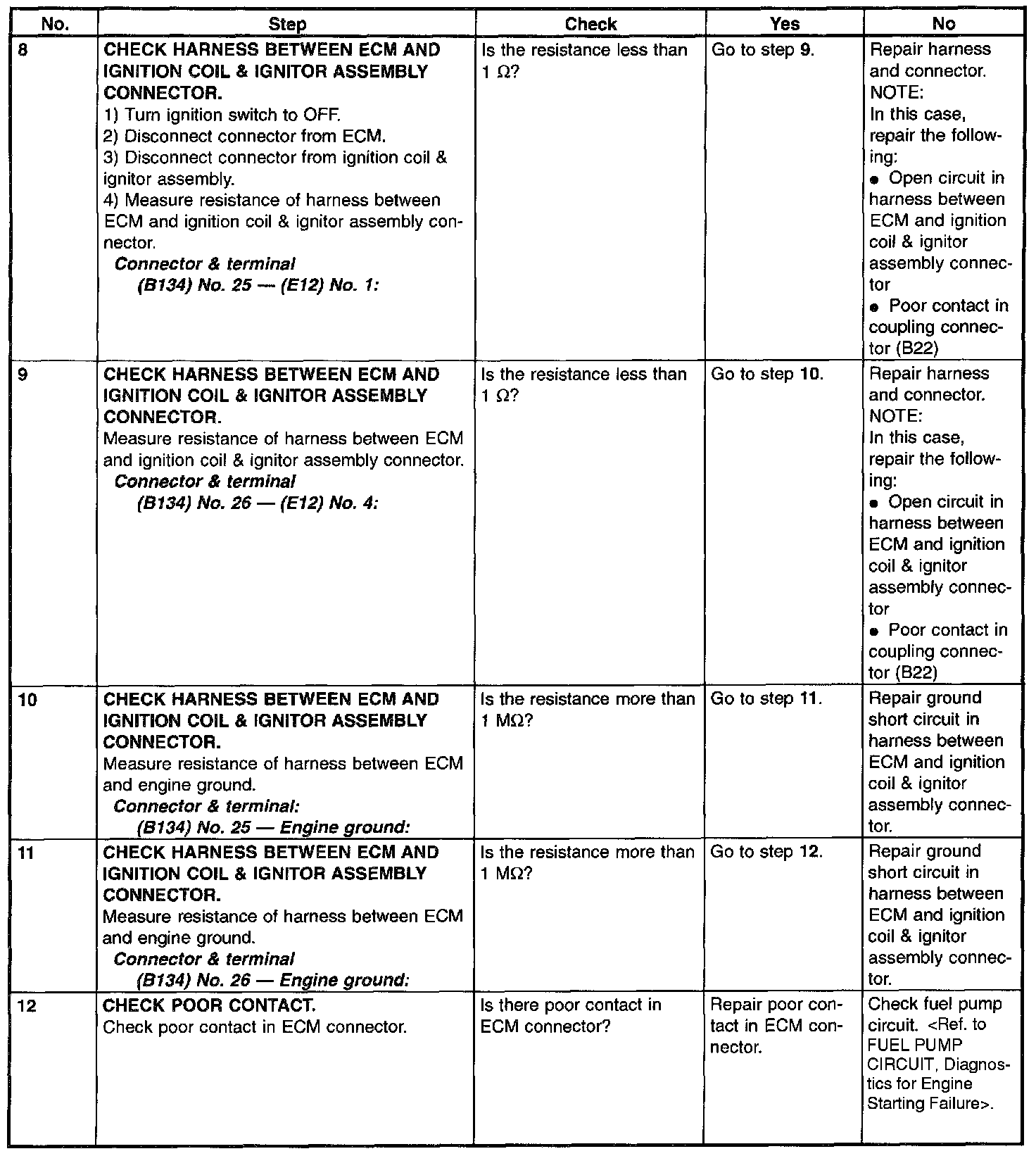

Step 8 - 12:

WIRING DIAGRAM
