Fuel Pump Circuit

FUEL PUMP CIRCUIT

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE .

Wiring Diagram:

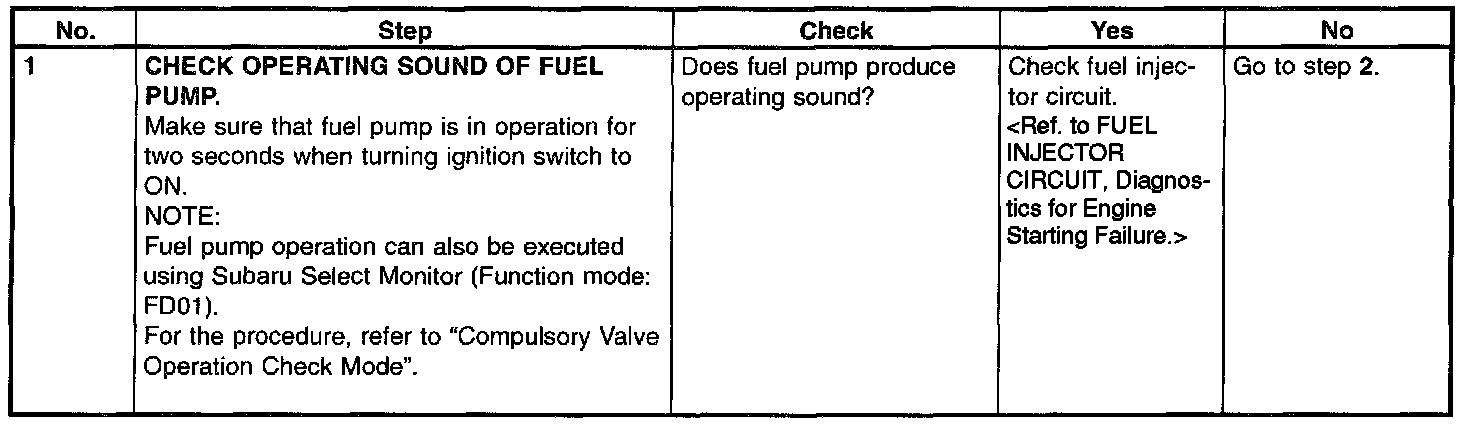

Step 1:

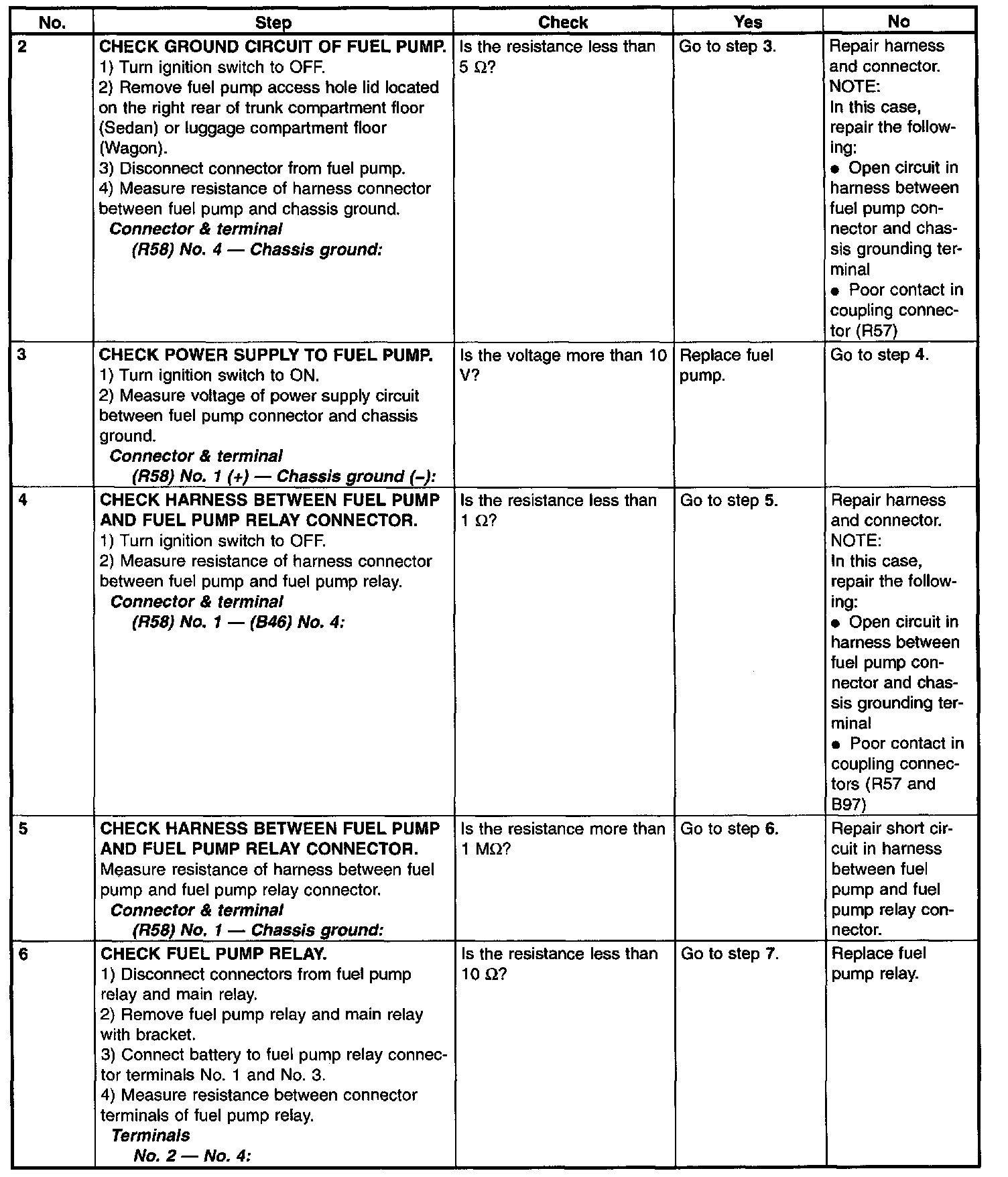

Step 2 - 6:

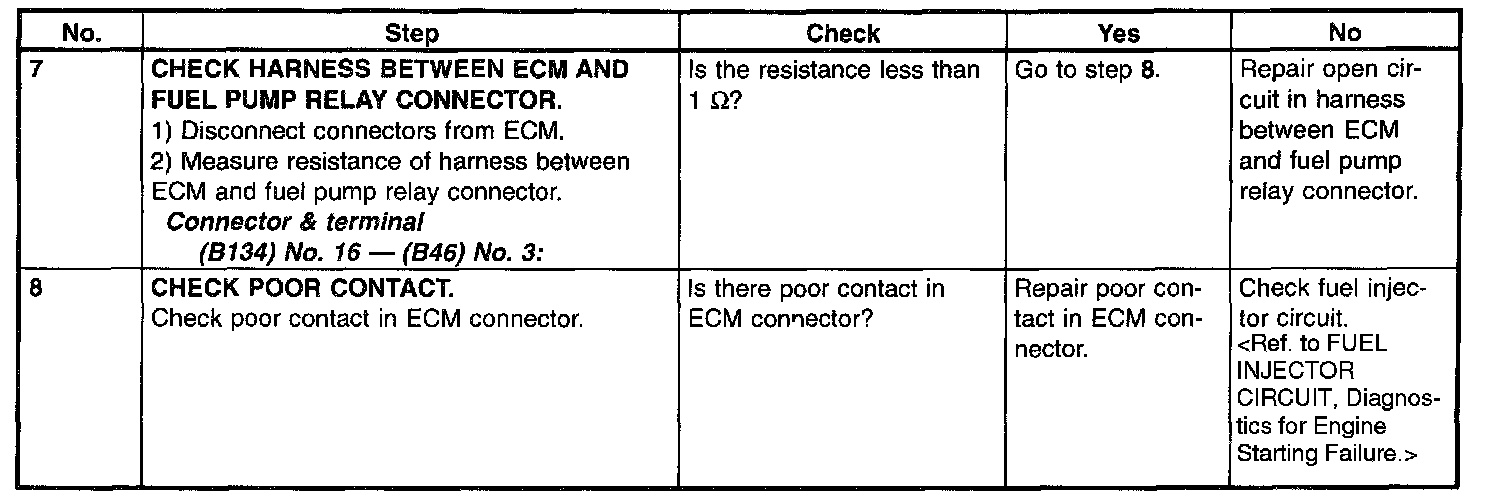

Step 7 - 8:

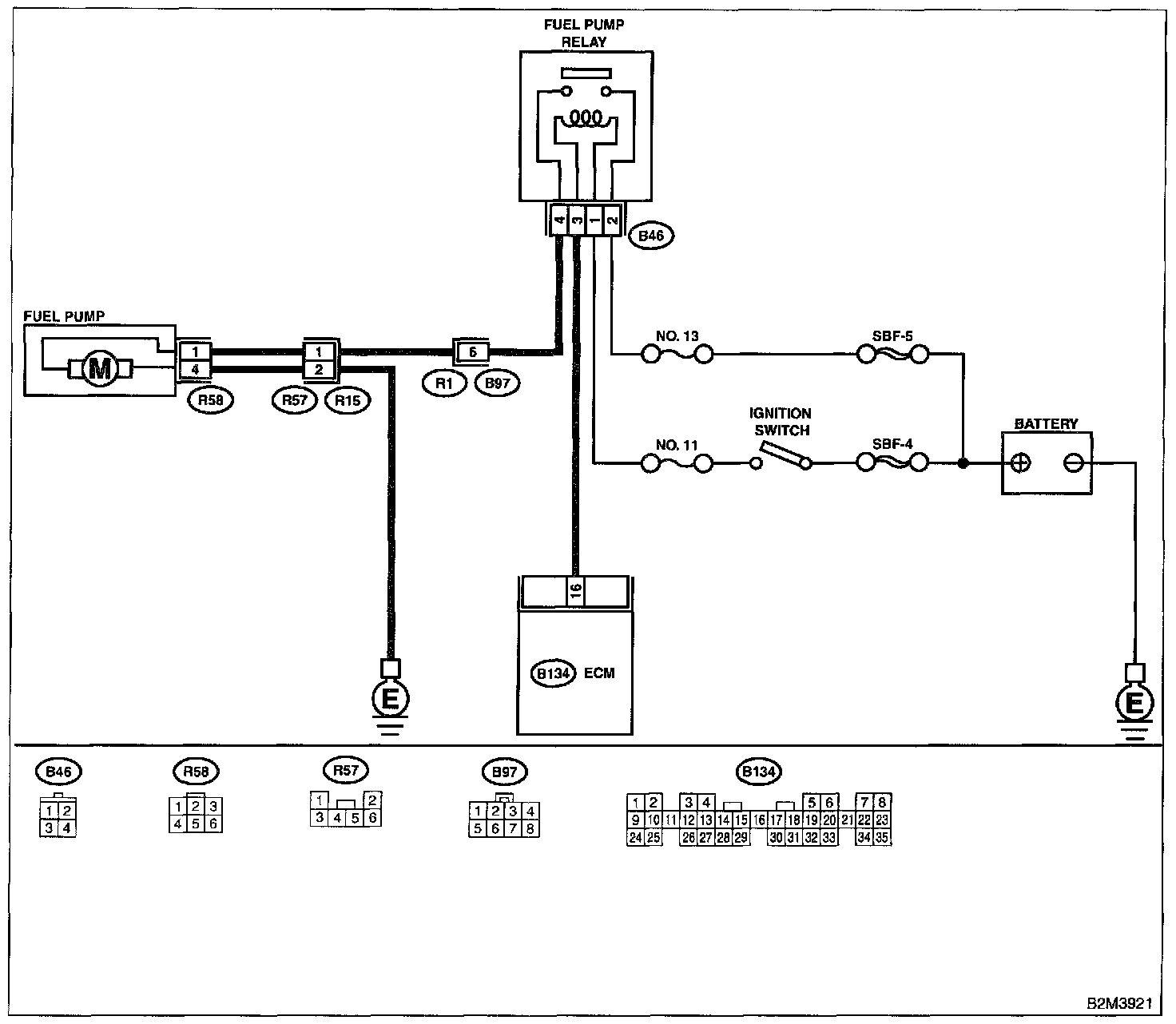

WIRING DIAGRAM
