Fuel Injector Circuit

FUEL INJECTOR CIRCUIT

CAUTION:
- Check or repair only faulty parts.
- After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE.

Wiring Diagram:

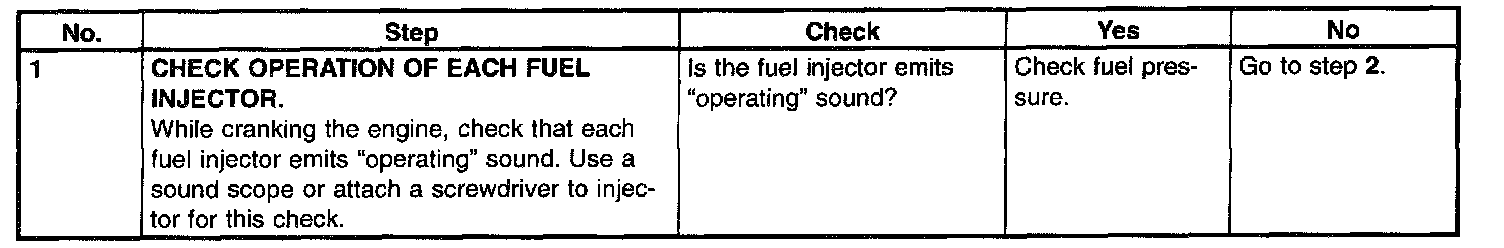

Step 1:

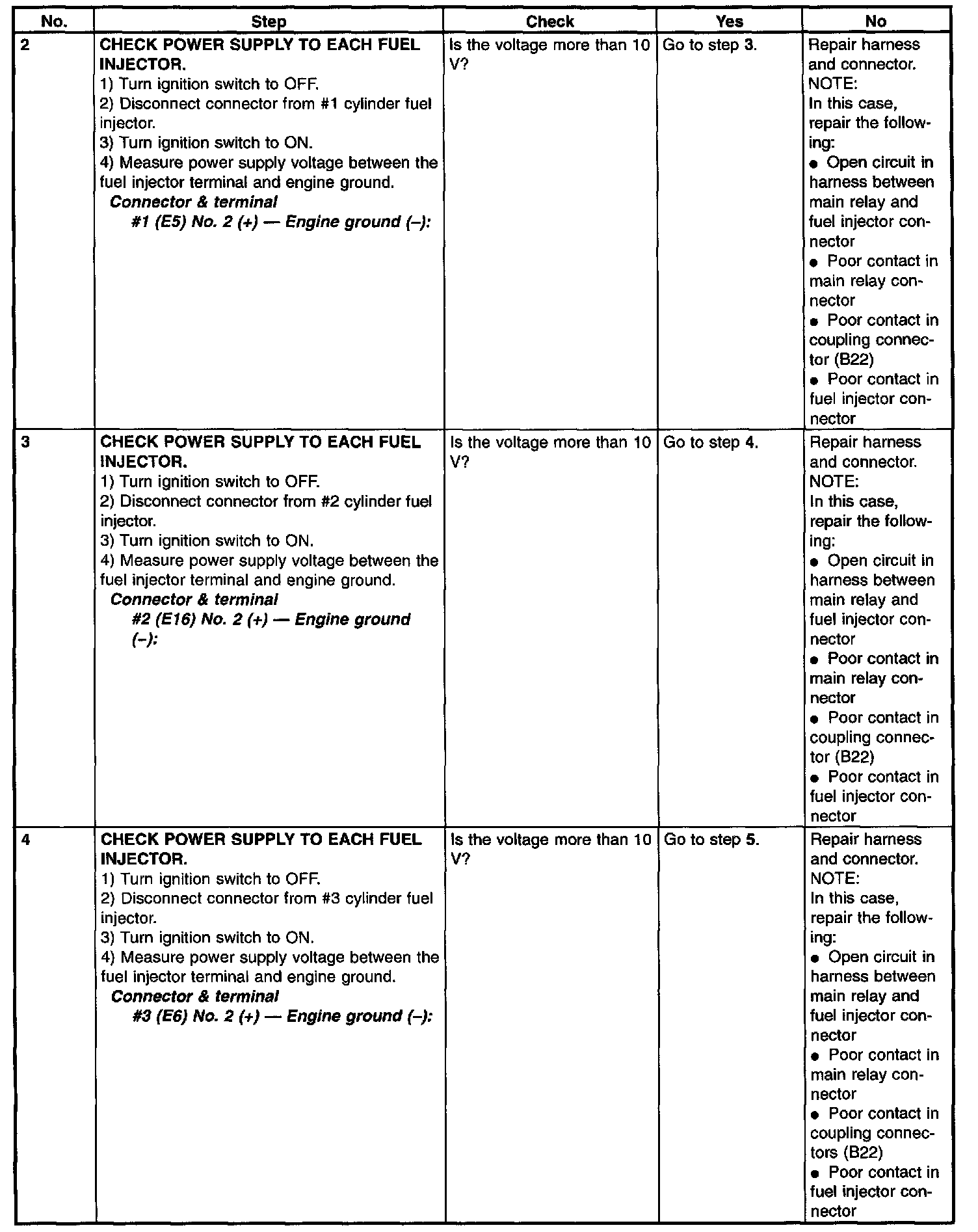

Step 2 - 4:

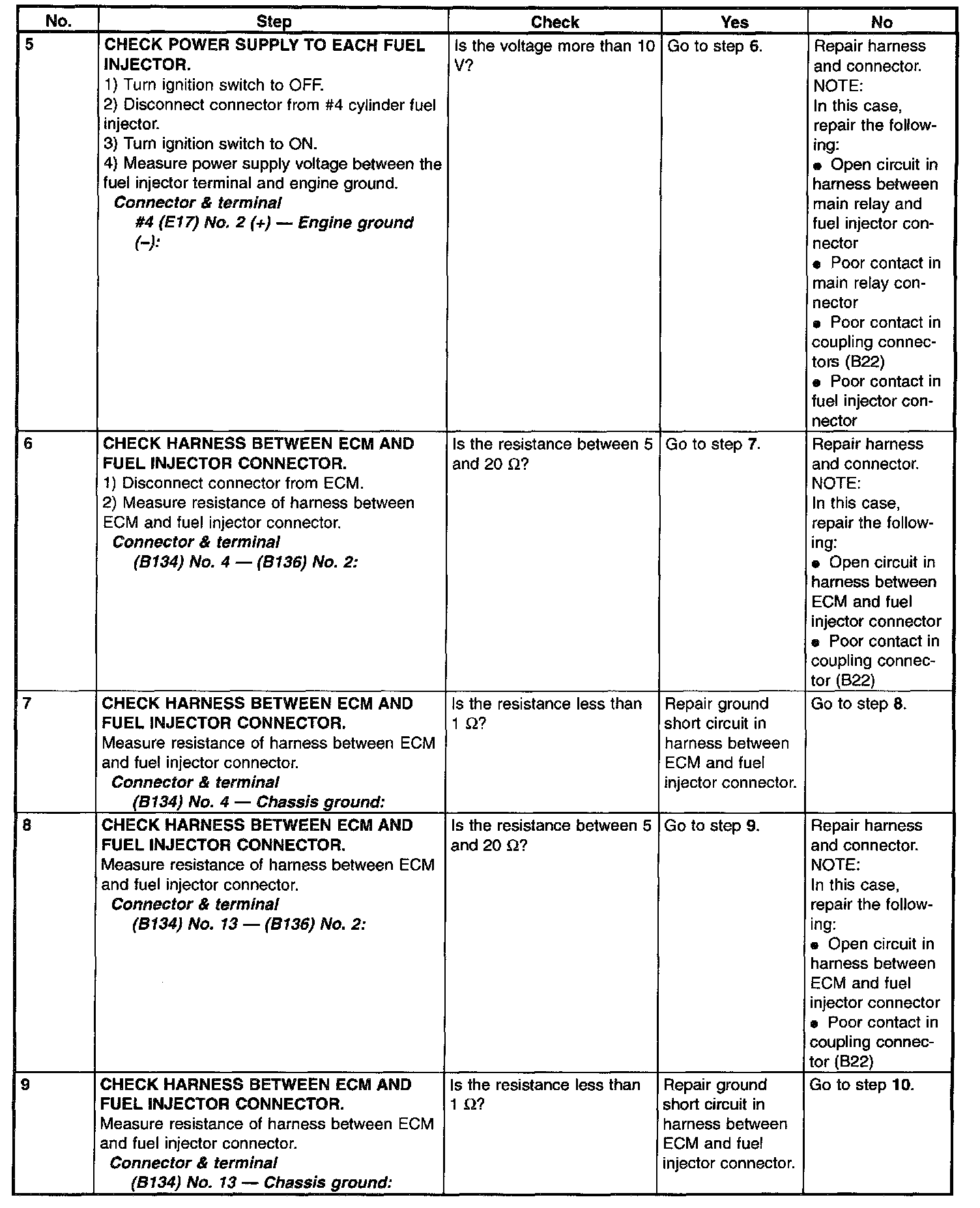

Step 5 - 9:

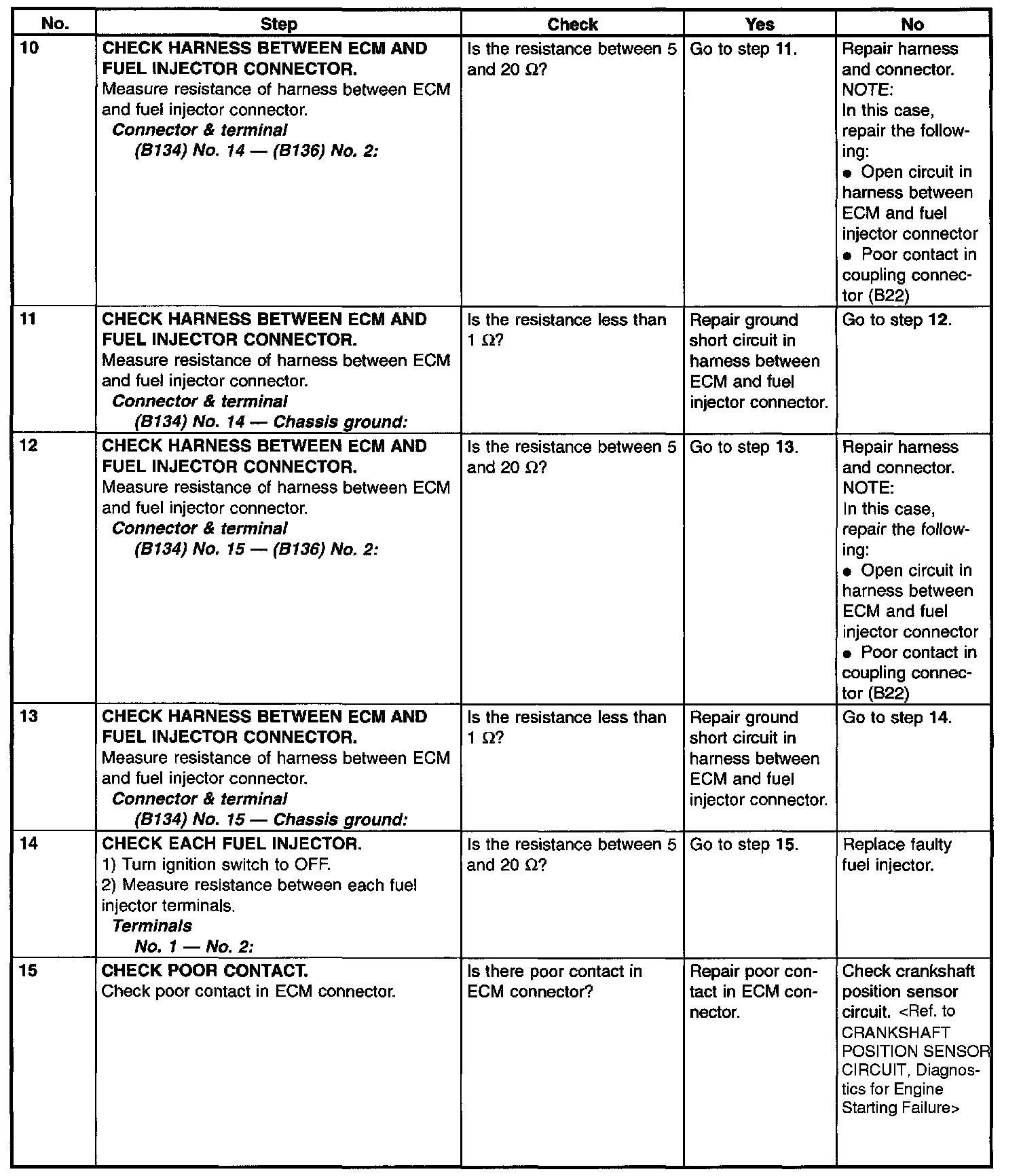

Step 10 - 15:

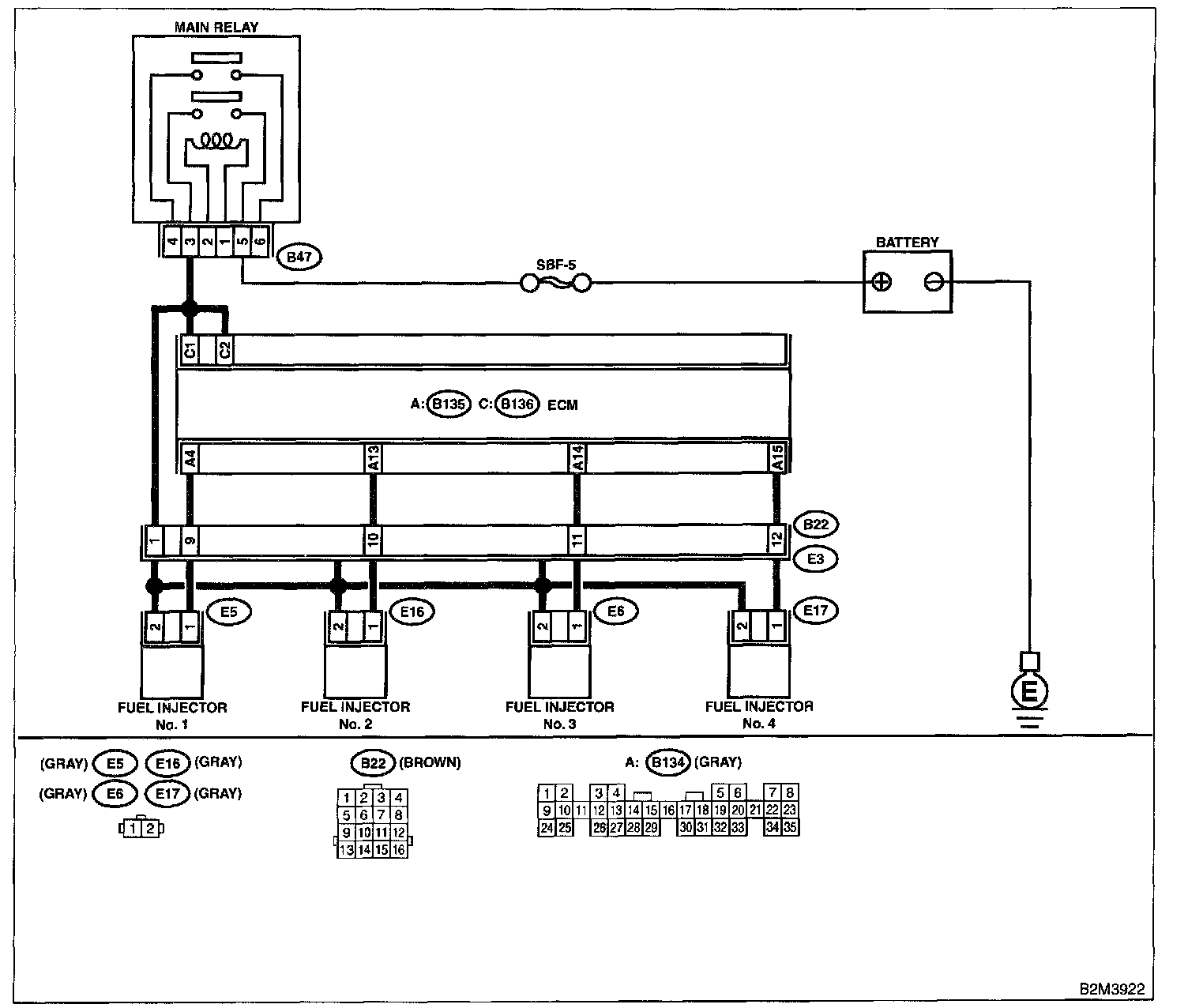

WIRING DIAGRAM
