Current Data For AT

READ CURRENT DATA FOR AT

1. On the [Main Menu> display screen, select the {Each System Check} and press the [YES] key.
2. On the [System Selection Menu> display screen, select the {Transmission Control System} and press the [YES] key.
3. Press the [YES] key after displayed the information of transmission type.
4. On the [Transmission Diagnosis> display screen, select the {Current Data Display & Save} and press the [YES] key.
5. On the [Data Display Menu> display screen, select the {Data Display} and press the [YES] key.
6. Using the scroll key, move the display screen up or down until the desired data is shown.

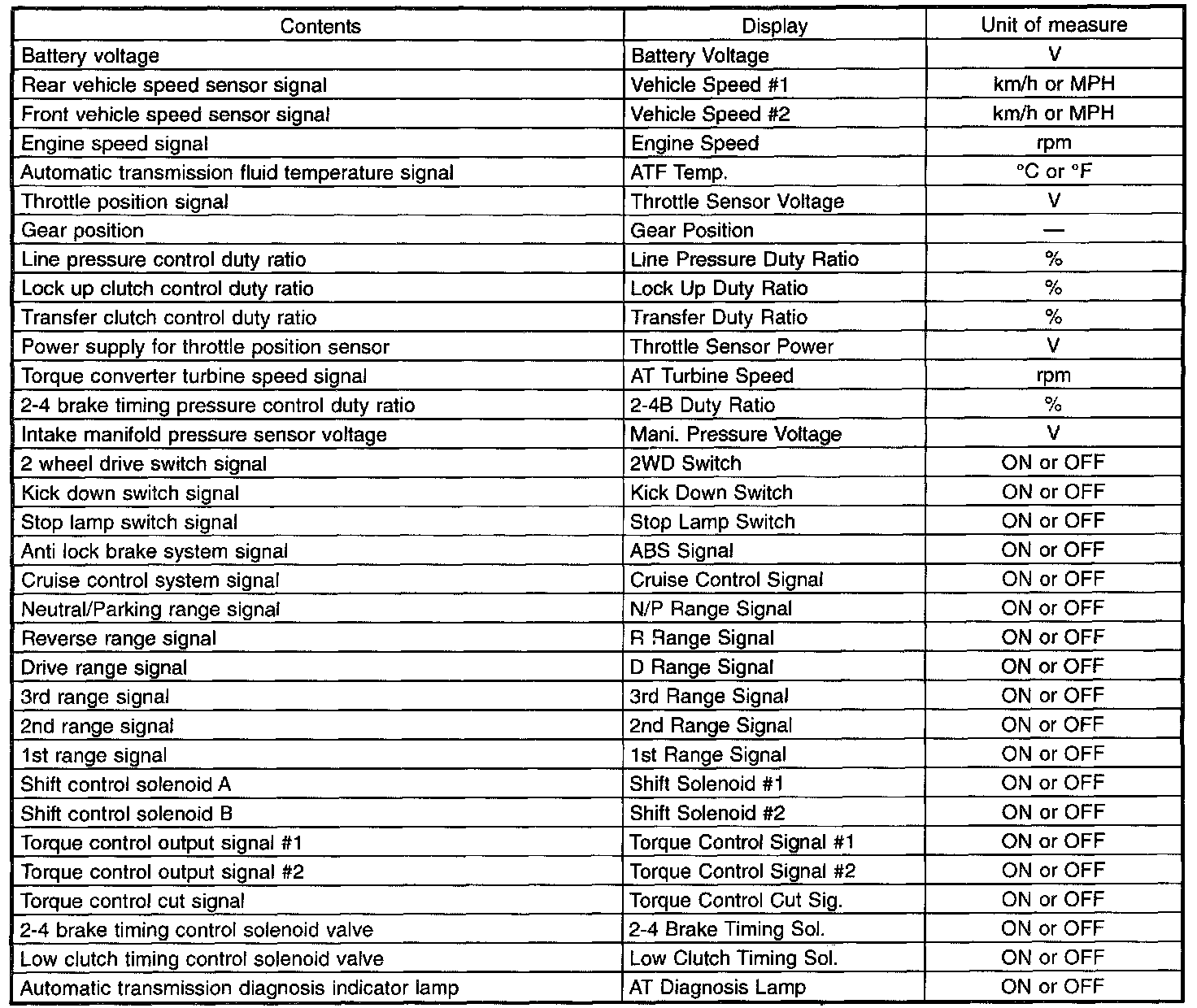

- A list of the support data is shown in the following table.

NOTE: For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
