Home >> Subaru >> 2001 >> Legacy Outback Wagon AWD F4-2.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> AT Vehicles

AT Vehicles

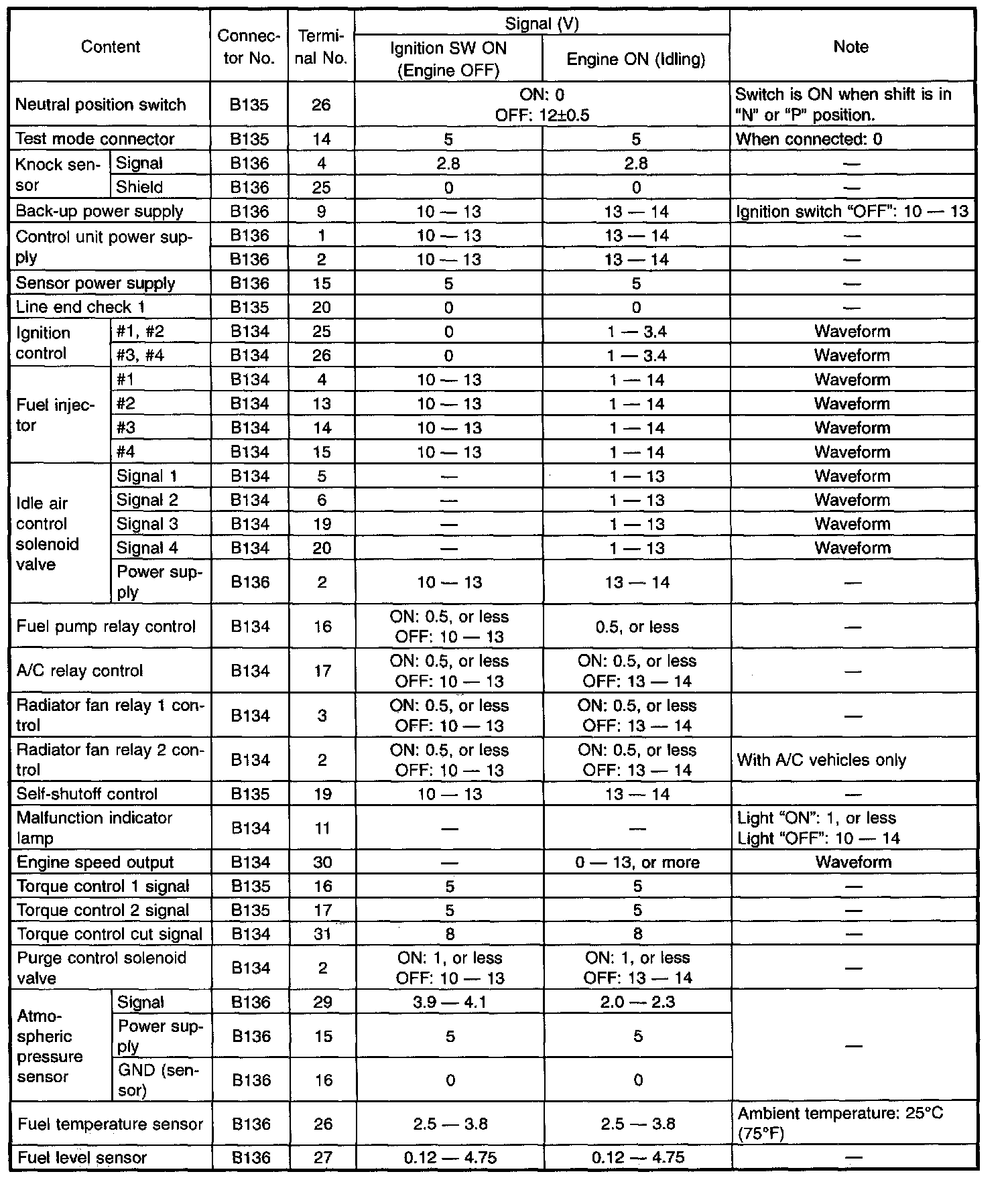

Part 1:

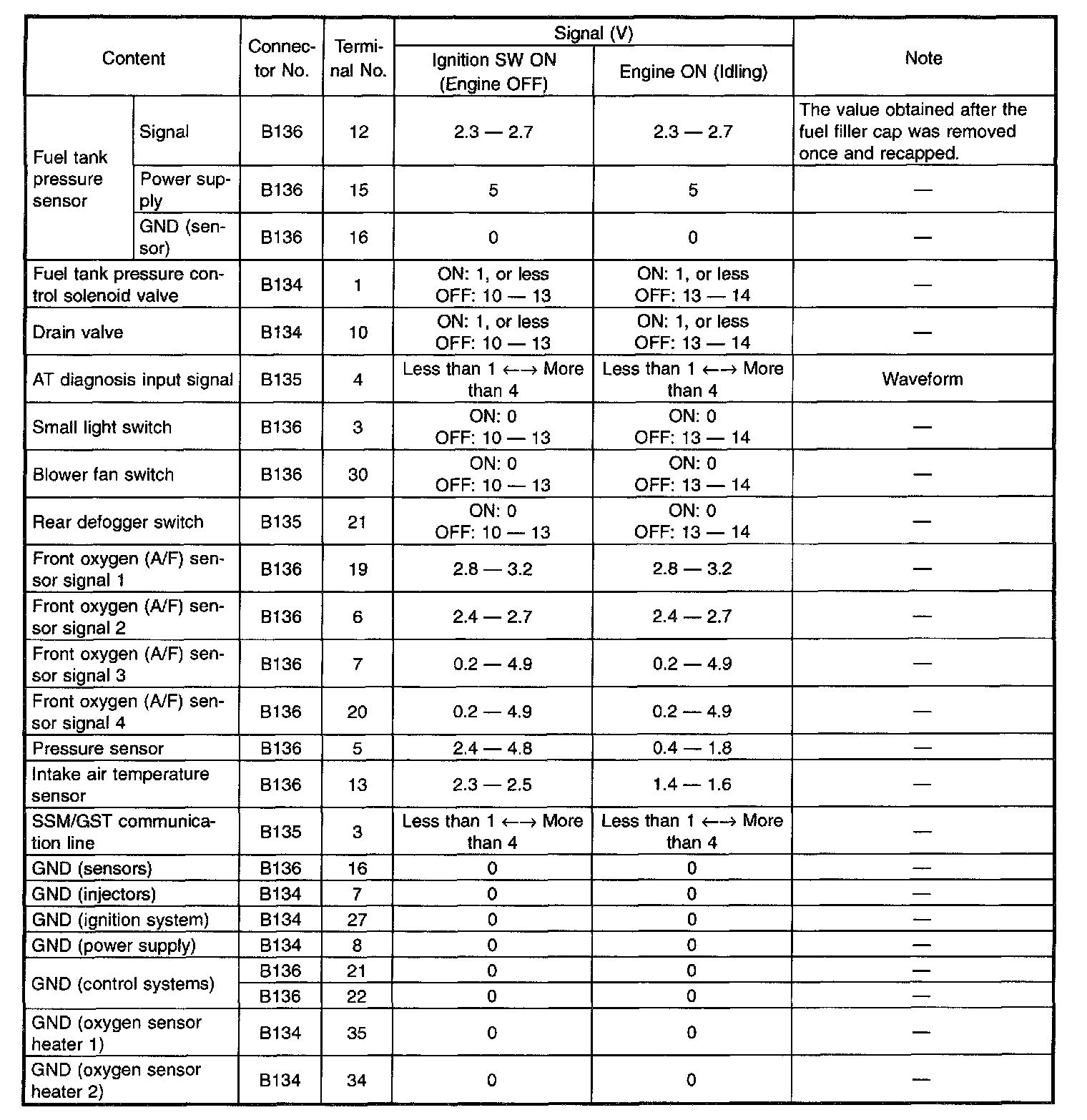

Part 2:

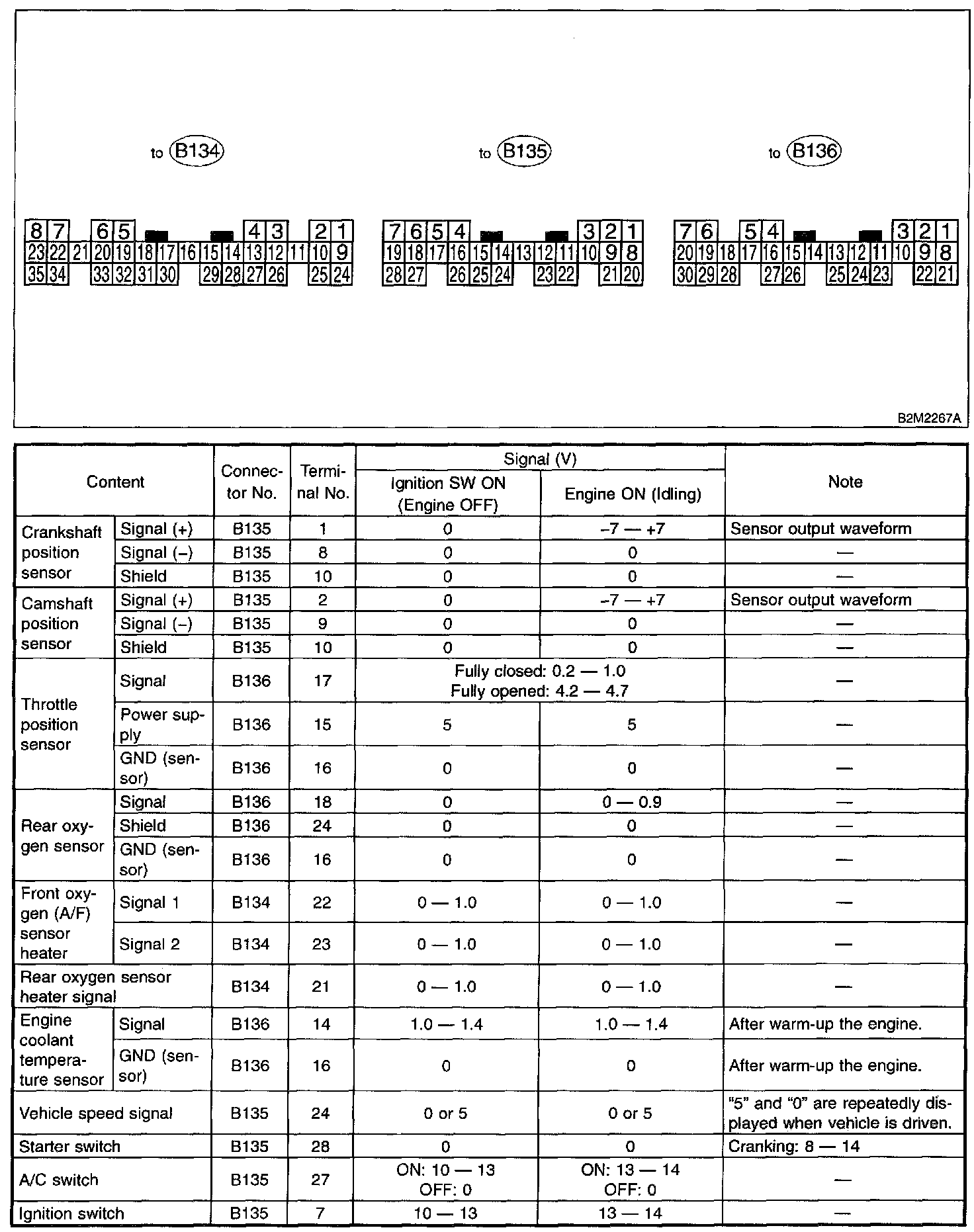

Part 3:
