Rear Exhaust Pipe

A: REMOVAL

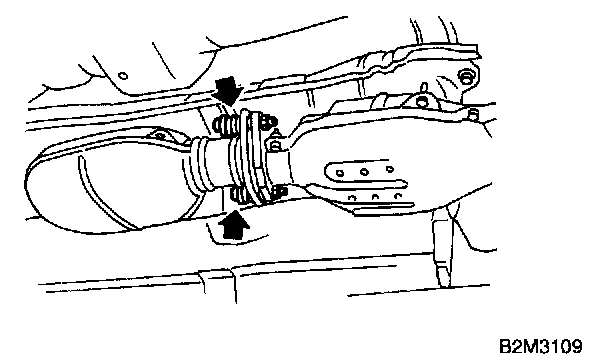

1. Separate rear exhaust pipe from center exhaust pipe.

CAUTION: Be careful exhaust nine is hot.

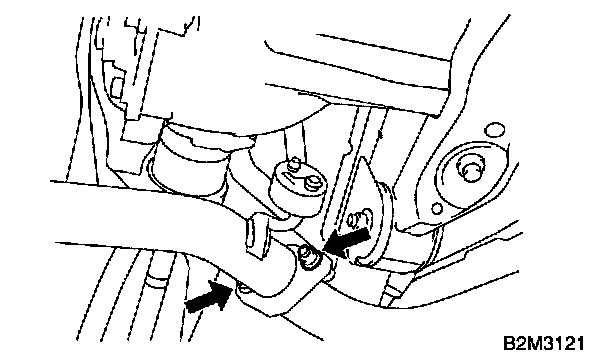

2. Separate rear exhaust pipe from muffler.

CAUTION: Be careful not to pull down rear exhaust pipe.

3. Remove rear exhaust pipe.

B: INSTALLATION

CAUTION: Replace gaskets with new ones.





1. Install rear exhaust pipe to muffler.
Tightening torque: 48 Nm (4.9 kgf-m, 35.4 ft. lbs.)





2. Install rear exhaust pipe to center exhaust pipe.
Tightening torque: 18 Nm (1.8 kgf-m, 13.0 ft. lbs.)
