Crankshaft Gear/Sprocket: Service and Repair
A: REMOVAL1. Remove V-belt. Refer to Drive Belts, Mounts, Brackets and Accessories; Drive Belt; Service and Repair.
2. Remove crankshaft pulley. Refer to Cylinder Block Assembly; Pulley, Crankshaft; Service and Repair.
3. Remove belt cover. Refer to Timing Components; Timing Cover; Service and Repair.
4. Remove timing belt assembly. Refer to Timing Components; Timing Belt; Service and Repair.
5. Remove camshaft sprocket. Refer to Camshaft, Lifters and Push Rods; Camshaft Gear/Sprocket; Service and Repair.

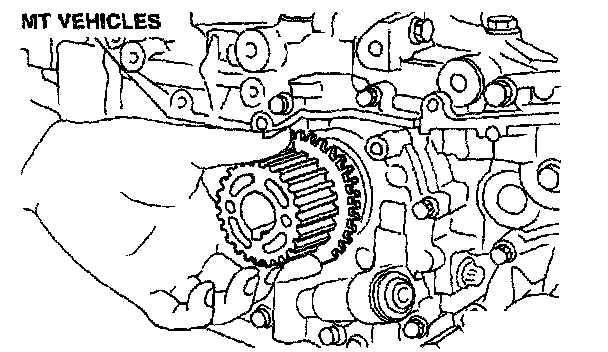

MT Vehicles

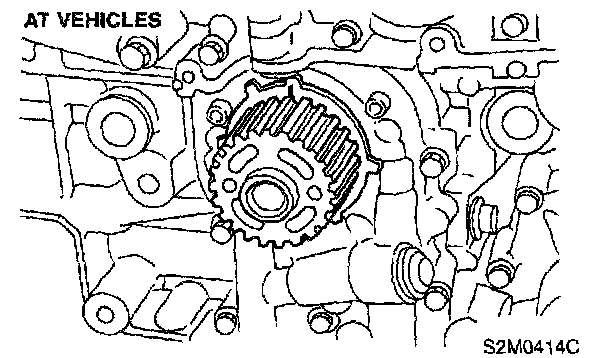

AT Vehicles
6. Remove crankshaft sprocket.
B: INSTALLATION

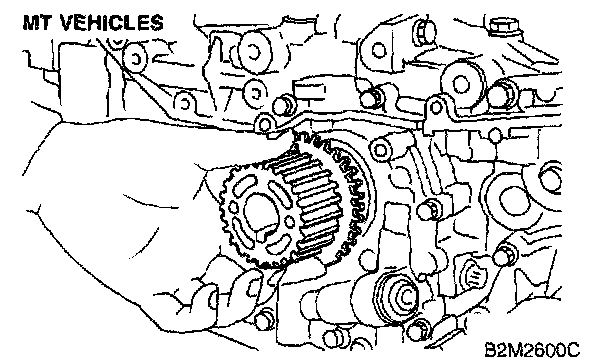

MT Vehicles
AT Vehicles
1. Install crankshaft sprocket.
2. Install camshaft sprocket.
3. Install timing belt assembly.
4. Install belt cover.
5. Install crankshaft pulley.
6. Install V-belt.
