P1591

P1591 - NEUTRAL POSITION SWITCH CIRCUIT LOW INPUT

DTC DETECTING CONDITION
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM
- Erroneous idling

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

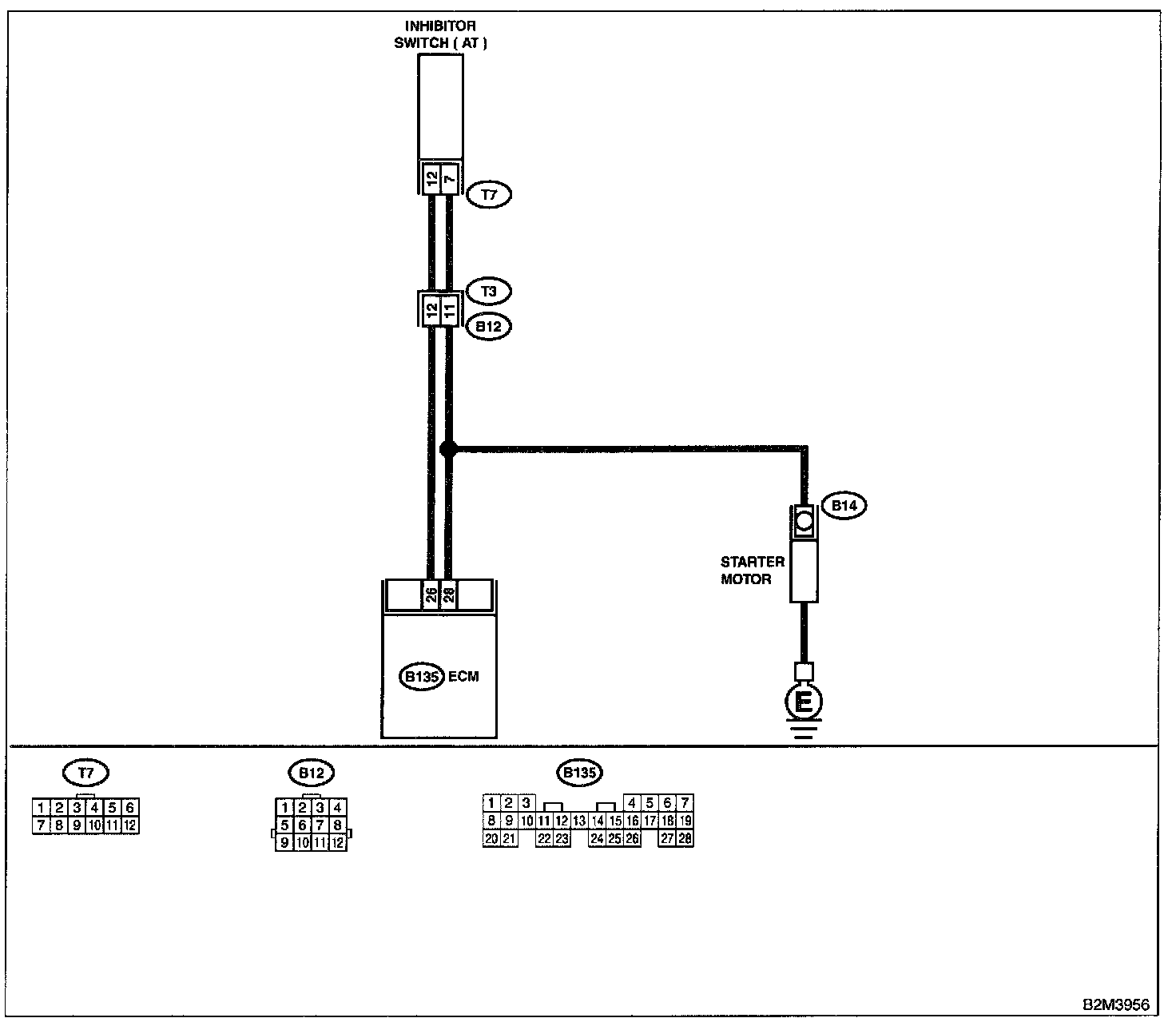

Wiring Diagram:

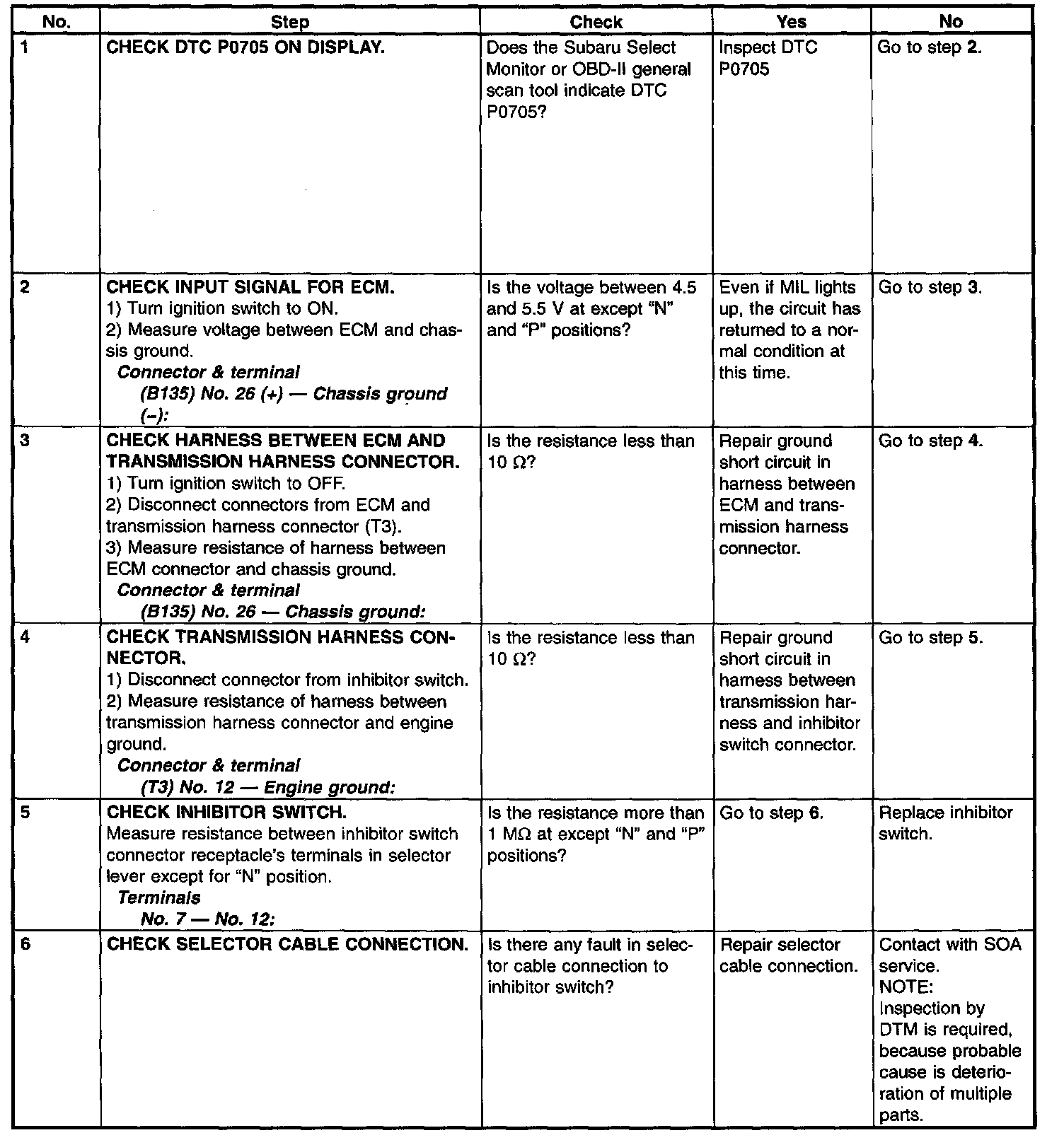

Step 1 - 6:

WIRING DIAGRAM
