P1517

P1517 - IDLE AIR CONTROL SOLENOID VALVE SIGNAL 4 CIRCUIT HIGH INPUT

DTC DETECTING CONDITION
- Immediately at fault recognition

TROUBLE SYMPTOM
- Erroneous idling
- Engine stalls.
- Engine breathing

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

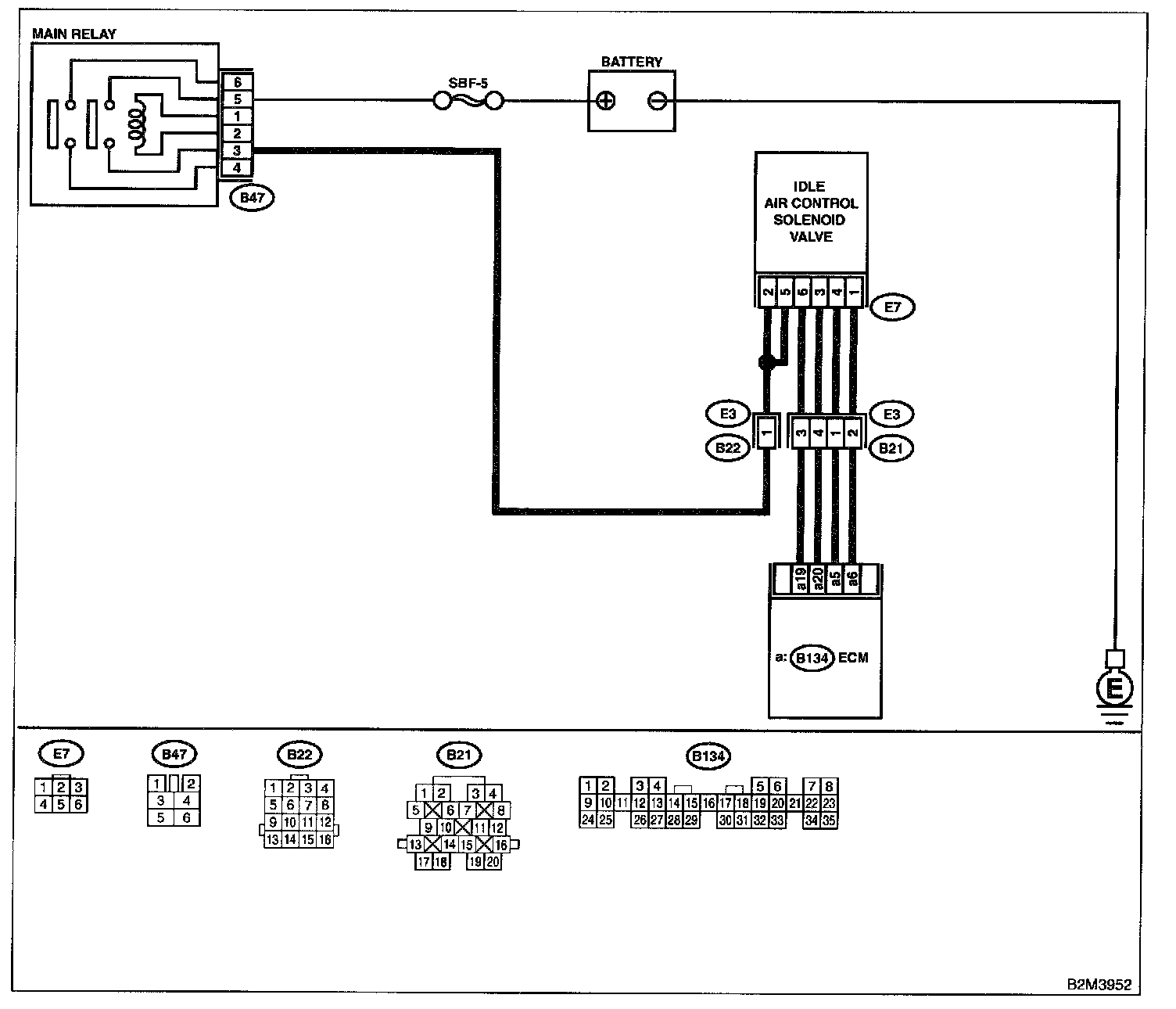

Wiring Diagram:

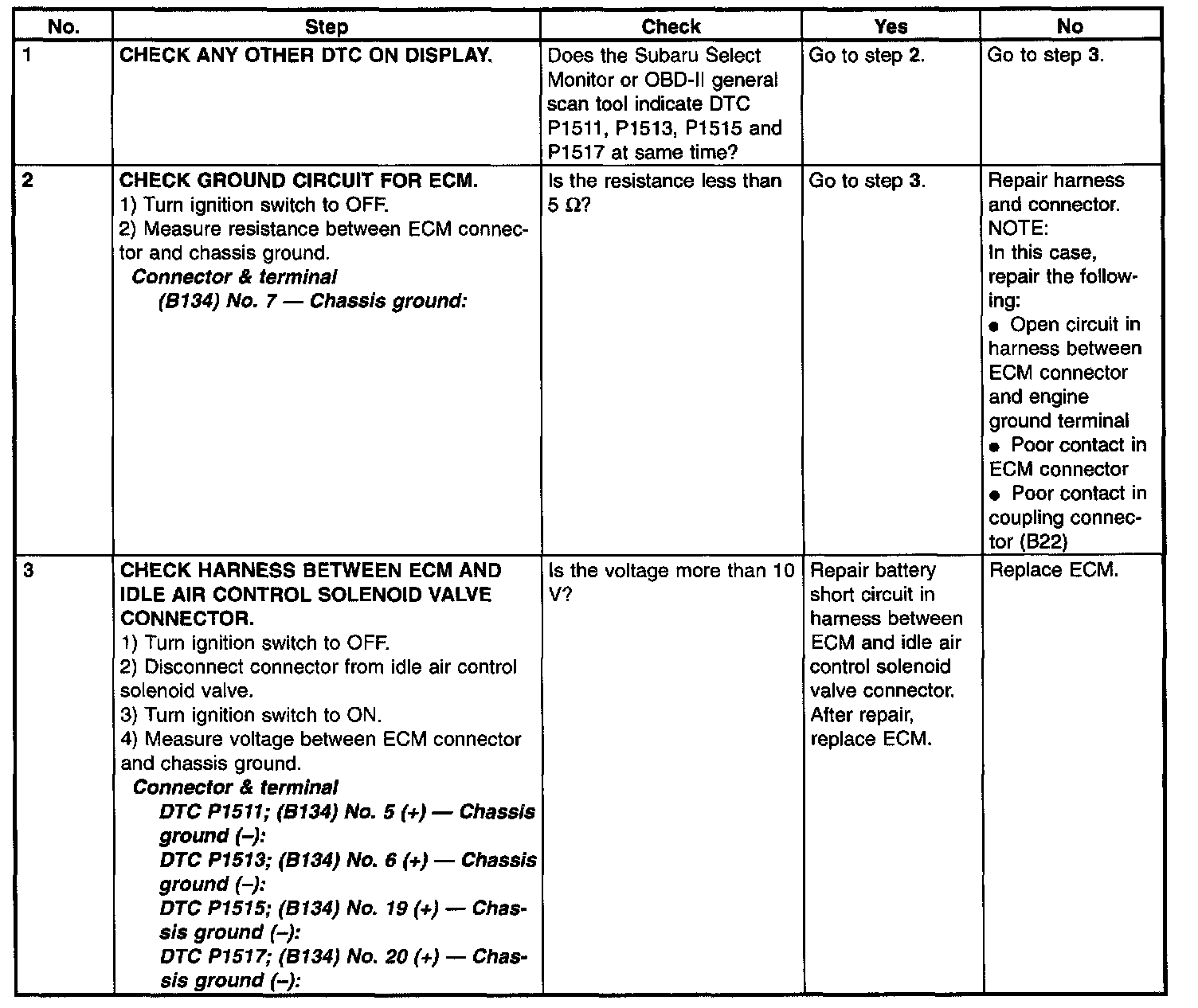

Step 1 - 3:

WIRING DIAGRAM
