P1505

P1505 - IDLE CONTROL SYSTEM CIRCUIT HIGH INPUT

DTC DETECTING CONDITION
- Immediately at fault recognition

TROUBLE SYMPTOM
- Erroneous idling
- Engine stalls.
- Engine breathing

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

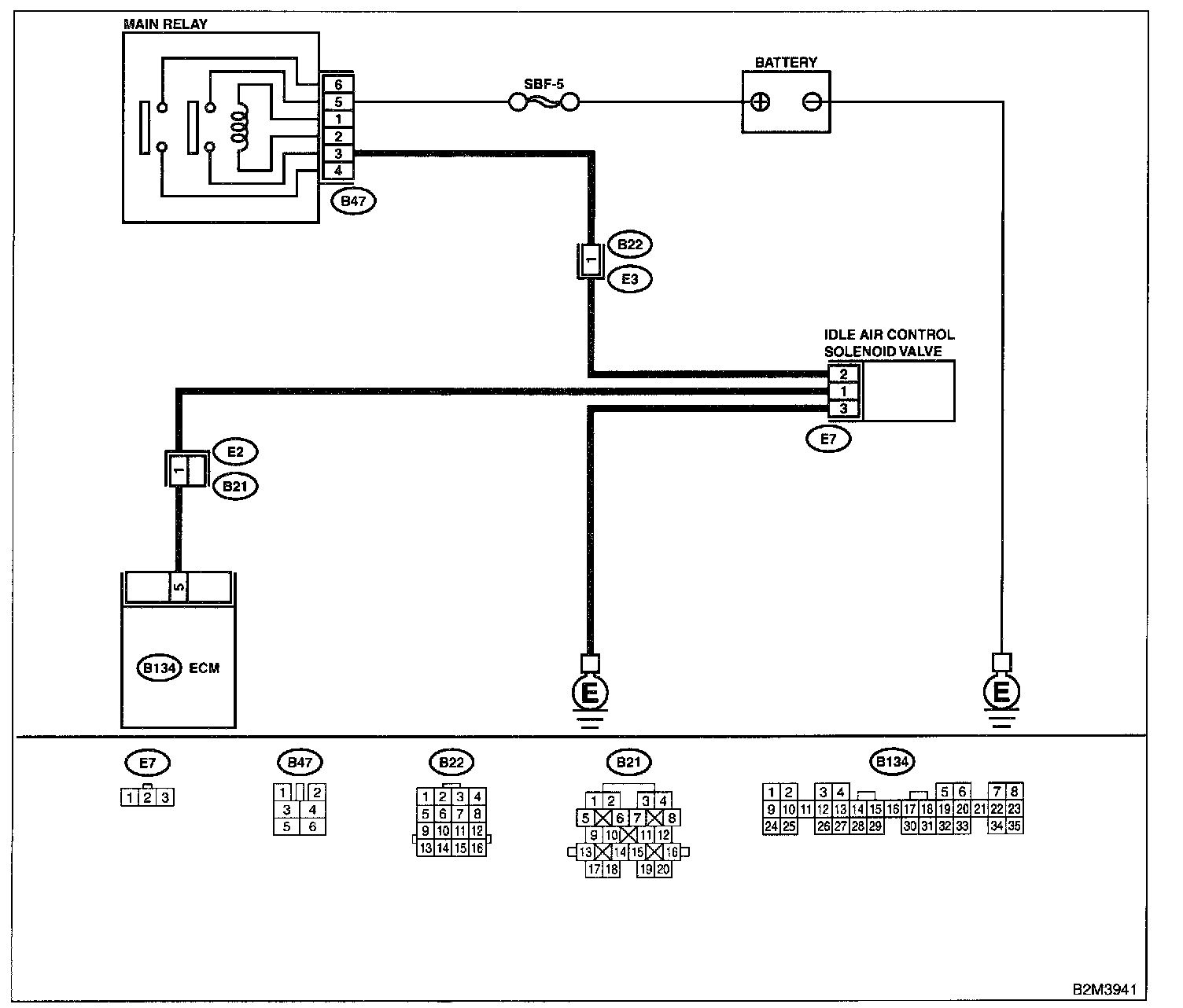

Wiring Diagram:

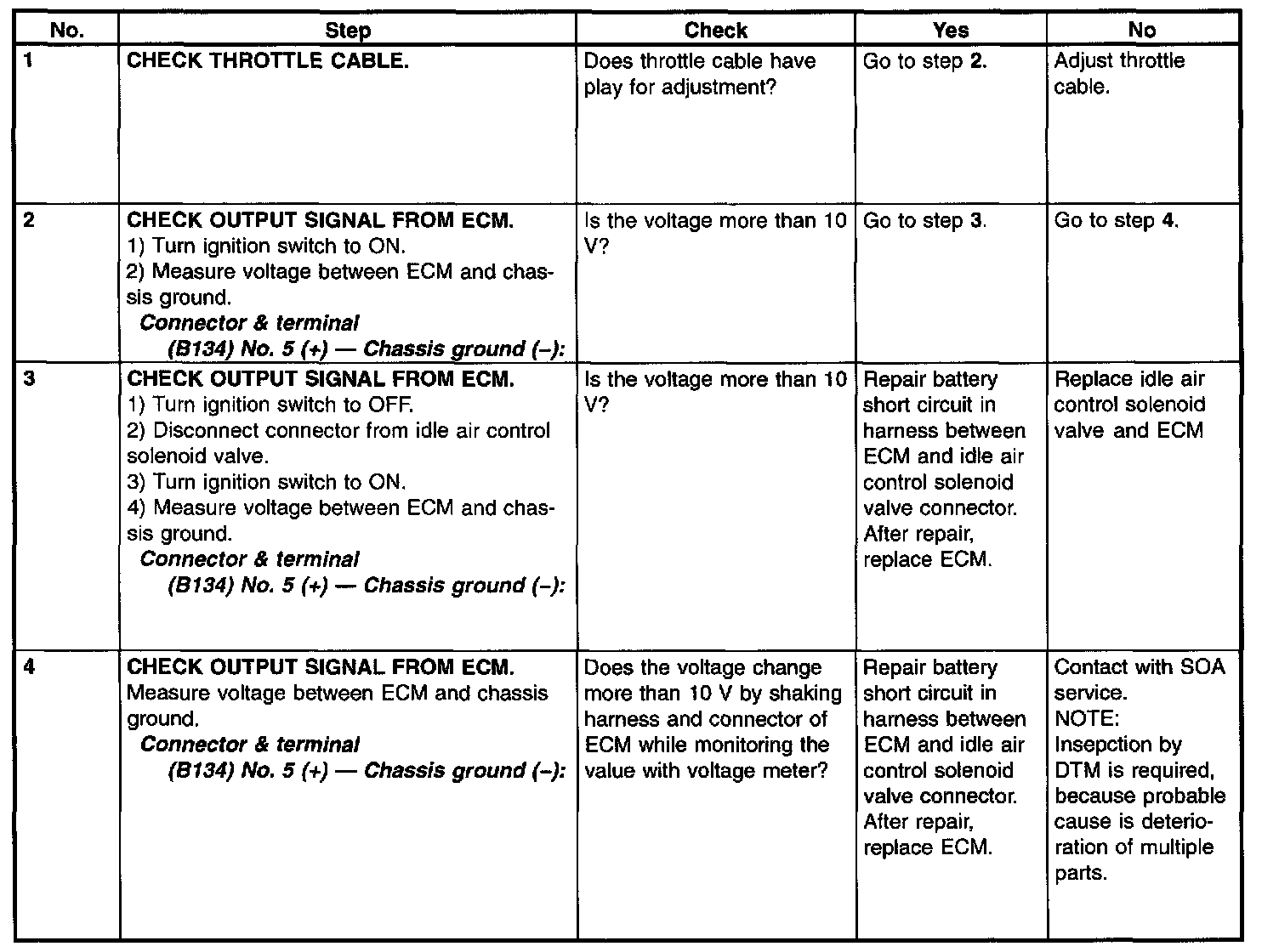

Step 1 - 4:

WIRING DIAGRAM
