P1400 - FUEL TANK PRESSURE CONTROL SOLENOID VALVE CIRCUIT LOW INPUT

DTC DETECTING CONDITION
- Two consecutive driving cycles with fault

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

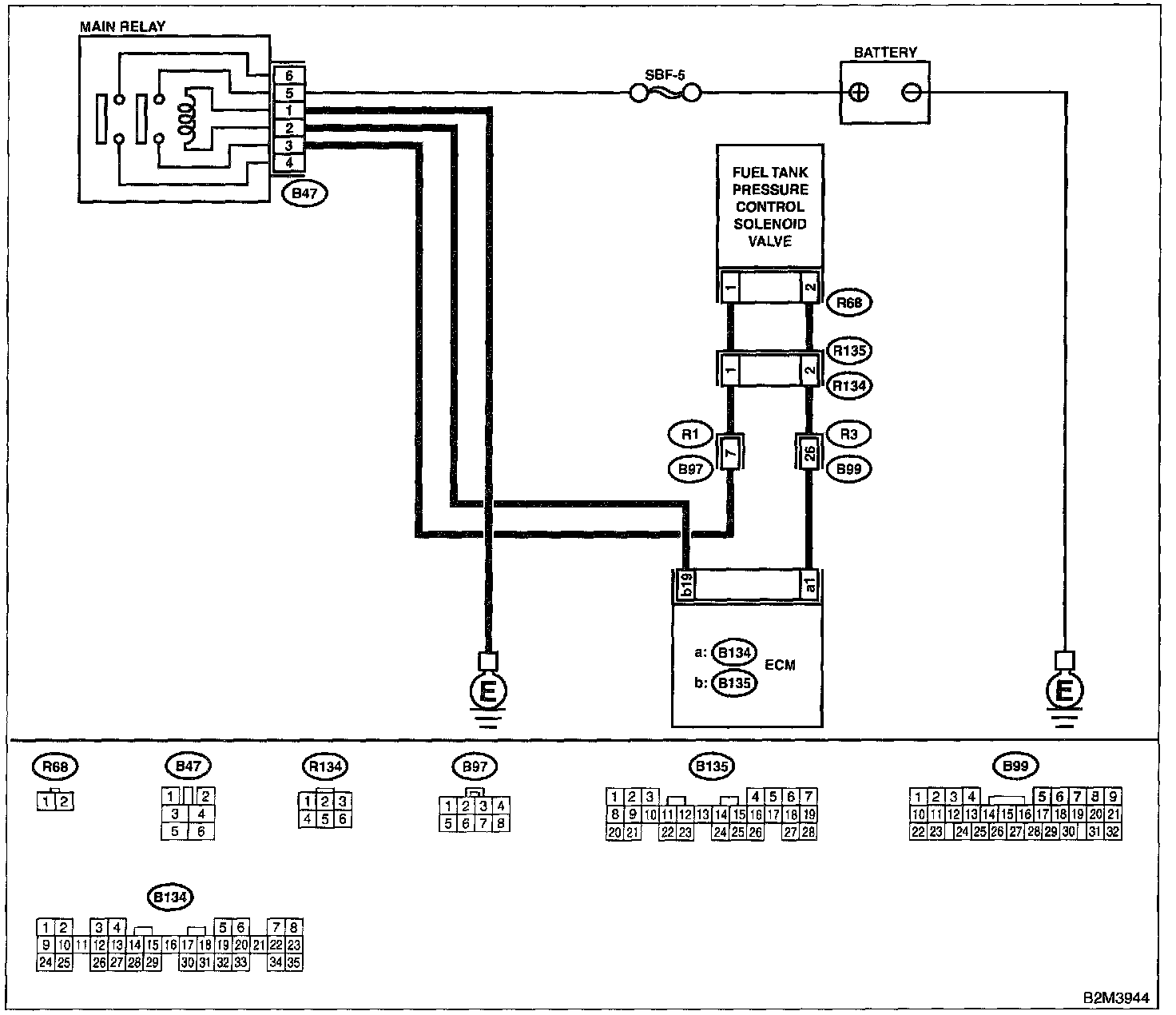

Wiring Diagram:

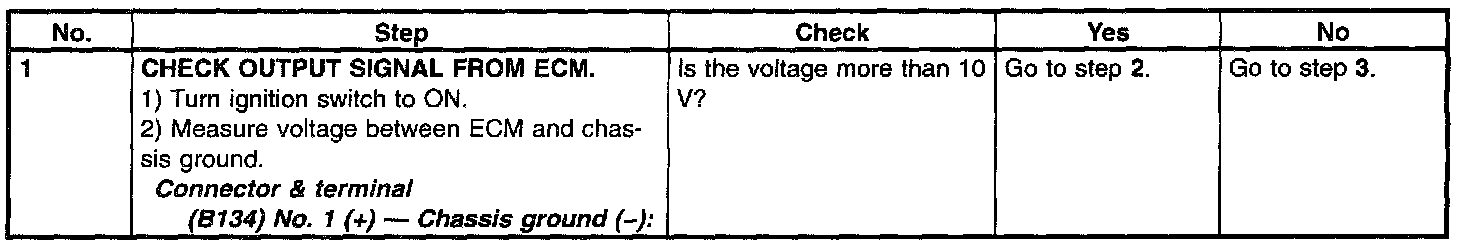

Step 1:

Step 2 - 5:

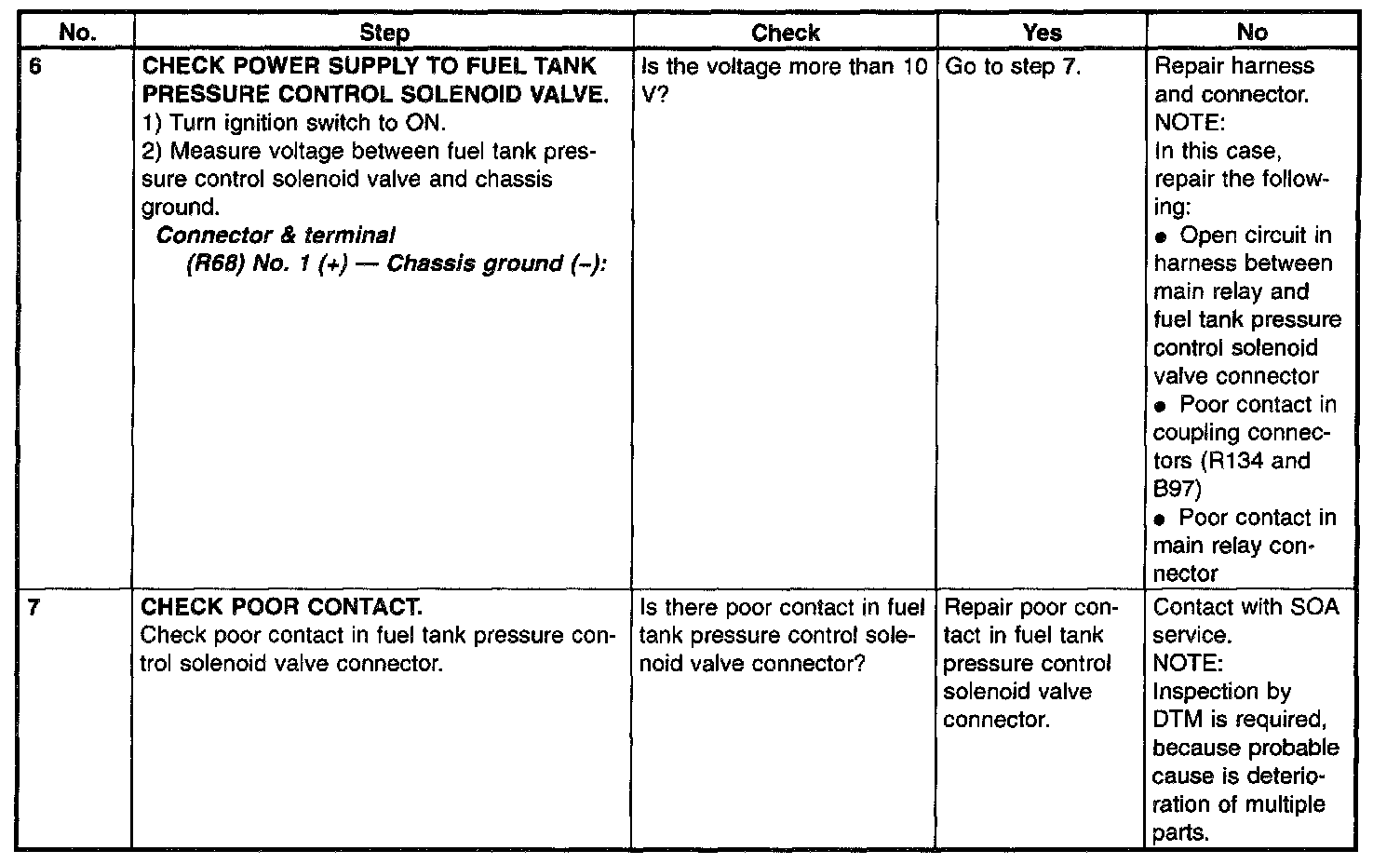

Step 6 - 7:

WIRING DIAGRAM
