P1146

P1146 - PRESSURE SENSOR CIRCUIT RANGE/PERFORMANCE PROBLEM (HIGH INPUT)

DTC DETECTING CONDITION
- Two consecutive driving cycles with fault

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

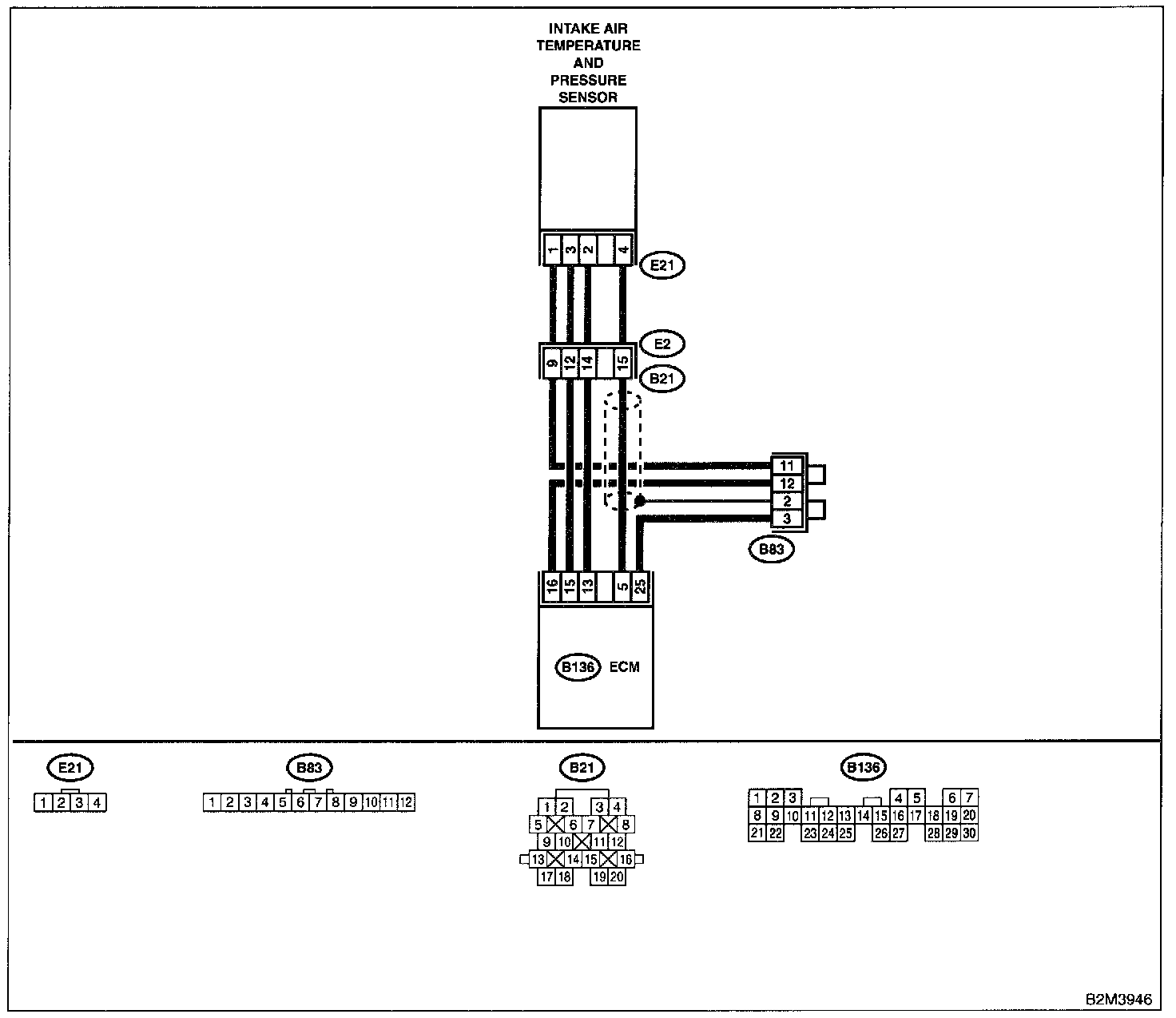

Wiring Diagram:

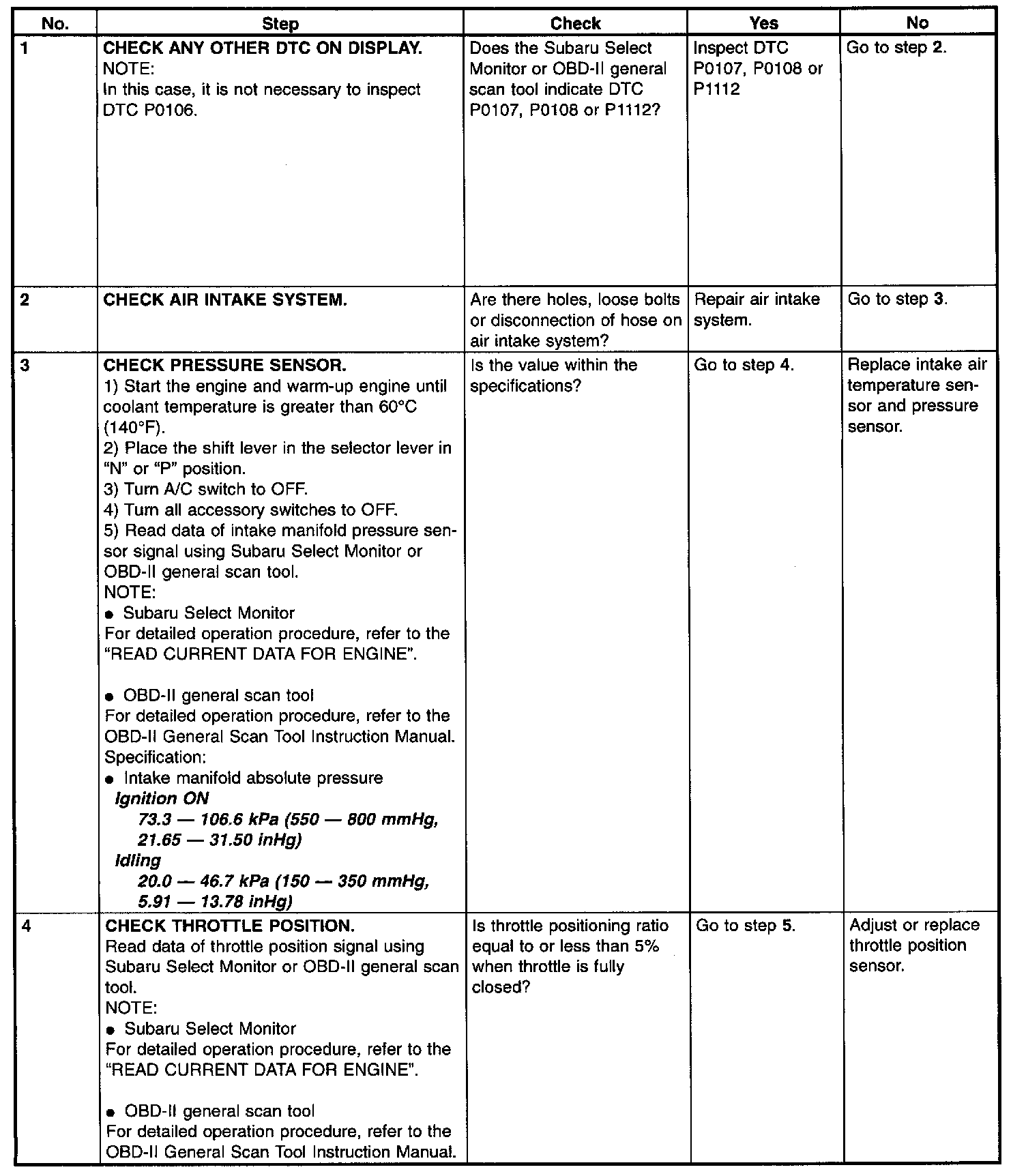

Step 1 - 4:

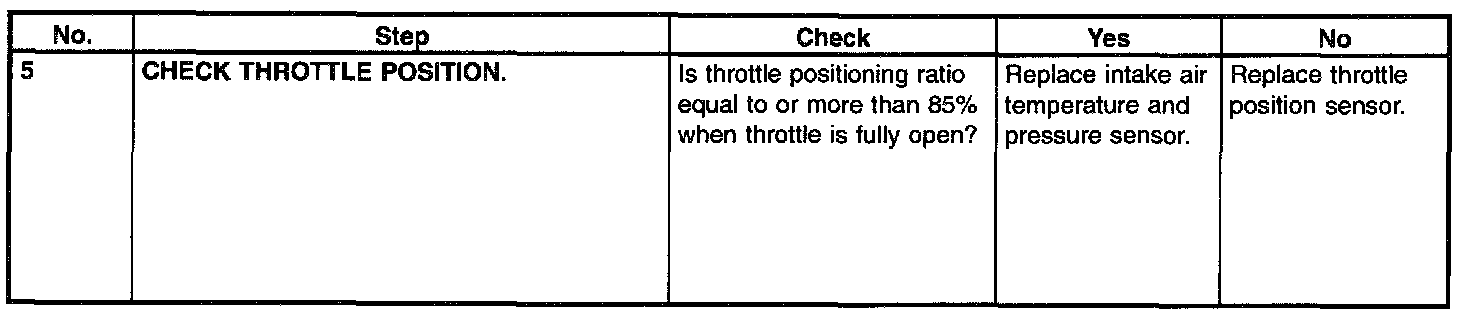

Step 5:

WIRING DIAGRAM
