P1132

P1132 - FRONT OXYGEN (A/F) SENSOR HEATER CIRCUIT LOW INPUT

DTC DETECTING CONDITION
- Two consecutive driving cycles with fault

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

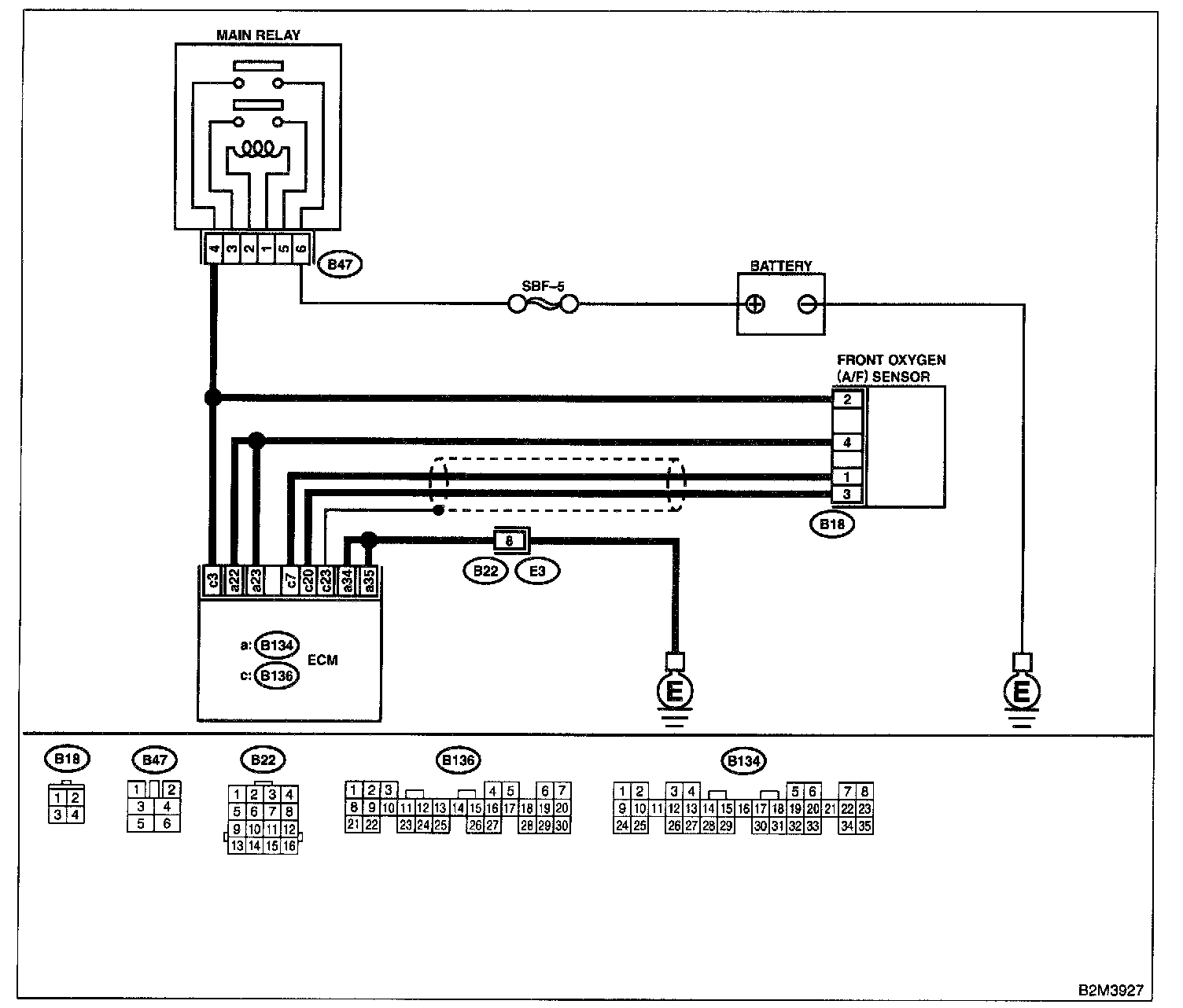

Wiring Diagram:

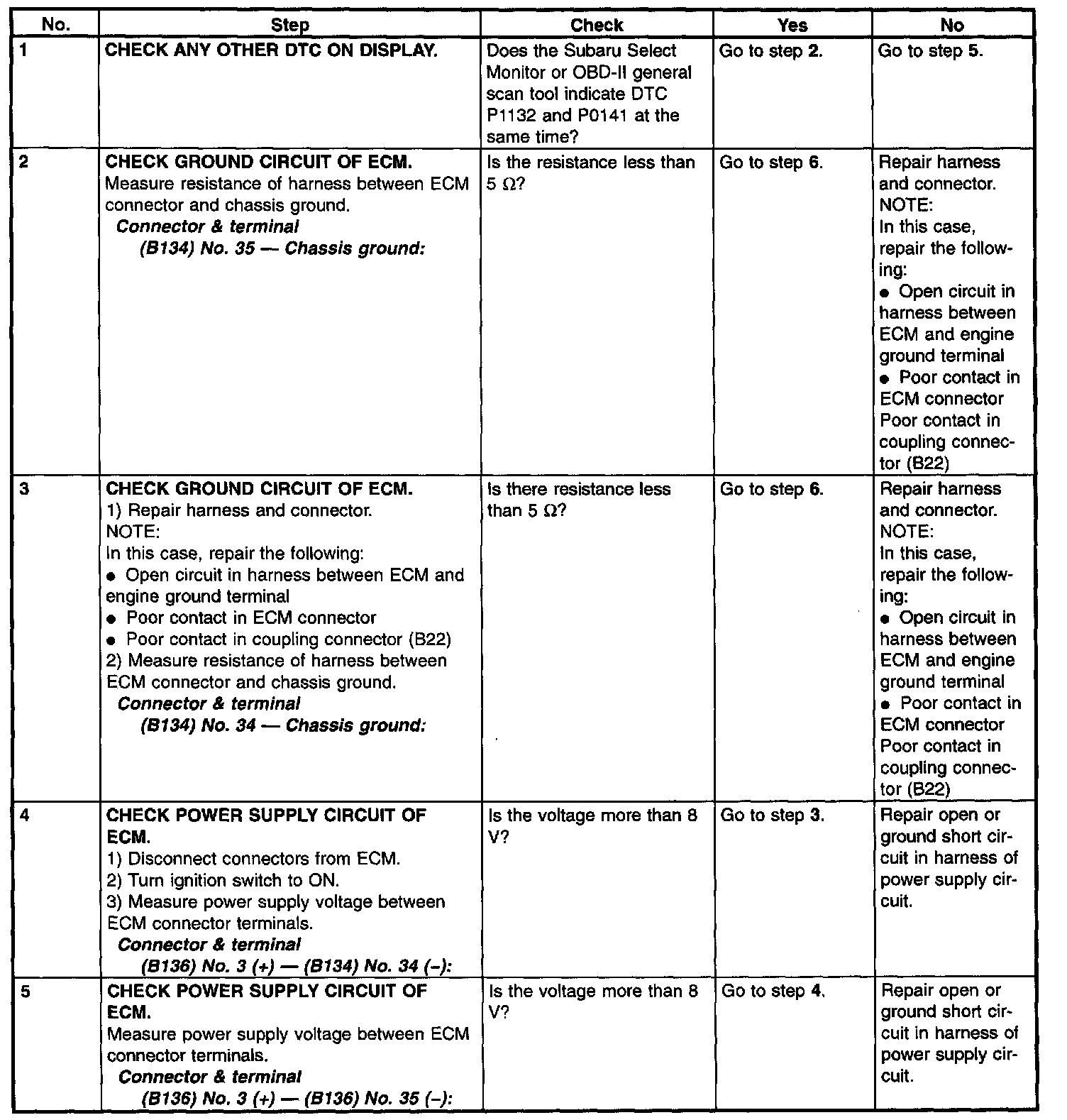

Step 1 - 5:

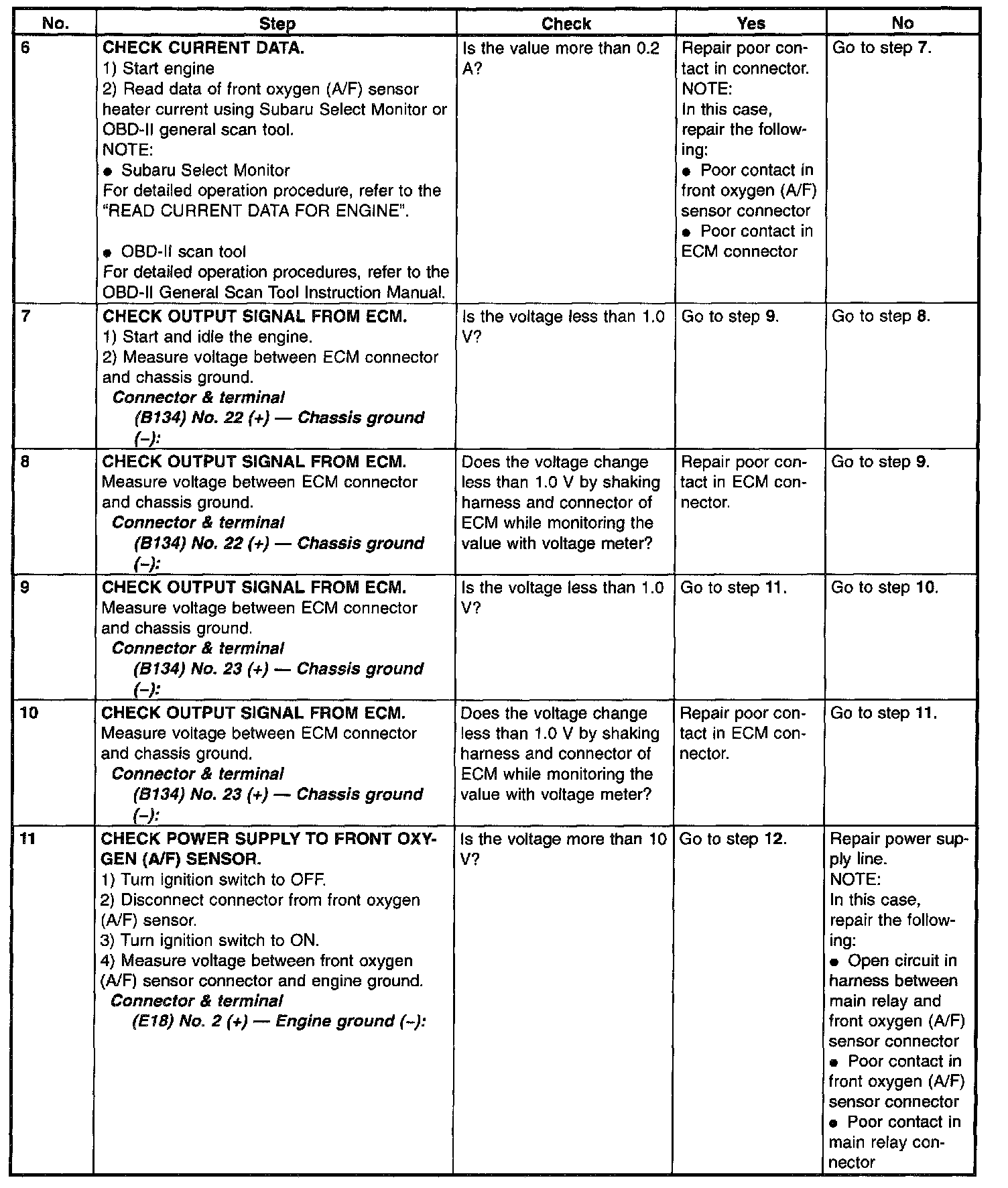

Step 6 - 11:

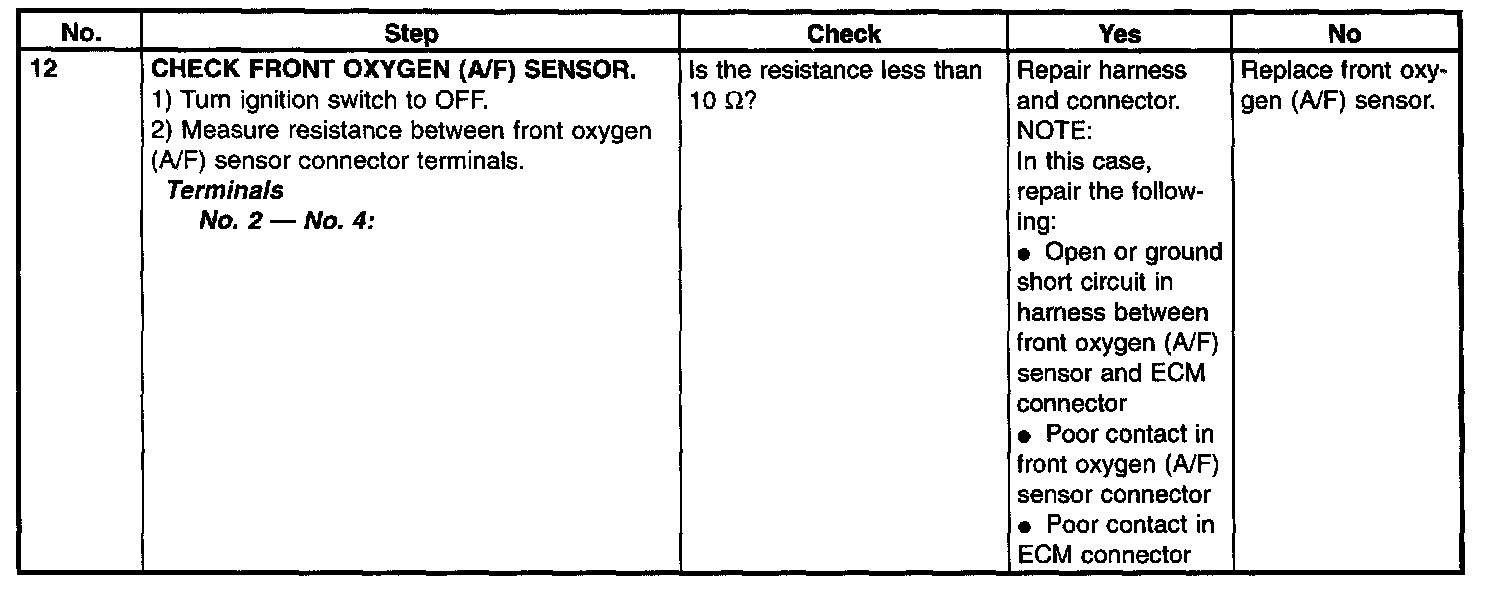

Step 12:

WIRING DIAGRAM
