P1120

P1120 - STARTER SWITCH CIRCUIT HIGH INPUT

DTC DETECTING CONDITION
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM
- Failure of engine to start

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

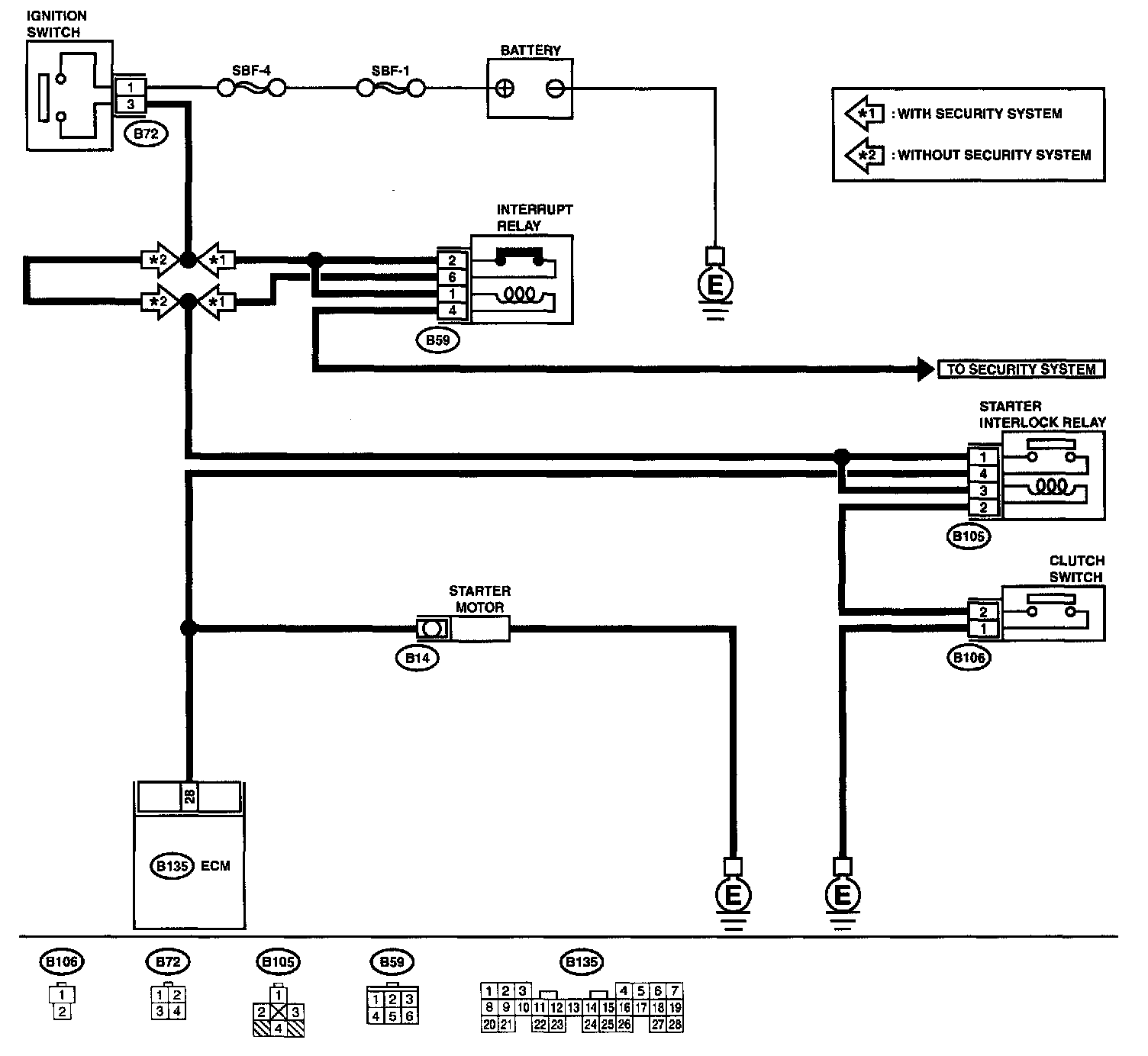

Wiring Diagram:

Step 1:

WIRING DIAGRAM
